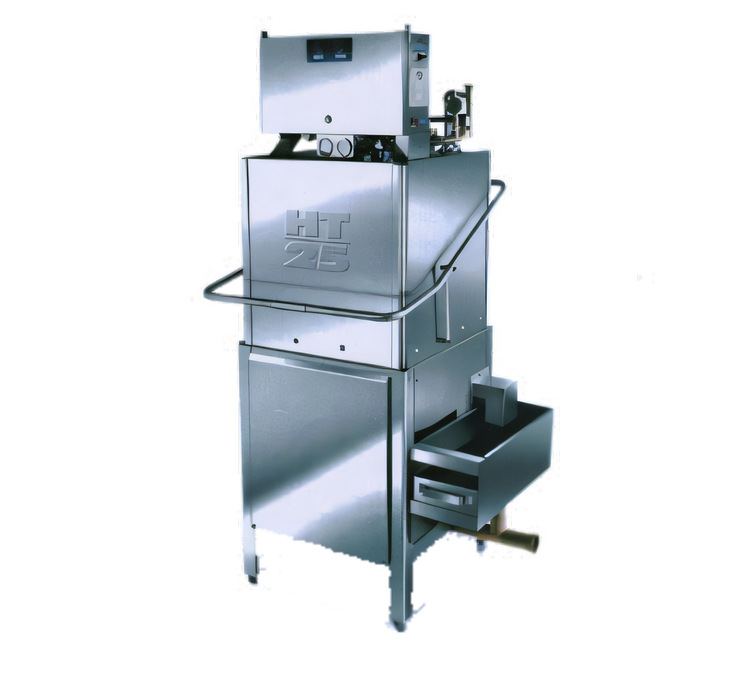

American Dish Service HT-25 High-Temperature Convertible Door Type Dishmachine
American Dish Service HT-25 High-Temperature Convertible Door Type Dishmachine
57 Racks/Hour, 3 HP Wash Pump, Electric Tank Heat
Experience rapid and powerful warewashing with the American Dish Service HT-25, engineered for high-volume commercial kitchens with its fast cycles and efficient cleaning.
- Rapidly washes, rinses, and sanitizes up to 57 racks per hour (74 for 60-second cycle).
- Versatile door design allows for straight-through or corner installation.
- Features a powerful 3 HP wash pump for superior scrubbing and cleaning performance.
- Designed for low water usage, consuming only 0.85 gallons per rack to conserve resources.
- Durable stainless steel construction ensures longevity and hygiene in demanding commercial settings.
- Available with either 45 or 60 second wash cycles to optimize operational efficiency.
- Equipped with advanced features like auto-fill and a two-stage drain filter to minimize downtime.

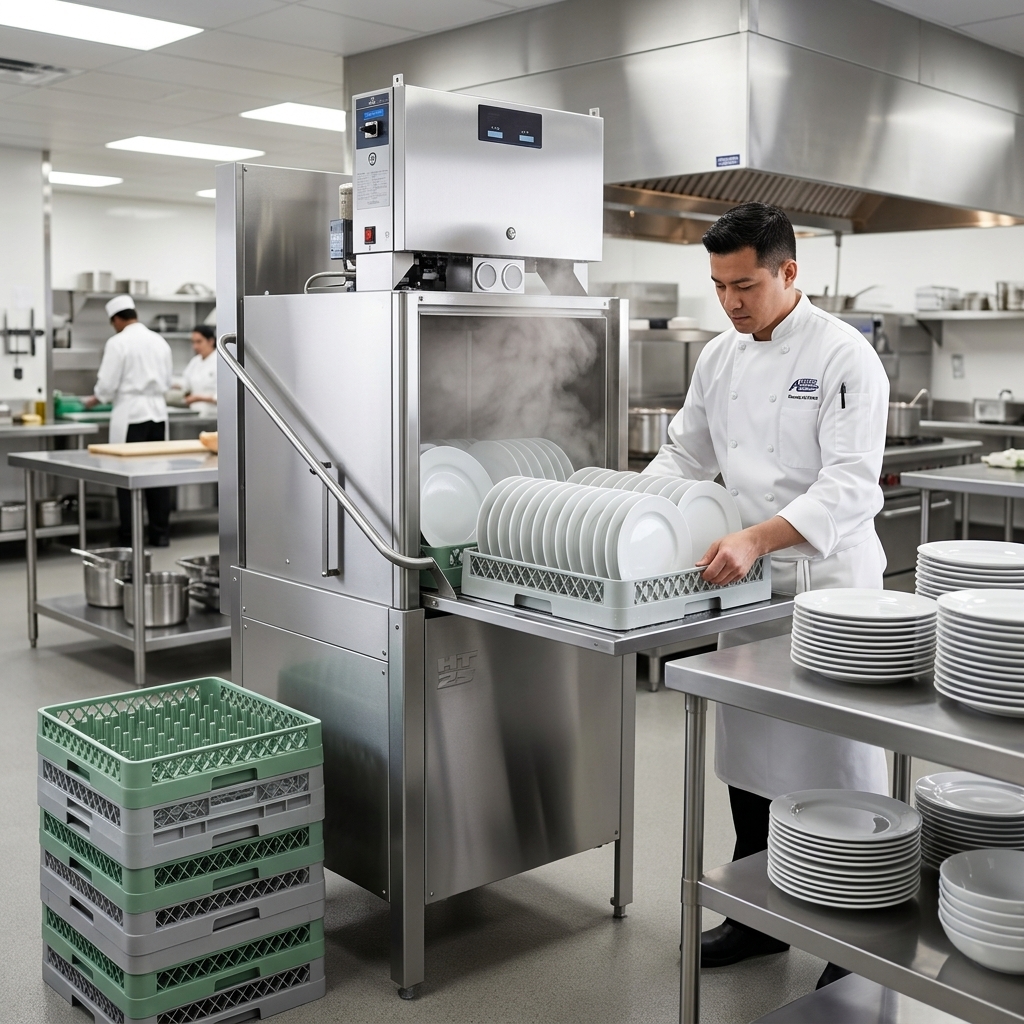

Rapid Wash Cycle
Wash, rinse, and sanitize dishware in as little as 45 seconds, providing the fastest cycle in the industry.

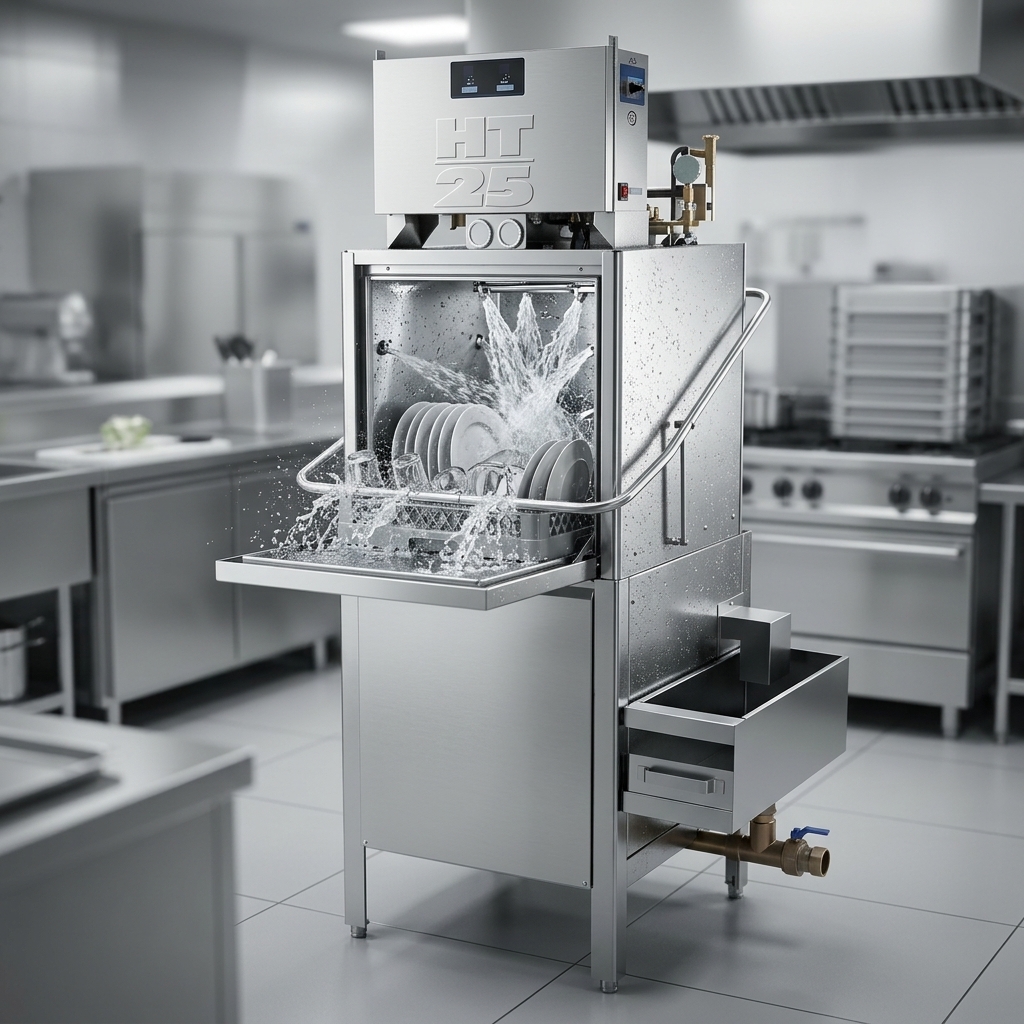

Powerful 3 HP Wash Pump
A high-power pump scrubs away what other dish machines might leave behind, ensuring thoroughly clean dishes.

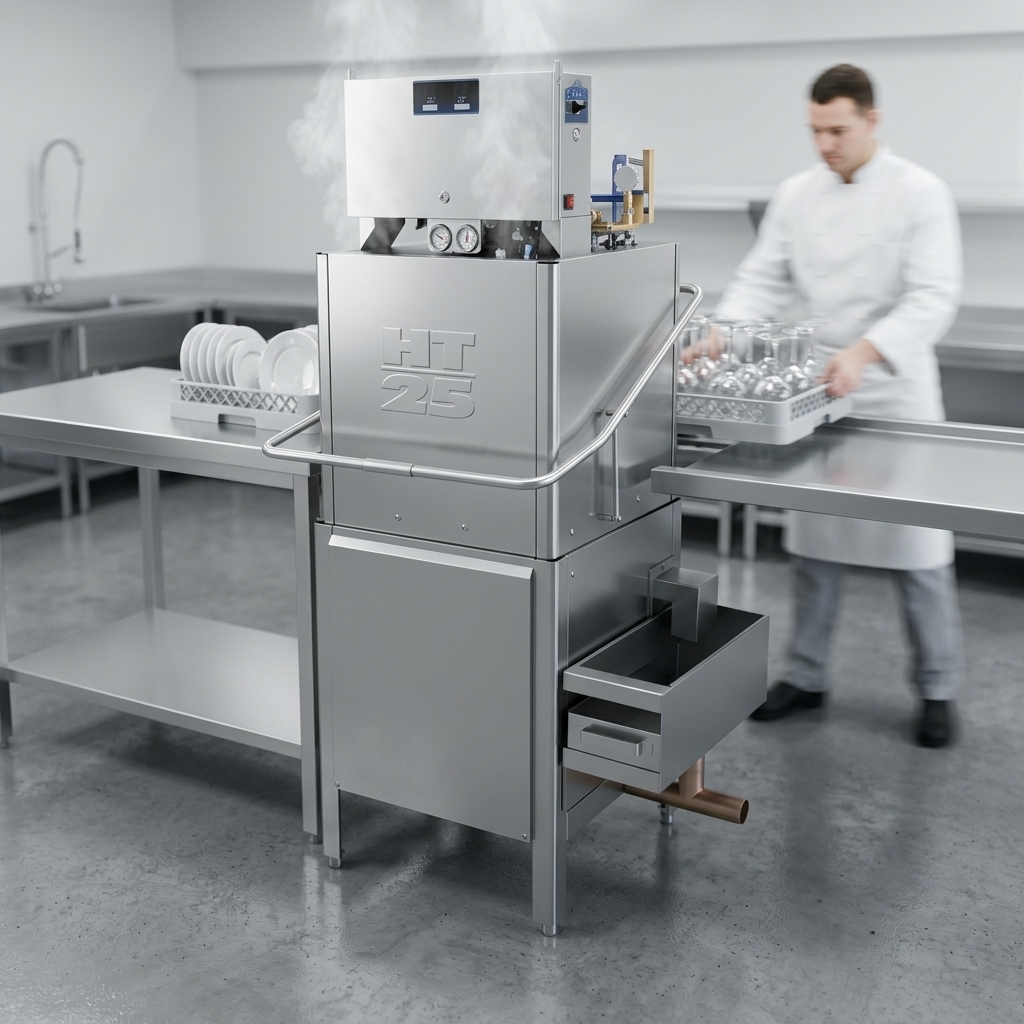

Low Water Usage
Consumes only 0.85 gallons of water per load, reducing water utility costs and environmental impact.
Convertible Installation
The versatile door design allows the machine to be installed in either a straight-through or corner configuration.
Approved Dual Sanitizer
The machine is approved to serve as either a high-temperature or low-temperature sanitizer, offering flexibility in operation (this model is configured for high-temp sanitizing).
Patented Self Cleaning Spray System
Ensures the internal spray system remains clean and effective for optimal performance.
Auto Fill
Automatically fills the wash tank to the correct water level, ensuring continuous operation.
Two-Stage Stainless Steel Drain Filter
A robust drain filter eliminates clogged pumps, preventing downtime and reducing maintenance.
ADS Patented Low-Water Protection
Safeguards the machine by preventing operation when water levels are insufficient.
Patented Captive Spray Arm End Caps
Designed to prevent the loss of small parts during cleaning and maintenance.
18 Inch Door Opening
Provides ample clearance for loading and unloading a wide variety of dishware and trays.
No Troublesome Circuit Boards
Engineered without complex circuit boards to prevent common points of failure and increase reliability.
Electric Tank Heat
Utilizes electric heating for consistent and reliable water temperature in the wash tank, essential for high-temperature sanitizing.
Top Mounted Controls
Conveniently located controls on top of the unit for easy access and operation.
Stainless Steel Construction
Features durable stainless steel construction for the interior, exterior, and motor panel, ensuring longevity and hygienic operation.
Specifications
| Type | Door Type Dishwasher |
|---|---|
| Style | High Temperature |
| Installation Type | Floor Model |
| Capacity | 57 Racks/Hour (Standard Cycle), 74 Racks/Hour (60-second cycle) |
| Wash Pump | 3 HP |
| Water Consumption | 0.85 Gallons Per Rack |
| Wash Tank Capacity | 15 Gallons |
| Heating Element | 9 kW |
| Water Inlet Size | 1/2 Inch NPT |
| Drain Connection Size | 1 1/2 Inches NPT |
| Water Connection | Required |
| Drain Connection | Required |
| Minimum Water Pressure | 25 PSI |
| Cycle Times | 45 or 60 Seconds |
| Voltage | 208/240 Volts |
| Phase | 3-Phase |
| Amps | 40 Amps |
| Material | Stainless Steel |
| Interior Finish | Stainless Steel |
| Controls | Top Mounted |
| Shipping Width | 25 Inches |
| Shipping Depth | 31 Inches |
| Shipping Height | 74 Inches |
| Shipping Weight | 460 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
Overall Dimensions:
25.0"W x 31.0"D x 74.0"HProduct Weight:
460.0 lbWarranty & Protection
Please refer to the manufacturer's documentation or contact American Dish Service for warranty information.
