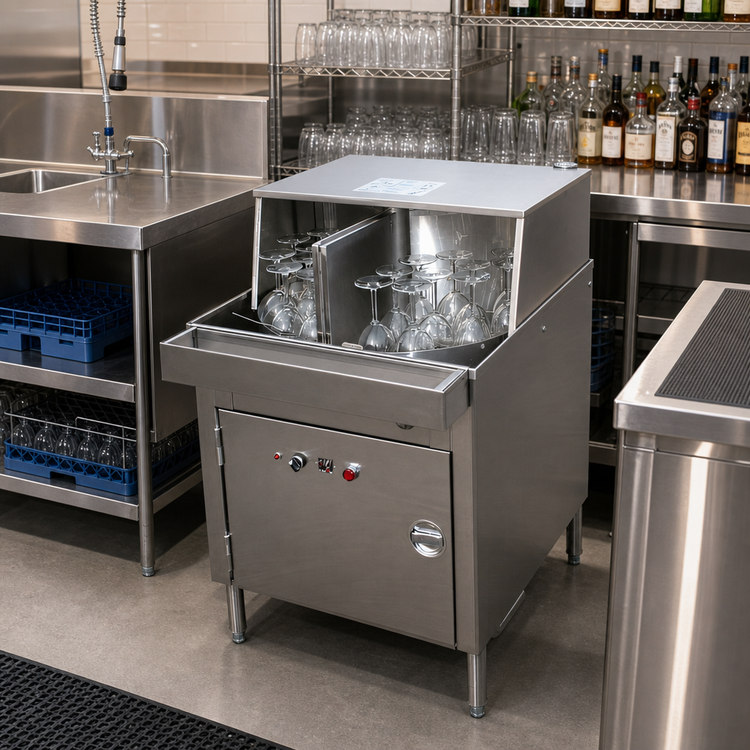

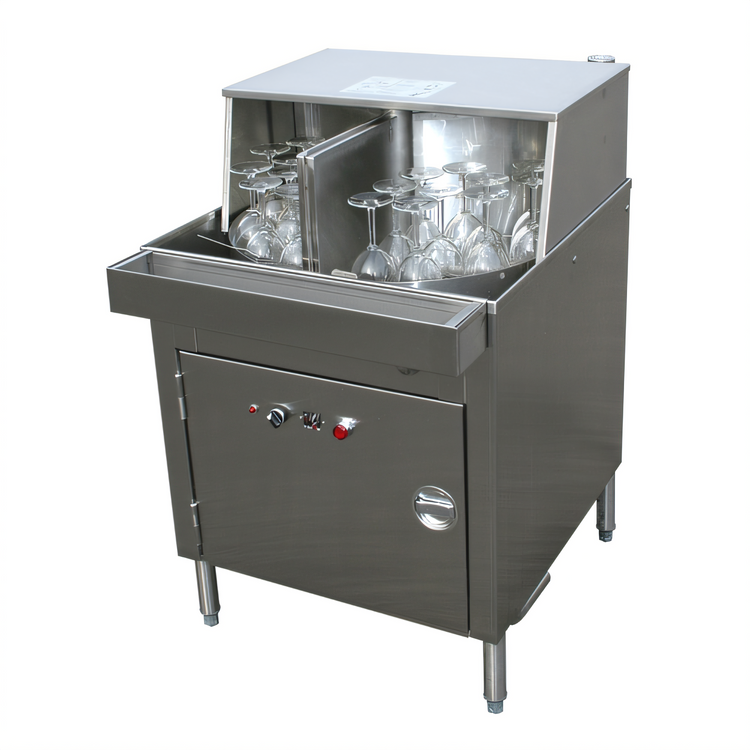

American Dish Service ASQ II Underbar Carousel Glasswasher, Low Temperature, 34 Racks/Hour

SKU: ASQII
$12,626.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

American Dish Service Bar Equipment Best Sellers Commercial Dishwashers Dishwashers Glass Washers New Arrivals Restaurant Equipment Undercounter Dishwashers Undercounter Dishwashers

American Dish Service ASQ II Underbar Carousel Glasswasher, Low Temperature, 34 Racks/Hour

Low Temperature, Chemical Sanitizing, Underbar Installation

Revolutionary in design, the ASQ II Glasswasher combines the convenience of a manual carousel with the powerful cleaning action of a dishmachine for sparkling clean glassware in just 75 seconds.

  • Achieve outstanding results with a rapid 75-second wash, drain, and rinse cycle.
  • Efficient full-load washing using a divided manual carousel saves power, water, and chemicals.
  • Manual turn carousel allows simultaneous loading, unloading, and washing, boosting operational efficiency.
  • Rotating spray arm and unique divided wash chamber ensure thorough and consistent cleaning.
  • Equipped with built-in chemical dispensing for detergent, rinse aid, and sanitizer.
  • Sustained tank heat maintains optimal wash water temperature for effective cleaning and sanitization.

Overall Dimensions:

25.25"W x 29.8"D x 38.5"H

Product Weight:

288.0 lb

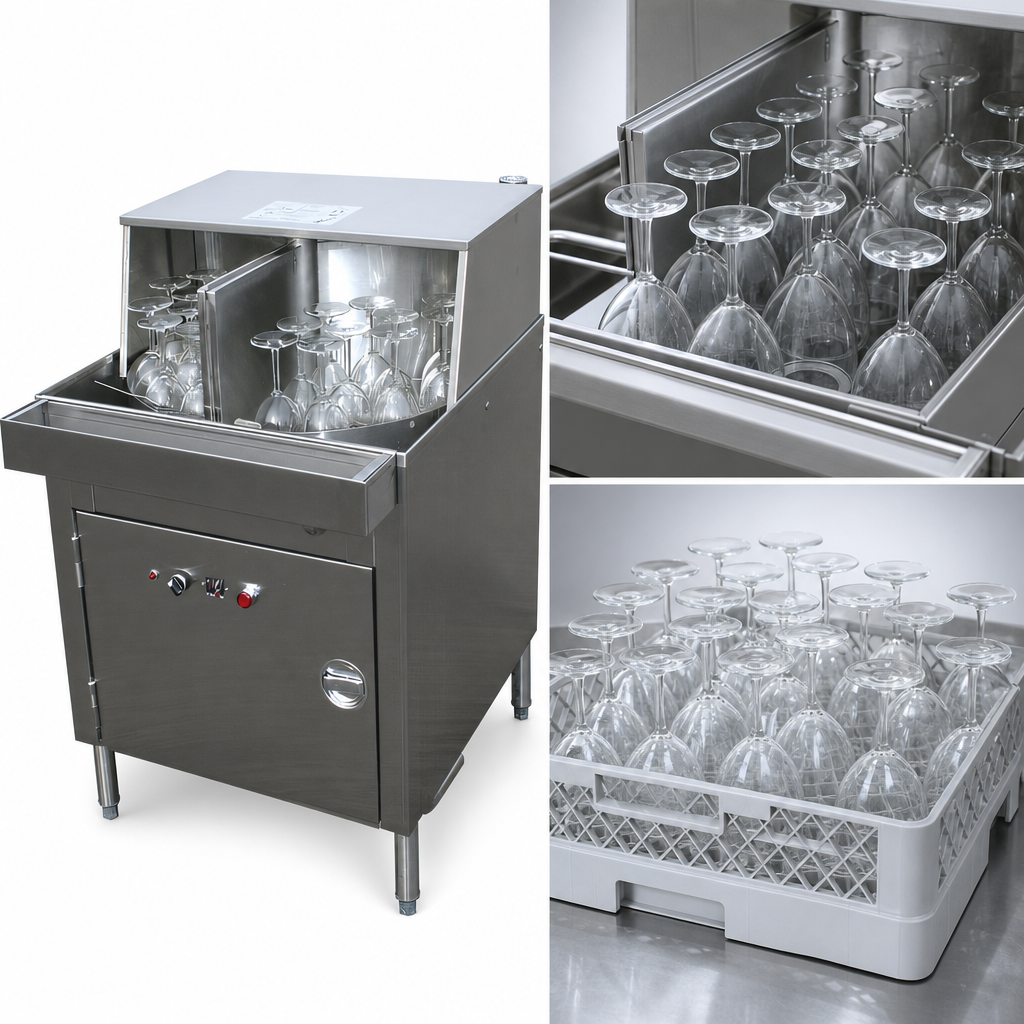

Full Load Washing

Designed for maximum efficiency, the ASQ II washes full loads of glassware, optimizing power, water, and chemical consumption.

Full Load Washing

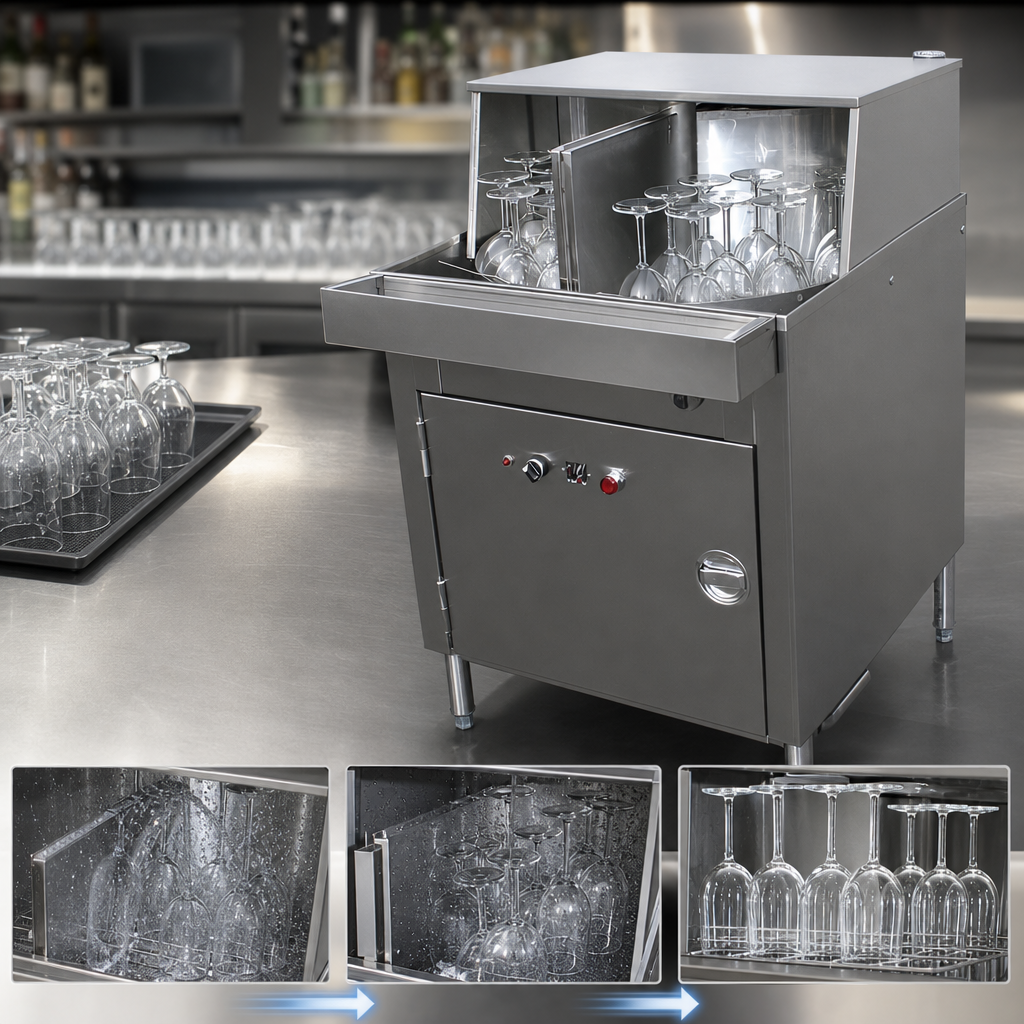

Fast Cycle Time

Boasts a rapid 75-second total cycle time, including wash, drain, and rinse, ensuring quick turnaround of clean glassware during busy periods.

Fast Cycle Time

Rotating Spray Arm

Utilizes a rotating spray arm and high-volume water spray to deliver outstanding and consistent cleaning results for all types of glassware.

Divided Carousel Design

The carousel is divided into three positions by stainless steel panels, creating isolated wash compartments that control water and washing action, allowing for simultaneous loading, washing, and unloading.

Manual Turn Carousel

Features a manual turn carousel that easily rotates and locks into the next position with a push of a lever, eliminating the need to wash one glass at a time and maximizing efficiency.

Sustainer Heater

Maintains the tank water temperature at 120°F (49°C), ensuring optimal conditions for effective cleaning and the performance of rinse aids.

Built-in Chemical Dispensing

Comes with three built-in chemical dispensing pumps for detergent, rinse aid, and sanitizer, complete with color-coded lines and storage for one-gallon containers.

120°F Final Rinse

The final rinse water temperature of 120°F allows for maximum effectiveness of rinse aids, promoting spot-free drying.

Separate Stainless Steel Pumps

Equipped with dedicated stainless steel wash and drain pumps, contributing to quieter operation.

Glassware Crossarm

Includes a glassware crossarm with a standard spray arm bearing and bayonet pin release for efficient spray coverage and easy removal for cleaning.

Easy Maintenance

Designed for straightforward daily maintenance, with easily removable hood top, carousel drum, splash shields, spray arm, scrap tray, and pump screen for thorough cleaning.

Type Glasswasher
Style Carousel
Installation Type Underbar
Rack Capacity 34 Racks Per Hour
Wash Time 45 Seconds
Rinse Time 14 Seconds
Dwell 16 Seconds
Total Cycle Time 75 Seconds
Water Consumption 1.27 Gallons Per Cycle (43.2 Gallons/Hour)
Water Temperature 120°F (49°C)
Wash Motor 1/3 HP (0.246 kW)
Drain Motor 1/6 HP (0.124 kW)
Heater 350 Watts (0.350 kW)
Voltage 115 Volts
Amps 7.5 Amps
Hertz 60 Hz
Phase 1-Phase
Breaker Size 15 Amp Circuit Breaker or Fuse
Water Inlet Size 1/2 Inch FPT
Drain Connection Size 1 1/2 Inches O.D.
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 36 Inches
Shipping Height 46 Inches
Shipping Weight 288 Pounds

Warranty & Protection

Manufacturer's Warranty

Documents

PDF Cutsheet PDF Download PDF Parts manual PDF Download PDF Owner's manual PDF Download PDF Service manual PDF Download PDF Installation manual PDF Download PDF Ladder wire chart PDF Download PDF Technical manual PDF Download PDF Brochure PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

The ASQ II Glasswasher has a total cycle time of 75 seconds, which includes a 45-second wash, 14-second drain, and 16-second dwell/rinse.
The machine uses three built-in chemical pumps for detergent (red), rinse aid (blue), and sanitizer (green). It is designed for one-gallon chemical containers.
To operate, completely load a compartment of the carousel. Push the detent lever to release, then manually turn the carousel until the loaded glasses are in the washing compartment and locked into place. Push the red 'START' button to begin the 75-second wash, rinse, and sanitization cycle.
The machine requires an operational hot water supply from the building's water heater, with a minimum required temperature of 120°F (49°C) at the machine for effective cleaning and sanitization.
After each shift, drain the water using the drain switch, then remove and clean the spray arm and pump filter. The hood top, carousel drum, and splash shields can also be removed for easy access and cleaning. Leave the machine empty, dry, and clean, and turn off the master switch.
