American Dish Service ADC-66 Low Temperature Conveyor Dishwasher, Left-to-Right Feed

SKU: ADC-66 LOW L-R
$49,060.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

American Dish Service Best Sellers Commercial Dishwashers Conveyor Dishwashers Conveyor Dishwashers Dishwashers New Arrivals Restaurant Equipment

American Dish Service ADC-66 Low Temperature Conveyor Dishwasher, Left-to-Right Feed

Dual Sanitizer, 244 Racks/Hour, 3 HP Wash with Prewash

Experience unparalleled cleaning performance and water efficiency with the ADC-66 low temperature conveyor dishwasher, designed for high-volume commercial kitchens.

  • High capacity washing at 244 racks per hour with exceptional water efficiency (.49 gallons per rack).
  • Features a powerful 3 HP wash pump and a pre-wash with power scrapper for reliable cleaning.
  • Equipped with dual sanitizing capabilities for optimal hygiene.
  • Durable stainless steel construction ensures longevity and easy maintenance.
  • Smart features like auto-fill, drain pump filter, and fail-safe conveyor system enhance operation.
  • Left-to-right feed configuration optimizes workflow in busy kitchen layouts.

Overall Dimensions:

86.0"W x 34.5"D x 71.25"H

Product Weight:

978.0 lb

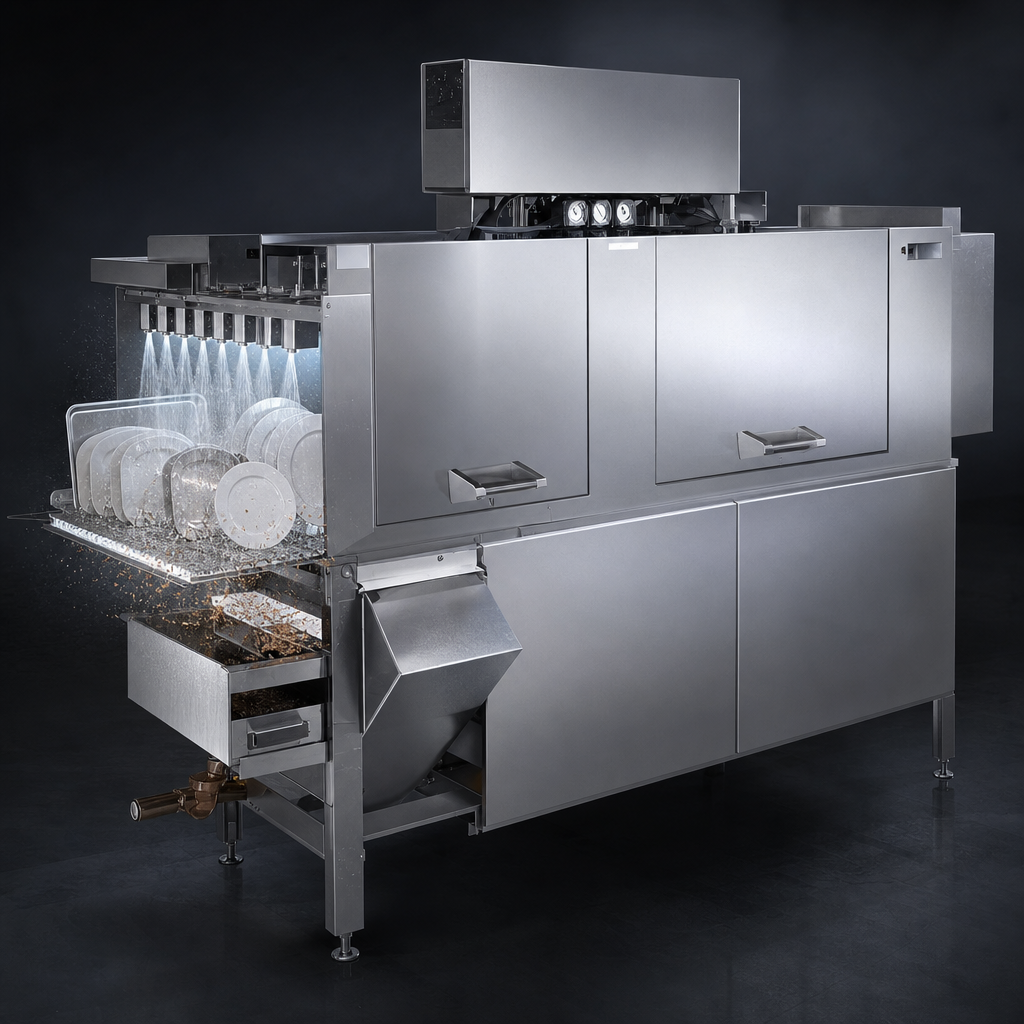

Reliable Pre-Wash

Integrated power scrapper pre-wash system effectively removes heavy food soil before the main wash cycle.

Reliable Pre-Wash

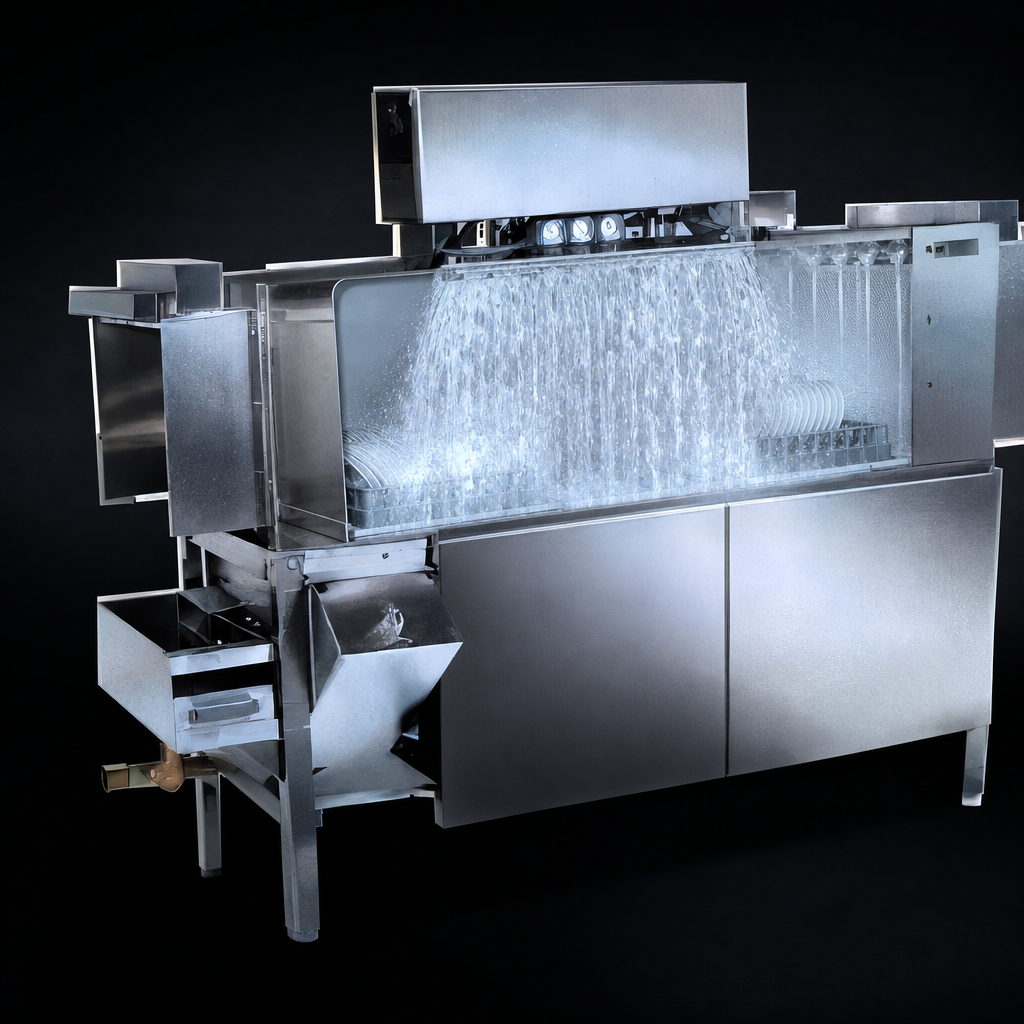

Water Curtain Rinseability

Activates prior to the final rinse, initiating the rinsing process and acting as a shield for improved cleaning.

Water Curtain Rinseability

Captive End Caps

Flips open and snaps shut for quick and easy clearing of spray arms, reducing cleaning time and downtime.

Deep "V" Scrap Tank

Designed to keep soil in the tray, protecting the wash pump from debris and ensuring efficient operation.

Drain Pump Filter

A two-stage pump strainer that eliminates wash pump obstructions and clogged jets, also functions as a drain stopper.

Dual - Fail Safe Heater Control

A precise water control mechanism that only allows heaters to operate when the tank is full, unaffected by heavy soil, water action, strong chemicals, and lime build-up.

Fail - Safe Conveyor System

Features a slip clutch design that stops rack movement if an obstruction occurs, allowing for easy resumption of operation without damaging racks.

Auto Fill / Auto Start / Shut-off

Automated system for convenient operation, filling the machine, starting the wash cycle, and shutting off when not in use.

Dual Rinsing System

Ensures comprehensive cleaning and sanitization with both a pre-rinse water curtain and final rinse.

Top Mounted Controls

Conveniently located controls for easy access and operation.

Type Conveyor Dishwasher
Style Left-to-Right Feed
Installation Type Floor Model
Temperature Low Temp Chemical
Rack Capacity 244 racks/hour
Water Consumption 0.49 Gallons Per Rack
Total Water Consumption 120 Gallons Per Hour
Conveyor Speed 6.8 ft/min
Final Rinse Temperature 120° F
Sanitizer 50ppm Chlorine
Wash Pump HP 3 HP
Scrap Pump HP 1.5 HP
Rinse Pump HP 0.33 HP
Conveyor Motor HP 0.33 HP
Tank Heat Electric
Voltage 220 Volts
Amps 90 Amps
Phase 3-Phase
Hertz 60 Hz
Watts 19.8 kW
Water Inlet Size 3/4 inch F.P.T.
Drain Connection Size 2 inch F.P.T.
Material Stainless Steel
Rack Size 19.75 x 19.75 Inches
Rack Clearance 19.25 x 20.75 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 86 Inches
Shipping Depth 44 Inches
Shipping Height 80 Inches
Shipping Weight 978 lb.

Warranty & Protection

Manufacturer's standard warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The American Dish Service ADC-66 low temperature conveyor dishwasher can process 244 racks per hour, utilizing only 0.49 gallons of water per rack.
Yes, the ADC-66 model includes a reliable pre-wash with a 3 HP wash pump and power scrapper, along with a deep 'V' scrap tank design to effectively manage soil.
This model is designed for low temperature operation and uses a dual sanitizing system with 50ppm chlorine and a final rinse temperature of 120° F.
The ADC-66 LOW L-R requires a 220 Volt, 3-Phase electrical connection drawing 90 Amps, with a suitable neutral and ground.
The Water Curtain Rinseability system activates before the final rinse, initiating the rinsing process earlier and acting as a shield to enhance overall cleaning effectiveness and improve rinse coverage.
Yes, the dishwasher features a Fail-Safe Conveyor System with a slip clutch design that stops rack movement if an obstruction is encountered, preventing damage to racks and allowing easy resumption of operation.
