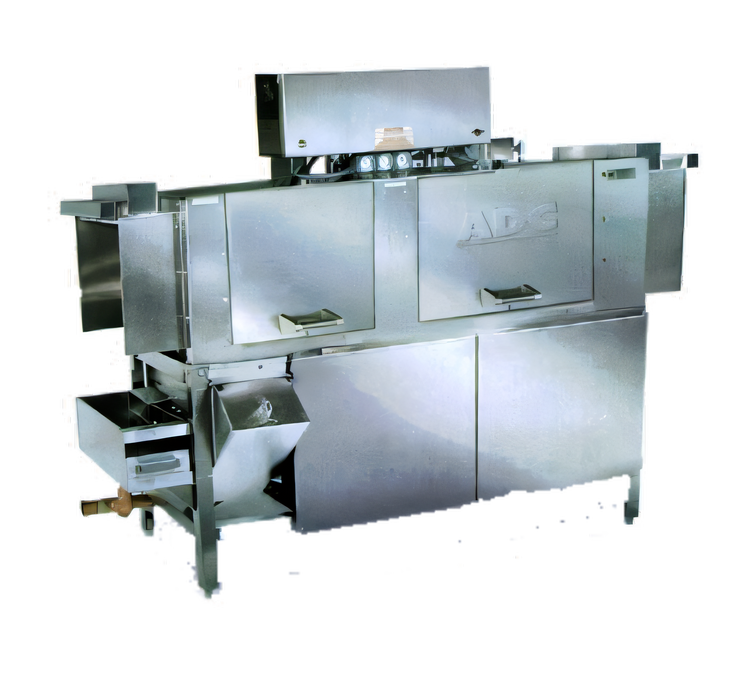

American Dish Service ADC-66 High-Temp Conveyor Dishwasher, Right to Left Feed
American Dish Service ADC-66 High-Temp Conveyor Dishwasher, Right to Left Feed
High-Temperature, Right-to-Left Feed, 244 Racks/Hour
Achieve superior dish cleaning efficiency and sanitation with the American Dish Service ADC-66 high-temperature conveyor dishwasher, designed for demanding commercial kitchens.
- Washes up to 244 racks per hour with only 0.49 gallons of water per rack, significantly reducing water consumption.
- Features a powerful 3 HP wash pump and 1.5 HP scrap pump for unrivaled cleaning ability.
- Equipped with a deep 'V' design pre-wash scrap tank and a 2-stage drain pump filter to prevent clogs and protect the pump.
- Ensures consistent sanitation with 180°F final rinse water and dual fail-safe heater controls.
- Designed for ease of maintenance with captive end caps for quick spray arm cleaning and a fail-safe conveyor system.
- Durable stainless steel construction ensures longevity and hygiene in a commercial setting.
Overall Dimensions:
86.0"W x 34.5"D x 71.25"HProduct Weight:

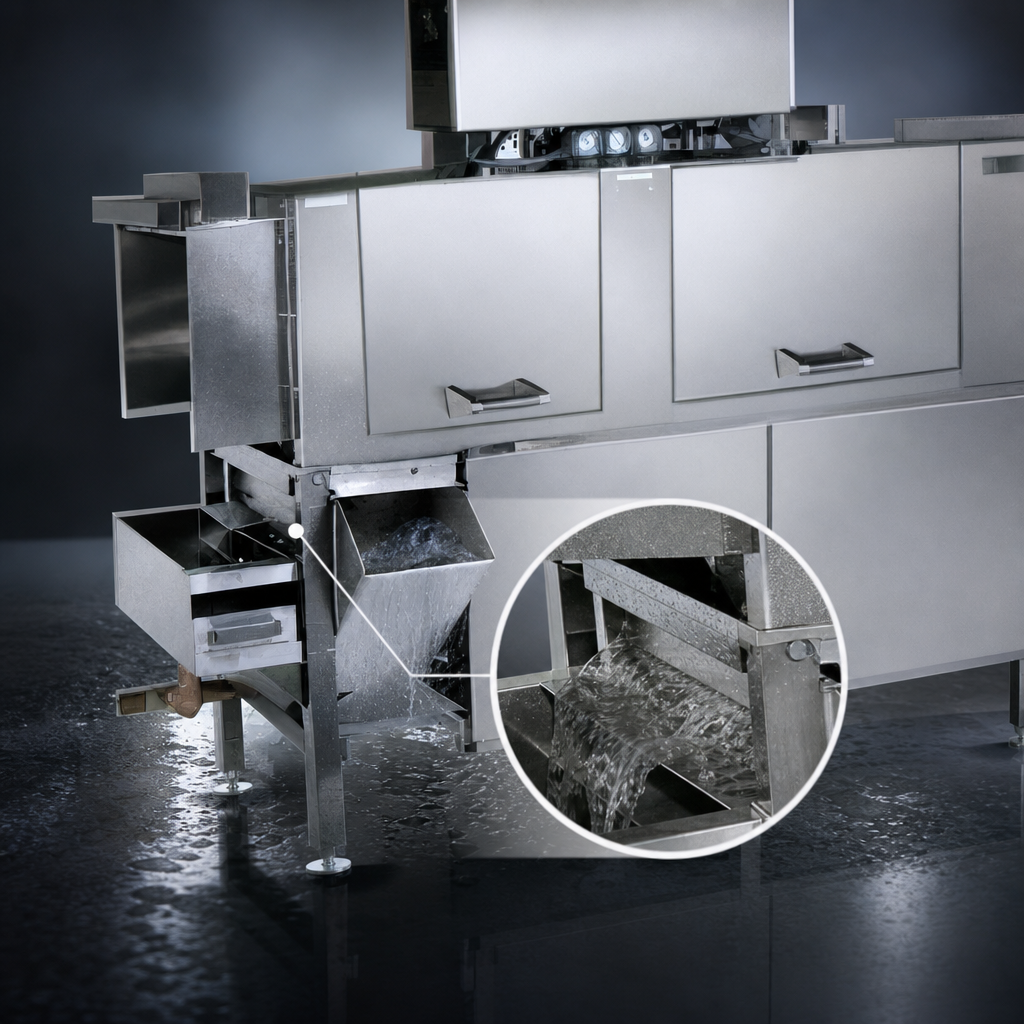

978.0 lbReliable Pre-Wash
Features a deep 'V' design scrap tank that efficiently keeps soil in the tray and protects the pump, contributing to consistent wash performance.

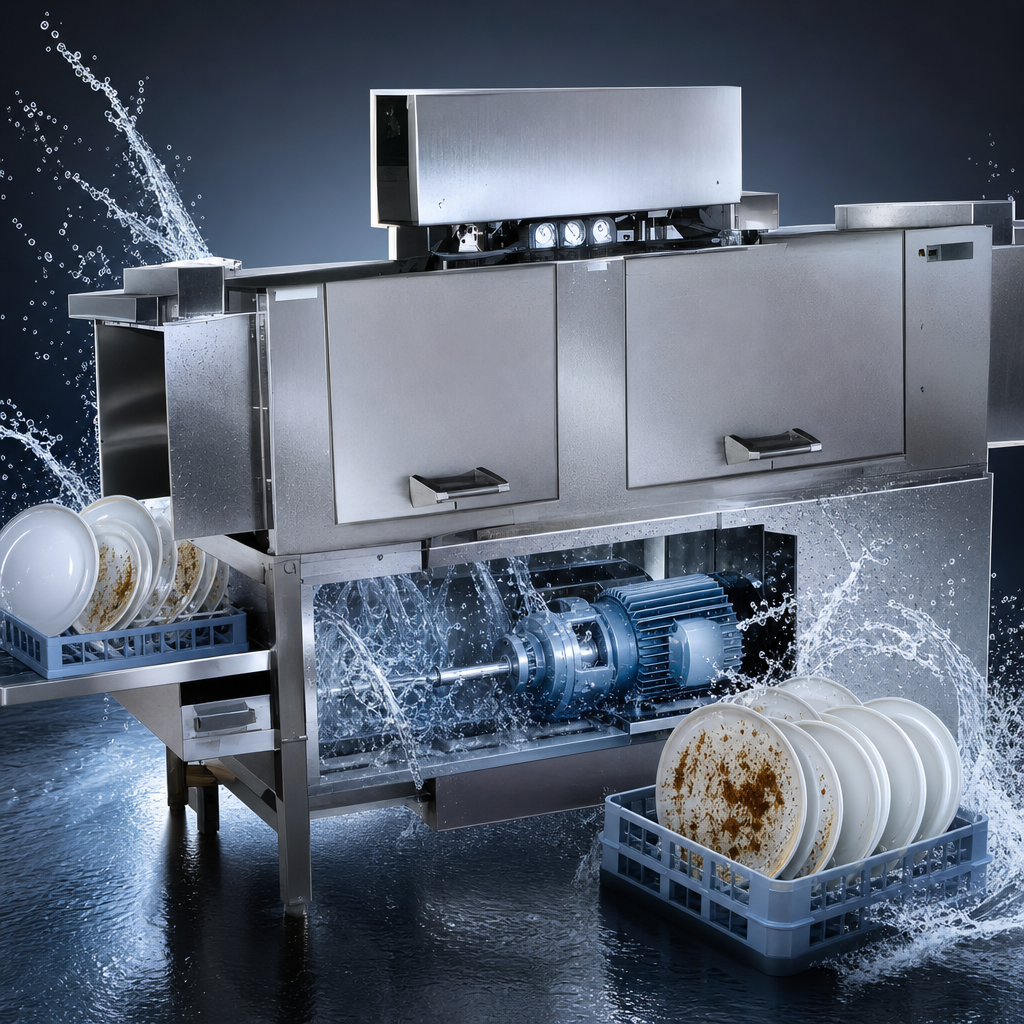

Unrivaled Cleaning Ability
Powered by a 3 HP wash pump and 1.5 HP scrap pump, this dishwasher ensures thorough cleaning of even heavily soiled dishes.
High Capacity & Water Efficiency
Processes 244 racks per hour while using only 0.49 gallons of water per rack, resulting in 66% less water usage than the industry average for 66-inch conveyors.
Water Curtain Rinseability
Activates prior to the final rinse, initiating the rinsing process and acting as a shield to enhance overall rinsing effectiveness.
Captive End Caps
Designed to flip open and snap shut for quick and easy clearing of spray arms, significantly shortening the cleaning process and minimizing downtime.
2-Stage Drain Pump Filter
Functions as a drain stopper and a pump strainer, eliminating wash pump obstructions and clogged jets to maintain optimal operation.
Dual Fail-Safe Heater Control
Provides precise water temperature control, allowing heaters to operate only when the tank is full, unaffected by heavy soil, water action, strong chemicals, or lime buildup.
Fail-Safe Conveyor System
Incorporates a slip clutch design that stops rack movement if an obstruction occurs, preventing damaged racks and allowing operation to easily resume once the obstruction is cleared.
Auto-Fill and Shut-Off
Standard automatic fill and shut-off features enhance operational convenience and safety.
Top Mounted Controls
Controls are conveniently located on top for easy access and operation.
Dual Rinsing System
Equipped with a comprehensive dual rinsing system for optimal cleanliness and sanitation.
Stainless Steel Construction
Built with durable stainless steel motor panels and overall construction for longevity and ease of cleaning in commercial environments.
Warranty & Protection
Manufacturer's warranty is included.
