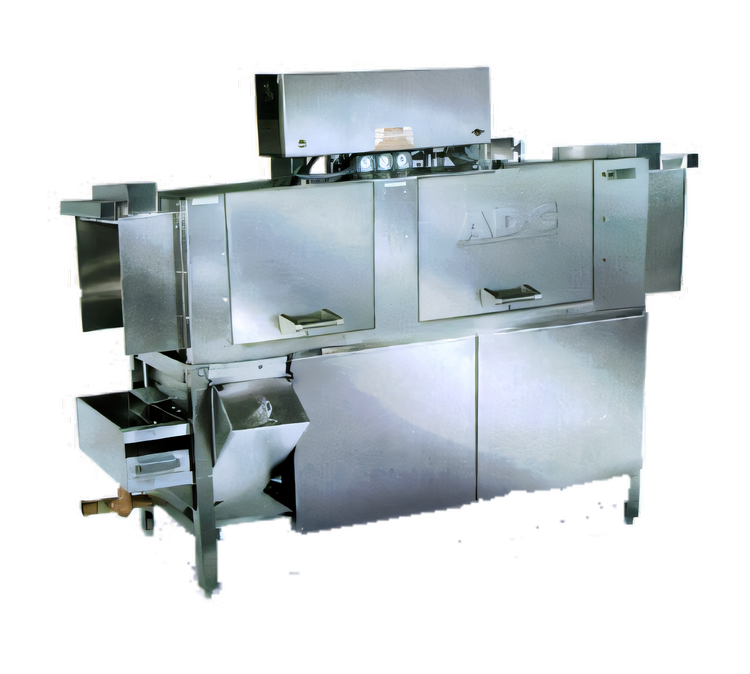

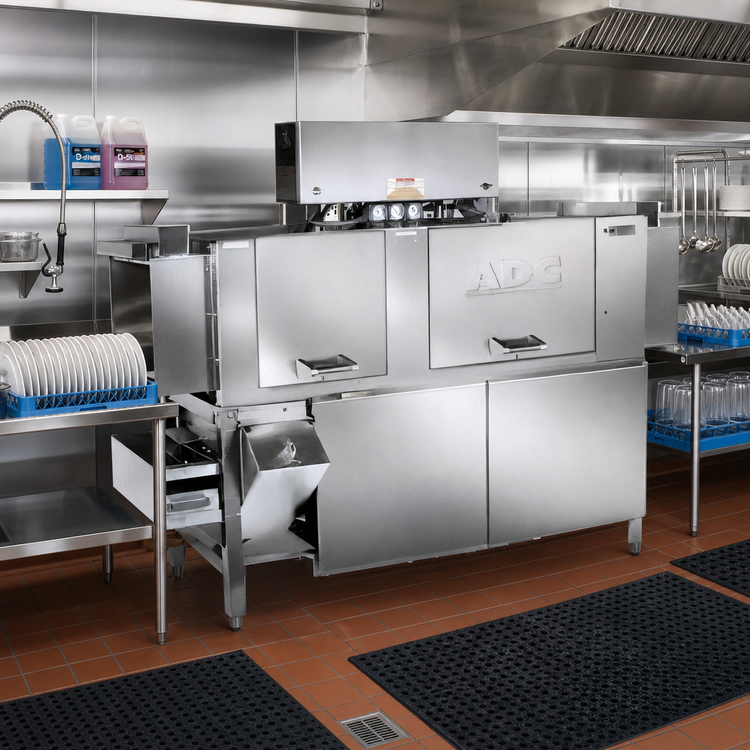

American Dish Service ADC-66 High Temperature Left-to-Right Conveyor Dishwasher
American Dish Service ADC-66 High Temperature Left-to-Right Conveyor Dishwasher
244 Racks/Hour, 3 HP Wash, Electric Tank Heat
The American Dish Service ADC-66 conveyor dishwasher delivers unrivaled cleaning performance and water efficiency for high-volume operations, ensuring consistently sanitized dishware.
- Washes up to 244 racks per hour with exceptional water efficiency (.49 gallons/rack).
- High temperature sanitization (180°F final rinse) for optimal hygiene.
- Features a reliable 3 HP wash pump and 1.5 HP scrap pump for powerful cleaning.
- Equipped with a deep "V" scrap tank and 2-stage drain pump filter to prevent obstructions.
- Automatic fill, start, and shut-off functions for ease of use.
- Durable stainless steel construction designed for commercial use.
- Includes a dual rinsing system and patented water control for thorough cleaning.
Overall Dimensions:
86.0"W x 34.5"D x 71.25"HProduct Weight:

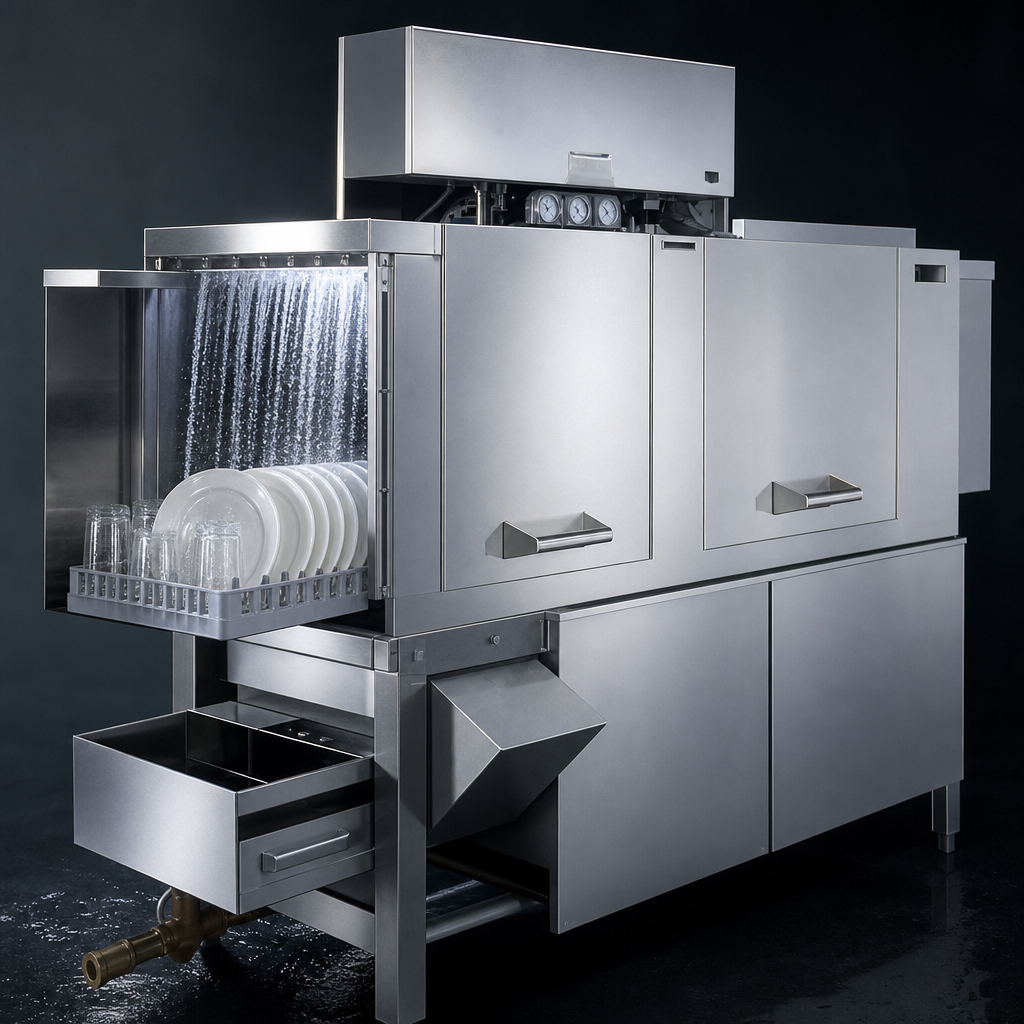

978.0 lbWater Curtain Rinseability
Activates prior to the final rinse, initiating the rinsing process and acting as a shield for improved cleanliness.

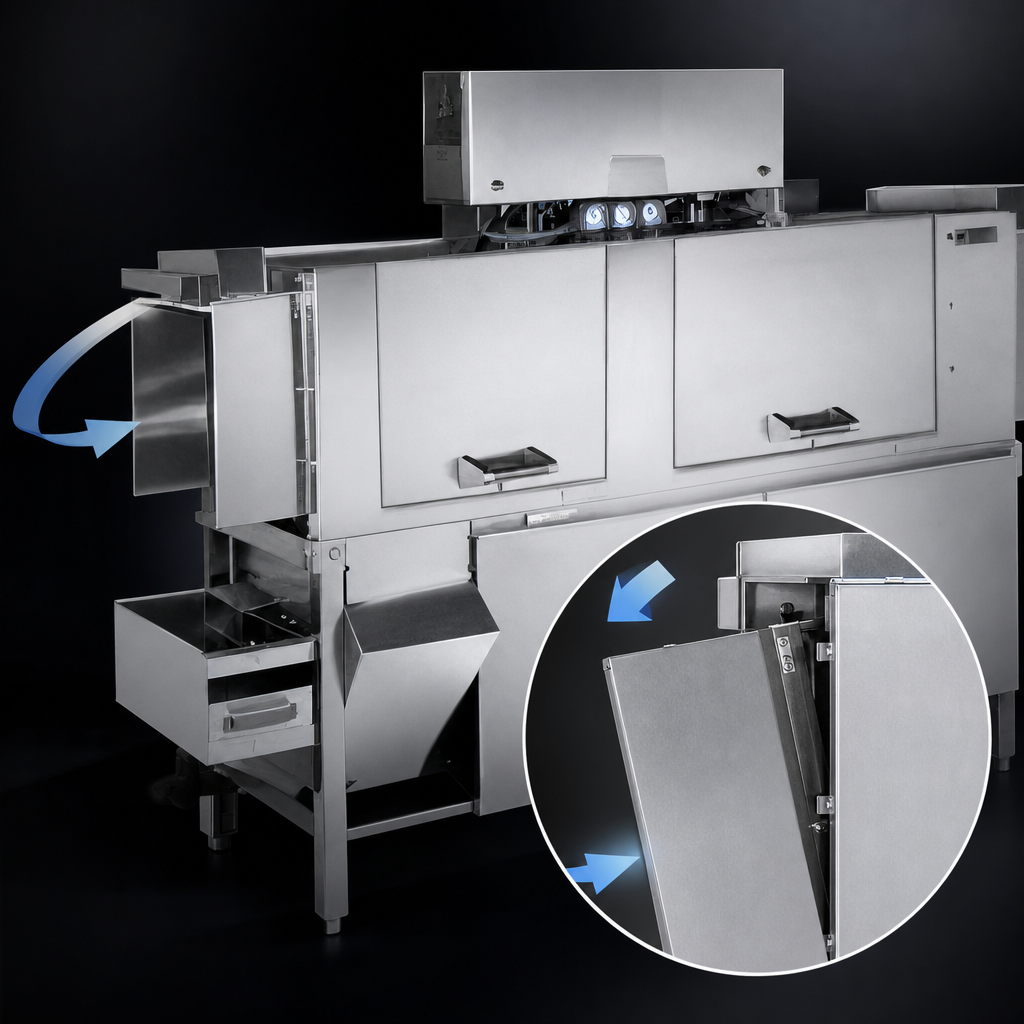

Captive End Caps
Designed to flip open and snap shut for quick and easy clearing of spray arms, shortening cleaning time and eliminating downtime.
Deep "V" Scrap Tank
Features a V-shaped construction that effectively keeps soil in the tray, protecting the pump from debris.
2-Stage Drain Pump Filter
Eliminates wash pump obstructions and clogged jets, while also functioning as a drain stopper.
Dual - Fail Safe Heater Control
A precise water control mechanism that only allows heaters to operate when the tank is full, providing reliable performance unaffected by heavy soil, water action, strong chemicals, or lime build-up.
Fail-Safe Conveyor System
Utilizes a slip clutch design that stops rack movement if an obstruction occurs, allowing operation to easily resume once the issue is cleared, preventing rack damage.
Auto Fill / Auto Start / Shut-off
Provides automatic operation for convenience and efficiency in a busy commercial kitchen.
Dual Rinsing System
Ensures comprehensive cleaning and sanitization results.
Top Mounted Controls
Easily accessible controls for user convenience during operation.
Stainless Steel Construction
Manufactured with durable stainless steel, including motor panels, for longevity and hygiene in a commercial setting.
Warranty & Protection
Warranty information not explicitly detailed in provided documents.
