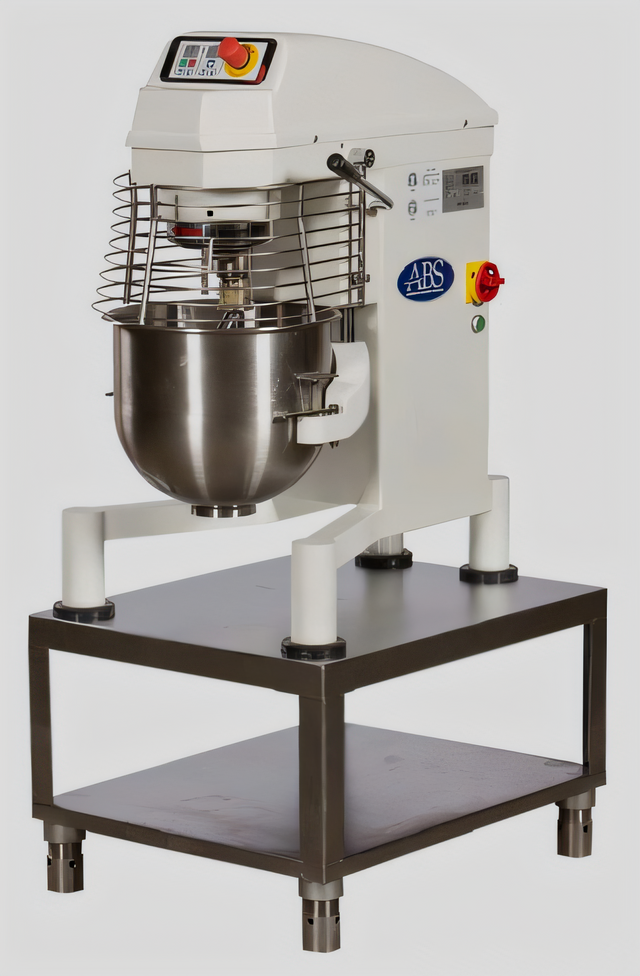

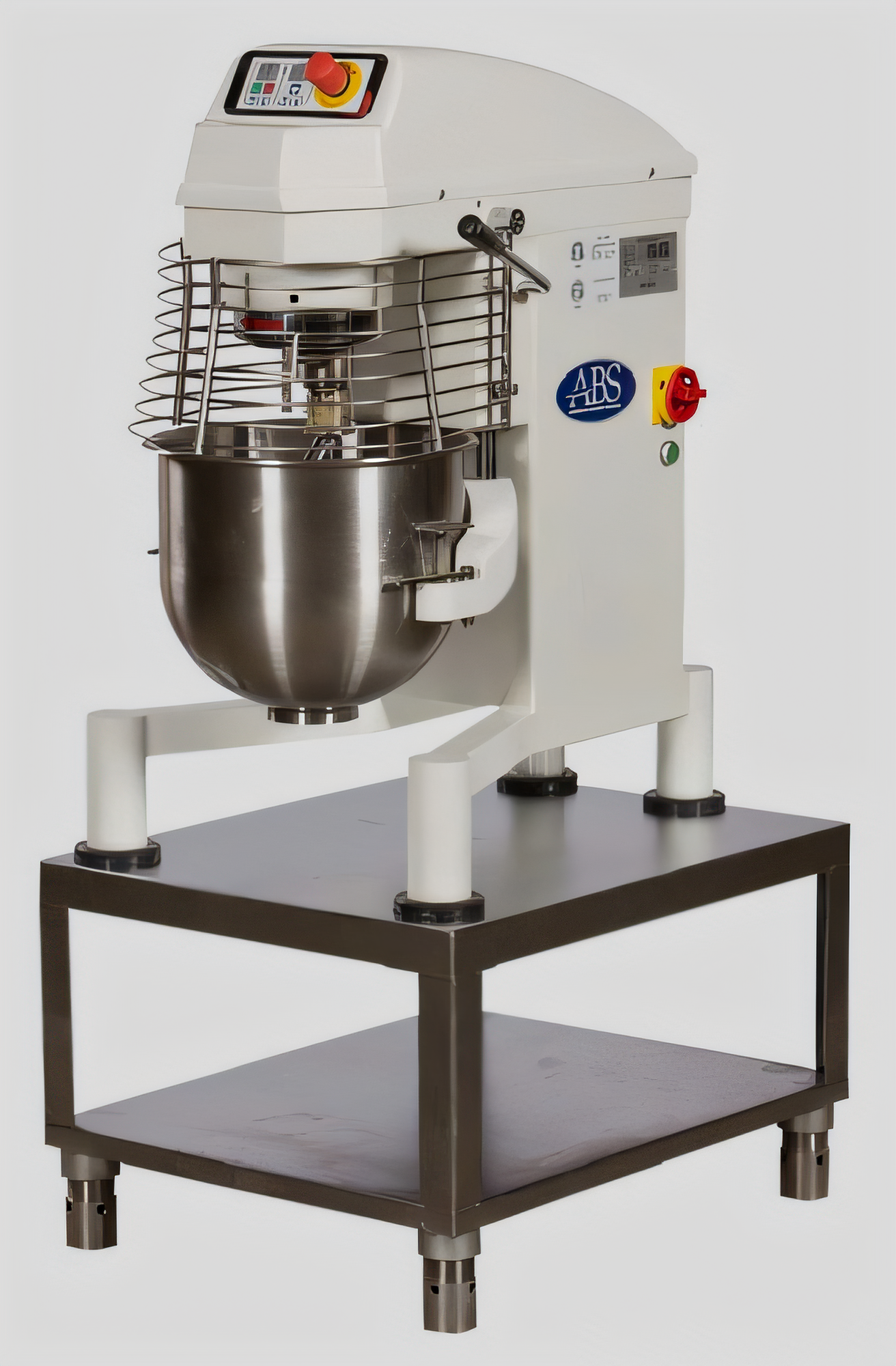

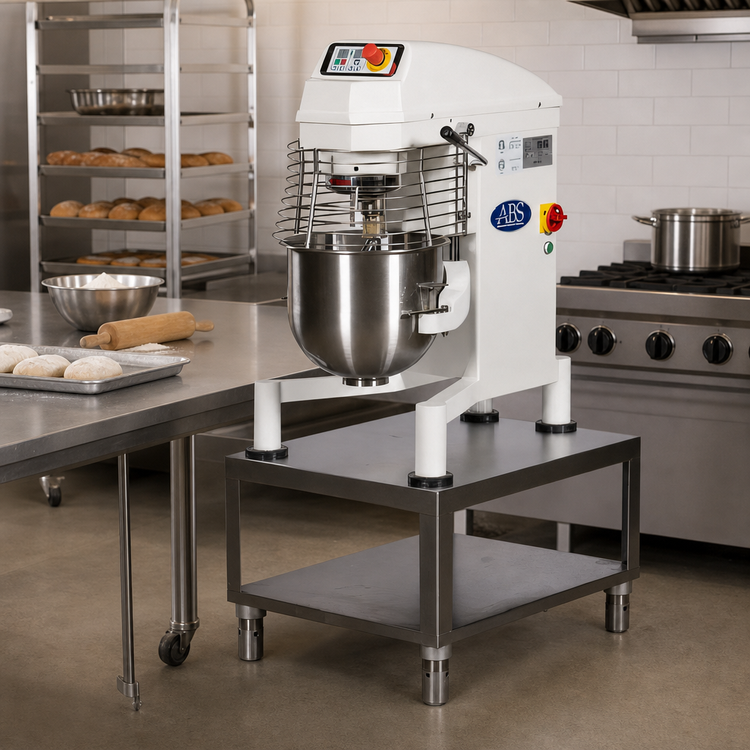

ABS ABSPMS-20L 20 Quart Heavy Duty Electronic Planetary Mixer

SKU: ABSPMS-20L
$9,795.92
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

American Baking Systems Best Sellers Commercial Mixers Equipment Food Prep Equipment Food Preparation Equipment Mixers New Arrivals Planetary Mixers Restaurant Equipment

ABS ABSPMS-20L 20 Quart Heavy Duty Electronic Planetary Mixer

Benchtop, 12 lb Flour Capacity, 10-Speed Digital Control

Designed for demanding bakery and kitchen environments, the ABSPMS-20L planetary mixer delivers consistent performance and precise control for all your mixing needs.

  • 20-quart capacity ideal for small to medium batches of dough and batter.
  • Heavy-duty 1.5 HP motor provides reliable power for various ingredients.
  • Digital control panel with 10 speeds and "Shift on the Fly" technology for seamless operation.
  • Durable construction with welded steel body, stainless steel bowl, and included attachments.
  • Enhanced safety features including a hinged bowl cage with safety interlock and emergency stop.

Overall Dimensions:

21.75"W x 35.75"D x 37.0"H

Product Weight:

410.0 lb

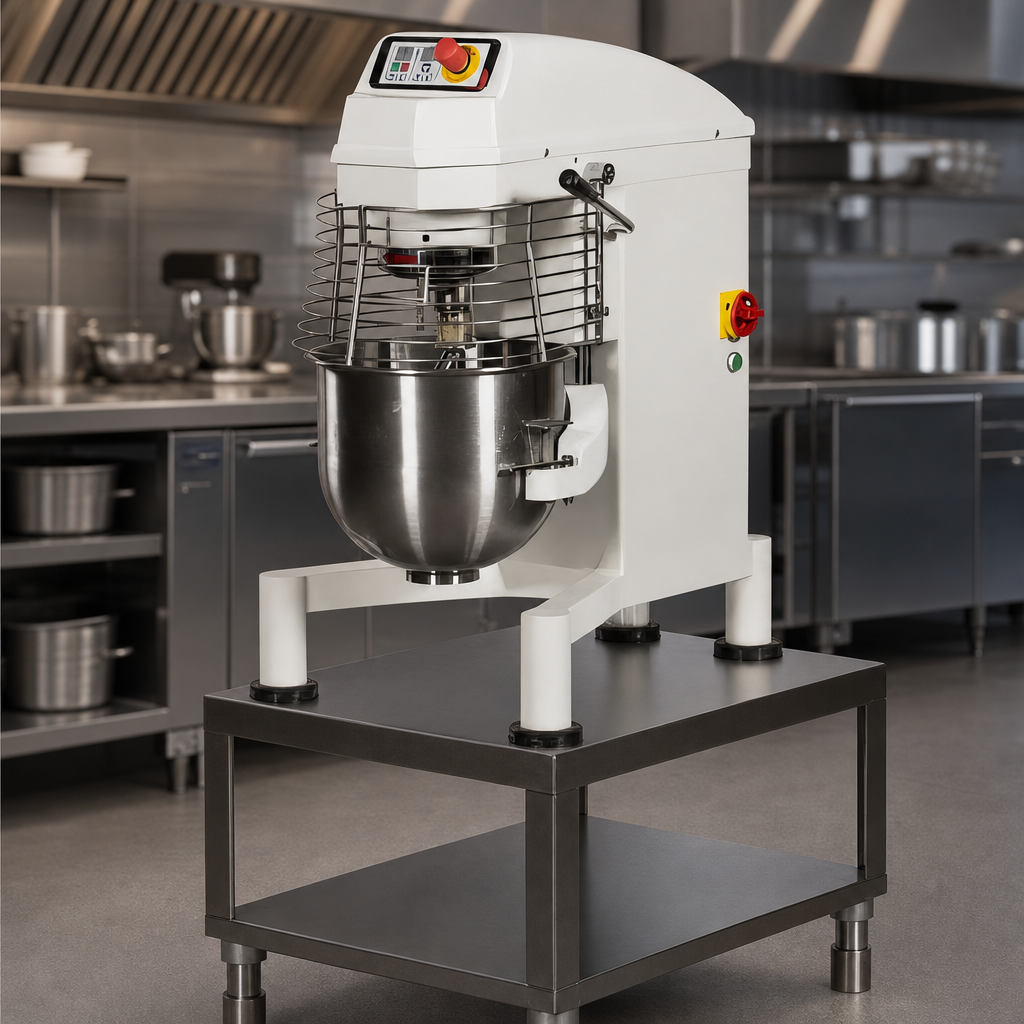

Heavy-Duty Construction

Features a strong welded steel body finished with NSF epoxy paint, ensuring durability and hygiene.

Heavy-Duty Construction

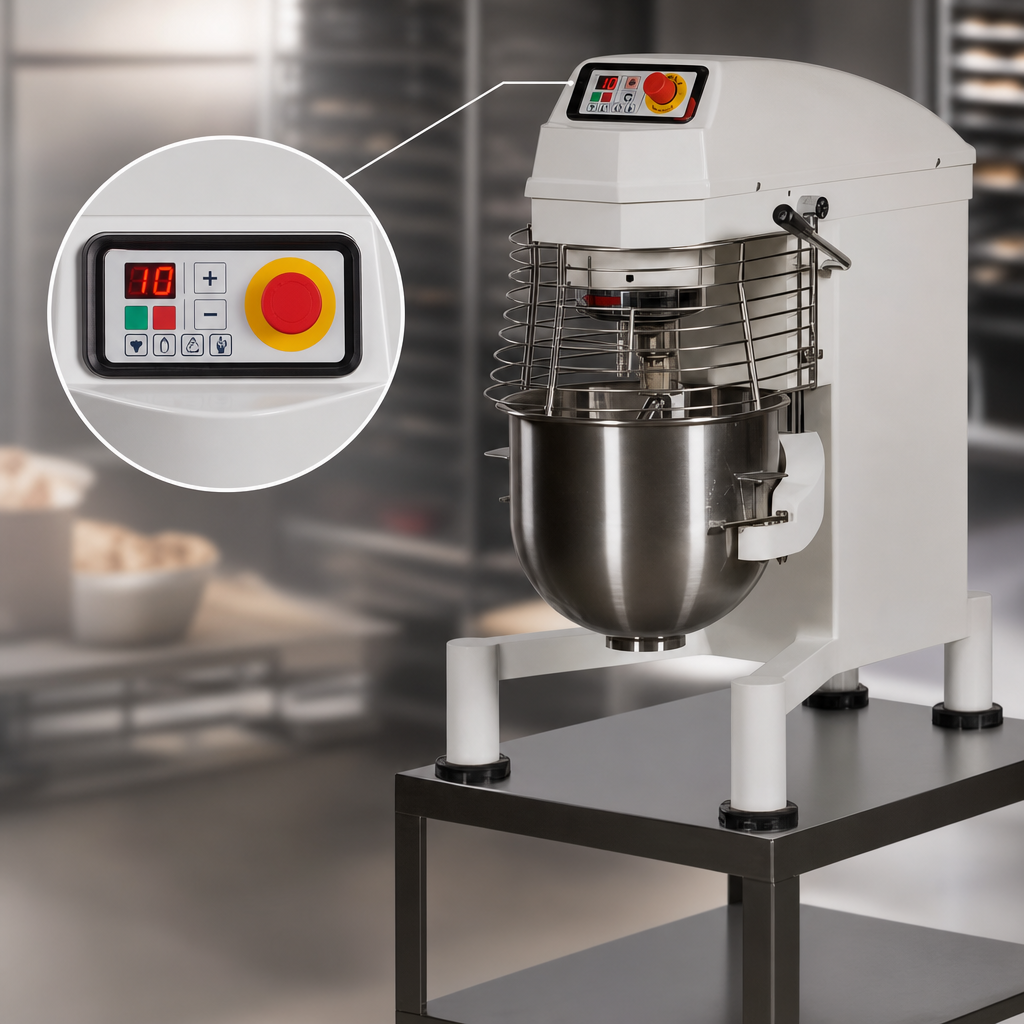

Digital Control Panel

Equipped with a digital control panel offering 10 speeds and 'Shift on the Fly' capability, allowing speed changes without stopping the mixer.

Digital Control Panel

Timed or Untimed Operation

Provides flexibility for both manual and digitally timed mixing, enhancing precision and consistency.

High Torque Belt Drive

Utilizes a high torque, dual stage, non-slip, quiet belt drive system, eliminating gears, oil leaks, and seal failures for reliable operation.

Powerful Motor

Driven by a heavy-duty 1.5 HP motor (1.1 kW) for efficient mixing of tough ingredients.

Safety Interlocked Bowl Cage

Includes a heavy-duty hinged bowl cage with a safety interlock, ensuring safe operation by preventing access to moving parts when the mixer is on.

Over-Current Protection

Features automatic over-current protection with an external reset, safeguarding the motor from potential damage.

Emergency Stop

An eye-level mounted emergency stop button provides quick and easy shutdown in critical situations.

Standard Attachments Included

Comes standard with a stainless steel bowl, stainless steel wire whip, stainless steel dough hook, and an aluminum paddle, along with a pour spout.

Enhanced Stability

Fitted with four non-skid cushioned feet for increased stability during operation.

6-Foot Electrical Cord

Supplied with a 6-foot electrical cord and a NEMA 5-15P cord cap for convenient connection.

Efficient Mixing Tools

Mixing tools are designed to fit closely to the bottom and sides of the mixing bowl, minimizing the need for manual scraping.

Slow Start Up

Incorporates a slow start-up feature on all speeds to reduce splashing and ensure smoother mixing.

Type Planetary Mixer
Style Heavy Duty Electronic
Installation Type Countertop
Capacity 20 Quarts
Flour Capacity 12 lbs
Dough Capacity 19.2 lbs
Motor HP 1.5 HP
Motor kW 1.1 kW
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Breaker Size Type B RCD or RCM
Controls Digital, 10 Speeds
Material Welded Steel, Stainless Steel, Aluminum
Finish NSF Epoxy Paint
Country of Origin USA
Selling Unit Each
Units Per Case 1
Net Weight 300 lbs
Shipping Height 44 Inches
Shipping Width 37 Inches
Shipping Depth 44 Inches
Shipping Weight 400 lbs

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

One-Year Parts and Labor

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

The ABSPMS-20L has a 20-quart mixing bowl capacity, capable of handling 12 lbs of flour or 19.2 lbs of dough.
Yes, it features a digital control panel with 10 speeds and 'Shift on the Fly' technology, allowing you to change speeds without stopping the mixer.
This mixer uses a high torque, dual stage, non-slip, quiet belt drive system, which eliminates issues like broken gears, oil leaks, and seal failures.
The mixer comes standard with a stainless steel bowl, stainless steel wire whip, stainless steel dough hook, an aluminum paddle, and a pour spout.
The mixer operates on 120 Volts, 1-Phase, 60 Hz and comes with a 6-foot electrical cord and a NEMA 5-15P plug.
Yes, it includes a heavy-duty hinged bowl cage with a safety interlock, automatic over-current protection with external reset, and an eye-level emergency stop button.
