American Baking Systems ABSFBM-80T Two-Speed Heavy-Duty Spiral Dough Mixer - 166 lb Dough Capacity
- Amps
- 20 Amps
- Phase
- 3-Phase
- Dimensions
- 30.0"W × 45.0"D × 51.0"H
- Type
- Spiral Dough Mixer
- Style
- Floor Model
- Installation Type
- Freestanding
Specifications
Description
American Baking Systems ABSFBM-80T Two-Speed Heavy-Duty Spiral Dough Mixer - 166 lb Dough Capacity
Two-Speed, Heavy-Duty, 166 lb Dough Capacity, 7 HP
Engineered for high-volume production, the ABSFBM-80T delivers superior dough development with its powerful motor, two-speed operation, and precise digital controls.
- Heavy-duty welded steel body with NSF epoxy paint ensures durability and easy cleaning.
- Features a two-speed high torque, non-slip belt drive system for optimal dough mixing.
- Generous 166 lb dough (110 lb flour) capacity handles large batches efficiently.
- Equipped with a digital control panel, three programmable timers, and manual backup for precise operation.
- Fixed heavy-gauge stainless steel bowl and 'J' style stainless steel hook for maximum dough development.
- Solid PVC bowl cover with safety interlock and ingredient fill opening enhances operator safety.
- Convenient three-point caster system and four screw-down leveling feet for mobility and stability.
Overall Dimensions:
30.0"W x 45.0"D x 51.0"HProduct Weight:

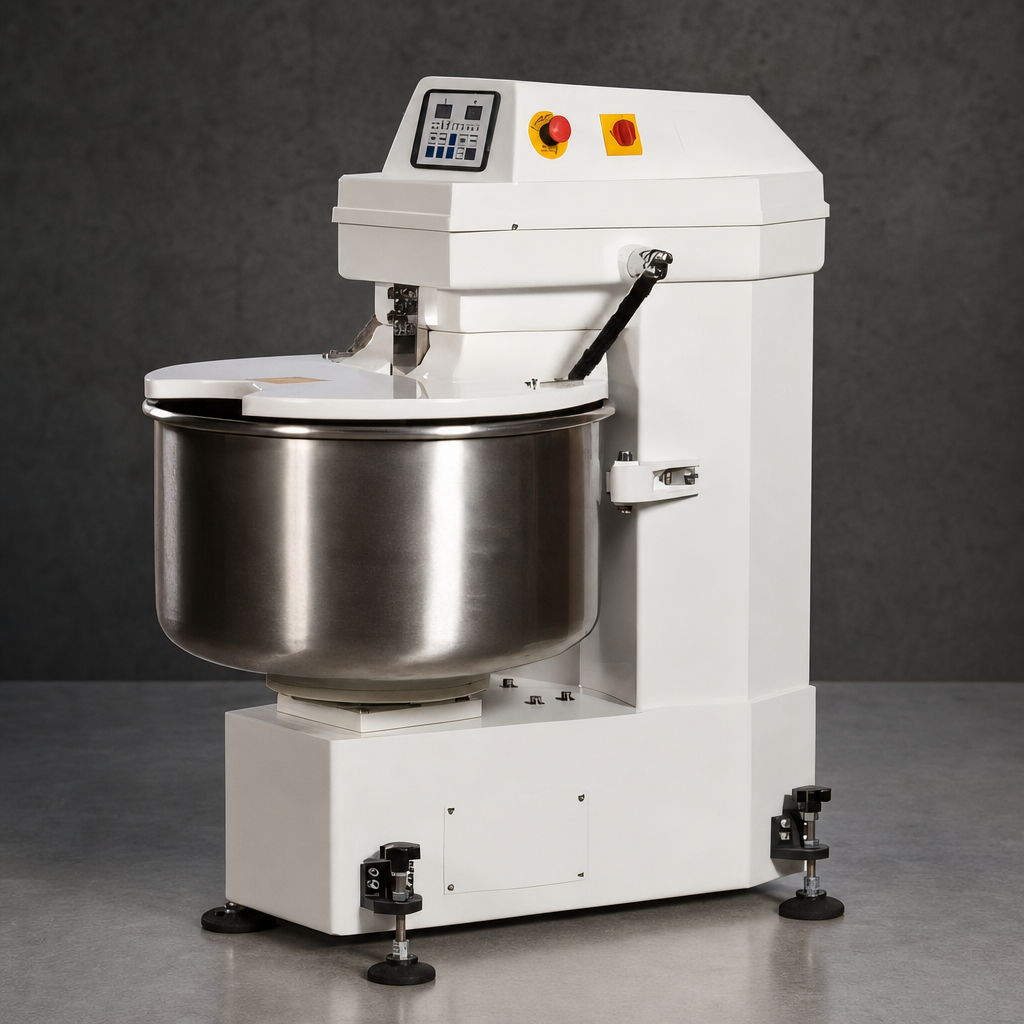

1065.0 lbRobust Construction
Strong welded steel body finished with NSF epoxy paint for exceptional durability and hygiene.

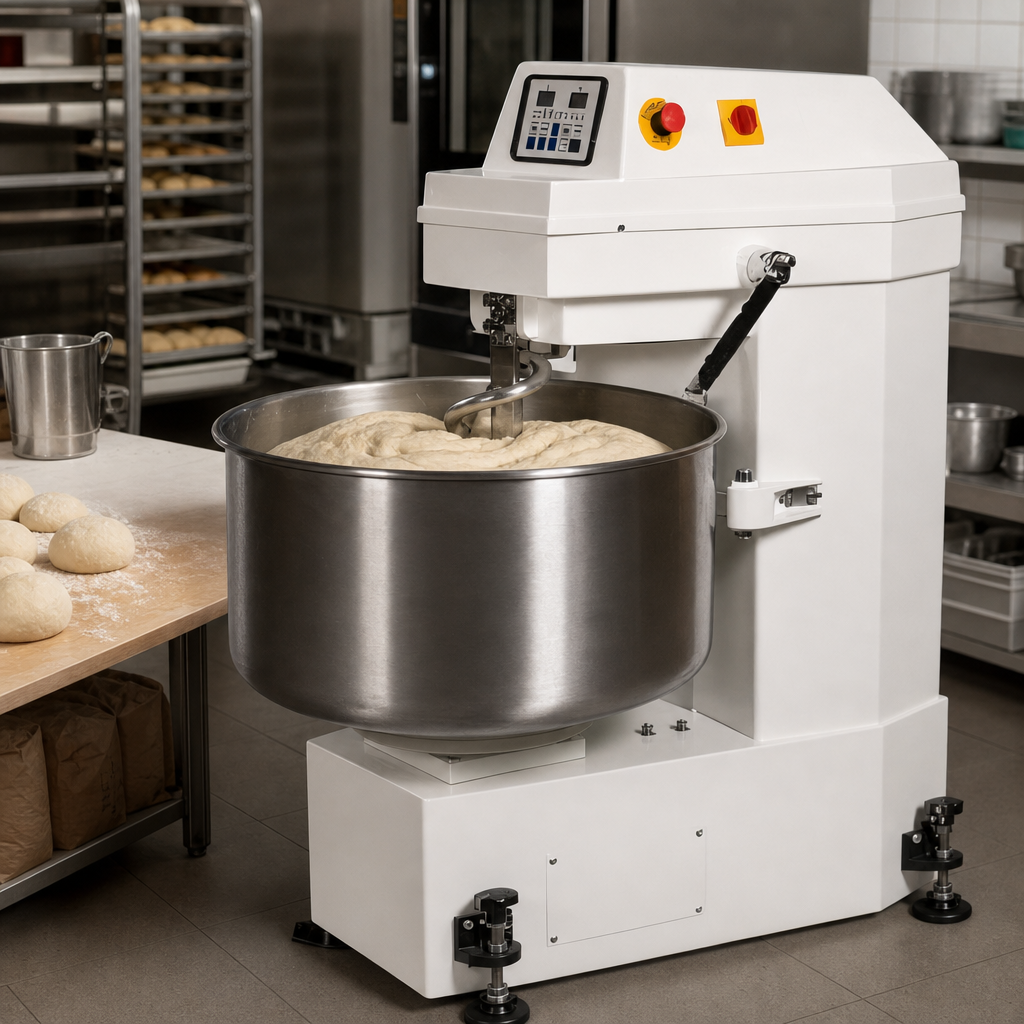

High Capacity Mixing
Capable of handling up to 110 lb of flour or 166 lb of dough, ideal for busy commercial bakeries and pizzerias.
Optimized Dough Development
Fixed heavy-gauge stainless steel bowl with a fully welded top ring and machined interior surface, paired with a cylindrical 'J' style stainless steel hook, ensures maximum dough development.
Powerful Two-Speed Operation
Driven by a heavy-duty 7 HP cast-iron motor with sealed ball bearings, offering low (122 RPM) and high (246 RPM) agitator speeds for versatile mixing.
High Torque Belt Drive
Features a high torque, shock-absorbing, non-slip, and silent belt drive system for reliable and efficient power transmission.
Advanced Digital Controls
Digital control panel with large, easy-to-read displays and three separate timers for programming speed and automatic change from low to high, along with manual operation and a mixing pause function without resetting timers.
Enhanced Safety Features
Includes a solid PVC bowl cover with a safety interlock that pauses mixing when opened, an ingredient fill opening, and an eye-level emergency stop button.
Mobility and Stability
Equipped with a three-point caster system for easy movement and four screw-down leveling feet to ensure stable operation.
Electrical Convenience
Comes with a 6-foot electrical cord and NEMA L15-30P plug for straightforward connection.
Maintenance Friendly
Designed with a modular repair system to enable quick and low-cost servicing when required.
