American Baking Systems ABSFBM-200T 440 lb. Heavy Duty Two-Speed Spiral Dough Mixer
Related Searches
American Baking Systems ABSFBM-200T 440 lb. Heavy Duty Two-Speed Spiral Dough Mixer
Floor Model, 275 lb Flour Capacity, Digital Controls, 208-240V, 3 Phase
Engineered for high-volume commercial baking, the ABSFBM-200T delivers exceptional dough consistency and powerful performance for demanding kitchens.
- Heavy-duty two-speed spiral mixer with 440 lbs. dough capacity for large batches.
- Equipped with a robust 18 HP motor and high torque, non-slip belt drive system for powerful and quiet operation.
- Features precise digital timer controls with manual backup, auto bowl reverse, and an eye-level emergency stop button.
- Constructed with a fixed heavy-gauge stainless steel bowl and a unique 'J' style stainless steel hook for optimal dough development.
- Includes a solid PVC bowl cover with a safety interlock and a convenient ingredient fill opening.
- Designed for stability with four screw-down leveling feet and enhanced mobility with a three-point caster system.
- ETL Listed to UL 763 and NSF-8 standards, ensuring compliance for commercial food service environments.

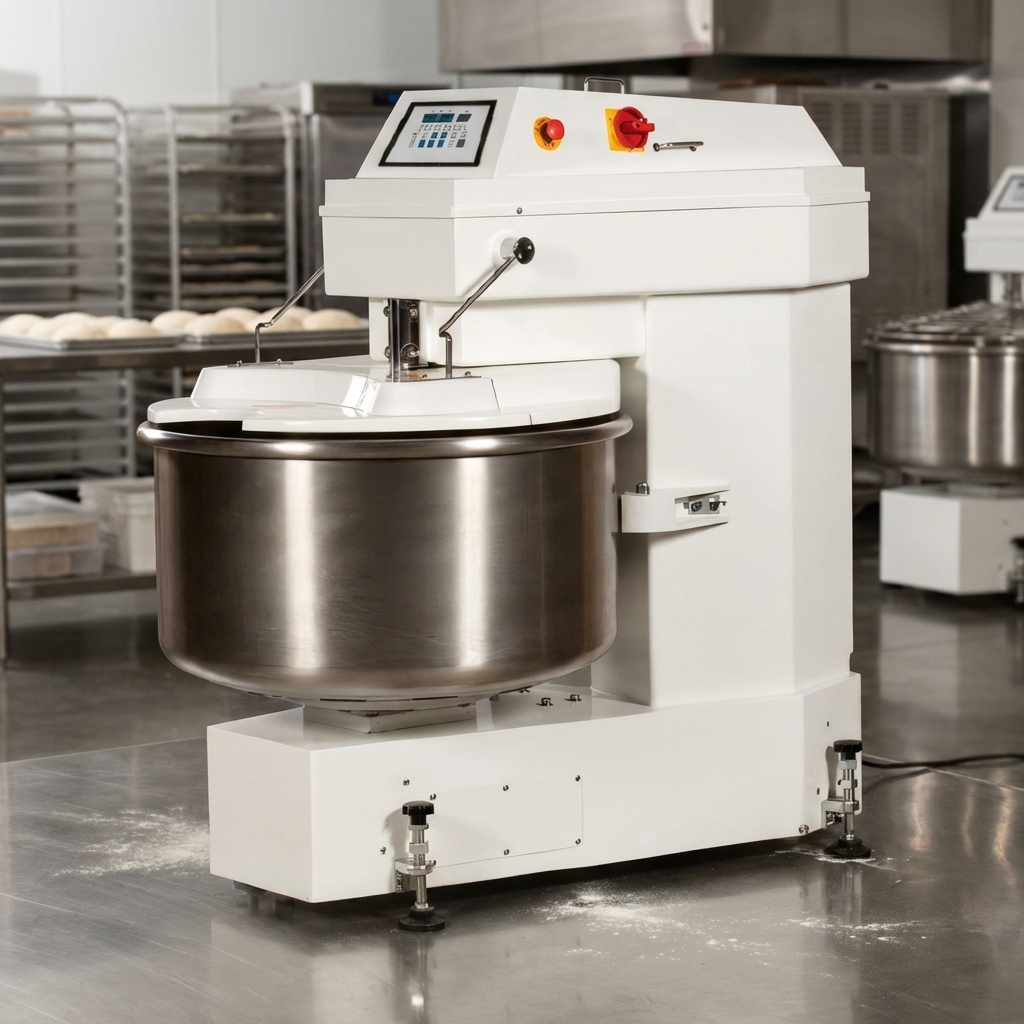

Strong Welded Steel Body
Constructed with a strong welded steel body finished with NSF epoxy paint for durability and hygiene.

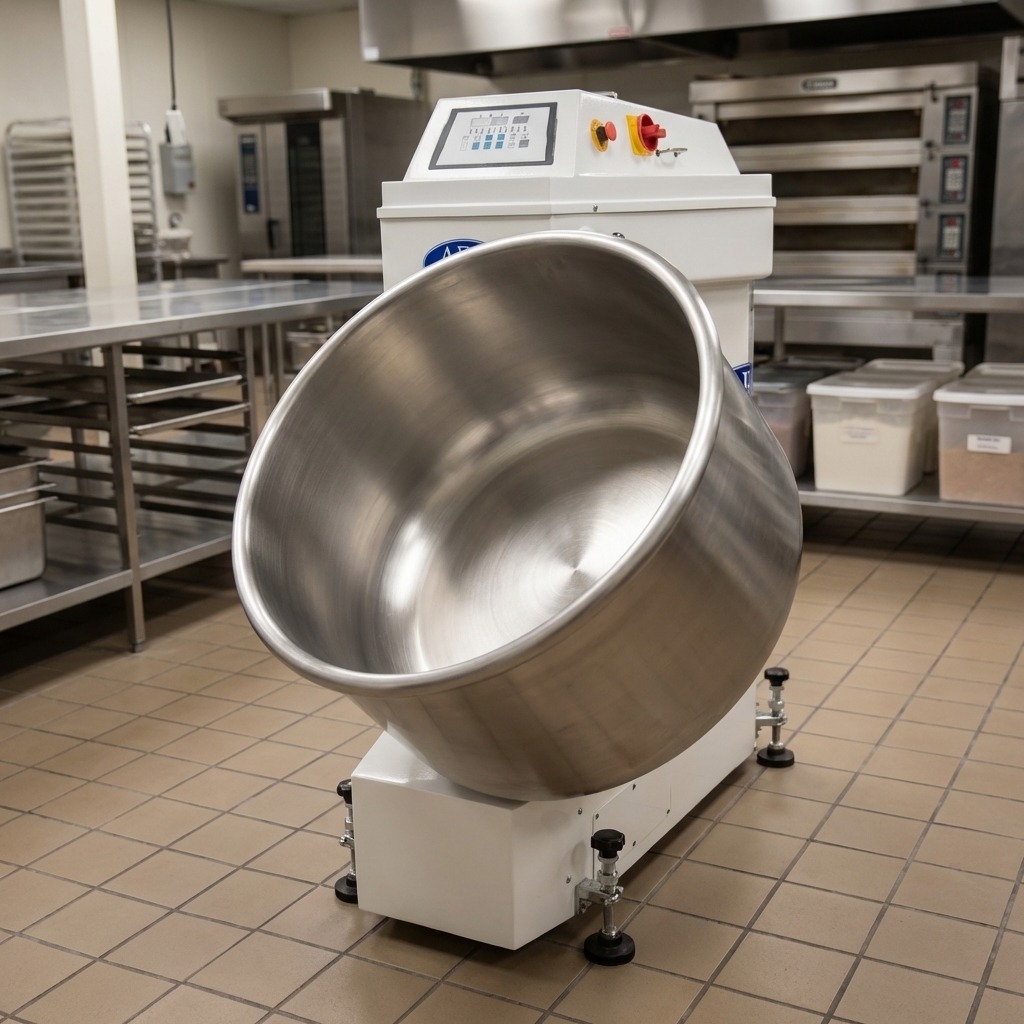

Fixed Heavy Gauge Stainless Steel Bowl
Features a heavy gauge, fixed stainless steel bowl with a solid, polished top ring, fully welded for longevity and stability. The bowl is also reversible.

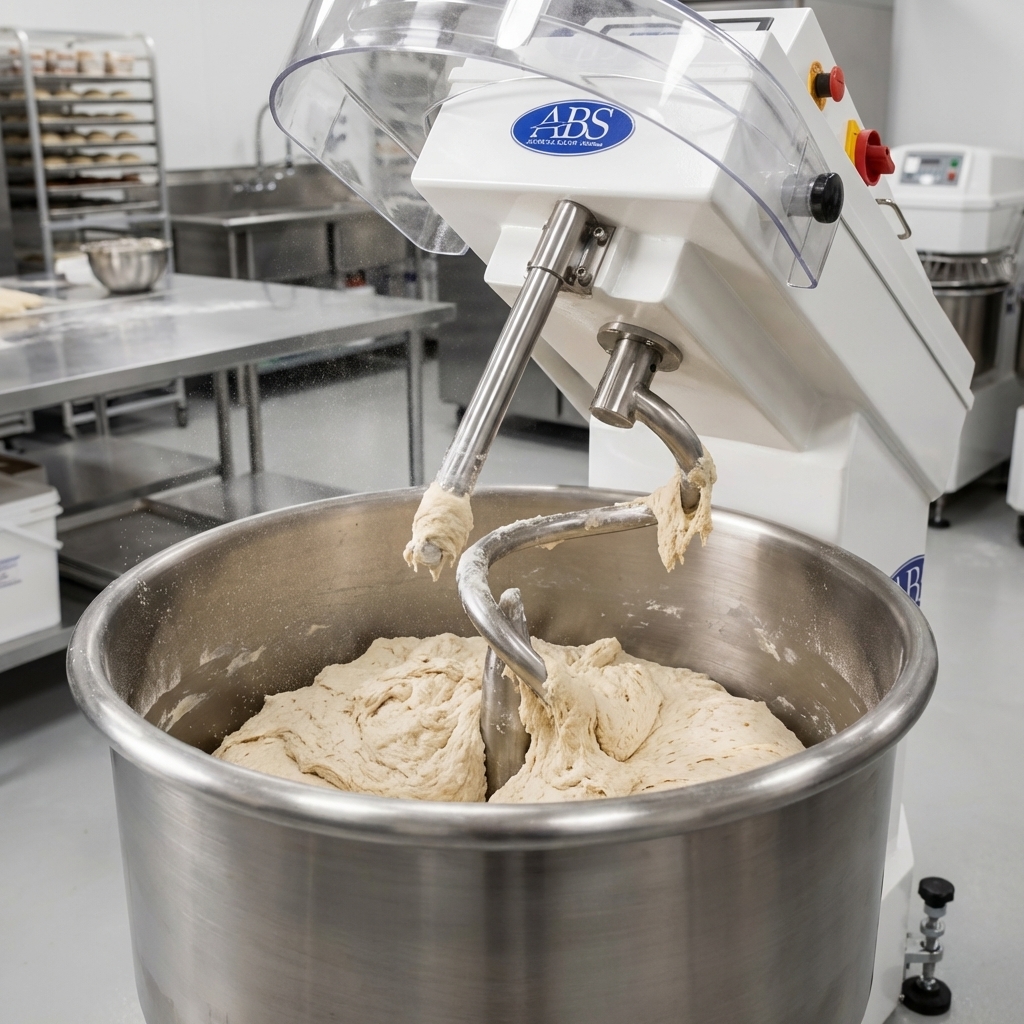

J-Style Stainless Steel Hook
Utilizes a 'J' style stainless steel hook, cylindrical in cross-section, designed to reach the center of the bowl and maximize dough development with a 3/16 inch bowl clearance.
Heavy-Duty Cast-Iron Ball Bearing Motors
Equipped with dual, heavy-duty cast-iron motors with sealed ball bearings, providing independent power for the reversible bowl and hook drive systems.
Three Digital Timer Control Panel
Offers precise control with three digital timers, manual backup, and an auto bowl reverse function, with controls and an emergency stop button mounted at eye level.
High Torque, Non-Slip Belt Drive
Features a high torque, shock-absorbing, non-slip, and silent belt drive system with dual stages for efficient power transmission and quiet operation.
Solid PVC Bowl Cover with Safety Interlock
Includes a solid PVC bowl cover with a safety interlock that pauses mixing action without resetting timers when opened, enhancing operator safety and reducing dust.
Ingredient Fill Opening
A convenient ingredient fill opening is integrated into the front of the bowl cover, allowing for additions during mixing.
Mobility and Stability Features
Designed with a three-point caster system for easy movement and four screw-down leveling feet to ensure stable positioning.
Automatic Reset Over Current Protection
Protects the mixer from electrical overloads with an automatic reset over current protection system, indicated on the control panel.
Specifications
| Type | Spiral Dough Mixer |
|---|---|
| Style | Floor Model |
| Installation Type | Freestanding |
| Flour Capacity | 275 lbs |
| Dough Capacity | 440 lbs |
| Controls | Programmable Digital with Manual Backup |
| Compartments | 1 |
| Speed | 2-Speed |
| Motor HP | 18 HP |
| Agitator Low Speed | 105 RPM |
| Agitator High Speed | 210 RPM |
| Spiral Low Speed | 98 RPM |
| Spiral High Speed | 196 RPM |
| Bowl Speed | 11 RPM |
| Bowl Type | Fixed |
| Material | Welded Steel Body, Stainless Steel Bowl & Hook |
| Finish | NSF Epoxy Paint (Body), Polished (Bowl) |
| Voltage | 208-240 Volts |
| Hertz | 60 Hz |
| Phase | 3-Phase |
| Amps | 37 Amps |
| Watts | 13.4 kW |
| Plug Type | 3-Wire + Ground, 5745-AN |
| Cord Length | 6 Feet |
| Breaker Size | 50 Amp Slow Blow |
| Shipping Width | 68 Inches |
| Shipping Depth | 46 Inches |
| Shipping Height | 73 Inches |
| Shipping Weight | 3250 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
39.0"W x 63.0"D x 62.0"HProduct Weight:
3250.0 lbCertifications & Compliance
Warranty & Protection
1-year parts and labor
