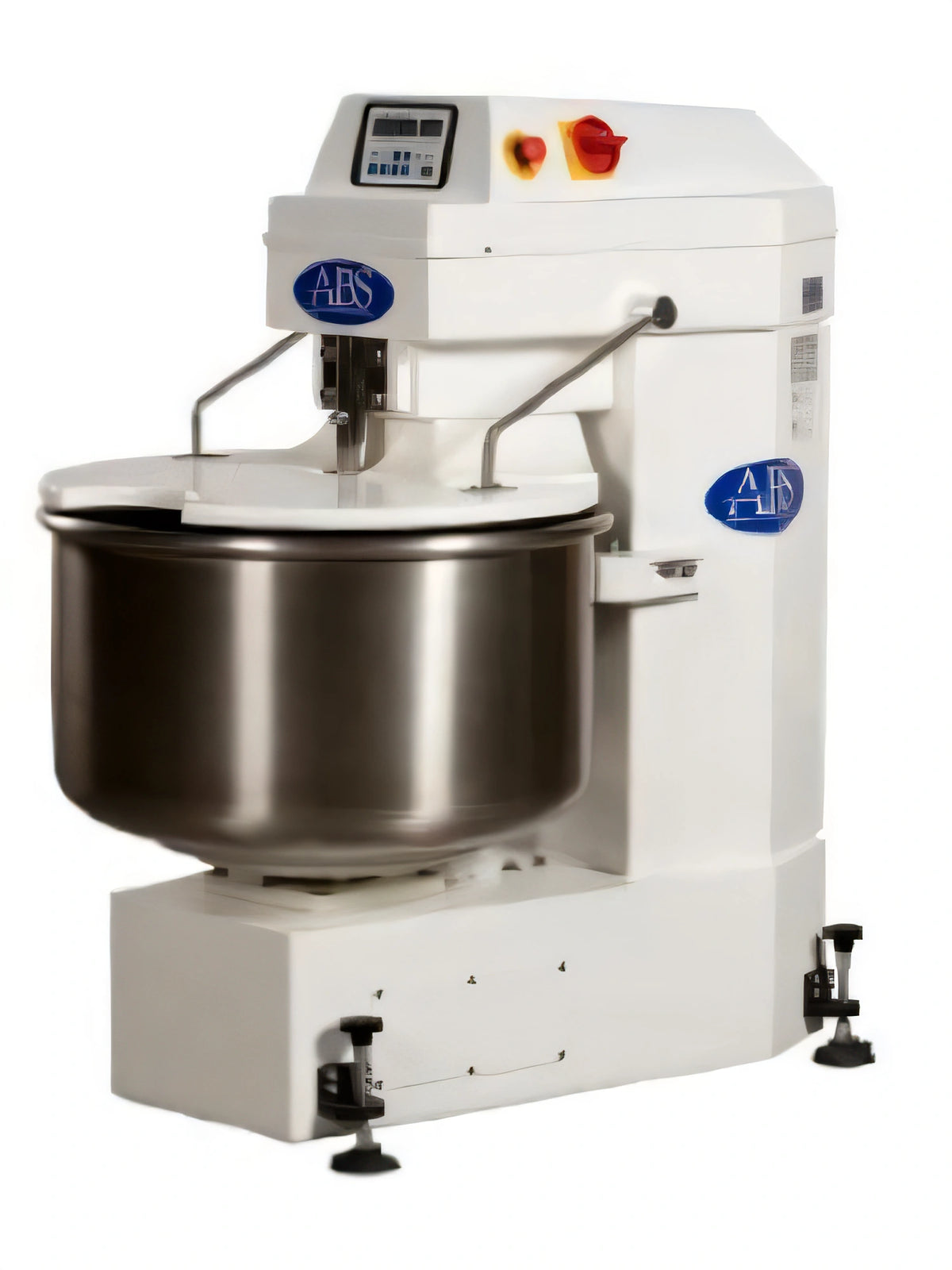

American Baking Systems ABSFBM-120HDB Heavy-Duty Single-Speed Spiral Dough Mixer, 264 lb. Dough Capacity
Single-Speed, 165 lb. Flour / 264 lb. Dough Capacity, Digital Timers
Master high-volume dough production with the robust and precise ABSFBM-120HDB heavy-duty spiral dough mixer, designed for consistent results with various dough types.
- Heavy-duty construction with a strong welded steel body and NSF epoxy paint for durability.
- Achieve maximum dough development with a fixed heavy gauge stainless steel bowl and "J" style hook.
- Features two digital timers for precise control and manual back-up operation.
- Reliable high-torque, non-slip quiet belt drive for consistent performance.
- Enhanced safety with a solid PVC bowl cover and safety interlock.
- High capacity for up to 165 lbs of flour or 264 lbs of dough, ideal for busy bakeries.

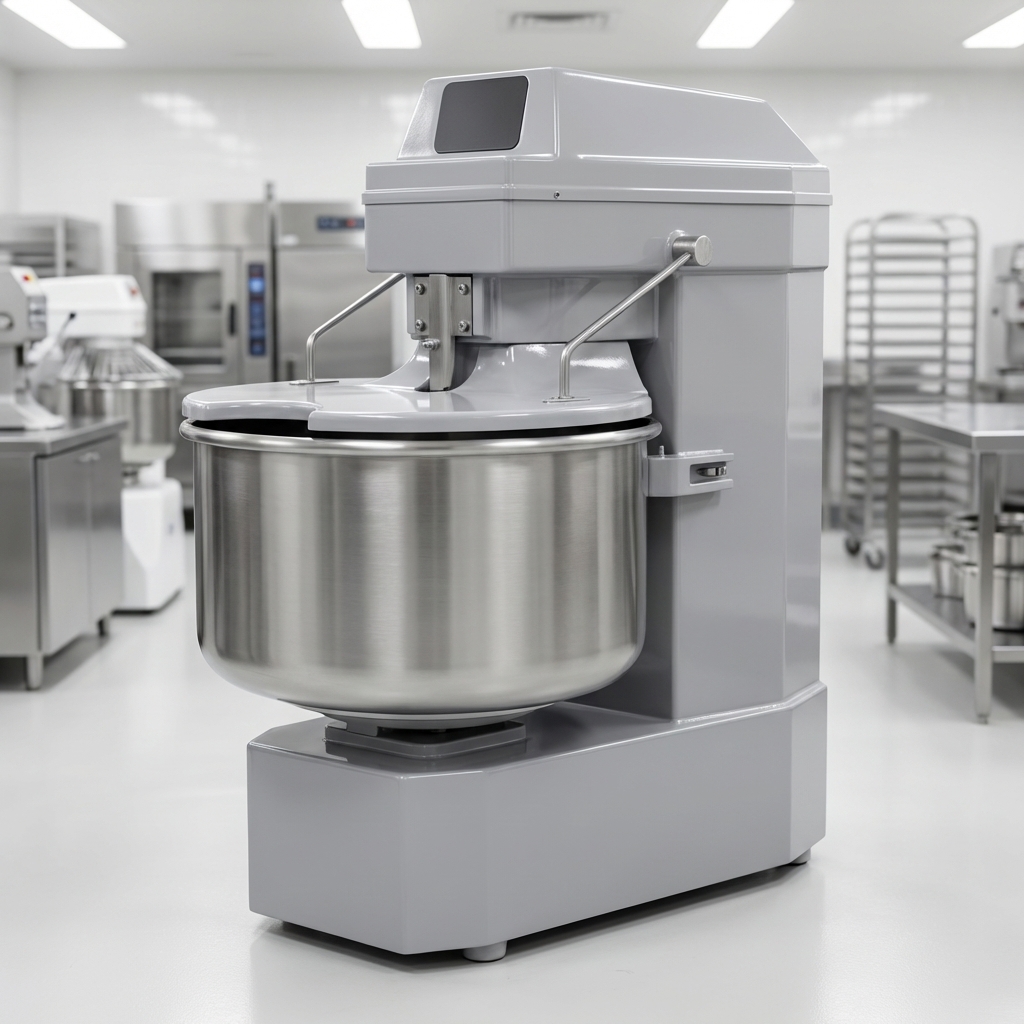

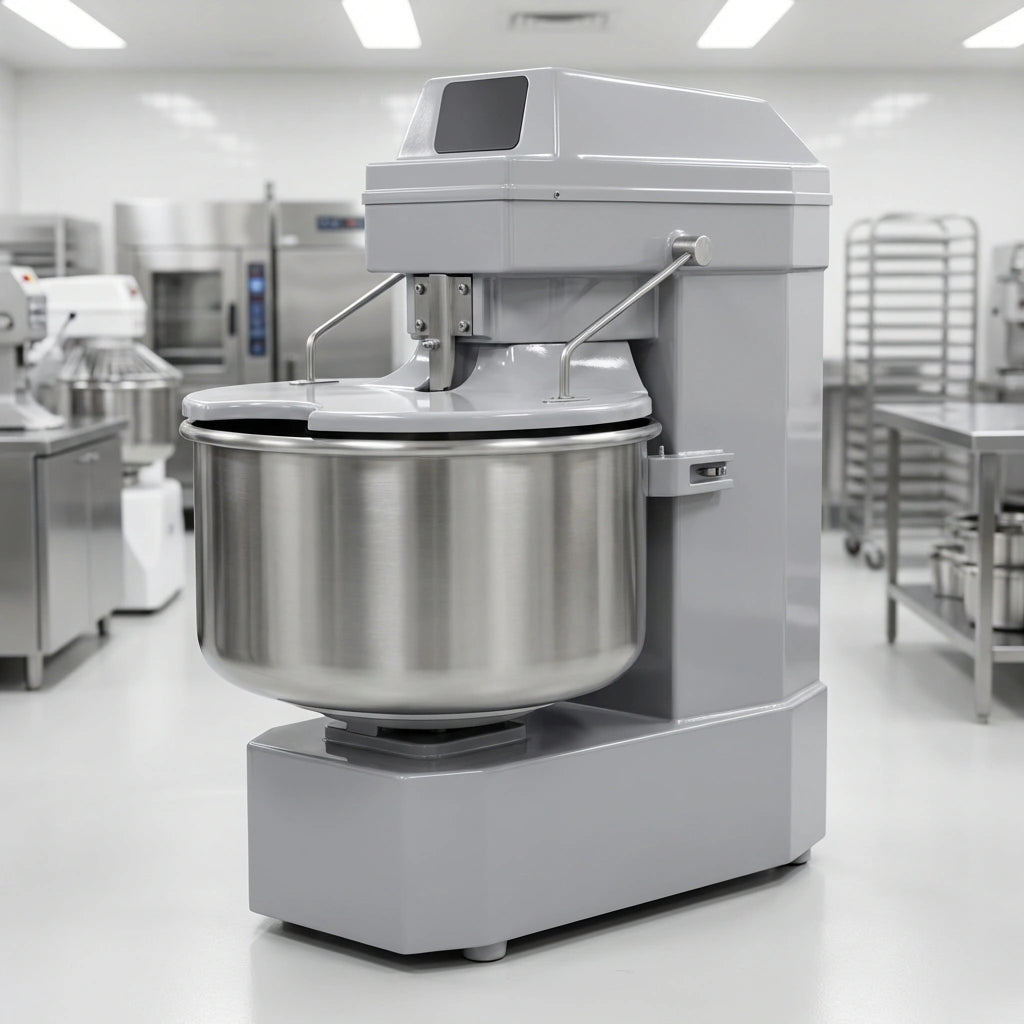

Strong Welded Steel Body
Built with NSF epoxy paint for durability and hygiene in commercial environments.

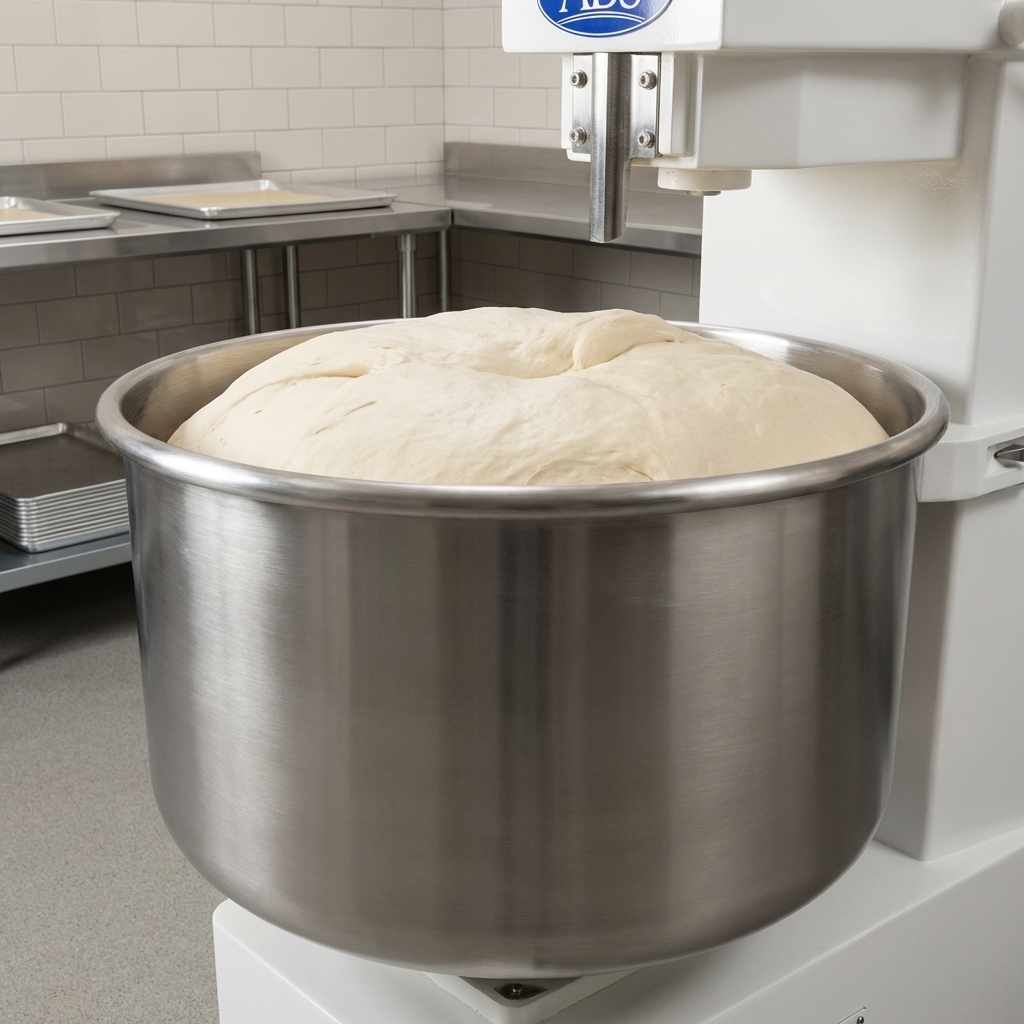

Fixed Heavy Gauge Stainless Steel Bowl
Fully welded with a stainless steel top ring for rigidity and an interior machined surface for maximum dough development.

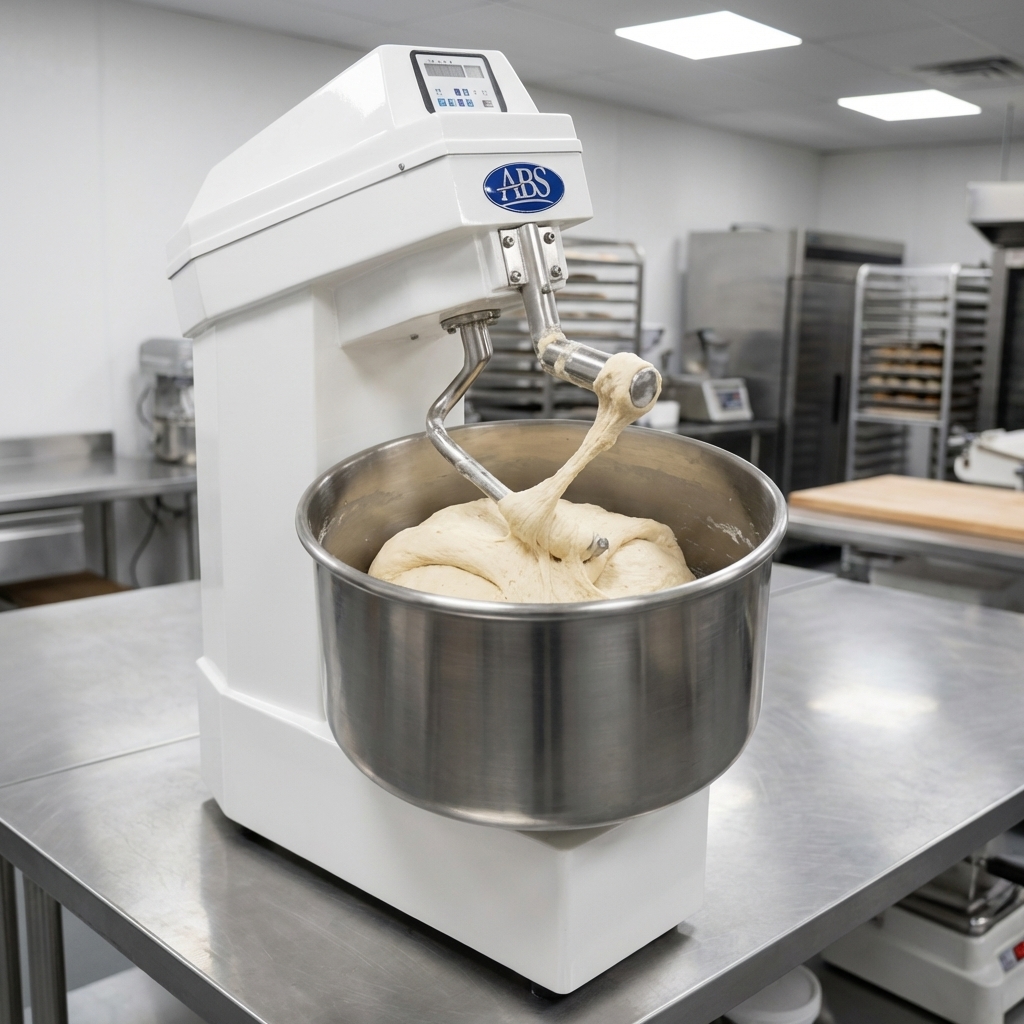

"J" Style Stainless Steel Hook
Cylindrical in cross-section with an extended sweep end, designed for maximum dough development and adjustable for various dough types.
Heavy-Duty Stainless Steel Breaker Bar
Ensures thorough mixing and dough consistency.
Digital Control Panel
Equipped with three separate digital timers for auto-reverse bowl, auto/manual operation, and mixing pause without resetting timers.
Manual Back-Up Control System
Provides continued operation in case of digital control issues.
Single Speed Operation
Optimized for efficient and consistent mixing performance.
Auto Reversible Bowl and Bowl Jog
Standard features for enhanced mixing versatility and control.
High Torque, Non-Slip Belt Drive
Quiet operation with shock-absorbing properties for reliable performance.
Solid PVC Bowl Cover with Safety Interlock
Prevents operator injury by reducing ingredient dust and pauses mixing action if opened.
Ingredient Fill Opening
Conveniently located in front of the bowl cover for easy addition of ingredients.
Three Point Caster System
Allows for easy movement of the mixer.
Four Screw-Down Leveling Feet
Provides stability during operation on uneven surfaces.
Emergency Stop Button
Mounted at eye level for quick and easy access.
Automatic Reset Over Current Protection
Control panel indicated for motor protection.
6-Foot Electrical Cord with NEMA L15-30P Plug
Ensures appropriate electrical connection.
Dual Upper Bowl Guide Rollers
For smooth and stable bowl operation.
Modular Repair System
Designed for quick, low-cost in-bakery repair.
Specifications
| Type | Spiral Dough Mixer |
|---|---|
| Style | Heavy-Duty |
| Installation Type | Floor Model (With Casters and Leveling Feet) |
| Capacity (Flour) | 165 lbs |
| Capacity (Dough) | 264 lbs |
| Controls | Programmable Digital Timers with Manual Backup |
| Speed | 1-Speed |
| Bowl Type | Fixed |
| Material | Welded Steel Body, Stainless Steel Bowl, Stainless Steel Hook, Stainless Steel Breaker Bar |
| Finish | NSF Epoxy Paint |
| Cover | PVC Solid Bowl Cover |
| Horsepower | 13 HP |
| Voltage | 208-220 Volts |
| Hertz | 60 Hz |
| Phase | 3-Phase |
| Amps | 27 Amps |
| Watts | 9.6 kW |
| Plug Type | NEMA L15-30P |
| Breaker Size | 40 Amp Slow-Blow |
| Cord Length | 6 Feet |
| Spiral Speed | 113 RPM |
| Bowl Speed | 13 RPM |
| Shipping Width | 57 Inches |
| Shipping Depth | 36 Inches |
| Shipping Height | 66 Inches |
| Shipping Weight | 1530 lbs |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
33.0"W x 52.0"D x 52.0"HProduct Weight:
1330.0 lbCertifications & Compliance
Warranty & Protection
1-Year Parts and Labor
