Alto-Shaam VMC-H4H Vector Series Combi Ovens
Description

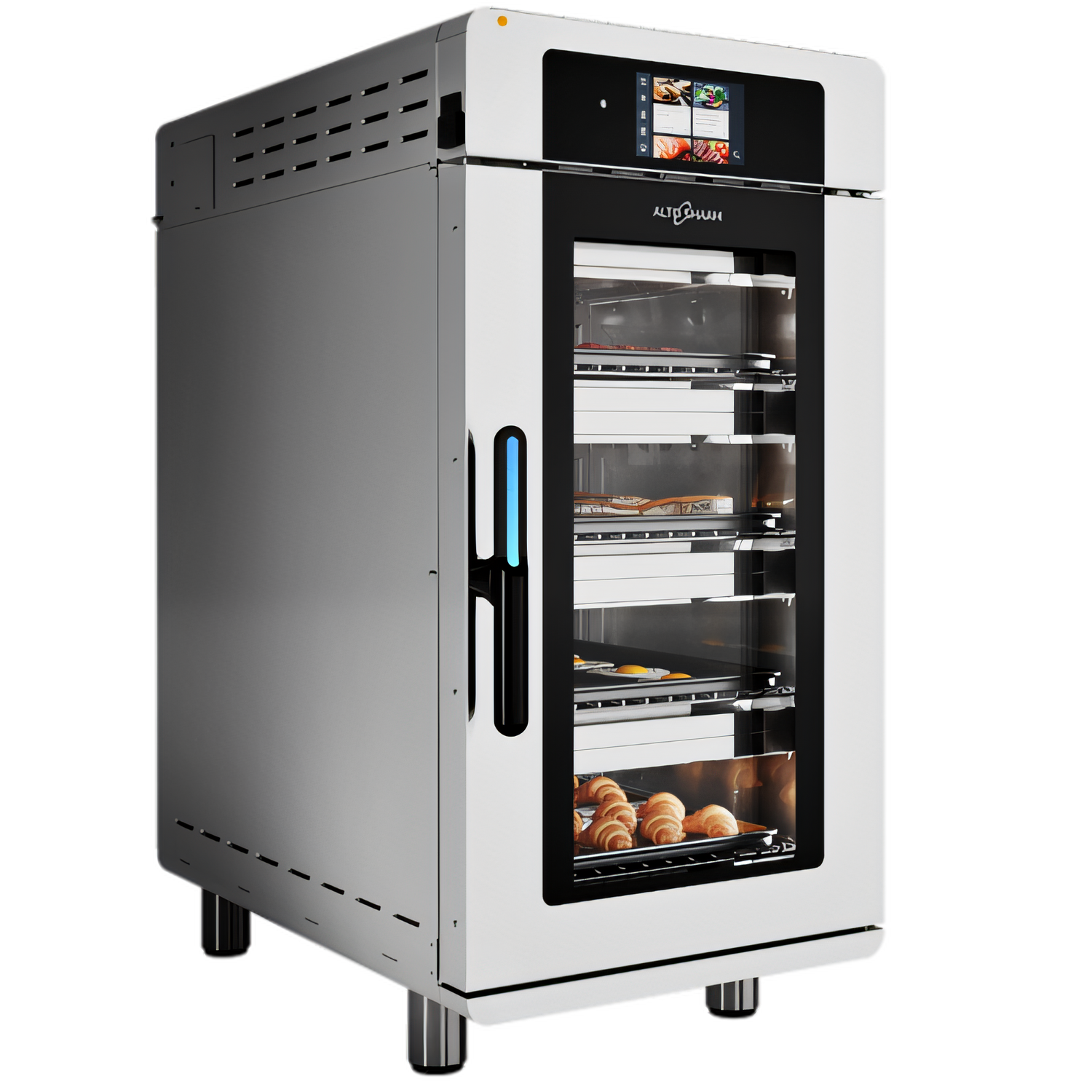

Alto-Shaam Vector® H Series 4-Chamber Multi-Cook Oven
Model VMC-H4 / VMC-H4H – Countertop, Ventless, Made in USAMaximize production, variety and consistency in the smallest possible footprint. The Vector H Series with four completely independent cooking chambers lets you simultaneously cook four different menu items – at four different temperatures – with zero flavor transfer. Exclusive Structured Air Technology® surrounds food with focused, high-velocity heat for dramatically faster, more even results while the built-in catalytic converter keeps your kitchen hood-free.
Why You’ll Love It
- Four individually controlled chambers—set unique time, temperature & fan speed in each.
- Holds 4 half-size sheet pans (18" × 13") or 4 full-size hotel pans (20 3⁄4" × 12 3⁄4").*
- Ventless, waterless operation—no traditional hood or plumbing connection required.
- Intuitive programmable touchscreen stores hundreds of recipes; upload via USB.
- Structured Air Technology® delivers faster cook times & eliminates the need to watch or rotate pans.
- Double-pane glass door and bright LED lighting showcase product while staying cool to the touch.
- ChefLinc™ (deluxe control) provides cloud-based remote oven management and data analytics.
- Durable stainless-steel construction with 4" (102 mm) adjustable legs for easy cleaning underneath.
- cULus & UL EPH Classified for sanitation; IPX4 rated splash protection.
Included With Your Oven
- (1) Wire rack per chamber
- (2) Jet plates per chamber for optimum air flow
- Built-in catalytic converter & removable grease filters
- USB port (front access) for recipe transfer & software updates
Technical Specifications
| Cooking Chambers | 4 independent chambers, 525 °F (274 °C) max. |
|---|---|
| Pan Capacity | 4 half-size sheet pans or 4 full-size hotel pans* |
| Exterior Dimensions (H × W × D) | 43 5⁄8" × 21 1⁄2" × 37 1⁄2" (1108 × 546 × 953 mm) – H4 43 5⁄8" × 21 1⁄2" × 39 1⁄2" (1108 × 546 × 1003 mm) – H4H |
| Electrical (standard) | 208–240 V, 3 PH, 10.6 – 13.9 kW, 40 A, NEMA 15-50P (cord & plug supplied) 380–415 V, 3 PH models available (no cord) |
| Net Weight | 341 lb (155 kg) – H4 356 lb (161 kg) – H4H |
| Certifications | cULus, UL EPH Classified, CE, IPX4 |
Installation Notes
- Minimum clearances: 2" (51 mm) on sides & back, 20" (508 mm) front.
- Oven must sit level and is not intended for built-in cabinetry.
- Place on a counter or optional Alto-Shaam stand; 3" caster kits available.
*Choose model VMC-H4 for half-size sheet pans or VMC-H4H for full-size hotel pans. Additional accessories such as extra jet plates, shelves, stands and cleaning products are available.
