Alto-Shaam VMC-H4H/SX-QS Quick Ship Combi Ovens
Description

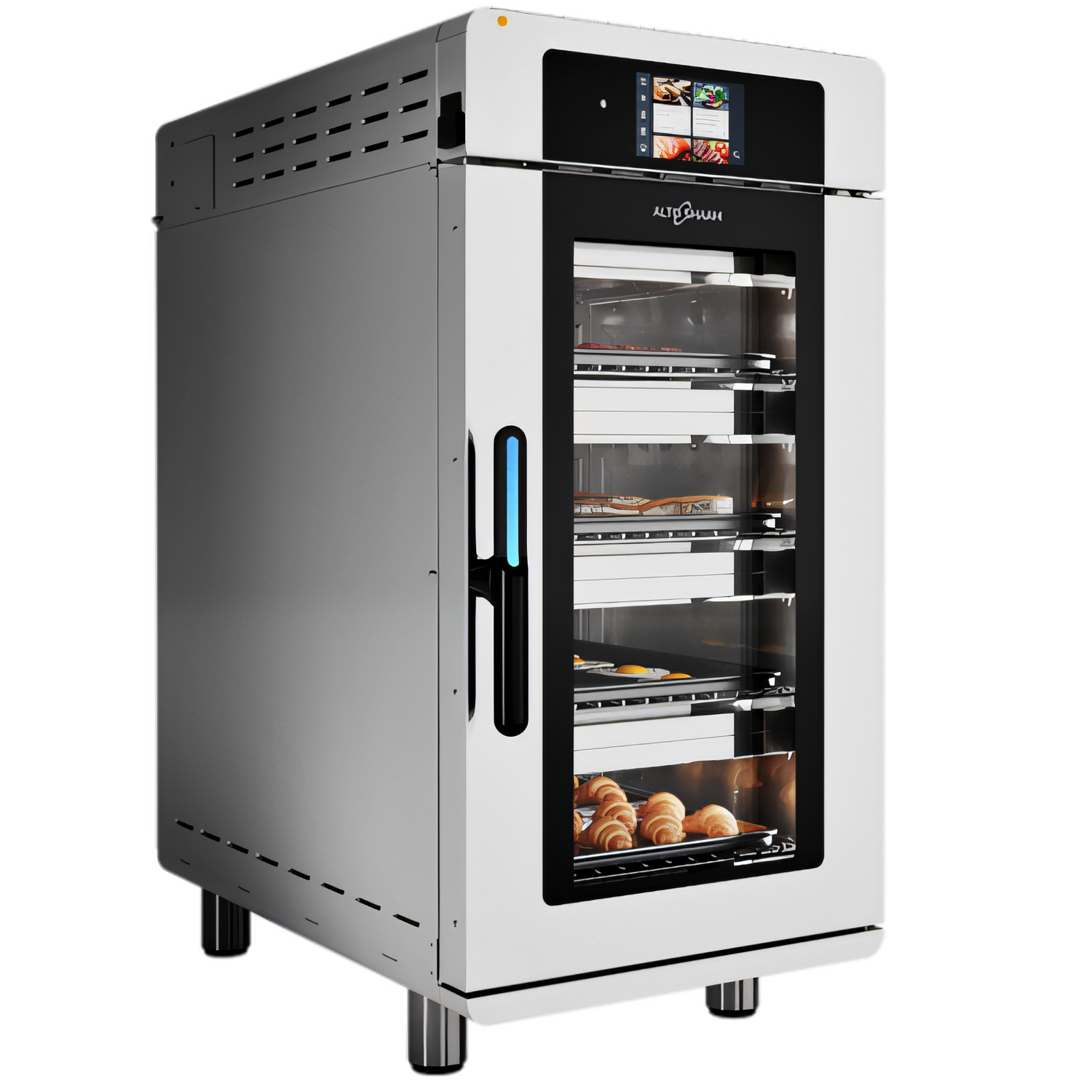

Vector® H Series VMC-H4H Multi-Cook Oven
Quick Ship Item #106531 | 4-Chamber • 208-240V / 3 Ph • Simple Control • Right-Hinged DoorCook four completely different menu items at once—no flavor transfer, no babysitting and no hood required. The Alto-Shaam Vector H Series VMC-H4H pairs Structured Air Technology® with four independent chambers, unlocking unmatched throughput in a 21½ in. (546 mm) footprint. Order today and it leaves the factory within 48 business hours through Alto-Shaam’s Quick Ship program.
Key Features & Benefits
- 4 independent chambers – set temperature, fan speed and cook time individually.
- Structured Air Technology® – focused vertical airflow delivers faster, even results without rotation.
- Ventless & waterless – integrated catalytic converter removes grease-laden vapors; no hood or water connection needed.
- Programmable touchscreen – simple control stores recipes, guides staff and ensures consistency.
- Compact countertop design – only 21½ in. wide yet holds four full-size hotel pans.
- Labor-saving LED cues – interior LED lighting and intuitive interface let staff load, unload and move on.
- Durable build – all-stainless exterior, double-pane glass door and 4 in. adjustable legs.
- Made in the USA, cULus & UL EPH Classified for commercial kitchens.
Capacity
- 4 × Full-size hotel pans (12 ³⁄₄ in. × 20 ³⁄₄ in. × 4 in.)
- or 4 × Half-size sheet pans (18 in. × 13 in. × 1 in.)
Technical Specifications
| Exterior dimensions (H × W × D) | 43 5⁄8 in. × 21 1⁄2 in. × 39 1⁄2 in. (1108 × 546 × 1003 mm) |
|---|---|
| Interior dimensions (per oven) | 28 3⁄8 in. × 14 11⁄16 in. × 21 1⁄2 in. (721 × 373 × 546 mm) |
| Chambers / Racks supplied | 4 chambers • 4 wire racks • 8 jet plates |
| Electrical | 208-240 V / 3-Phase / 40 A breaker • 10.6 kW @ 208 V | 13.9 kW @ 240 V • NEMA 15-50P cord & plug (included) |
| Maximum temperature | 525 °F (274 °C) |
| Ventilation | UL-listed catalytic converter – completely ventless |
| Clearances | Top/Back/Sides: 2 in. (51 mm) • Front: 20 in. (508 mm) |
| Net weight | 348 lb (158 kg) |
What’s in the Box
- (4) Wire shelves – one per chamber
- (8) Jet plates – two per chamber
- 4 in. (102 mm) adjustable legs (pre-installed)
- Factory-installed catalytic converter & LED lighting
- USB port for recipe upload/download
- Power cord with NEMA 15-50P plug
Quick Ship Advantage
Order by 1 p.m. CST and Alto-Shaam ships within 48 business hours*—getting you cooking sooner and keeping projects on schedule.
*
Certifications & Warranty
- cULus Listed • UL EPH Classified • IP X4 splash-proof rating
- One-year parts & labor warranty (with option to add 12-month extension)
- ISO 9001:2015-certified manufacturing facility
