Alto-Shaam  |  Vector Series  |  SKU: VMC-H3HW

Alto-Shaam VMC-H3HW Vector Series Combi Ovens

$15,443.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Spec sheet - ul Terms & conditions Spec sheet - spanish Spec sheet - ce Spec sheet - french canadian Installation program Terms & conditions Vector wide stands guide Cheflinc connectivity requirements Warranty sheet Warranty sheet
Related Searches
Alto-Shaam Bar Trays Combi Ovens Combi Ovens Ovens Smallwares Trays & Accessories

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

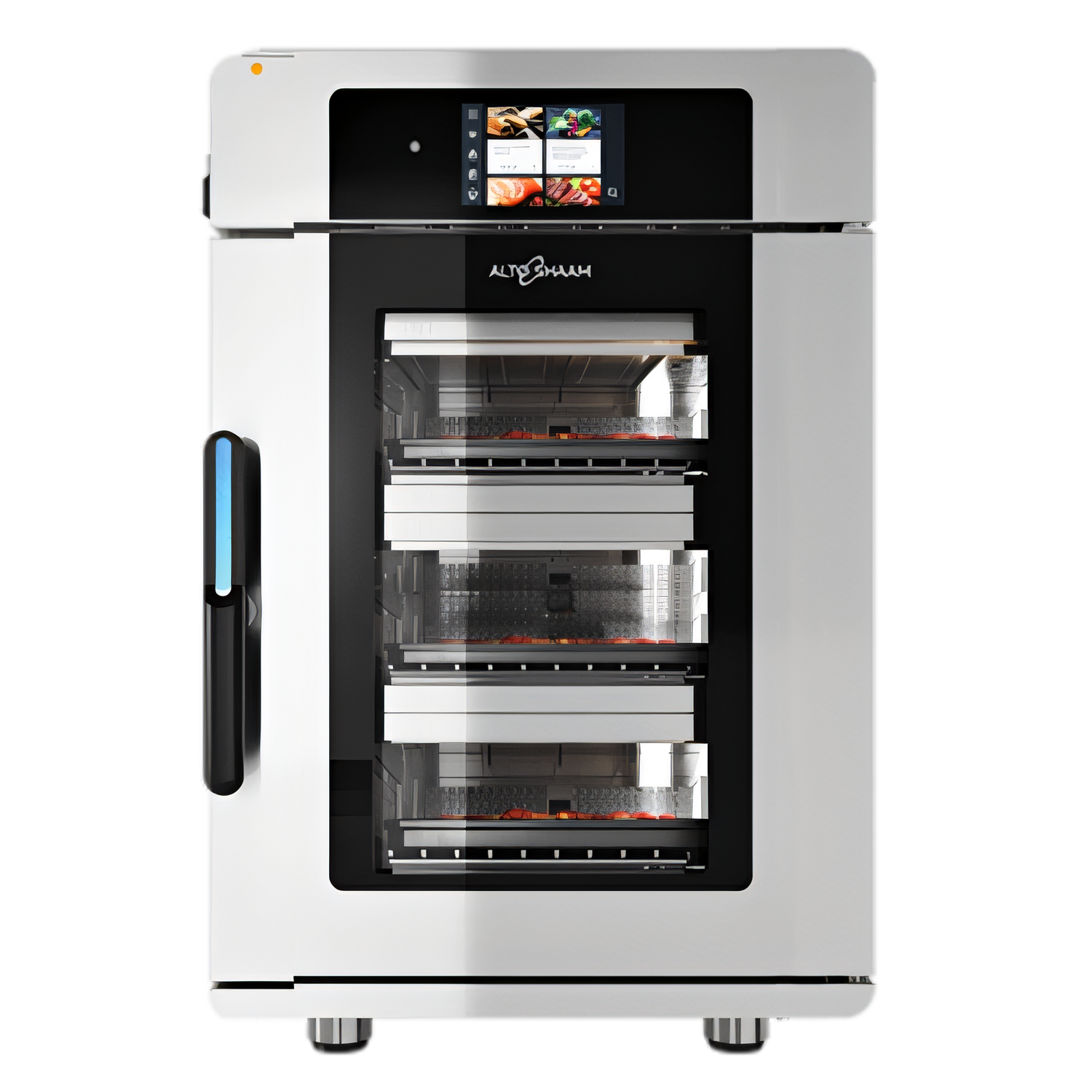

Vector® H Wide Series Multi-Cook Oven – 3 Chambers

Model VMC-H3HW | Electric • Countertop • Ventless

Triple your cooking capacity without adding a single inch of hood space. The Alto-Shaam Vector® H Series Wide Multi-Cook Oven combines three independent chambers with exclusive Structured Air Technology® to deliver faster, more even results—no flavor transfer, no rotating pans, no wasted labor.

Why It Belongs in Your Kitchen

  • Three ovens in one: individual temperature, fan speed & cook-time control in every chamber.
  • Structured Air Technology® surrounds food with focused, high-velocity air for up to 2× faster, perfectly even cooking.
  • Ventless & waterless: built-in catalytic converter lets you place the unit anywhere—no costly hood or plumbing.
  • Programmable touchscreen with USB recipe upload/download and optional ChefLinc™ cloud connectivity.
  • Small 23 in. (584 mm) footprint maximizes production in tight spaces.
  • Double-pane glass door & LED lighting put the cooking action on display while keeping heat inside.
  • Made in the USA and certified cULus & UL EPH Classified for food-safe operation.

What You Can Load

  • 3 full-size hotel pans (20-3/4" × 12-3/4" × 4")
  • or 3 half-size sheet pans (18" × 13" × 1")
  • One stainless wire rack & two jet plates are included in each chamber to optimize air flow.

Included with Purchase

  • (3) Stainless wire racks – one per cavity
  • (6) Jet plates – two per cavity
  • 4" (102 mm) adjustable legs
  • Factory-installed ventless catalytic converter
  • Power cord & NEMA 15-50P plug (208–240 V, 3 PH models)

At-a-Glance Specifications

Exterior Dimensions (H × W × D) 38-5/8" × 23-5/8" × 39-7/8" (986 × 600 × 1013 mm)
Chamber Size (each) 4-7/8" H × 17" W × 21" D (124 × 432 × 533 mm)
Temperature Range Up to 525 °F (274 °C)
Electrical 208–240 V, 3 PH, 10.5–13.6 kW, 29–33 A
Factory cord & NEMA 15-50P plug (USA/Canada)
Net Weight 312 lb (142 kg)
Noise Emission ≤ 72 dBA at 3.3 ft (1 m) – no hood required
Heat Rejection 1,218 BTU/hr (hooded)  |  1,741 BTU/hr (unhooded)
Certifications cULus, UL EPH Classified, ISO 9001:2015, Made in USA

Popular Options & Accessories

  • 3" (76 mm) heavy-duty casters, set of four (part # 5027946)
  • Additional jet plate assemblies (top # 5030451, bottom # 5029095)
  • Internal chamber grease filter kit (part # 5033002)
  • Alto-Shaam® non-caustic oven cleaner – single bottle or case
  • Universal oven stands & trim kits for front-of-house display
Professional installation required: A factory-authorized technician must complete start-up to validate warranty. Allow 2" (51 mm) clearance on all sides; oven is not intended for built-in installations.

Specifications are subject to change without notice. Always refer to the current Alto-Shaam installation manual for full utility requirements.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Vector Series

Certifications

cULus, UL EPH Classified, Made in USA

Height

36.63in

Width

23.63in

Depth

39.5in

Shipping Weight

375.0lbs

Half Size Sheet Pan Capacity

(3) 13" x 18" pans

Gas or Electric Type

electric

Control Type

programmable controls

Full Size Hotel Pan Capacity

(3) 12" x 20" pans

Specifications

Vector® H Wide Series Multi-Cook Oven, electric, (3) individually controlled cooking chambers, holds (3) half-size sheet pans or (3) full-size hotel pans, programmable touch screen controls with Structured Air Technology®, double pane glass door, interior LED cavity lighting, ventless catalytic converter, includes: (1) wire rack & (2) jet plates per cooking chamber, USB port, stainless steel construction, 4" adjustable legs, cULus, UL EPH Classified, Made in USA
