Alto-Shaam VMC-H3H/DX-QS Quick Ship Combi Ovens
Alto-Shaam VMC-H3H/DX-QS Quick Ship Combi Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Alto-Shaam VMC-H3H/DX-QS Quick Ship Combi Ovens
Description

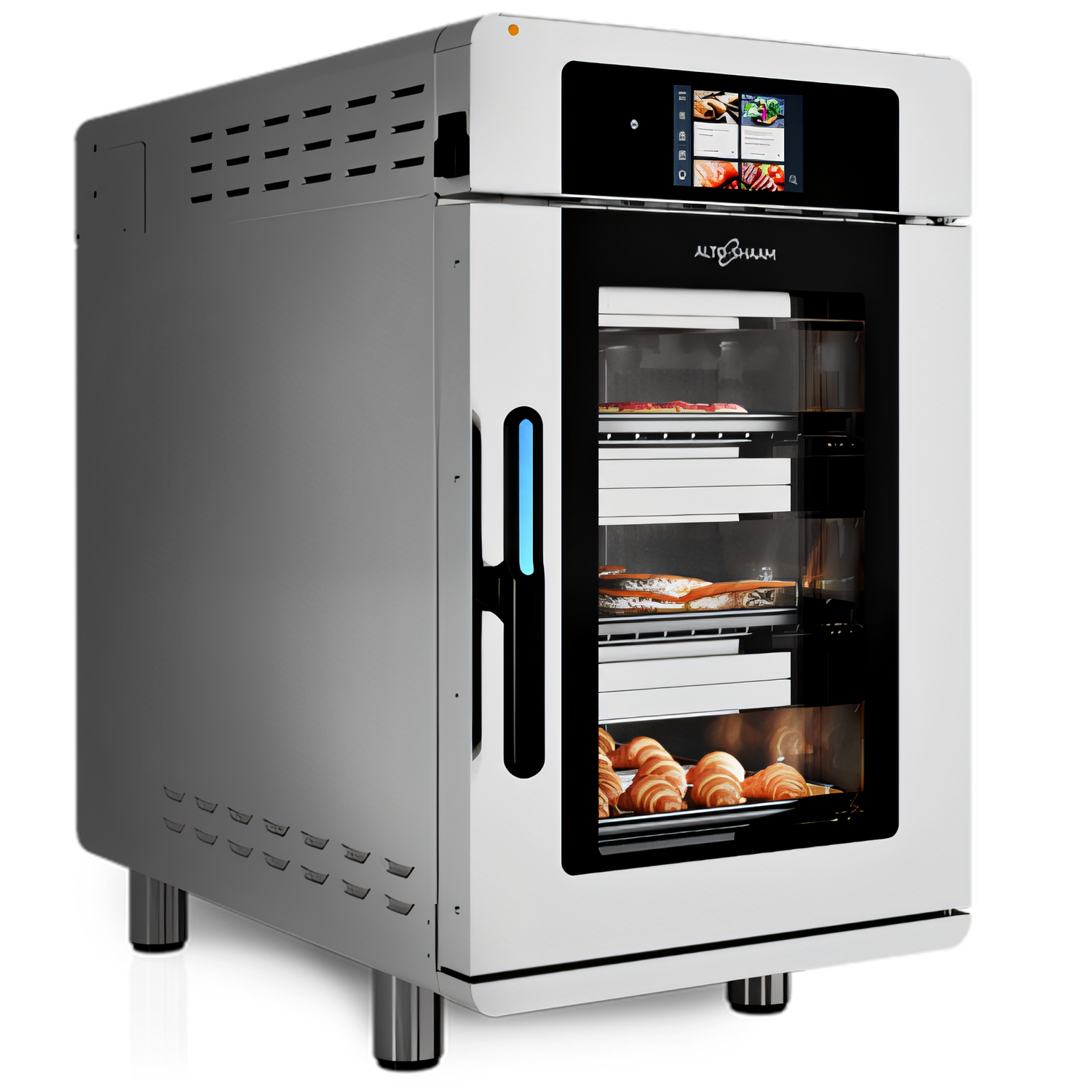

Vector® H Series VMC-H3H Multi-Cook Oven
Quick Ship Item #106500 | 3-Chamber, Deluxe Control, 208-240 VShip it fast, cook even faster. Alto-Shaam’s Quick Ship VMC-H3H puts three completely independent ovens in the same 21 inch footprint, so you can bake, roast and reheat at three different temperatures – all at once, all without a hood. Exclusive Structured Air Technology® delivers the speed of convection with the precision of combi, while the deluxe touch-screen and cloud-based ChefLinc™ software keep every cook perfectly on script.
Why You’ll Love It
- Triple capacity, zero flavor transfer – three sealed chambers let you mix sweet, savory and allergen-sensitive items in one cycle.
- Structured Air Technology® – high-velocity, vertical air curtains wrap each pan for even browning and up to 2× faster cook times.
- Ventless & waterless – built-in catalytic converter eliminates the need for a hood or water connection.
- Deluxe touch-screen control – 100 × programmable recipes, multi-step cooking and USB upload/download.
- ChefLinc™ ready – manage menus, push updates and pull HACCP data from any browser (Ethernet port on board).
- Labor-saving automation – no pan rotation or babysitting; audible alerts and color cues signal when each chamber is done.
- Made in the USA – cULus & UL EPH Classified for open-kitchen installation.
Pan Capacity
| Cooking chambers | 3 (individually controlled) |
|---|---|
| Pans per chamber | 1 half-size sheet pan or 1 full-size hotel pan |
| Total capacity | 3 half-size sheet pans (18 × 13 in) – or – 3 full-size hotel pans (20.75 × 12.75 × 4 in) |
| Maximum temperature | 525 °F (274 °C) |
What’s in the Box
- (3) Stainless-steel wire racks – one per chamber
- (6) Jet plates – two per chamber for accelerated airflow
- 4 in (102 mm) adjustable legs
- Factory-installed cord & 6-50P plug
- Quick Ship priority handling – ships within 48 business hours when ordered before 1 pm CST*
*Subject to available inventory and standard Quick Ship terms.
Technical Specs
| Model | VMC-H3H, Deluxe Control, right-hinged door |
|---|---|
| Exterior (H × W × D) | 36 5⁄8 in × 21 1⁄2 in × 39 1⁄2 in (929 mm × 546 mm × 1003 mm) |
| Interior (per cavity H × W × D) | 21 3⁄8 in × 14 11⁄16 in × 21 1⁄2 in (544 mm × 373 mm × 546 mm) |
| Net weight | 278 lb (126 kg) |
| Voltage | 208-240 V, 1-phase, 60 Hz |
| Amps / kW | 38 A / 7.9 kW @ 208 V | 43 A / 10.3 kW @ 240 V |
| Power cord | 6 ft with NEMA 6-50P |
| Certifications | cULus, UL EPH, IP X4 |
| Construction | Seam-welded stainless steel, double-pane glass door, interior LED lighting |
Installation at a Glance
- Countertop unit – only 21 1⁄2 in (546 mm) wide
- Ventless – 2 in (51 mm) clearance on sides, back and top; 20 in (508 mm) front
- No water, drain or hood required
- Level surface and dedicated 50 A breaker recommended
Warranty
Backed by Alto-Shaam’s factory warranty with optional 12-month extended coverage (W2).
Need a matching stand, additional jet plates or stacked configuration? Contact our team for compatible accessories and expert recommendations.
