Alto-Shaam VMC-F4G Vector Series Combi Ovens
$35,350.40
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Alto-Shaam VMC-F4G Vector Series Combi Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Alto-Shaam VMC-F4G Vector Series Combi Ovens
$35,350.40
Unit price
/
Unavailable
Description

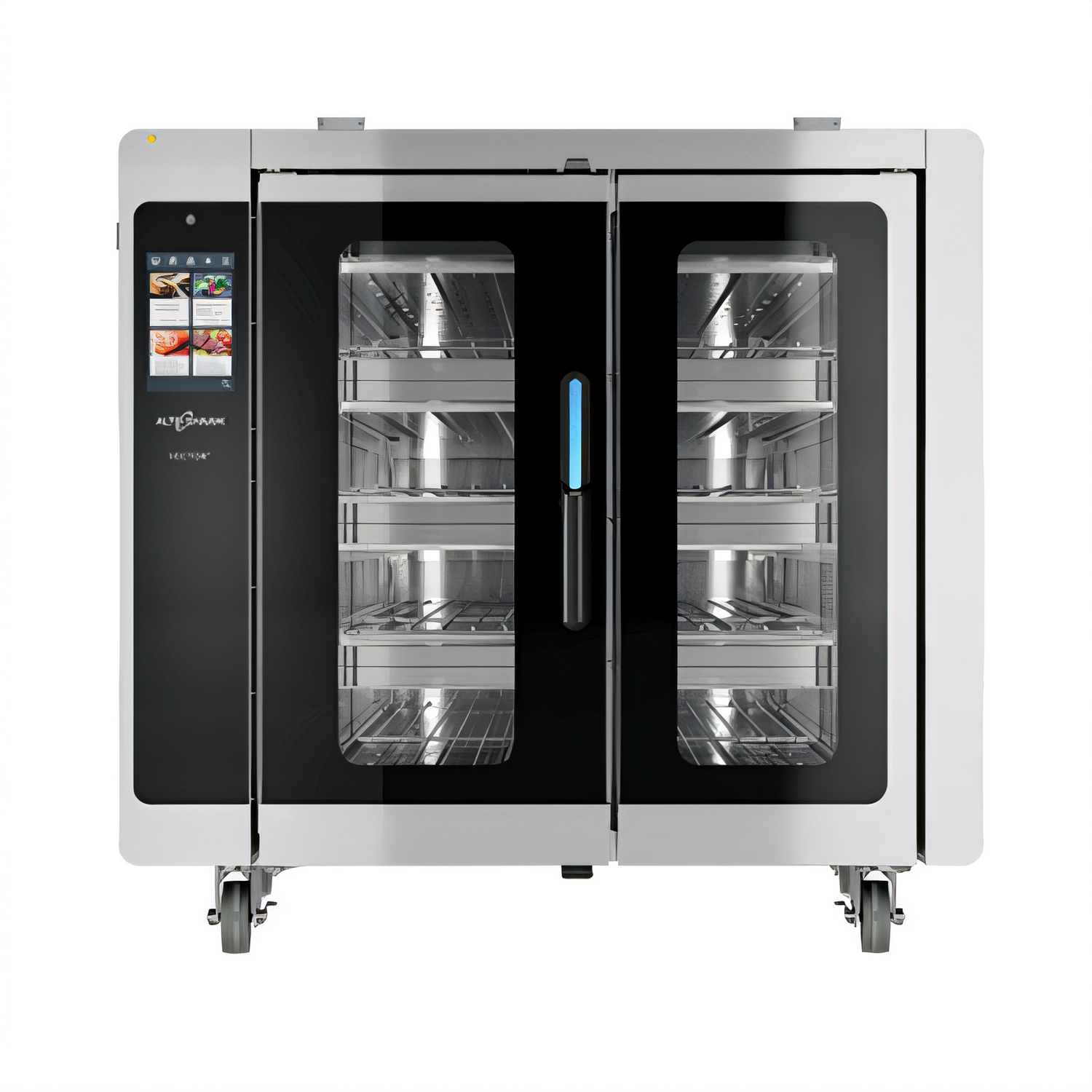

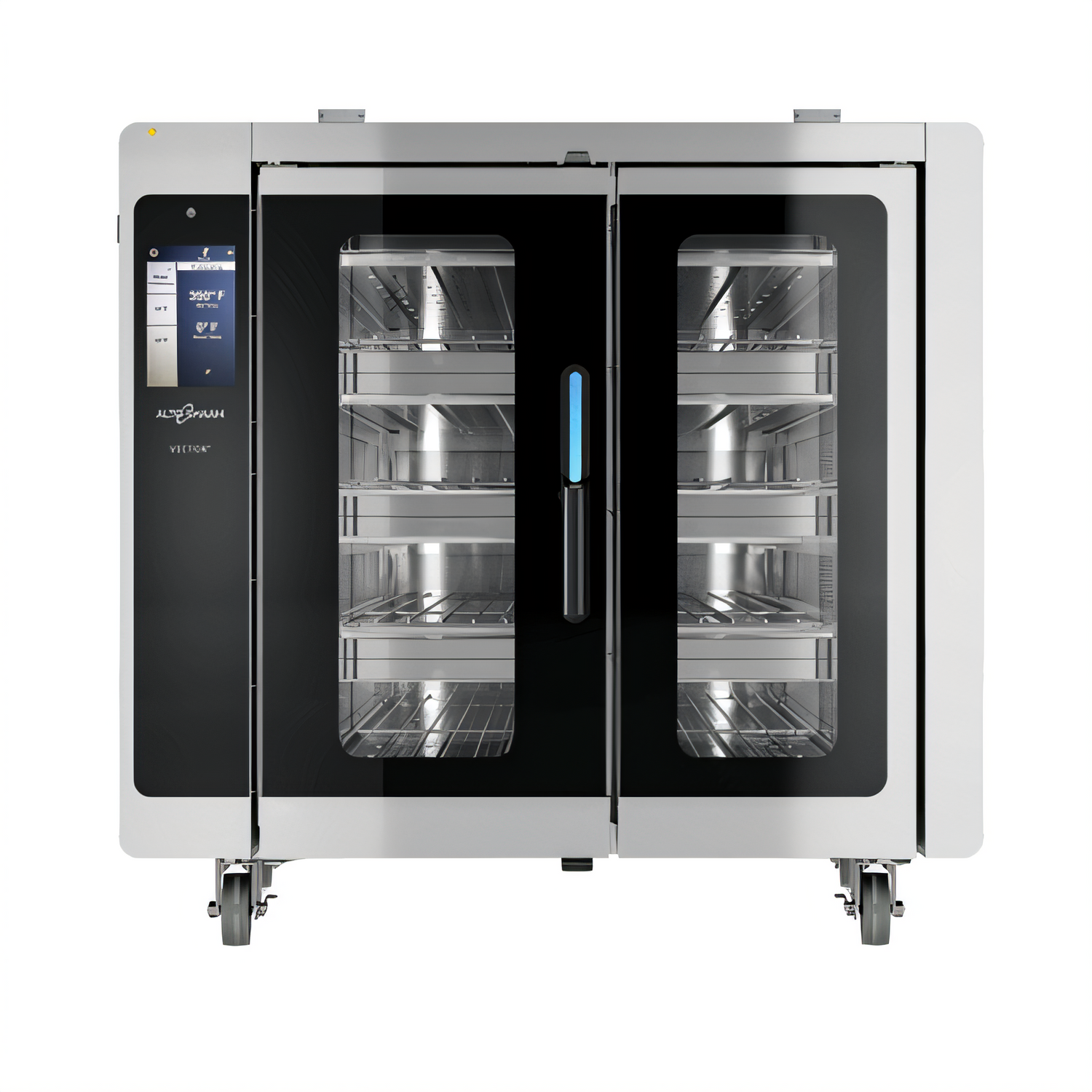

Alto-Shaam Vector® F Series VMC-F4G Multi-Cook Oven
4-Chamber Gas Oven with Structured Air Technology®Cook four completely different menu items at once—no flavor transfer, no babysitting, and no extra hood space. The gas-fired Vector VMC-F4G uses Alto-Shaam’s exclusive Structured Air Technology® to deliver faster, more even results while slashing labor and energy costs in high-volume kitchens.
Key advantages
- Four individually controlled chambers let you set temperature, fan speed & time in each deck.
- Structured Air Technology® surrounds food with focused jets of air for up to 2× faster cooking.
- Touchscreen control stores programmable recipes; upload/download via the built-in USB port.
- Waterless design—no drains, filters or plumbing lowers installation & maintenance costs.
- Double-pane glass door and LED cavity lighting provide a clear, cool-to-touch view of every rack.
- Stainless steel construction built for the rigors of 24/7 food-service operations.
- Optional ChefLinc™ cloud connectivity (Deluxe control) delivers remote oven management & data insights.
What’s included
- (1) Wire rack & (2) jet plates per chamber (total: 4 racks, 8 jet plates)
- Interior LED lighting
- USB recipe management port
- cULus, UL EPH & ANSI/NSF 4 certified for gas-fired food-service equipment
Capacity at a glance
| Independent cooking chambers | 4 |
|---|---|
| Sheet pans | 4 full-size (18 × 26 × 1") or 8 half-size (18 × 13 × 1") |
| Hotel pans (12-3/4" × 20-3/4") | 8 full-size, up to 4" deep |
| Maximum temperature | 525 °F (274 °C) |
Technical specifications
| Model | Vector VMC-F4G (gas) |
|---|---|
| Exterior dimensions (H × W × D) | 41-9/16" × 41" × 46-1/8" (1056 × 1041 × 1172 mm) |
| Interior dimensions (H × W × D) | 28-3/8" × 26-1/4" × 20-5/8" (720 × 667 × 525 mm) |
| Gas input | 96,000 BTU/hr (Natural or Propane) – 3/4" NPT connection |
| Electrical (control & lighting) |
120 V / 1 PH / 60 Hz – 2.0 kW, 16.5 A or 208-240 V / 1 PH / 50-60 Hz – 1.4 kW, 10.6 A (20 A hard-wire connection) |
| Net weight | 681 lb (309 kg) |
| Noise emissions | ≤ 72 dBA at 3.3 ft (1 m) |
| Certifications | cULus • UL EPH • ANSI/NSF 4 • ISO 9001:2015 facility |
Installation & clearance
- Requires exhaust hood; not intended for built-in installation.
- Minimum clearance: 2" (51 mm) left/right, 4" (102 mm) rear.
- Unit must be installed level on a non-combustible surface.
- Factory-authorized installation program available in the U.S. & Canada.
Popular accessories
- Single-point quick-release temperature probe
- 3" (76 mm) locking caster kit or mobile base
- Additional wire racks & jet plates
- Non-caustic oven cleaner (single bottles or case)
Important: Declining professional installation or failing to meet site requirements may void warranty claims related to improper setup.
Questions? Contact our equipment specialists for lead times, freight quotes or bundle pricing with stands, casters and installation services.
Features & Specs
Features & Specs
Manufacturer
Alto-Shaam
Brand_name
Vector Series
Certifications
cULus, UL EPH Classified
Height
43.56in
Width
41.0in
Depth
44.25in
Shipping Weight
816.0lbs
Full Size Sheet Pan Capacity
(4) 18" x 26" pans
Control Type
programmable controls
Half Size Sheet Pan Capacity
(8) 13" x 18" pans
Specifications
Vector® F Series Multi-Cook Oven, gas, (4) individually controlled cooking chambers, holds (8) half-size sheet pans (4) full sized sheet pans, programmable touch screen controls with Structured Air Technology®, double pane glass door, interior LED cavity lighting, includes: (1) wire rack & (2) jet plates per cooking chamber, USB port, stainless steel construction, cULus, UL EPH Classified
