Alto-Shaam VMC-F4E Vector Series Combi Ovens
Description

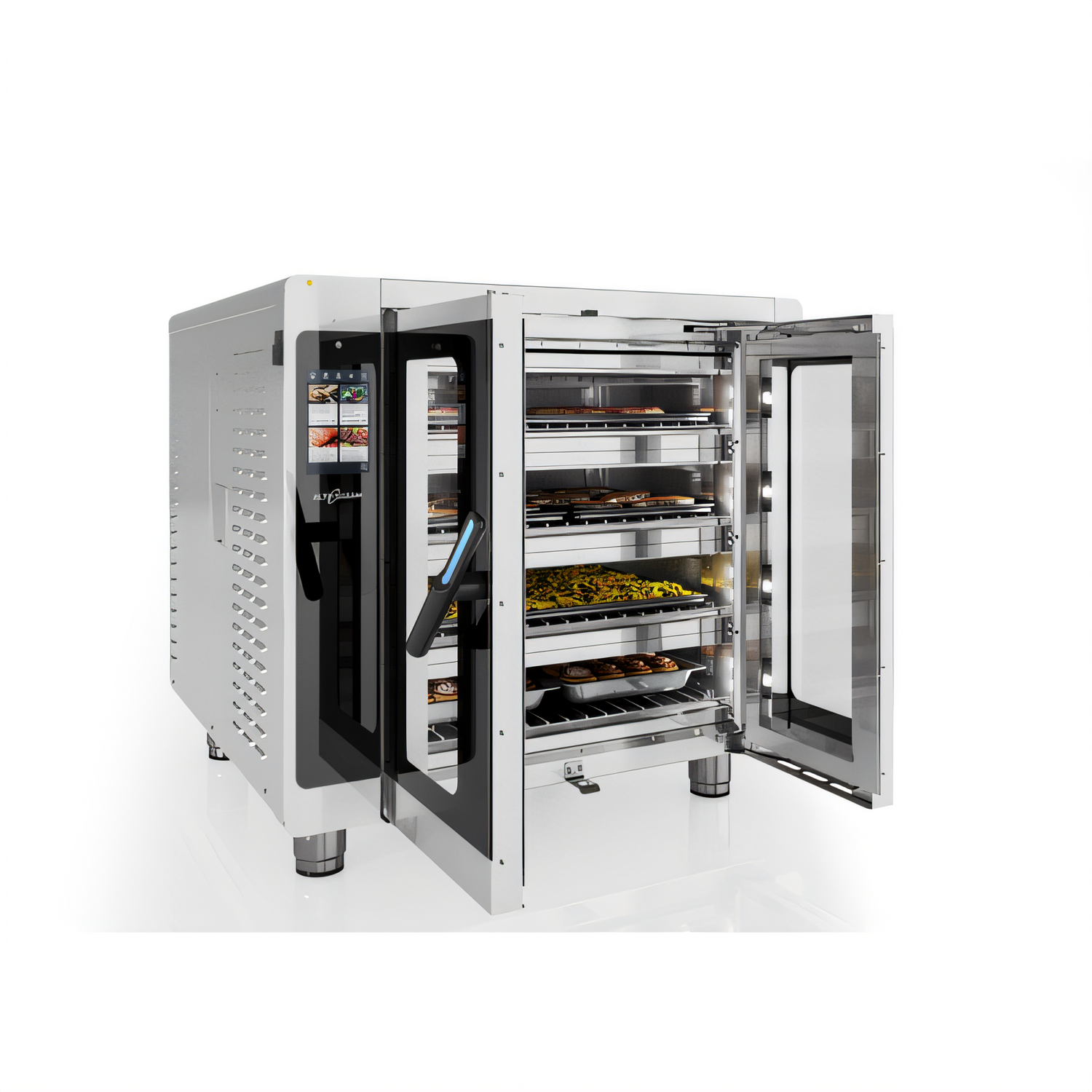

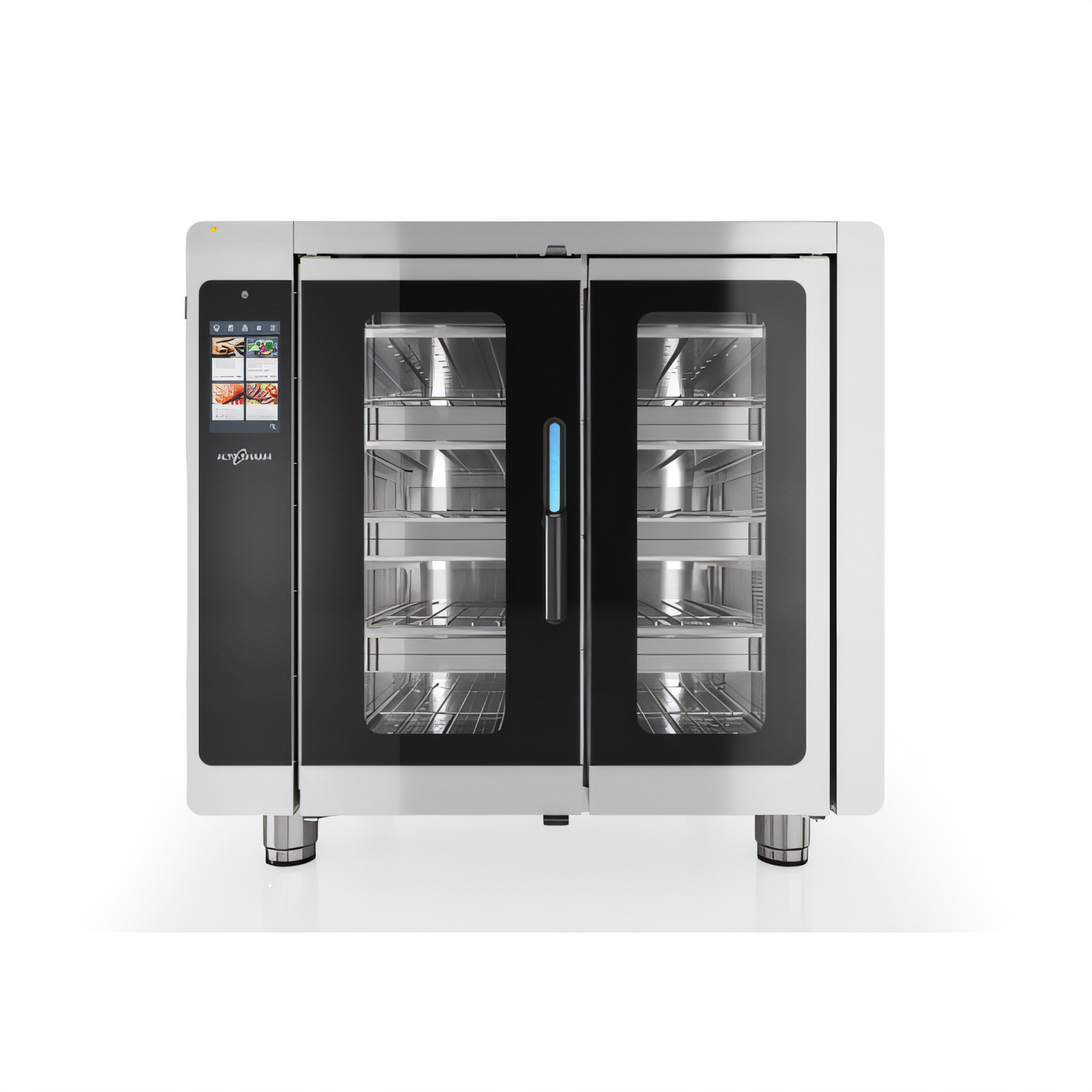

Alto-Shaam Vector® F Series VMC-F4E Multi-Cook Oven
Electric • 4 independent chambers • Structured Air Technology®Put four ovens in the footprint of one. The Vector VMC-F4E lets you simultaneously cook a full menu mix—each item at its ideal time, temperature and fan speed—without flavor transfer or constant pan rotation. Perfect for high-volume kitchens that refuse to compromise on quality.
Why you’ll love the Vector F4E
- Four individually controlled cooking chambers; adjust temperature, fan speed & cook time for each shelf.
- Exclusive Structured Air Technology® delivers focused, even heat for up to 20 % faster cook times.
- Holds 4 full-size sheet pans (18 × 26 in) or 8 half-size sheet pans (18 × 13 in).
- Intuitive, programmable touchscreen with USB port for quick recipe upload/download.
- Waterless design – no plumbing, drains or filters required, lowering installation & operating costs.
- Double-pane glass door, cool-touch handle and bright LED cavity lighting for safe, easy monitoring.
- Durable, all-stainless exterior & interior with 4 in (102 mm) adjustable legs.
- cULus UL & EPH listed; ISO 9001:2015-certified manufacturing.
Included with your oven
- 1 stainless-steel wire rack per chamber (4 total)
- 2 jet plates per chamber (8 total)
- 6 ft (1.8 m) flexible conduit (Canada only)
- Operator’s manual & quick-start guide
High-volume capacity
- 4 × full-size sheet pans • 1 per shelf
- 8 × half-size sheet pans • 2 per shelf
- 8 × full-size 4 in (102 mm) hotel pans
- Maximum temperature: 525 °F (274 °C)
Technical specifications
| Model | Vector VMC-F4E (electric) |
|---|---|
| Cooking chambers | 4, independently controlled |
| Exterior (H × W × D) | 39 ⅜ ″ × 40 ¾ ″ × 42 ½ ″ (998 × 1036 × 1078 mm) |
| Interior (H × W × D) | 28 ⅜ ″ × 26 ¼ ″ × 20 ⅝ ″ (720 × 667 × 525 mm) – total cavity |
| Chamber height | 4 ⁵⁄₁₆ ″ (109 mm) per shelf |
| Electrical | 208–240 V, 3 Ø, 60 Hz, field-wired 41 A @ 208 V • 46 A @ 240 V 15.2–19.9 kW, no cord/plug supplied |
| Net weight | 616 lb (279 kg) |
| Clearances | Sides & back — 2 ″ (51 mm) Front — 16 ″ (406 mm) |
Need even more throughput? Vector ovens are stackable and compatible with Alto-Shaam Combitherm® combi ovens—ask us about custom configurations.
