Alto-Shaam QC3-40 Quickchiller Blast Chillers & Freezers
Description

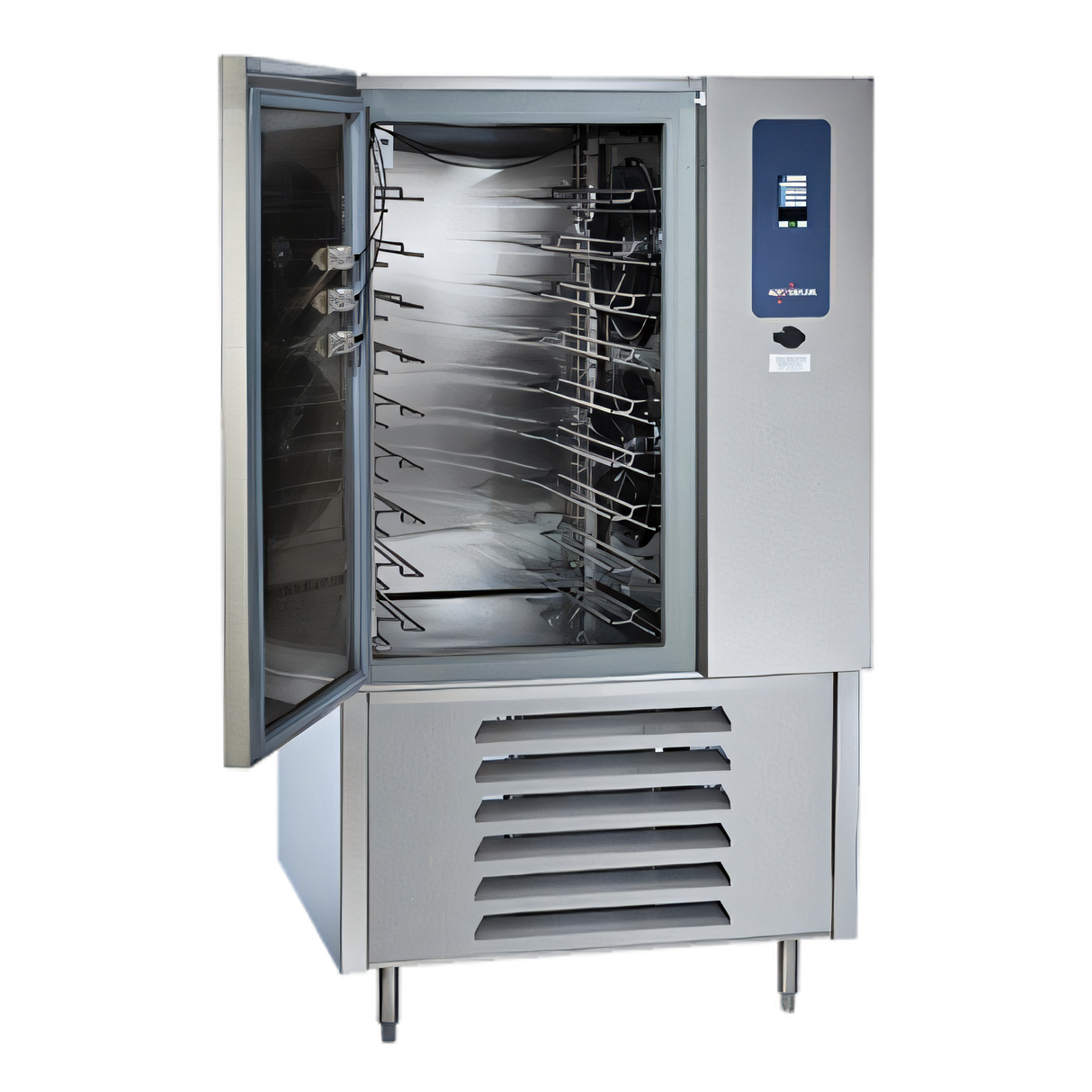

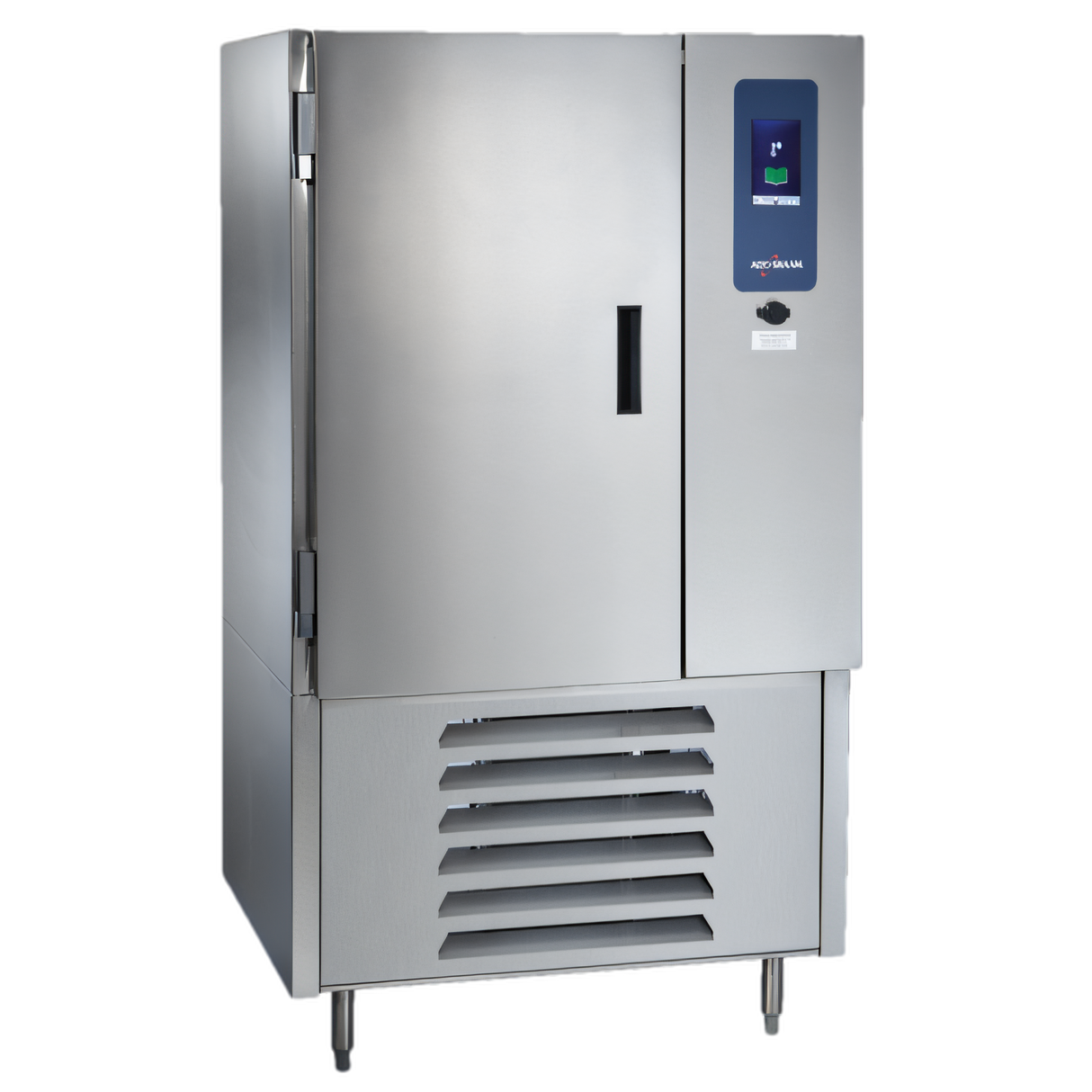

Alto-Shaam QC3-40 QuickChiller™ Blast Chiller/Freezer
Reach-in | Self-contained | 18-pan capacityRapidly chill or freeze hot foods straight from the oven while locking in quality, flavor, and safety. The QC3-40 QuickChiller™ combines high-performance refrigeration with intuitive touchscreen control, giving kitchens the speed and confidence they need to prep ahead and serve on time.
Why you’ll love it

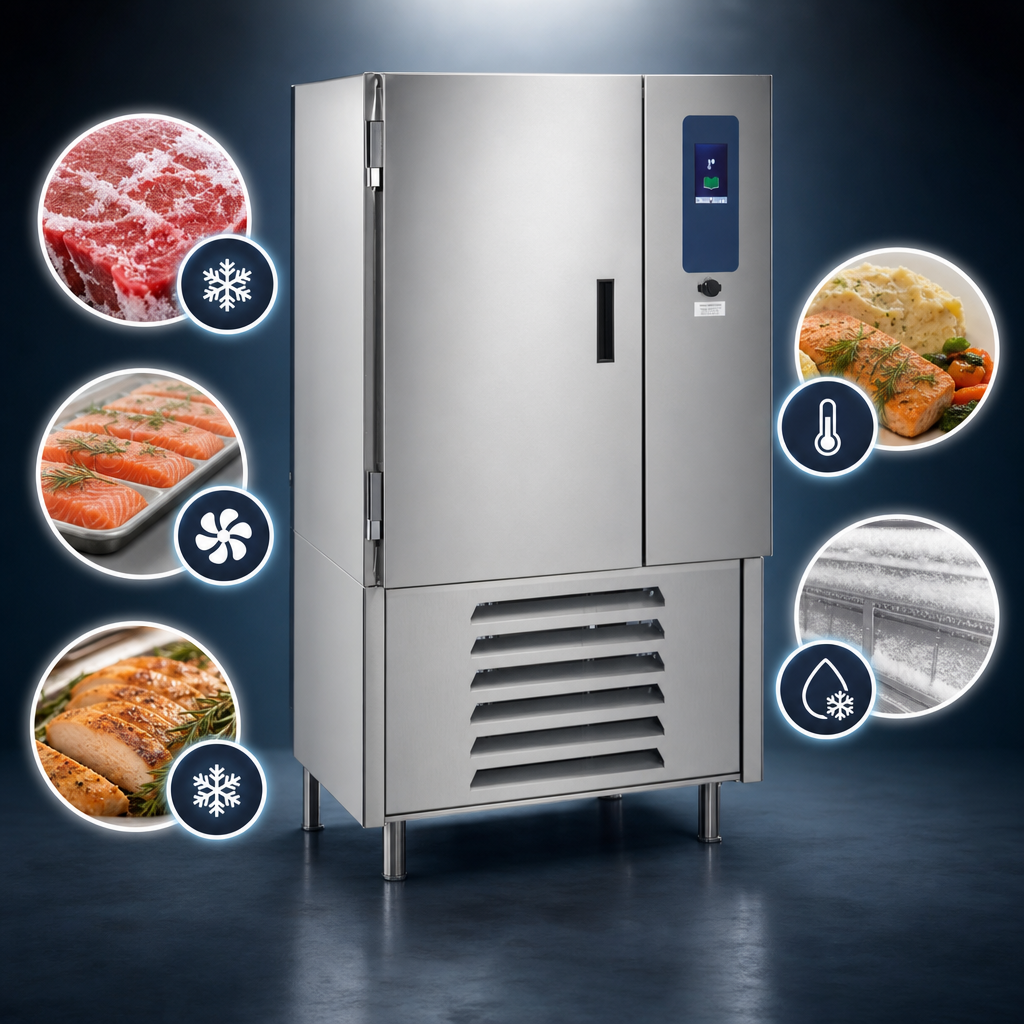

- Five operating modes: Quick Freeze, Soft Chill, Hard Chill, Holding, and Automatic Defrost.
- Large 7" touchscreen with 20 programmable menu presets for one-touch cycles.
- Chills or freezes food to HACCP/FDA guidelines; 30-day HACCP data downloadable via USB.
- Three detachable temperature probes ensure precise product monitoring every cycle.
- Safely stores chilled items up to 5 days, maximizing labor and ingredient efficiency.
- Durable #4-finish stainless steel interior & exterior with foamed-in-place insulation.

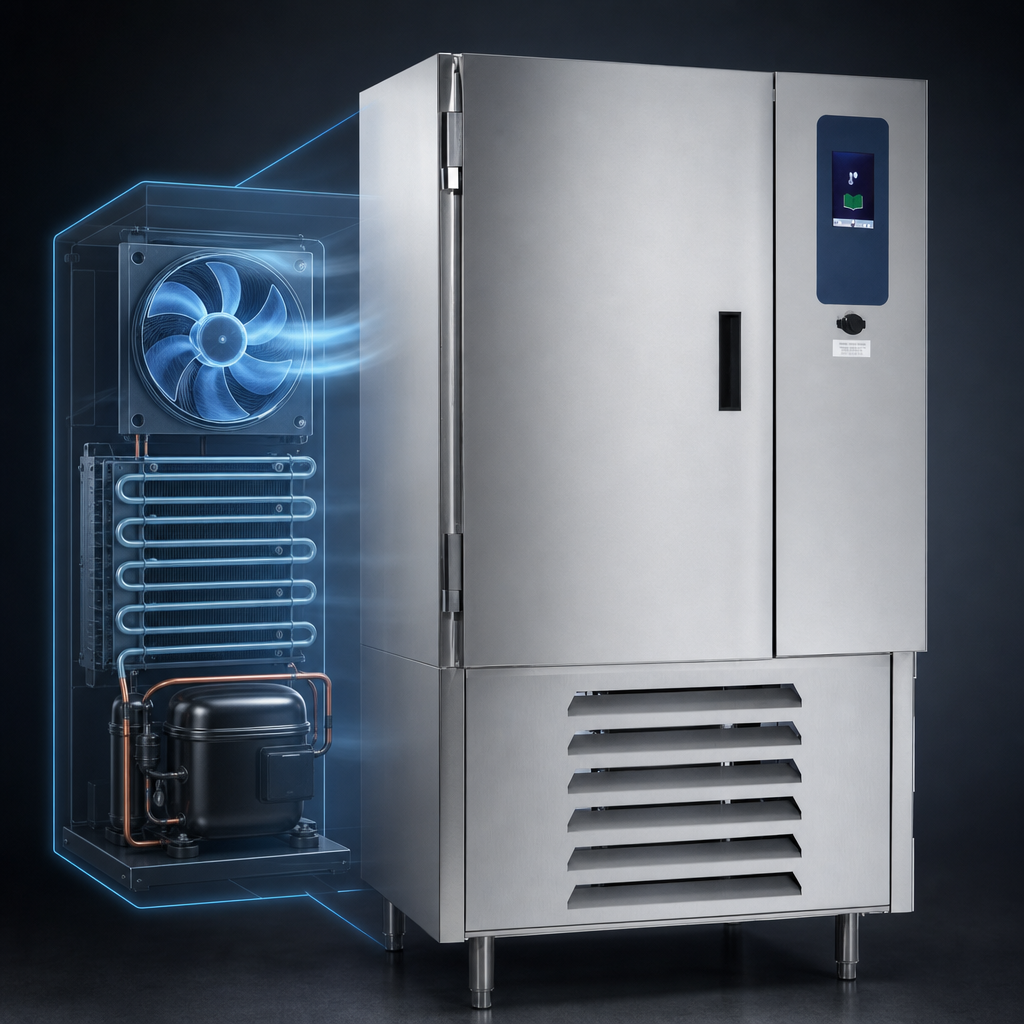

- Self-contained R-404A refrigeration with automatic hot-gas defrost for minimal downtime.
- Ships on 6" adjustable legs (caster kit optional) for easy cleaning and service access.
Performance ranges
| Quick Freeze | -10 °F to 10 °F (-23 °C to -12 °C) |
|---|---|
| Soft Chill | 24 °F to 36 °F (-4 °C to 2 °C) |
| Hard Chill | 11 °F to 23 °F (-11 °C to -5 °C) |
| Holding | -5 °F to 40 °F (-21 °C to 4 °C) |
Capacity at a glance
- 18 × 12" × 20" × 2.5" (GN 1/1) pans -or-
- 9 × 18" × 26" full-size sheet pans
- Approx. product load: 216 lb (98 kg) / 135 qt (171 L)
- 10 non-tilt pan slides on 4" centers
Technical specifications
| Exterior dimensions (H × W × D) | 71-3/8" × 40" × 39" (1813 × 1016 × 991 mm) |
|---|---|
| Interior dimensions | 39-1/2" × 22-9/16" × 25-1/4" (1003 × 573 × 641 mm) |
| Refrigeration | Single self-contained system, 80 oz R-404A |
| BTU rating | Freeze: 5,880 BTU/hr @ -5 °F • Chill: 11,400 BTU/hr @ 20 °F |
| Airflow | 1,750 CFM forced air |
| Electrical (std.) | 115/208-230 V, 1 Ph, 3.7 kW, NEMA 14-20P (20 A) |
| Net weight | 725 lb (329 kg) |
| Warranty | 5-yr compressor • 1-yr parts & labor |
Installation notes
- Rear clearance: 3" (provided by mounting clip)
- Side clearance: 1"
- Maintain 18" minimum from heat-producing equipment
- Unit must be installed level and in a clean, dry environment
Optional 5" heavy-duty caster kit (SKU 5014751) and right-hand door swing are available.
