Alto-Shaam QC3-3 Quickchiller Blast Chillers & Freezers
Description

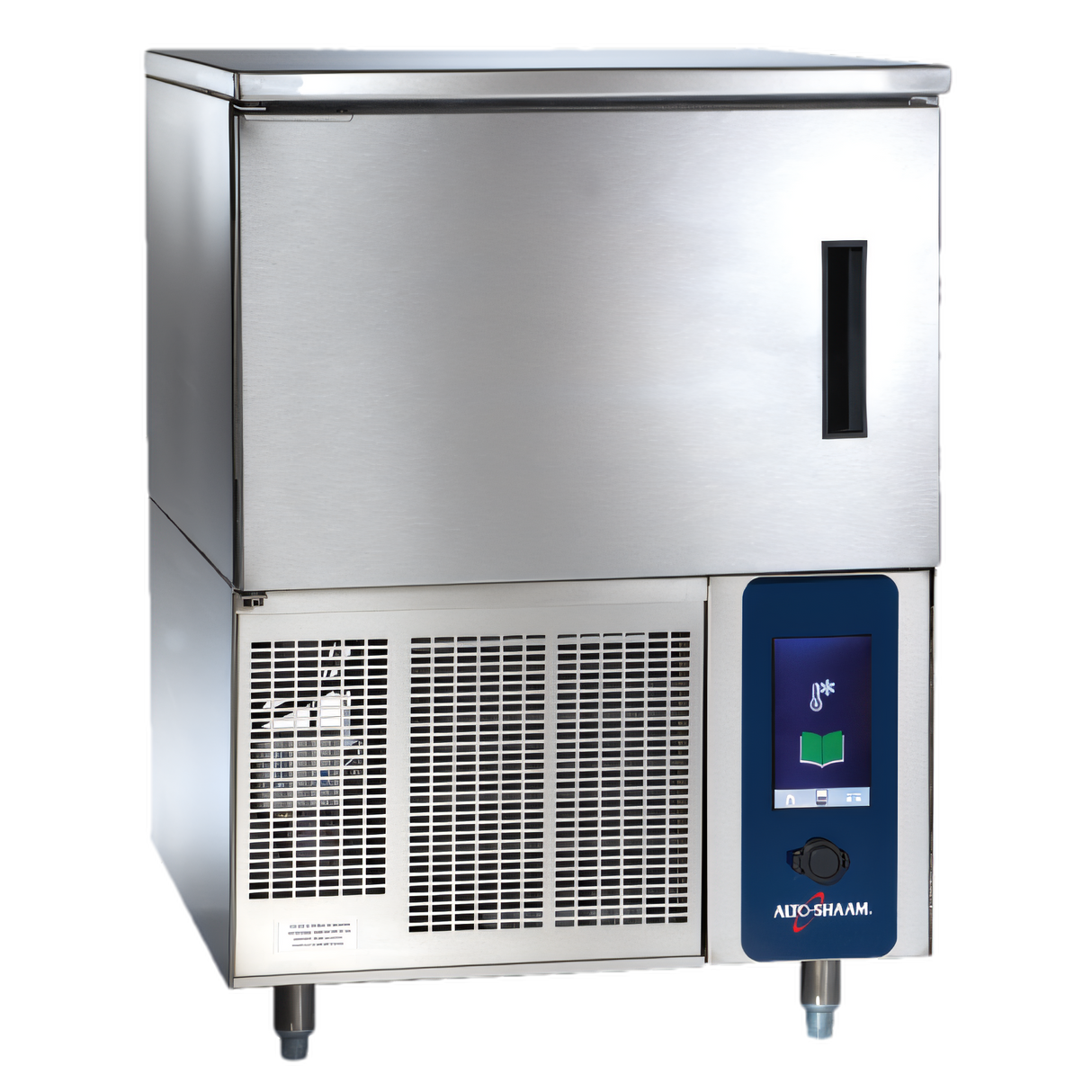

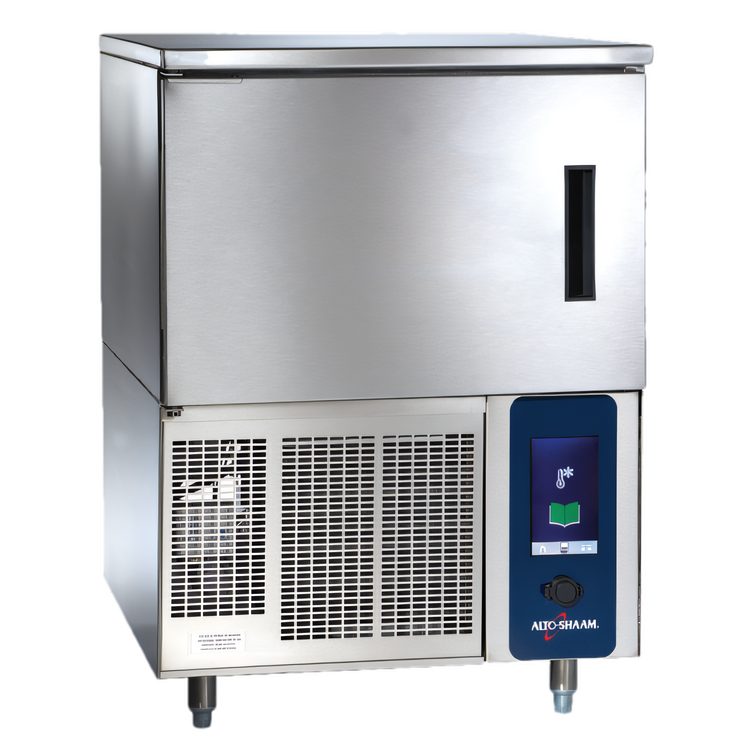

Alto-Shaam QuickChiller™ QC3-3 Blast Chiller / Freezer
Undercounter • 3 × 12" × 20" Pan Capacity • 7" Touchscreen ControlProtect food quality, extend shelf life and accelerate production with the compact Alto-Shaam QC3-3 QuickChiller. Built for high-volume kitchens that demand HACCP compliance, this self-contained blast chiller/freezer quickly lowers product temperatures through the danger zone while capturing 30 days of digital data for effortless record-keeping.
Key Advantages
- Four automated modes: Quick Freeze, Soft Chill, Hard Chill and Holding plus Auto-Defrost.
- Food-safe cooling: Rapidly chills or freezes 36 lb (16 kg) of hot product in full HACCP/FDA compliance.

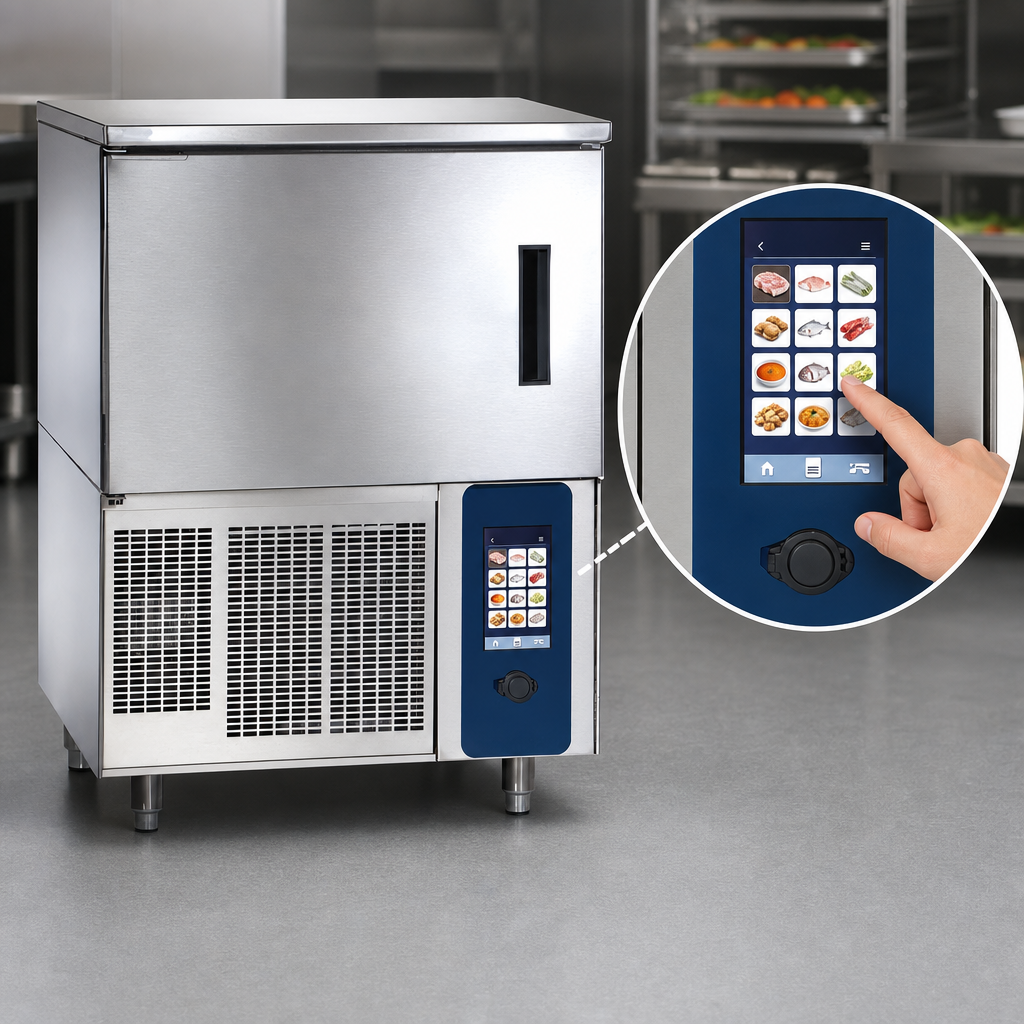

- Intuitive 7" touchscreen: 20 pre-set programs, USB recipe upload/download & 30-day HACCP log.

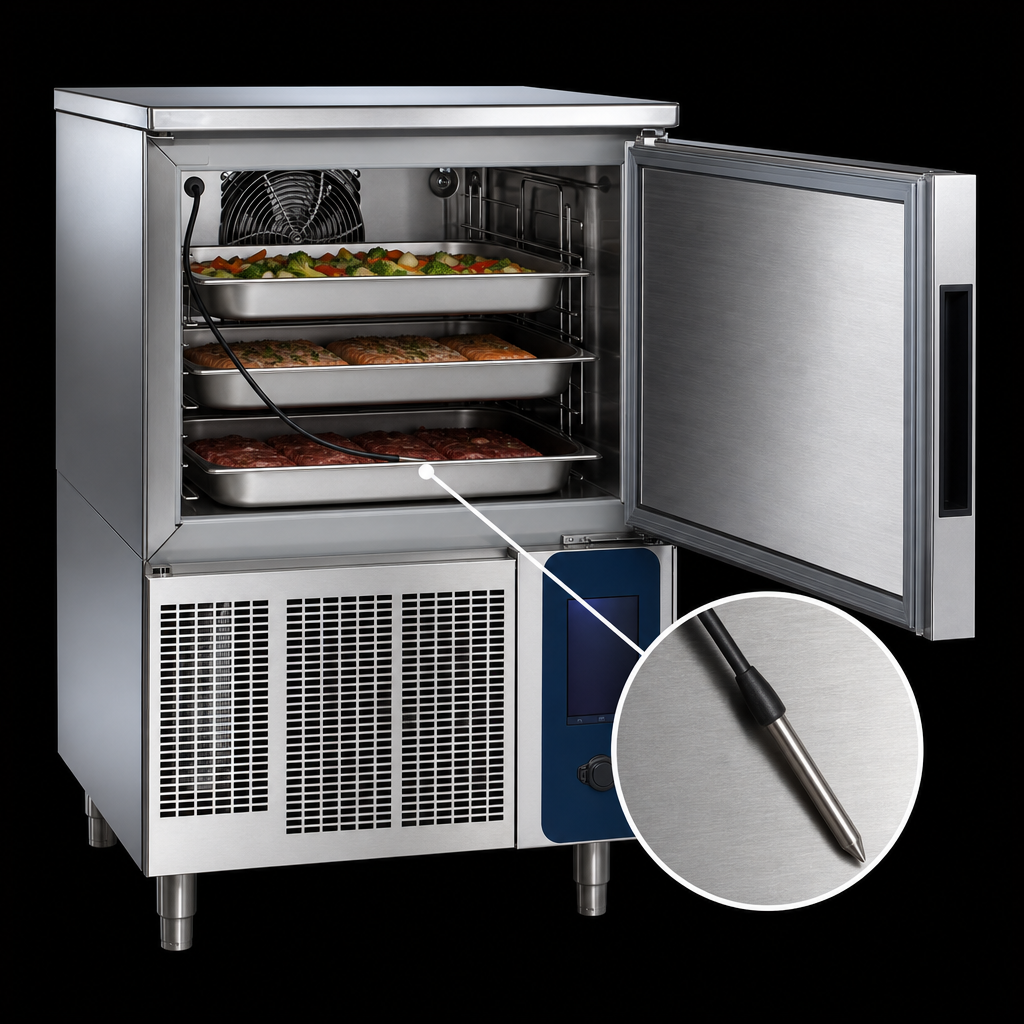

- Detachable core probe: Guarantees precise product temperature monitoring.
- Stainless inside & out: #4 finish exterior, stainless air plenums and foamed-in-place insulation for durability.
- Undercounter footprint: Fits beneath standard worktops and includes four 6" adjustable legs.
- Energy-efficient R-404A system: ½ HP self-contained condenser with hot-gas defrost and 875 CFM airflow.
- 5-year compressor warranty and 1-year parts & labor coverage for peace of mind.
Performance Temperature Ranges
- Quick Freeze: -10 °F to 10 °F (-23 °C to -12 °C)
- Soft Chill: 24 °F to 36 °F (-4 °C to 2 °C)
- Hard Chill: 11 °F to 23 °F (-11 °C to -5 °C)
- Holding: -5 °F to 40 °F (-21 °C to 4 °C)
At-a-Glance Specifications
| Pan Capacity | 3 × GN 1/1 (12" × 20" × 2.5") |
|---|---|
| Product Capacity | Approx. 36 lb / 22.5 qt |
| Exterior Dimensions (H × W × D) | 37-7/8" × 27" × 30" (962 × 686 × 762 mm) |
| Interior Dimensions | 13-1/2" × 22-9/16" × 12-13/16" (342 × 573 × 324 mm) |
| Refrigerant / Charge | R-404A • 40 oz |
| Compressor | ½ HP, self-contained (2,800 BTU/h @ -5 °F) |
| Electrical (standard) | 115 V, 1 ph, 60 Hz, 16 A, 1.84 kW, NEMA 5-20P |
| Electrical (optional) | 220 V, 1 ph, 50 Hz, 8 A, 1.84 kW, NEMA 5-15P |
| Net Weight | 262 lb (119 kg) |
| Included | Detachable product probe • 4 × 6" adjustable legs • USB port |
| Factory Options | Right-hand door swing • 9" legs • 3" concealed casters • Wire shelves |
| Warranty | 1-yr parts & labor • 5-yr compressor |
Need a mobile solution? Add the optional 3" concealed caster kit (part #5014890). Wire shelves (SH-35114) sold separately. Always consult a licensed electrician to confirm local code compliance for the chosen voltage.
