Alto-Shaam QC3-20 Quickchiller Blast Chillers & Freezers
Description

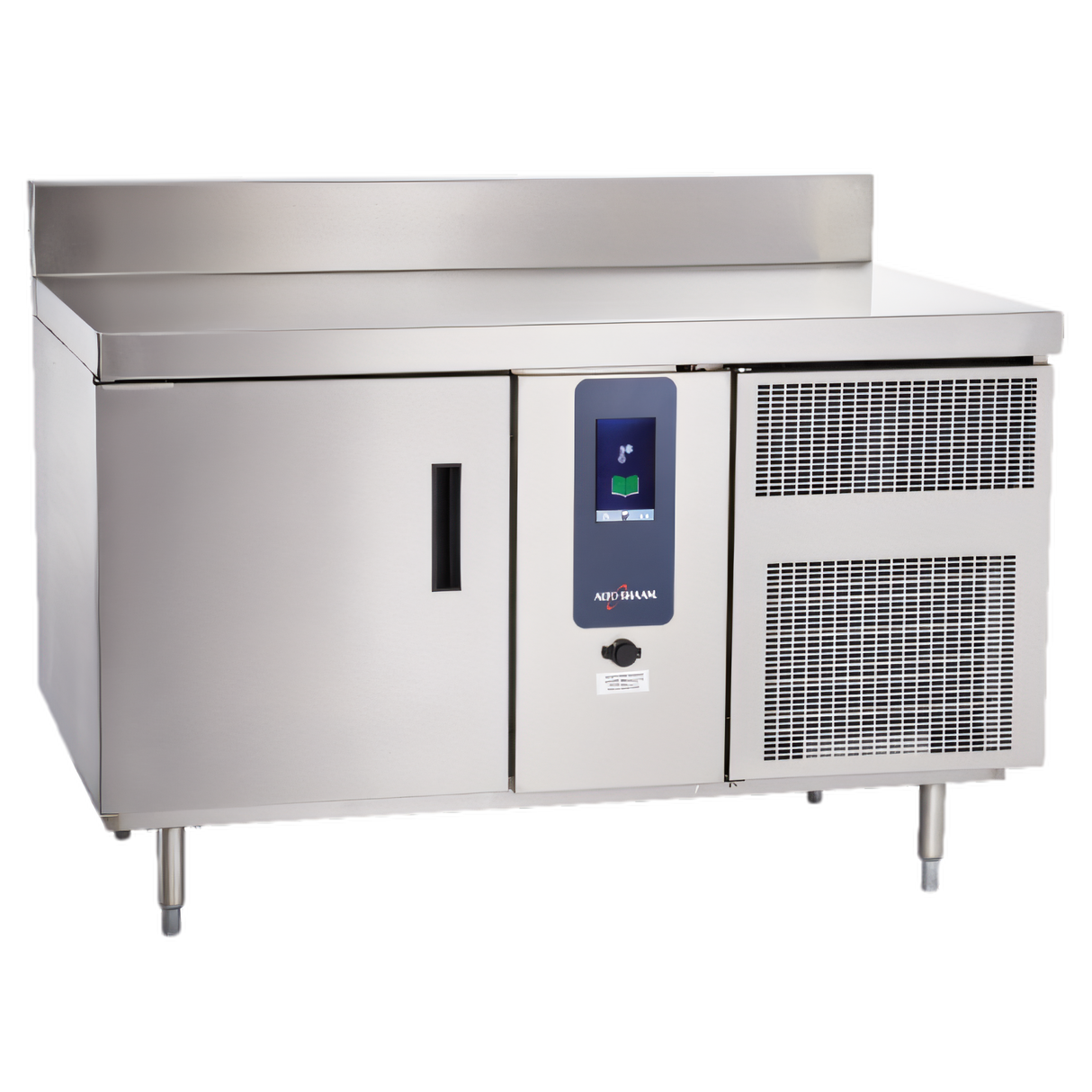

Alto-Shaam QuickChiller™ QC3-20 Blast Chiller / Freezer
57" W self-contained roll-in chiller with 7" touchscreen & probeProtect food quality, boost production efficiency, and stay HACCP compliant with Alto-Shaam’s QuickChiller™ QC3-20. This 57-inch work-top model rapidly chills or freezes hot product straight from the oven, bringing it safely into the danger-free zone in record time while preserving moisture, texture, and flavor.
Why you’ll love it
- Four automatic modes – Quick Freeze, Soft Chill, Hard Chill & Holding – cover everything from delicate portions to dense roasts.

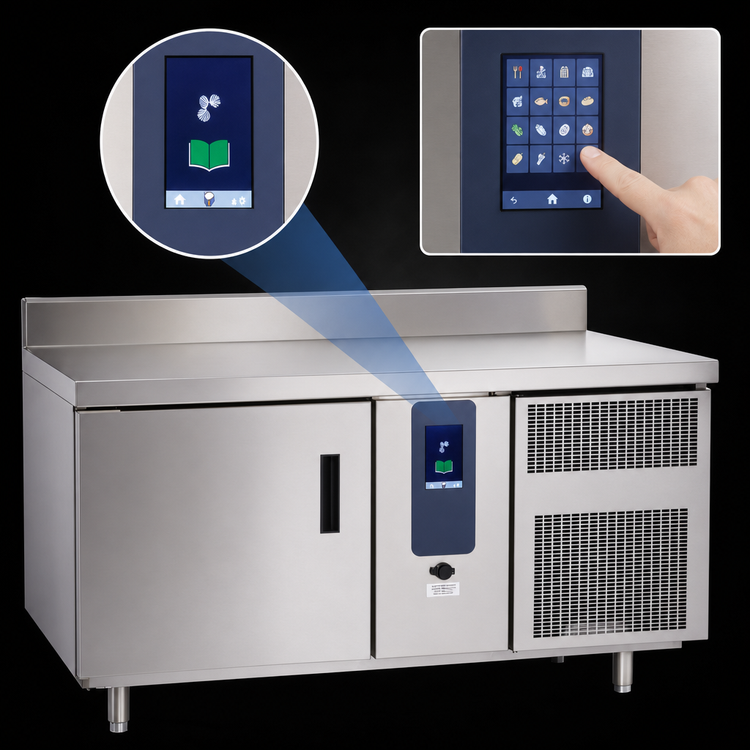

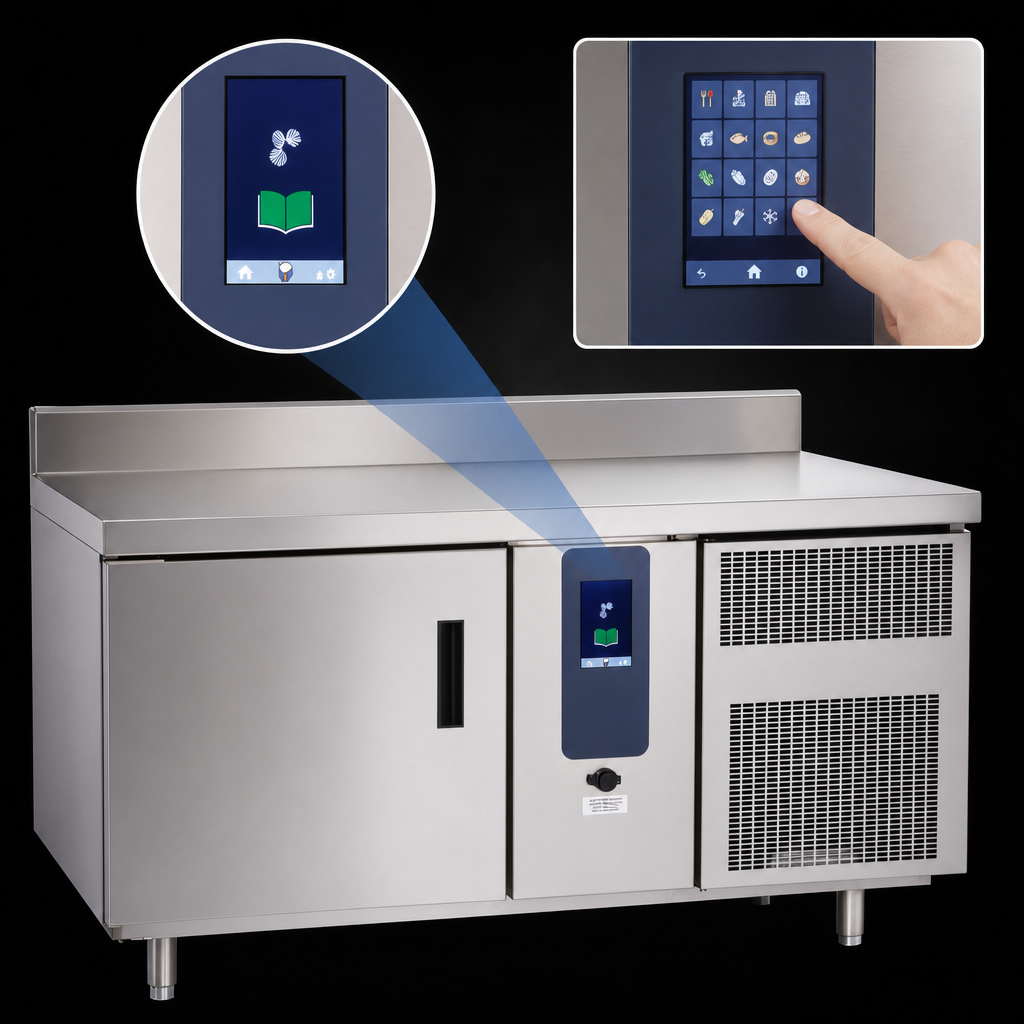

- 7" color touchscreen with 20 programmable menus makes operation intuitive for any staff member.
- Detachable product temperature probe guarantees pinpoint accuracy and HACCP traceability.
- Hot-gas automatic defrost keeps the coil ice-free without manual intervention.
- Stores HACCP data for 30 days; export or update recipes instantly via the front USB port.
- Full #4-finish stainless steel interior & exterior stand up to heavy commercial use and daily cleaning.
- Side-mounted, self-contained R404A refrigeration for quick installation and easy service access.
- Includes 9-pan slide-in rack and four 6" adjustable legs for a true plug-and-play solution.
Performance ranges
| Quick Freeze | -10 °F to 10 °F (-23 °C – -12 °C) |
|---|---|
| Soft Chill | 24 °F to 36 °F (-4 °C – 2 °C) |
| Hard Chill | 11 °F to 23 °F (-11 °C – -5 °C) |
| Holding | -5 °F to 40 °F (-21 °C – 4 °C) |
Key specifications
| Model | QC3-20 (left-hinged door, side-mounted refrigeration) |
|---|---|
| Exterior dimensions (H × W × D) | 41-1/2" × 57" × 36" (1054 × 1448 × 914 mm) |
| Interior dimensions | 22-5/8" × 21-1/16" × 27-5/16" (574 × 535 × 693 mm) |
| Pan capacity | Five 12" × 20" × 2-1/2" hotel pans Nine 18" × 26" sheet pans |
| Product capacity | ≈ 60 lb / 27 kg (37.5 qt / 47.5 L) |
| Refrigerant | 40 oz R-404A (self-contained) |
| Cooling capacity | 4,380 BTU/h (freeze) • 7,080 BTU/h (chill) |
| Air circulation | 1250 CFM forced-air |
| Electrical | 115 V / 1 ph / 60 Hz, 16 A, 1.8 kW, NEMA 5-20P (optional 220 V 50 Hz) |
| Standard accessories | 9-pan slide-in rack, removable core-temperature probe, four 6" adjustable legs |
| Certifications | cULus, NSF, HACCP data logging |
| Warranty | 1-yr parts & labor • 5-yr compressor (parts) |
Food-safe chilling made simple
From craft-kitchen prep to high-volume banquet production, the QC3-20 reduces food-borne risk, extends shelf life up to five days, and frees up valuable oven space—all without compromising flavor or texture. Set the mode, insert the probe, and let QuickChiller do the rest.
Specifications are subject to change without notice. Always verify installation requirements with the factory-supplied spec sheet.
