Alto-Shaam  |  Halo Heat  |  SKU: HSM-48/5S/T

Alto-Shaam HSM-48/5S/T Halo Heat Hot Food Displays

$15,216.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - ul Terms & conditions Owner's manual Spec sheet - spanish Spec sheet - french canadian Spec sheet - ce Warranty sheet Warranty sheet
Related Searches
Countertop Food Displays Countertop Food Warming Food Displays & Merchandisers Hot Food Displays Hot Food Displays Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

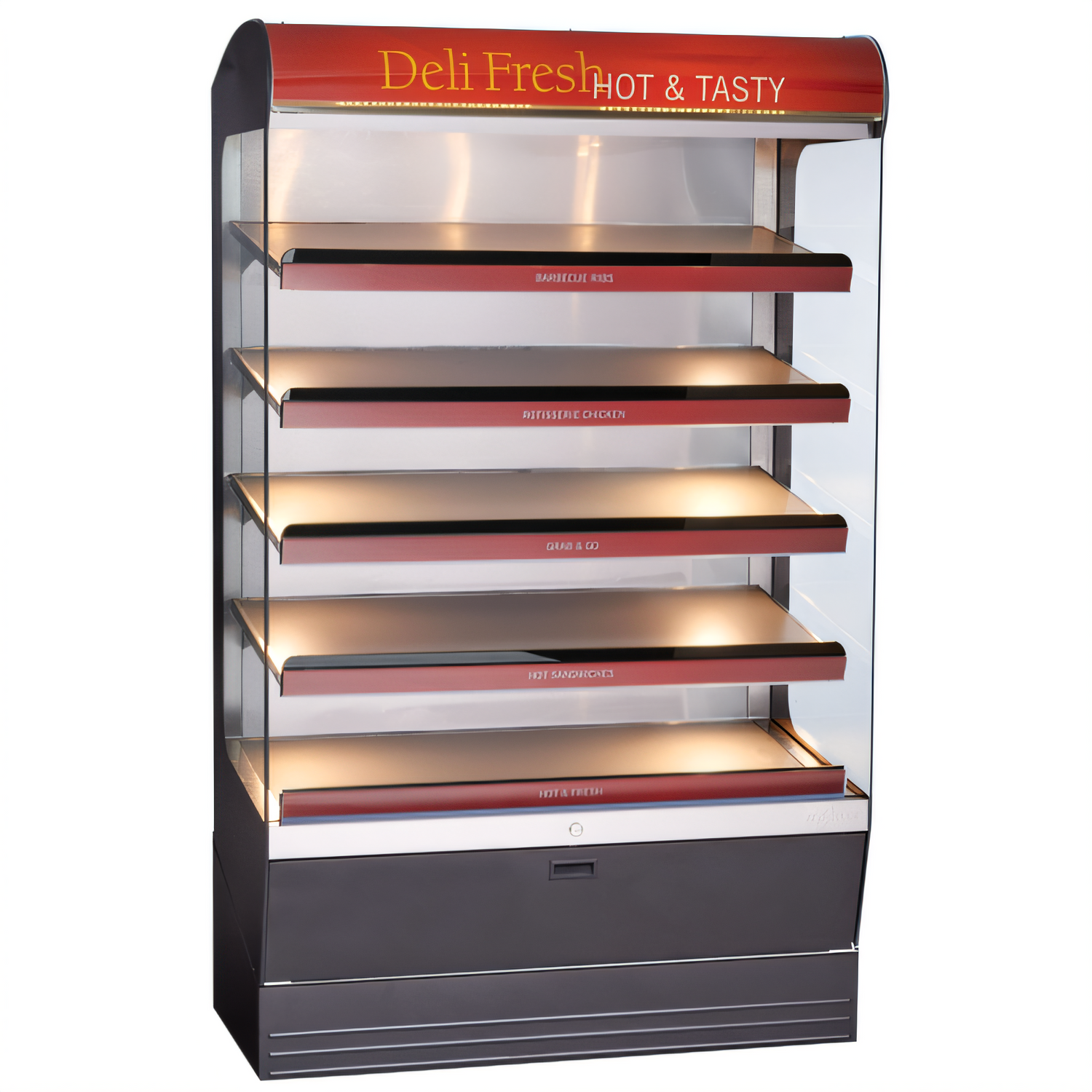

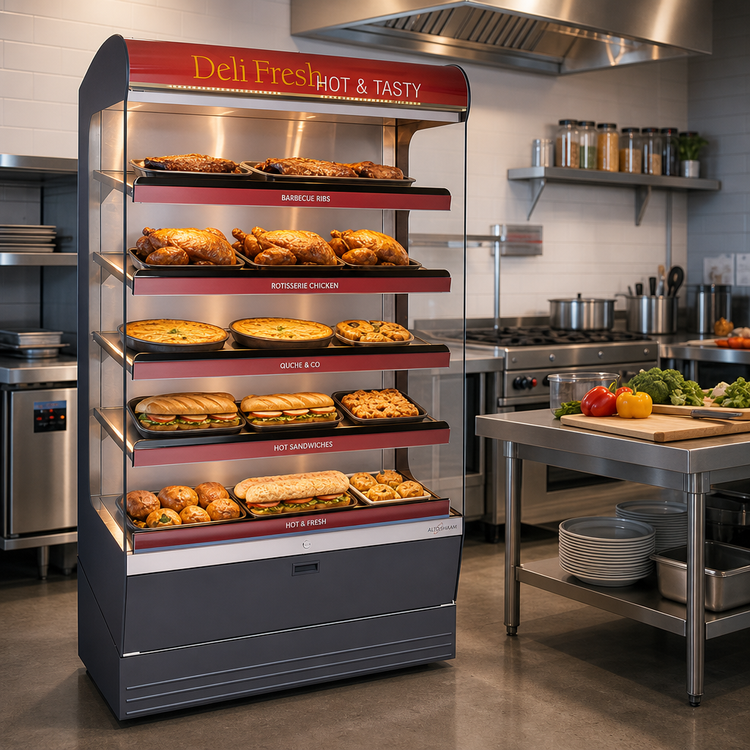

Alto-Shaam HSM-48/5S/T “Halo Heat” Hot Food Merchandiser

48" self-service floor model – 5 heated shelves – 200 lb total capacity

Keep grab-and-go favorites hot, fresh and ready to sell. Powered by Alto-Shaam’s exclusive Halo Heat® technology, the HSM-48/5S/T delivers gentle, even top-and-bottom heat that extends hold times without the drying effects of fans or harsh bulbs—perfect for rotisserie chickens, pizza slices, hot sandwiches, ribs and more.

Key Features

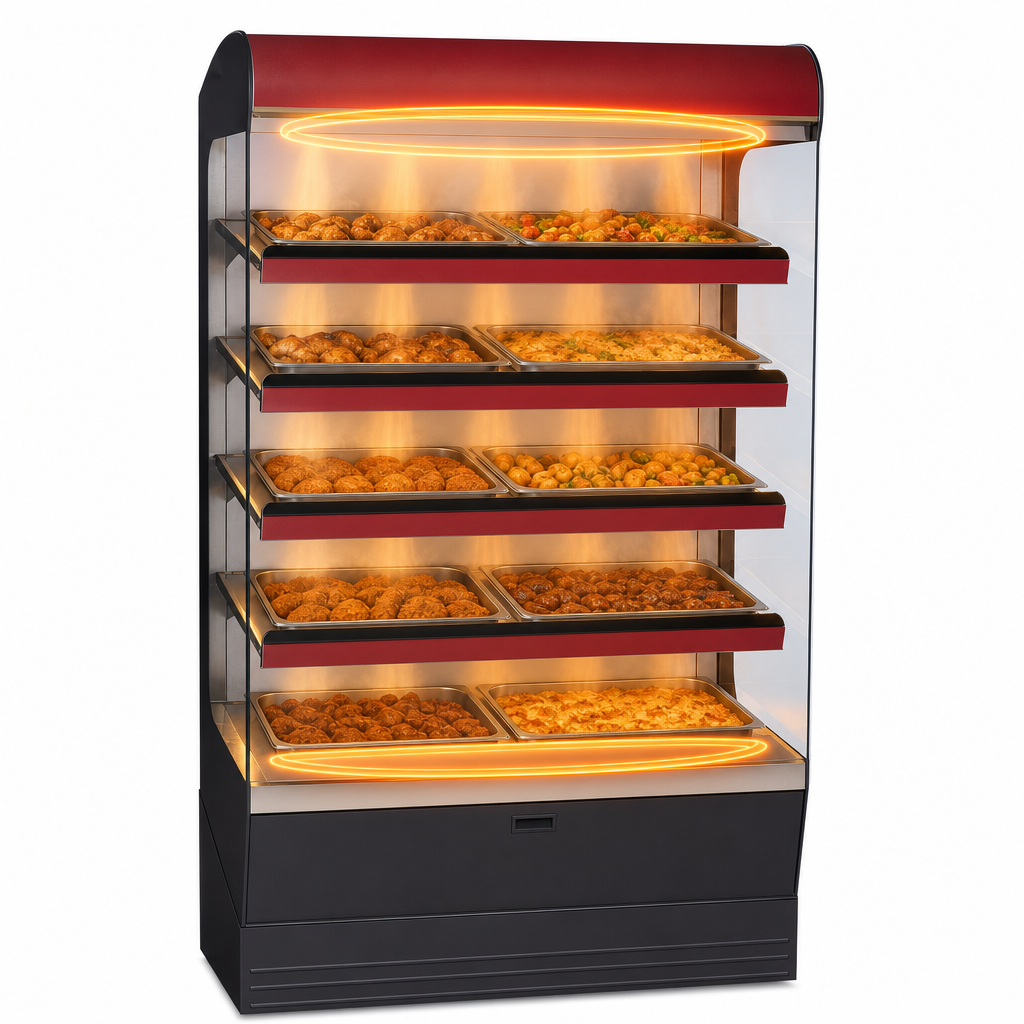

  • Halo Heat® radiant system—no fans, no microwaves, no added humidity.

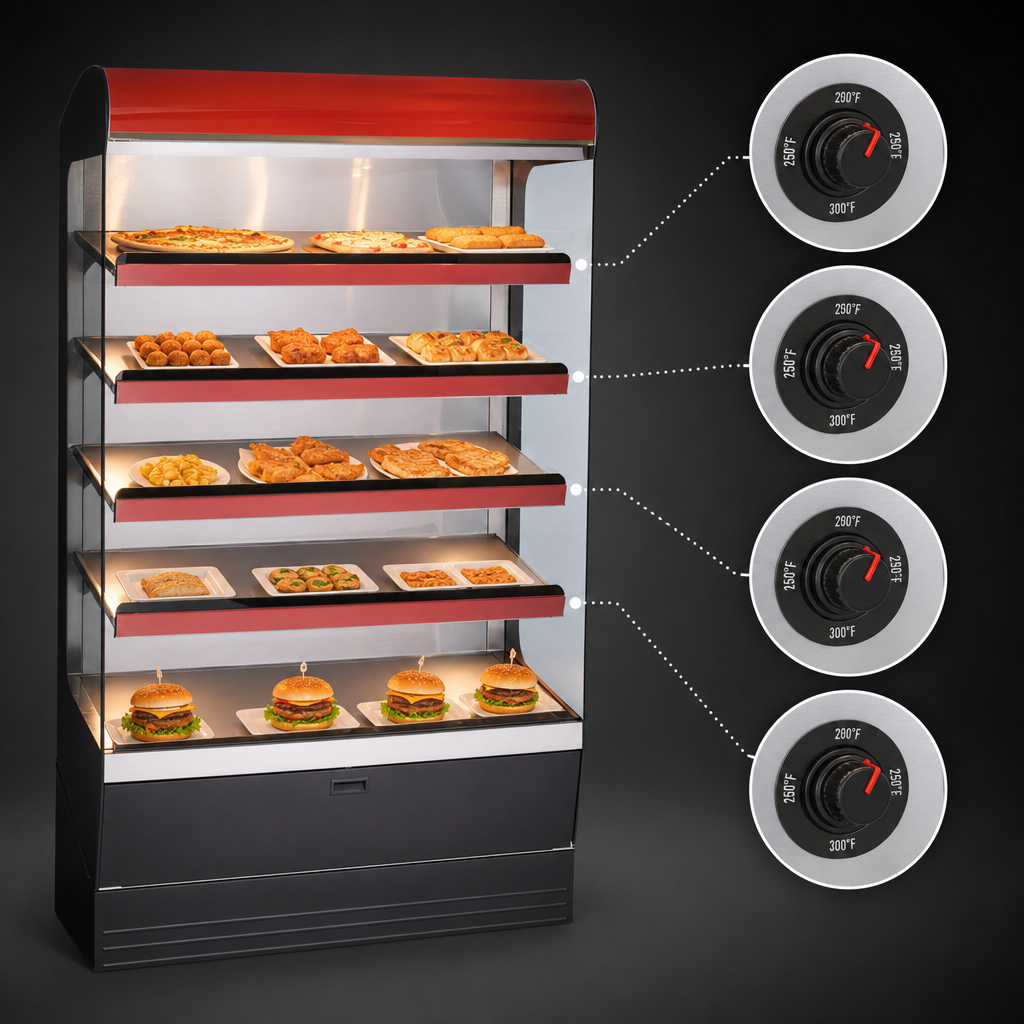

  • Five independently controlled heated shelves let you set the ideal temperature for different menu items.
  • 200 lb (91 kg) total product capacity—up to 12 chicken boats per shelf.
  • Bright, energy-efficient LED lighting on every shelf boosts product visibility and impulse sales.
  • Self-service open front for fast customer access; optional rear doors & signage kits available.
  • Latched front access panel simplifies cleaning and maintenance.
  • Mounted on four 3" (76 mm) swivel casters (two locking) for easy mobility.
  • Made in the USA in an ISO 9001:2015-certified facility.

Specifications

Model HSM-48/5S/T
Exterior Dimensions (H × W × D) 79-7/8" × 48" × 27-5/16"
(2029 × 1218 × 692 mm)
Shelf Count / Size 5 heated shelves – 44-7/8" W × 20-1/2" D (1140 × 521 mm)
Product Capacity 200 lb (91 kg) total
Temperature Control Individual mechanical thermostats with heat-on indicators
Electrical 208–240 V, 1 Ph, 50/60 Hz, 4.19–5.35 kW, 20.1–22.3 A
9' (2.7 m) cord, no plug – dedicated circuit required
Net / Ship Weight 563 lb / 772 lb (255 kg / 350 kg)
Ingress Rating IPX4 (splash-proof)
Mobility (4) 3" swivel casters – 2 locking

Certifications & Warranty

  • cULus Listed, CE Marked, UL EPH Classified for foodservice equipment.
  • One-year parts & labor warranty (see Alto-Shaam warranty statement for full details).

Unit ships without graphics or signage. Install level and away from steam, grease or high-heat sources.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX4, Made in USA

Height

79.88in

Width

48.0in

Depth

27.31in

Shipping Weight

772.0lbs

Service Type

self-service

Width (side - side)

37" - 48"

Shelf Quantity

5 shelves

Specifications

HSM Series Hot Food Merchandiser, floor model, 48" L, self-service, 200 lb. product capacity, (10) chicken boats with dome cover per shelf, (5) heated shelves, Halo Heat® technology, LED illuminated, thermostatic controls, front access panel, (4) 3" casters (signage not included) IPX4, cULus, CE, UL EPH Classified, Made in USA
