Alto-Shaam HSM-36/5S/T Halo Heat Hot Food Displays
Description

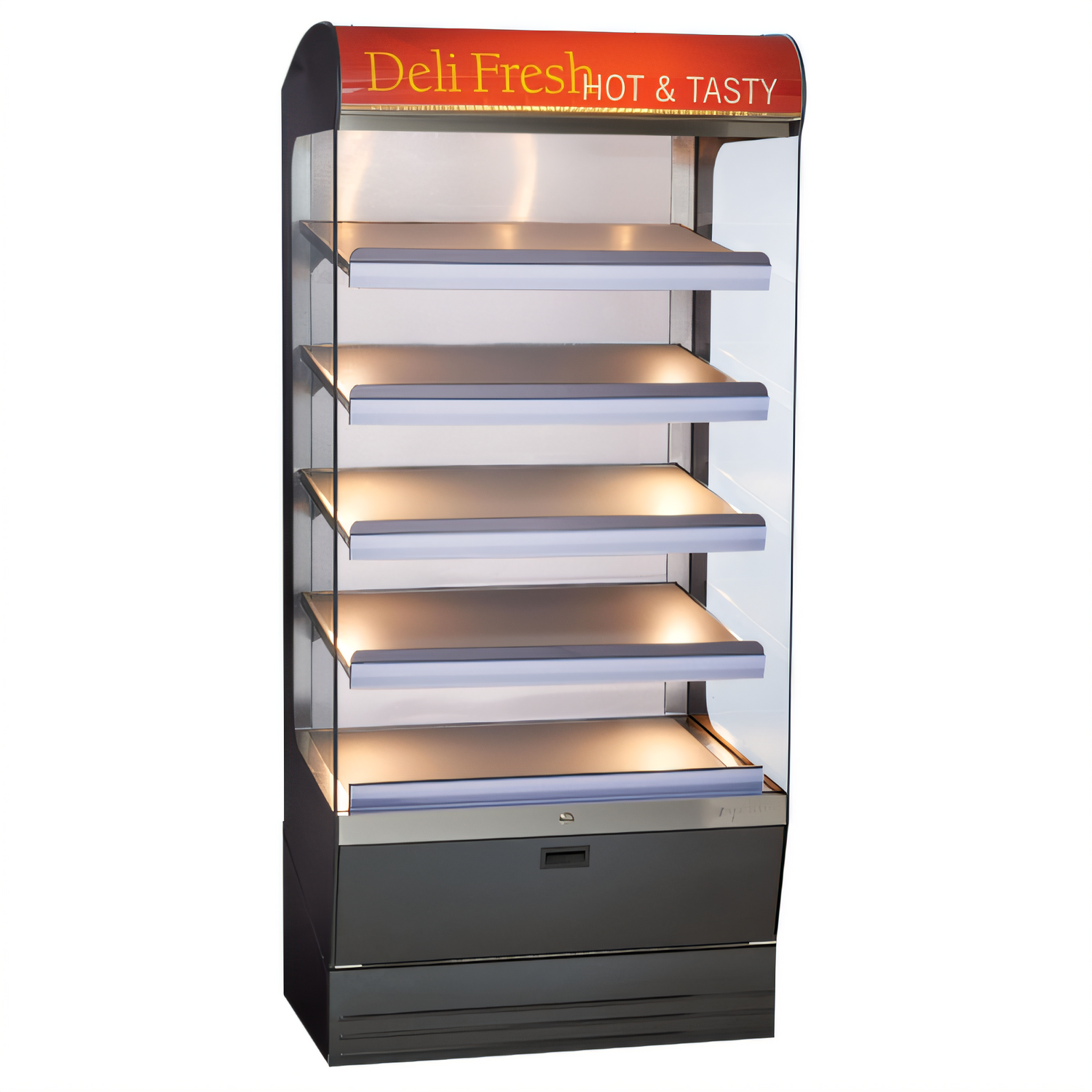

Alto-Shaam Halo Heat® HSM-36/5S/T Heated Shelf Merchandiser
36″ Floor Model • Self-Service • Five Heated ShelvesMaximize grab-and-go sales without compromising food quality. Powered by exclusive Halo Heat® fan-less technology, the HSM-36/5S/T gently surrounds product with even top-and-bottom heat, keeping rotisserie chickens, pizzas, sandwiches and entrées hot, fresh and ready for customers—no hot spots, no drying out.
Why You’ll Love It

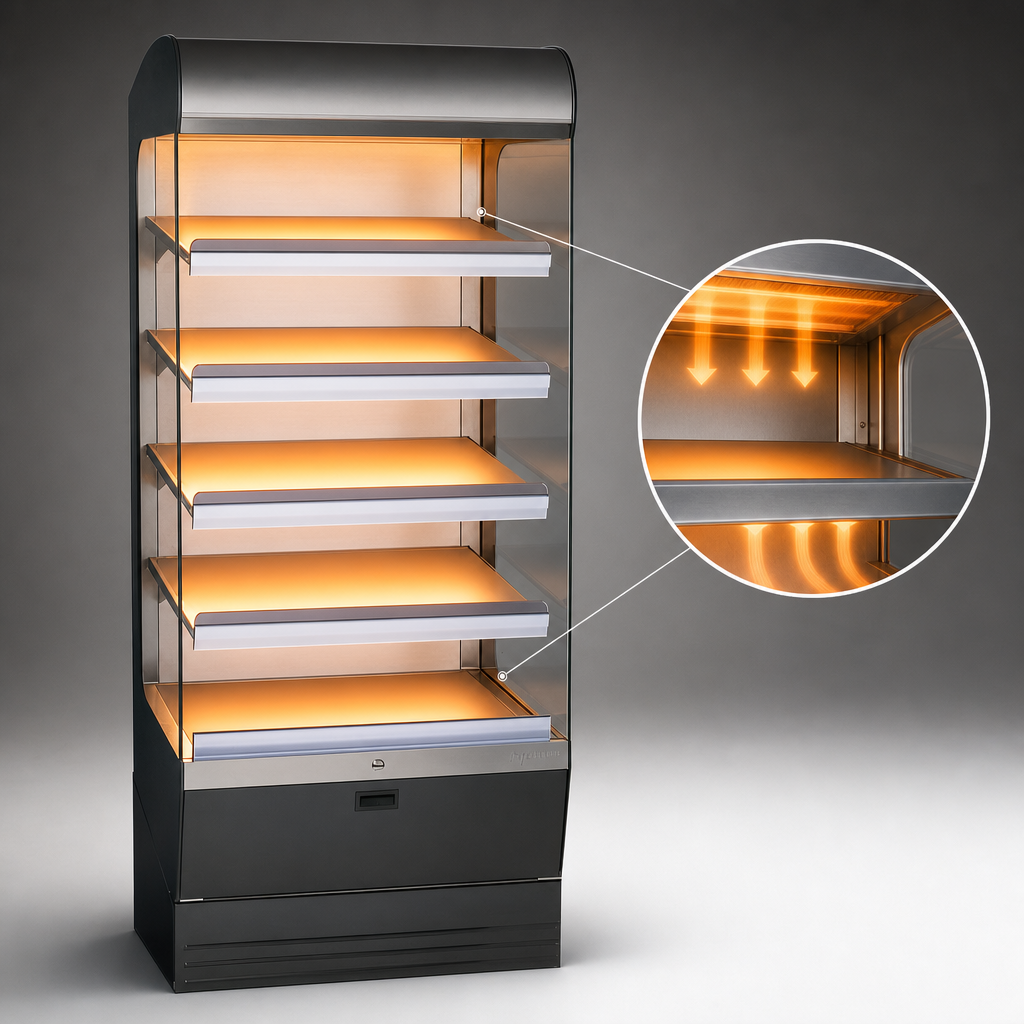

- Halo Heat® technology delivers precise, even heat with no moving air to dry out food.

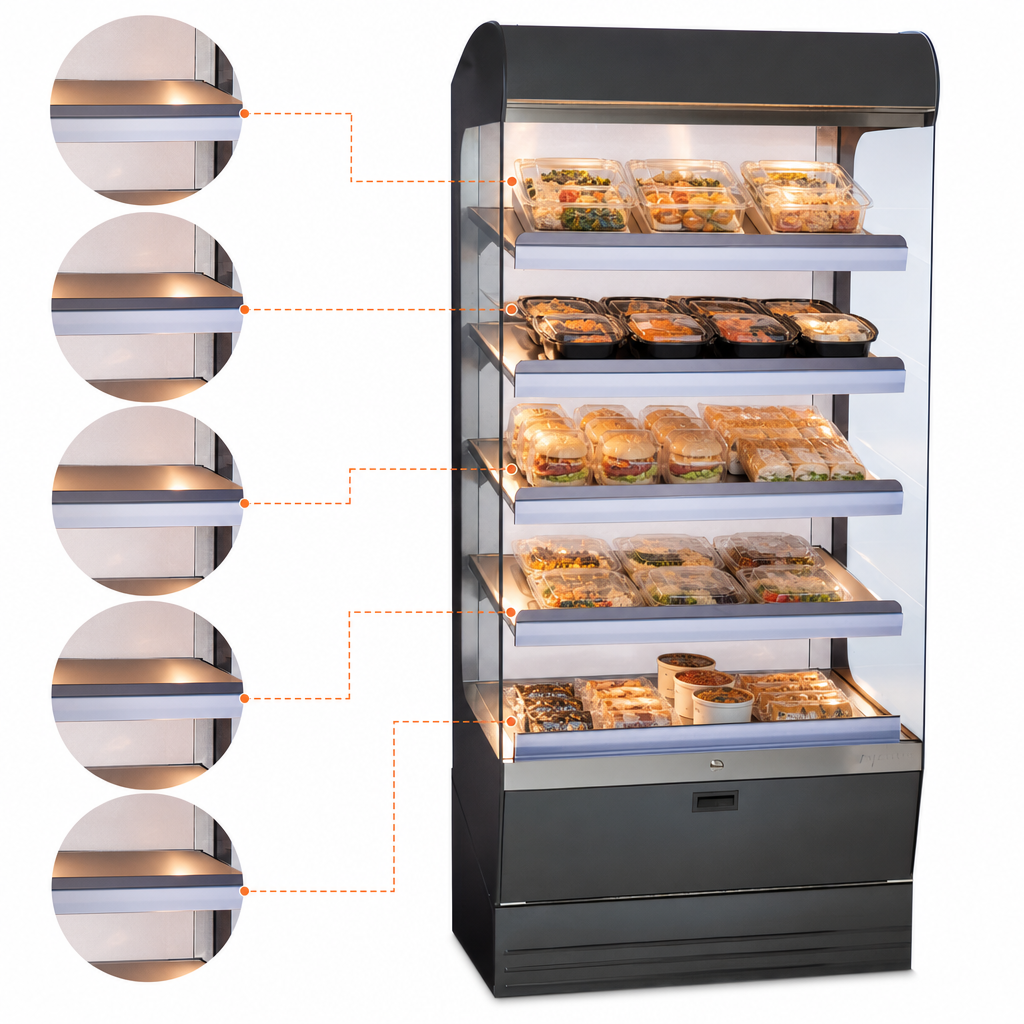

- Five individually thermostated shelves (32-7/8″ wide) hold up to 120 lb of product.
- Bright, energy-efficient LED lighting on every shelf turns hot food into an eye-catching display.
- Self-service open front speeds customer access and drives impulse purchases.
- Front access panel allows fast, tool-free cleaning and service.
- Four 3″ swivel casters (two locking) provide effortless mobility for cleaning or floor re-sets.
- Made in the USA and certified IPX4 splash-proof, cULus, CE and UL EPH Classified.
Capacity Snapshot
- 8 rotisserie chicken boats per shelf (40 total) – dome covers included
- 24 lb (11 kg) maximum load per shelf
- 120 lb (54 kg) overall hot food capacity
Technical Specifications
| Model | HSM-36/5S/T (floor standing, self-service) |
|---|---|
| External Dimensions (H × W × D) | 82-1/16″ × 36″ × 27-1/4″ (2084 × 914 × 692 mm) |
| Shelf Size (W × D) | 32-7/8″ × 20-1/2″ (835 × 521 mm) |
| Total Capacity | 120 lb / 54 kg |
| Electrical | 208–240 V, 1-phase, 50/60 Hz, 3.0–4.0 kW, 14.6–16.7 A, 9′ (2.7 m) cord – no plug |
| Controls | Thermostat & heat-on indicator per shelf |
| Mobility | (4) 3″ casters • two locking |
| Construction / Rating | IPX4 stainless exterior, fan-less heated shelves |
| Certifications | cULus, CE, UL EPH Classified, ISO 9001:2015 |
| Warranty | 1-year parts & labor (see Alto-Shaam warranty for full details) |
| Country of Origin | Made in USA |
Install merchandiser level and clear of steam, grease or dripping water. Provide a minimum 4″ (102 mm) rear clearance—18″ (457 mm) is recommended for service access.
