Alto-Shaam ED3SYS-96 Halo Heat Hot Food Displays
$21,953.60
Unit price
/
Unavailable
Description

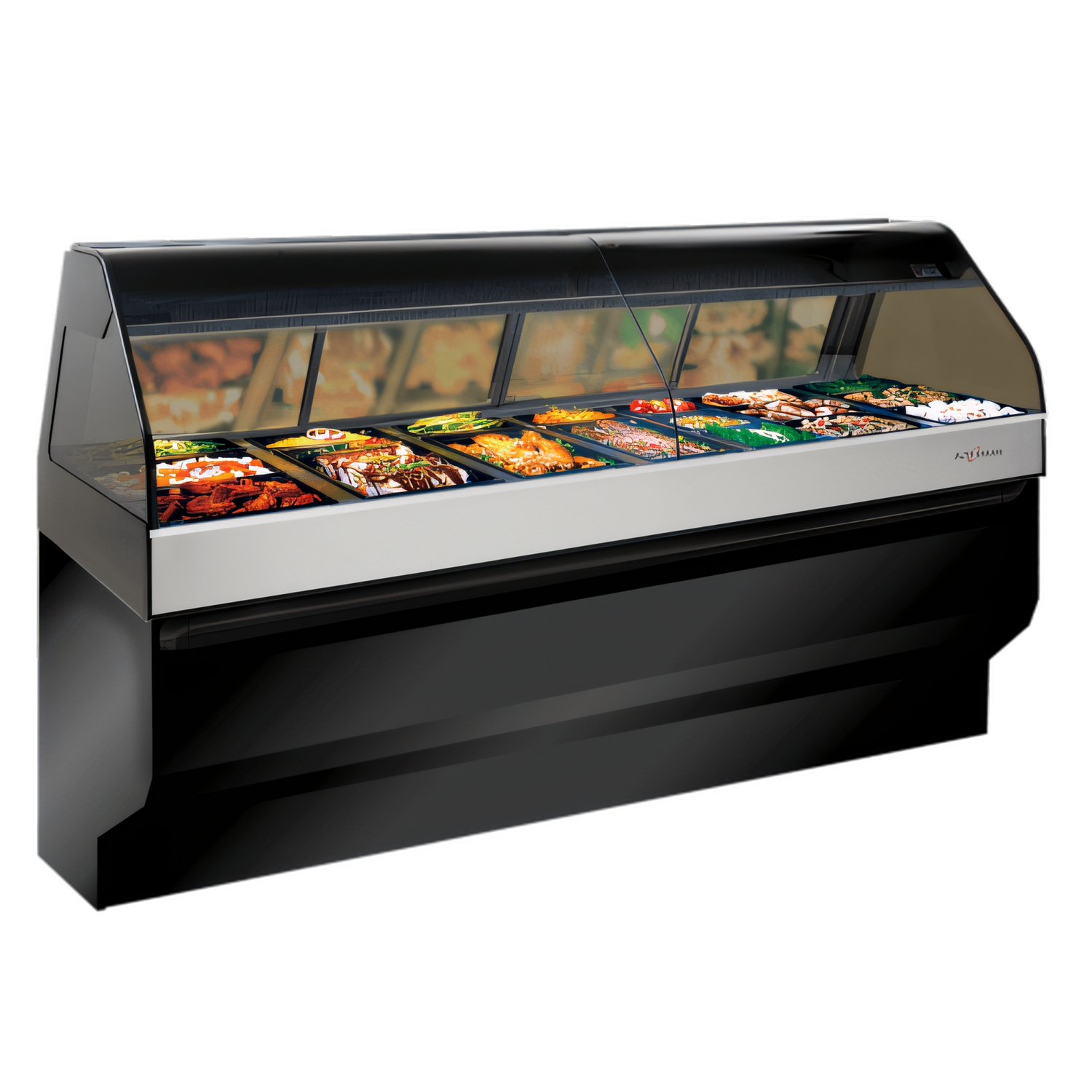

Alto-Shaam Halo Heat® 96" Heated Display Case
Model ED3(SYS)-96 | Stationary Base • 7 Pan SectionsShowcase your best-selling entrées, sides and desserts while holding them at perfect serving temperature. Alto-Shaam’s patented Halo Heat® technology gently surrounds food with radiant heat—no fans, no water pans—so flavors stay fresh, textures stay true and shrinkage is kept to a minimum.
Why You’ll Love It

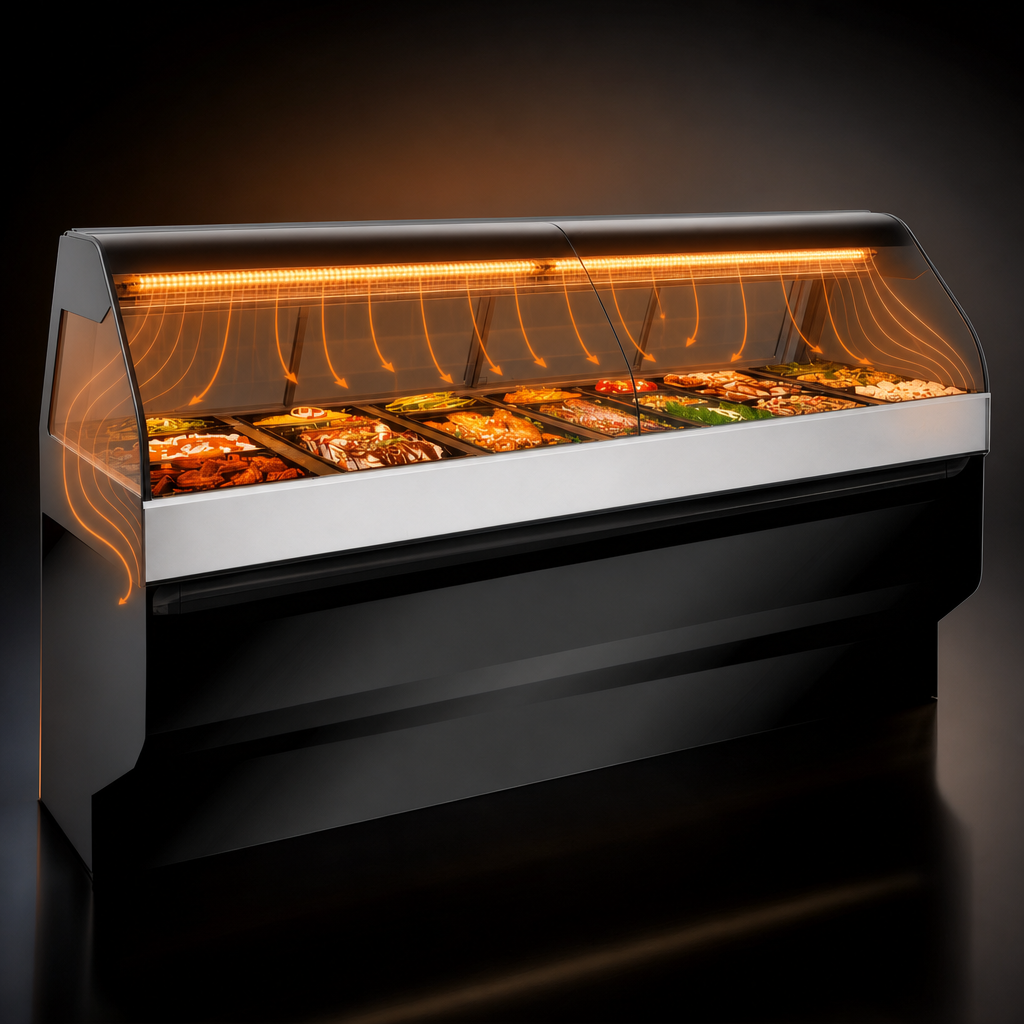

- Halo Heat®: Fan-less, water-less radiant heat eliminates hot spots and humidity spikes.

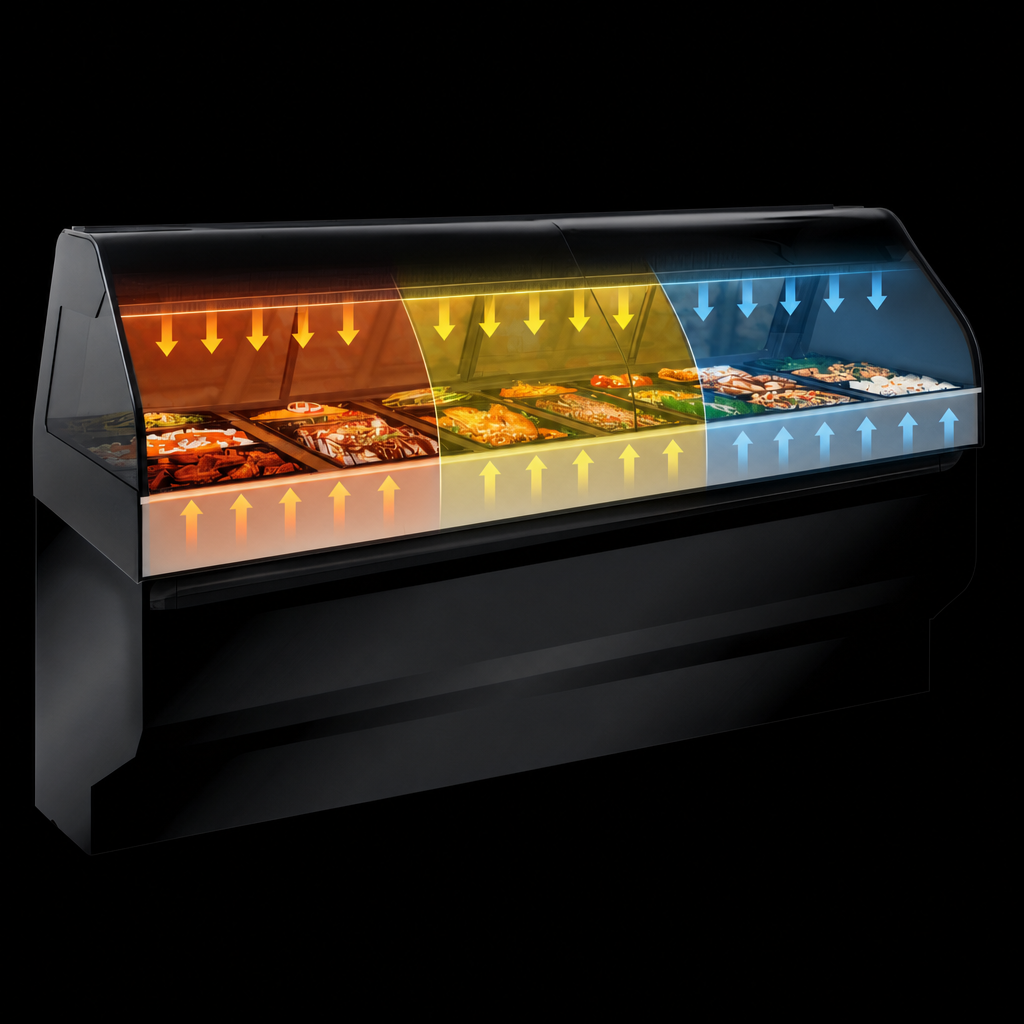

- 3 Independent Heat Zones: Separate top & bottom controls (six thermostats, 1-10 dial) let you hold proteins, starches and bakery items simultaneously.
- Full-Service Visibility: Self-supporting tempered front glass lifts for deep cleaning; mirrored sliding rear doors and LED strip lighting amplify food appeal.
- 7-Pan Footprint: Fits up to seven full-size (GN 1/1) hotel pans, or a flexible mix of half, third, and sheet pans using the included divider bar kit.
- Operator-Friendly: Hinged rear work shelf with cutting board speeds plating and portioning.
- Quick, Tool-Free Cleaning: Removable rear doors, side glass panels and pan dividers slash turnaround time at shift change.
- Durable Stationary Base: Integrated cabinet places product at an ideal customer viewing height and conceals utilities.
Pan Capacity (included dividers)
| Pan Size | Pan Dimensions | Qty. |
|---|---|---|
| Full-Size / GN 1/1 | 12" x 20" x 2 ½" | 7 |
| Half-Size / GN 1/2 | 12" x 10" x 2 ½" | 14 |
| One-Third / GN 1/3 | 12" x 6" x 2 ½" | 7 |
| Full-Size Sheet | 18" x 26" x 1" | 4 |
| Total Capacity | ≈ 112 lb / 70 qt (51 kg / 84 L) | |
Technical Specifications
| Exterior Dimensions (H × W × D) | 48-3/16" × 95-15/16" × 47-7/16" (1225 × 2438 × 1204 mm) |
|---|---|
| Well Dimensions (W × L × D) | 27-1/4" × 93-5/16" × 4-1/2" (692 × 2370 × 114 mm) |
| Net Weight | 716 lb (325 kg) |
| Heat Zones | 3 zones (independent top & bottom) |
| Voltage / Phase | 208 V 1 PH or 240 V 1 PH • 50/60 Hz |
| Amps / kW @ 208 V | 16.8 A / 3.49 kW |
| Amps / kW @ 240 V | 19.3 A / 4.64 kW |
| Electrical Connection | Factory cord; no plug supplied |
| Certifications | cULus • UL EPH Classified |
Popular Options
- Stainless-steel exterior panels (black panels standard)
- Solar-bronze end glass (clear glass standard)
- Left- or right-mounted scale platform
- Work shelf with gravy lane (pair)
- Sheet-pan divider bar kit
- 1-Year warranty extension
Standard warranty: 1 year parts & labor from installation (15 months from ship date), as provided by Alto-Shaam.
Important: Food pans are not included. Electrical installation must be performed
by a qualified professional in accordance with local codes.
Features & Specs
Features & Specs
Manufacturer
Alto-Shaam
Brand_name
Halo Heat
Certifications
cULus, UL EPH Classified
Height
47.69in
Width
96.0in
Depth
47.13in
Shipping Weight
796.0lbs
Front
curved glass
Exterior Finish
all black exterior
Interior Finish
stainless steel interior
Service Type
full service
Intermediate Shelves
deck only
Width (side - side)
91" - 96"
Specifications
Heated Display Case, 96" with stationary base, full-service with 7 pan sections, 3 individually controlled top and bottom heat zones featuring Halo Heat® technology and top ceramic heaters, modern overhead LED lighting, self-supporting tempered glass front, removable mirrored sliding doors and glass sides, hinged rear work shelf, pan divider bar package, cULus, UL EPH Classified
