Alto-Shaam ED3SYS-72 Halo Heat Hot Food Displays
Description

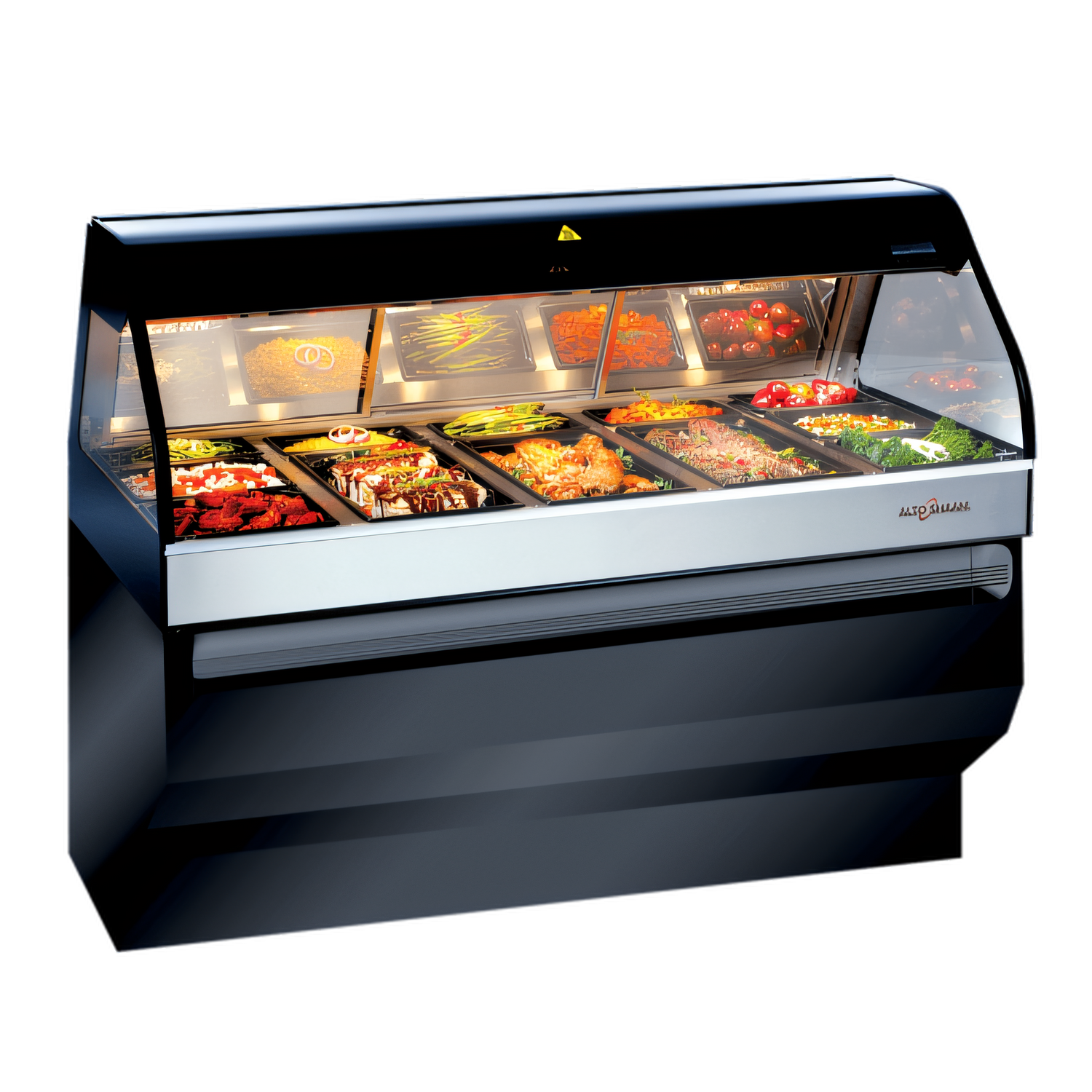

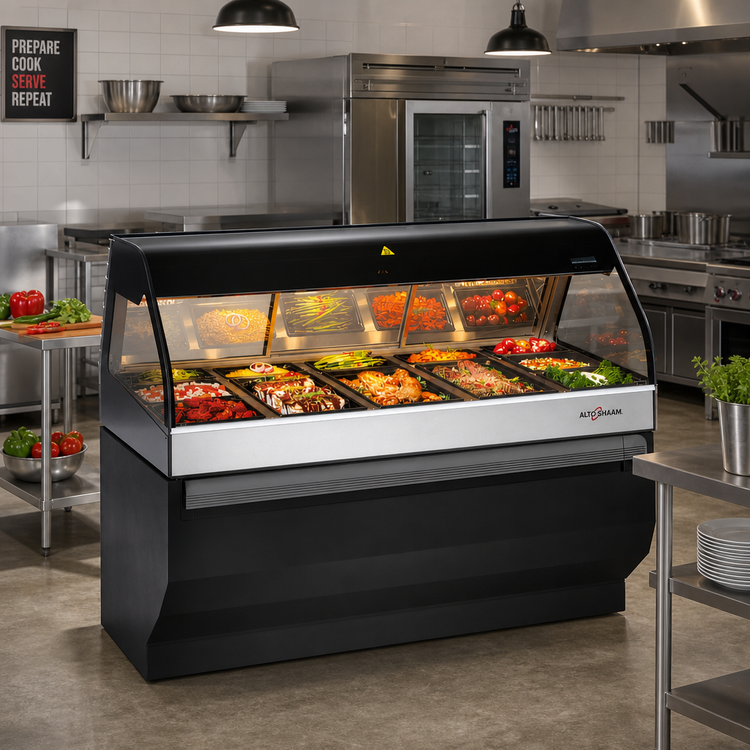

Alto-Shaam ED3(SYS)-72 Halo Heat® Heated Display Case
72" Full-Service | 5 Pan Sections | Stationary BaseShowcase hot entrées, sides, and impulse items in their very best light—and at their ideal serving temperature. Powered by Alto-Shaam’s exclusive fanless, waterless Halo Heat® technology, the ED3(SYS)-72 delivers gentle, precise holding without the drying effects of forced air. Brilliant LED lighting, mirrored back doors, and crystal-clear glass sides draw customers in, while two independently controlled heat zones keep every menu item fresh and ready to serve.
Why You’ll Love It

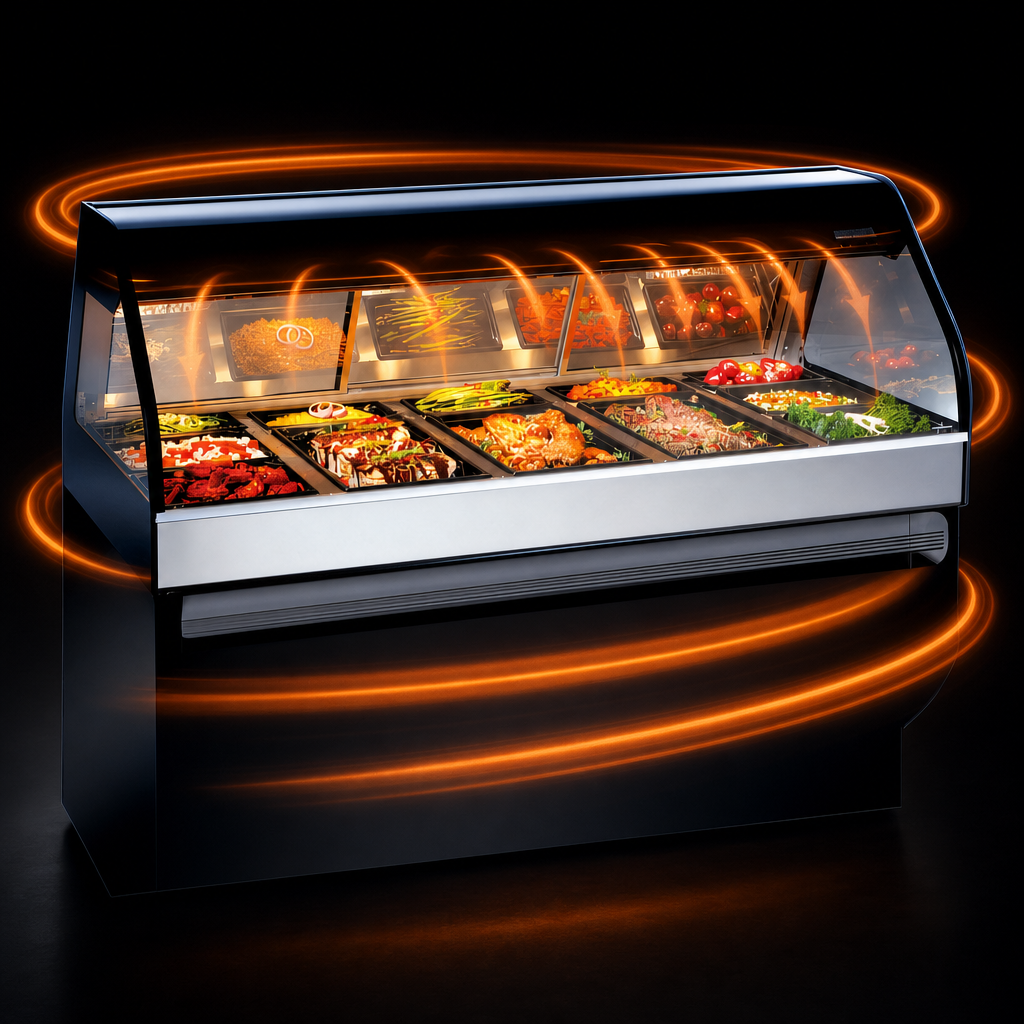

- Halo Heat® technology surrounds food with gentle, radiant heat—no fans, no water, no hot spots.

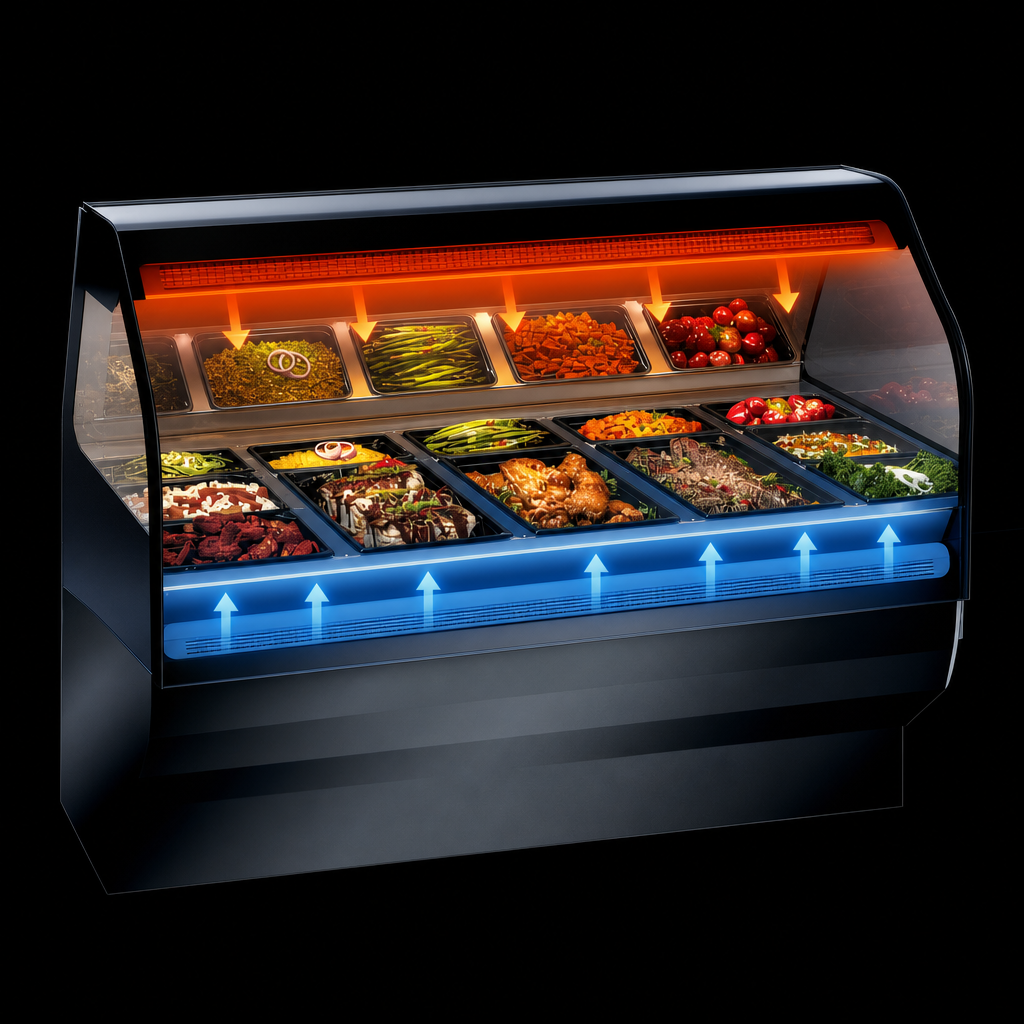

- Two individually adjustable heat zones (top & bottom) with 1-10 dial thermostats for precise holding.
- Top ceramic heaters plus modern overhead LEDs enhance product appearance and boost impulse sales.
- Full-service, self-supporting tempered glass front lifts for speedy loading and cleaning.
- Mirrored, removable sliding rear doors and side glass panels reduce labor and maintenance time.
- Hinged rear work shelf with integral cutting board keeps carving and plating within easy reach.
- Included pan divider bar package organizes five pan zones for flexible merchandising.
- Fanless design eliminates blown heat, preserving food moisture and minimizing flavor transfer.
- cULus & UL EPH Classified for electrical & sanitation compliance.
Pan Capacity (5 Zones)
| Pan Size | Pan Dimensions | Qty. |
|---|---|---|
| Full-Size (GN 1/1) | 12" × 20" × 2 ½" | 5 |
| Half-Size (GN 1/2) | 12" × 10" × 2 ½" | 10 |
| One-Third (GN 1/3) | 12" × 6" × 2 ½" | Up to 10* |
| Full-Size Sheet Pans | 18" × 26" × 1" | 3 |
*Capacity varies with chosen configuration. Pans sold separately.
Technical Specifications
| Model | ED3(SYS)-72 (stationary base) |
|---|---|
| Exterior Dimensions (H × W × D) | 48 5/16" × 72 5/16" × 47 7/16" (1227 mm × 1836 mm × 1205 mm) |
| Well Dimensions (W × L × D) | 27 1/4" × 69 5/16" × 4 1/2" (692 mm × 1761 mm × 114 mm) |
| Heat Zones | 2 – independently controlled (top & bottom) |
| Electrical (208 V) | 1 PH, 50/60 Hz, 15 A, 3.11 kW — cord, no plug |
| Electrical (240 V) | 1 PH, 50/60 Hz, 17.2 A, 4.14 kW — cord, no plug |
| Net Weight | 621 lb (282 kg) |
| Certifications | cULus, UL EPH Classified |
| Warranty | 1 year parts & labor (extended options available) |
Alto-Shaam backs this unit with a one-year parts & labor warranty and optional extended coverage. See full warranty statement for terms, exclusions, and claim procedures.
Upgrade your hot food merchandising with the unmatched holding quality and visual appeal of Alto-Shaam’s Halo Heat® technology—order the ED3(SYS)-72 today!
