Alto-Shaam  |  Halo Heat  |  SKU: ED3SYS-48

Alto-Shaam ED3SYS-48 Halo Heat Hot Food Displays

$13,696.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Sell sheet Warranty sheet Warranty sheet
Related Searches
Countertop Food Displays Countertop Food Warming Food Displays & Merchandisers Hot Food Displays Hot Food Displays Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

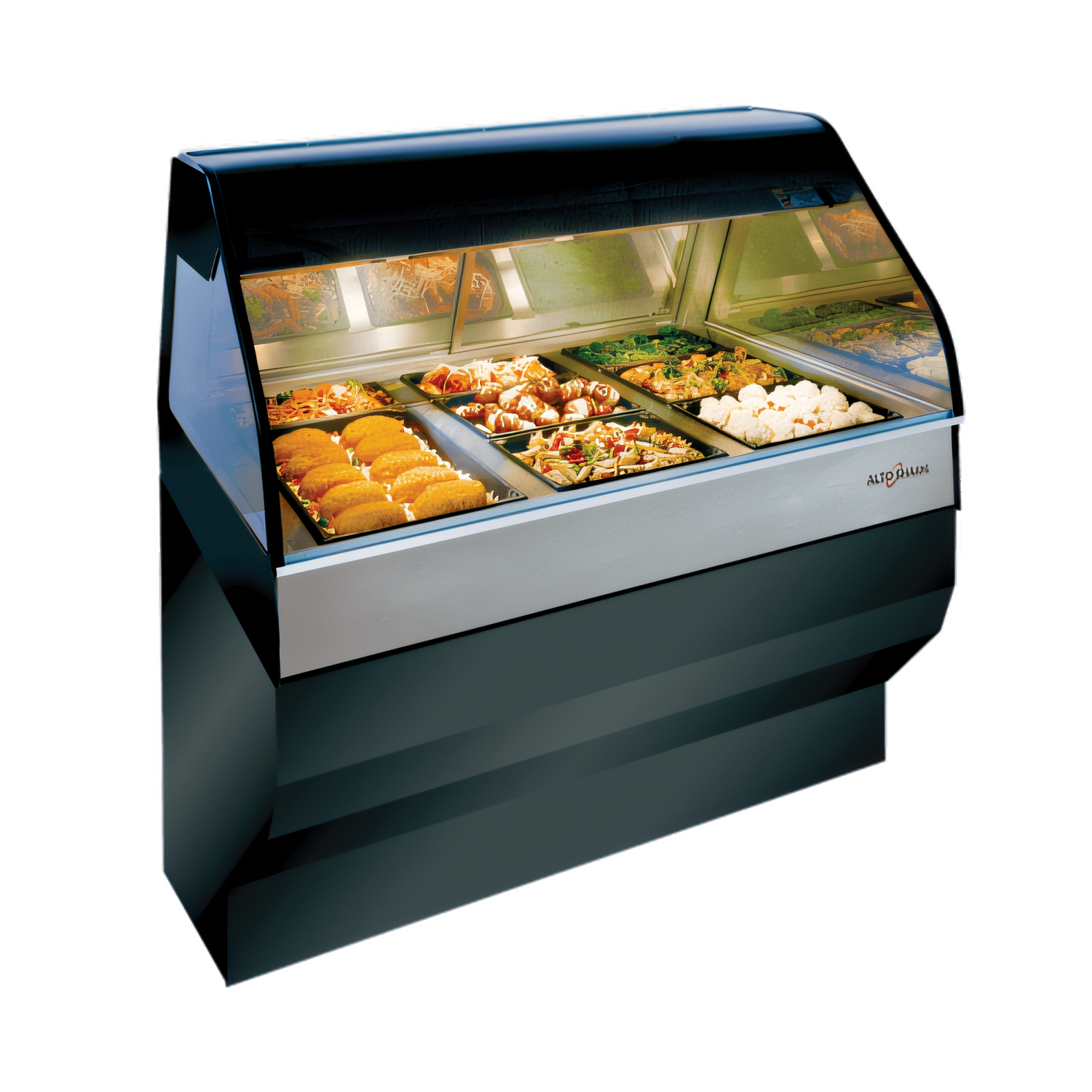

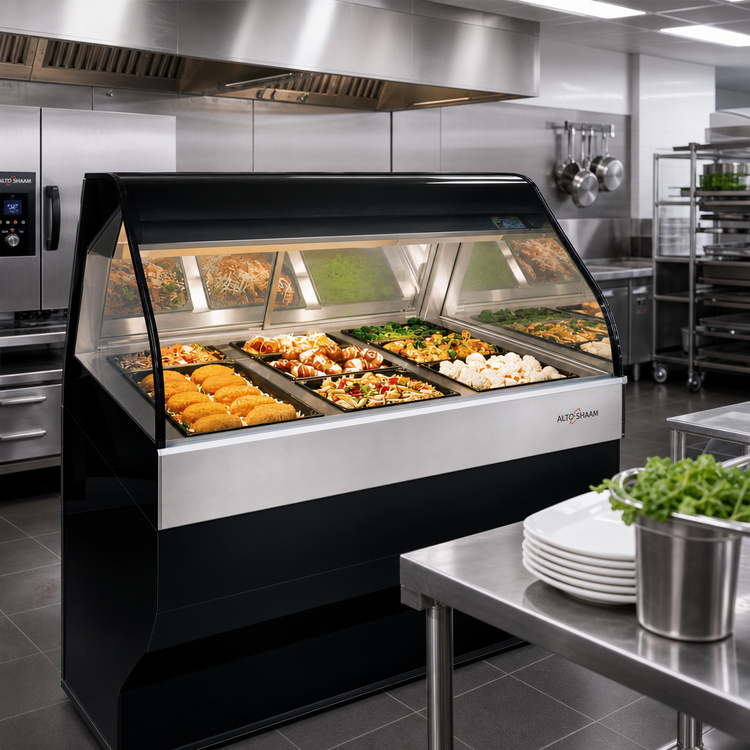

Alto-Shaam Halo Heat® ED3(SYS)-48 Heated Display Case – 48" Full-Service, Stationary Base

Fanless, waterless holding with show-stopping presentation

Turn counter space into profit space. The ED3(SYS)-48 pairs Alto-Shaam’s exclusive Halo Heat® technology with brilliant LED lighting and mirrored back doors to keep food hot, fresh and irresistibly eye-catching all day long.

Why You’ll Love It

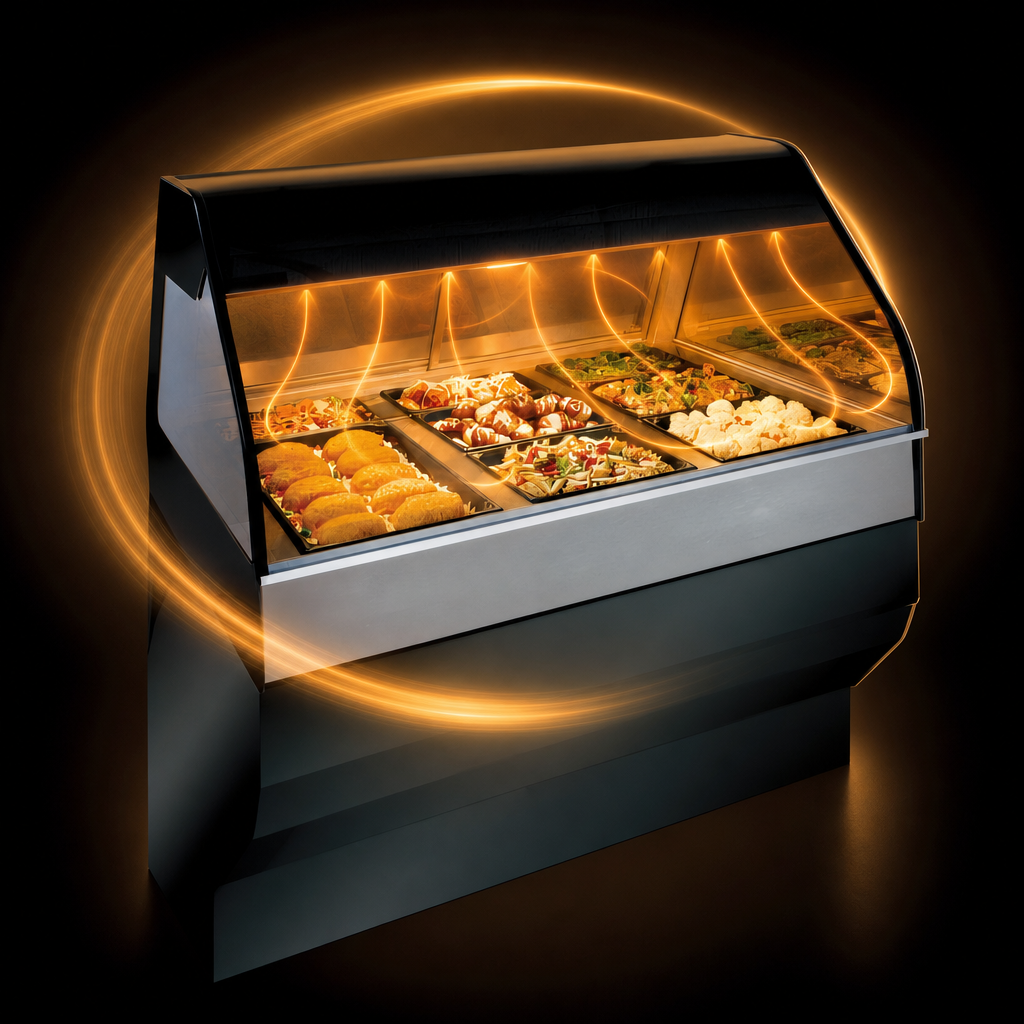

  • Halo Heat® system bathes food in gentle, radiant heat—no fans, water or humidity pans required.

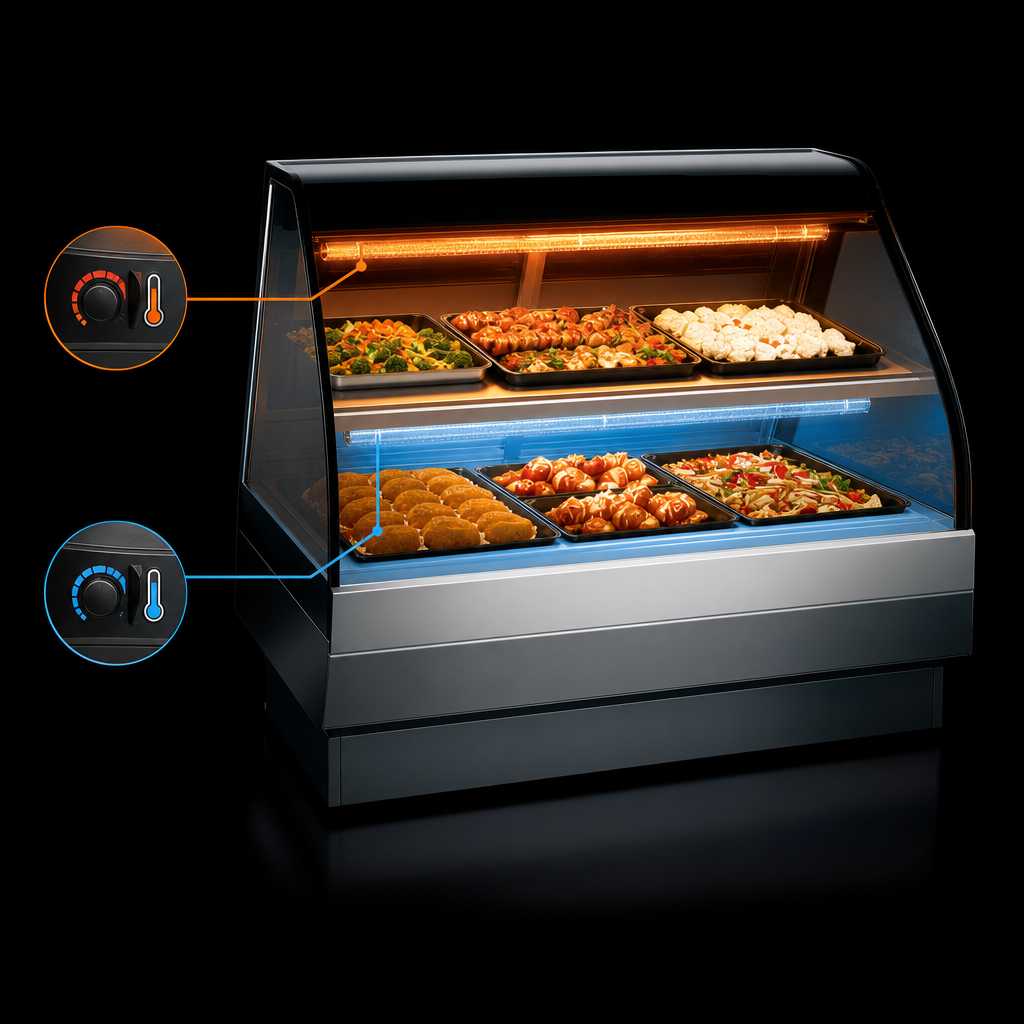

  • Two independent heat zones with separate top & bottom controls (settings 1–10) let you hold multiple menu items at their ideal temperature.
  • Full-service design: self-supported tempered glass front for guests, mirrored sliding rear doors for fast plating.
  • Modern overhead LED lighting and mirrored doors enhance color and depth, driving impulse sales.
  • Three pan sections accept a wide range of GN/US steam-table pans for ultimate menu flexibility.
  • Hinged operator-side work shelf/cutting board speeds up carving, portioning and service.
  • Rear doors, side glass panels and divider bars lift or slide out—cutting cleaning and change-over time.
  • Quiet, waterless, low-maintenance operation—no plumbing, no drainage, just plug and profit.
  • Integrated stationary base elevates product to perfect viewing height and delivers a sleek, built-in look.

Standard Inclusions

  • (4) long pan divider bars (#1002584)
  • (3) short pan divider bars (#1002585)
  • (9) additional short divider bars (#11318)
  • (2) heat-on indicator lights
  • (2) adjustable thermostats (one for top heat, one for bottom heat) per zone
  • 6 ft (1.8 m) cord with NEMA 6-20P plug

Pan Capacities – 48" Model (3 Zones)

Pan Type Size (W × L × D) Max Qty.
Full-size GN 1/1 12" × 20" × 2 ½" 3
Half-size GN 1/2 12" × 10" × 2 ½" 6
One-third GN 1/3 12" × 6" × 2 ½" 3 – 9
(configuration dependent)
Sheet pan 18" × 26" × 1" 2
Maximum capacity 48 lb (22 kg) / 30 qt (36 L)

Pans are not included. Unit also accepts 4" (100 mm) deep pans.

Specifications

Exterior (H × W × D) 48 5/16" × 48 5/16" × 47 7/16" (1227 × 1227 × 1204 mm)
Well (W × L × D) 27 1/4" × 45 5/16" × 4 1/2" (692 × 1151 × 114 mm)
Net Weight 450 lb (204 kg)
Electrical 208 V, 1 ph, 50/60 Hz, 11.8 A, 2.45 kW
240 V, 1 ph, 50/60 Hz, 13.6 A, 3.26 kW
Cord / Plug 12/3, 6 ft (1.8 m) with NEMA 6-20P

Popular Options & Accessories

  • Stainless-steel front panel (black standard)
  • Solar bronze end glass
  • Left- or right-mounted scale platform
  • Temperature gauge
  • Work shelf with gravy lane
  • Sheet-pan divider package
  • 4" deep pan inserts & 1/3-pan cover-up bars
  • Extended one-year warranty

Warranty

1-year parts & labor (15 months from ship date). Additional 1-year extension available.

Installation Note: The case must be level and positioned away from cold-air sources such as freezers or HVAC vents to maintain proper holding temperatures.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

cULus, UL EPH Classified

Height

47.69in

Width

48.0in

Depth

47.38in

Shipping Weight

500.0lbs

Service Type

full service

Front

curved glass

Exterior Finish

all black exterior

Interior Finish

stainless steel interior

Intermediate Shelves

deck only

Width (side - side)

43" - 48"

Specifications

Heated Display Case, 48" with stationary base, full-service with 3 pan sections, 2 individually controlled top and bottom heat zones featuring Halo Heat® technology and top ceramic heaters, modern overhead LED lighting, self-supporting tempered glass front, removable mirrored sliding doors and glass sides, hinged rear work shelf, pan divider bar package, cULus, UL EPH Classified
