Alto-Shaam ED3-96 Halo Heat Hot Food Displays
Description

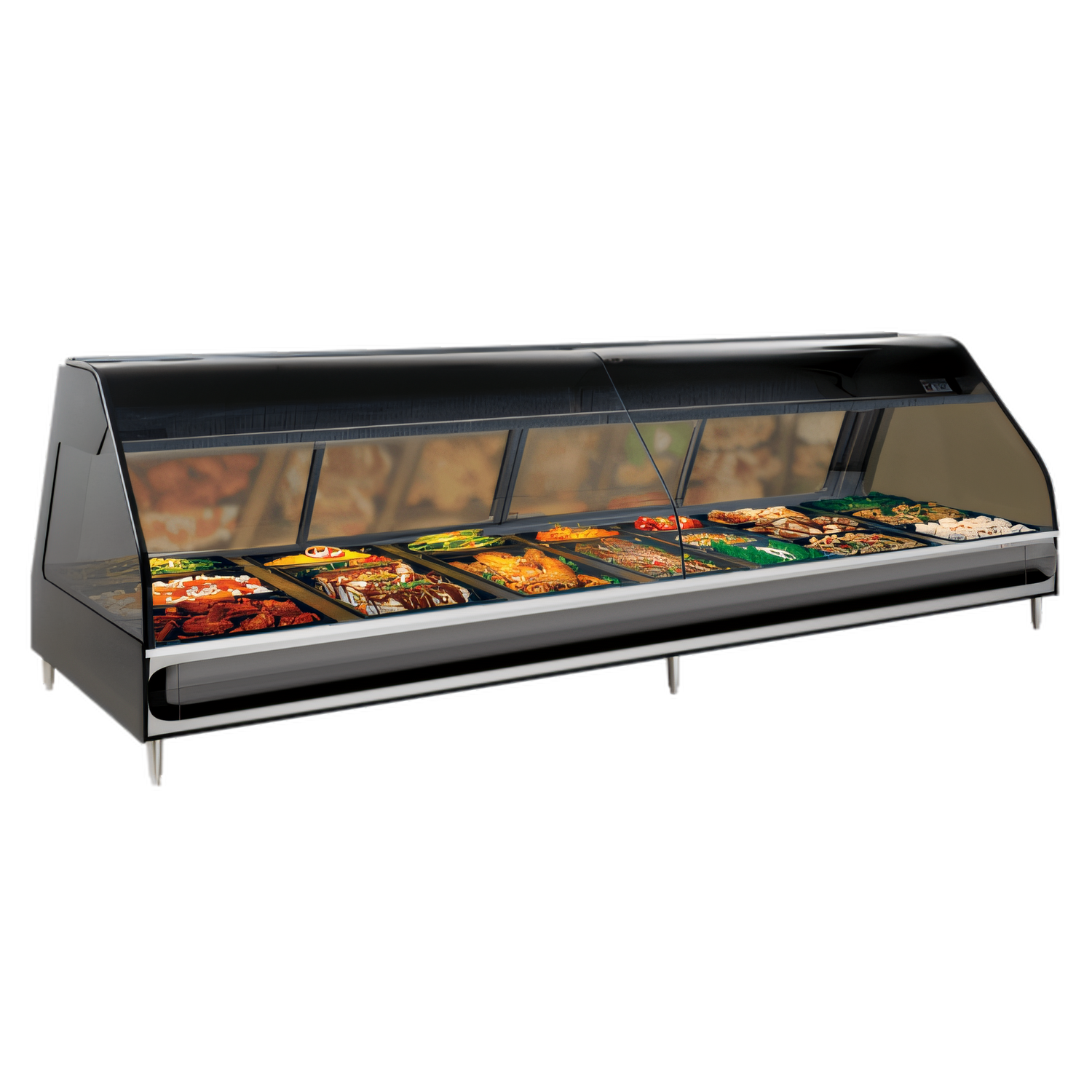

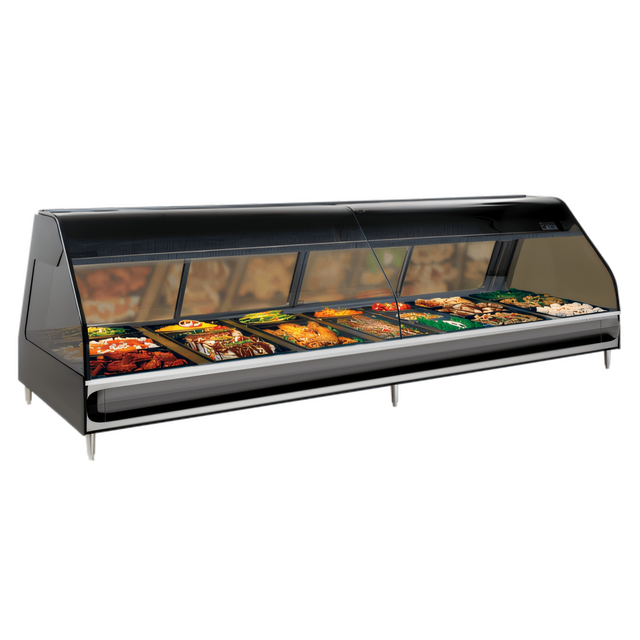

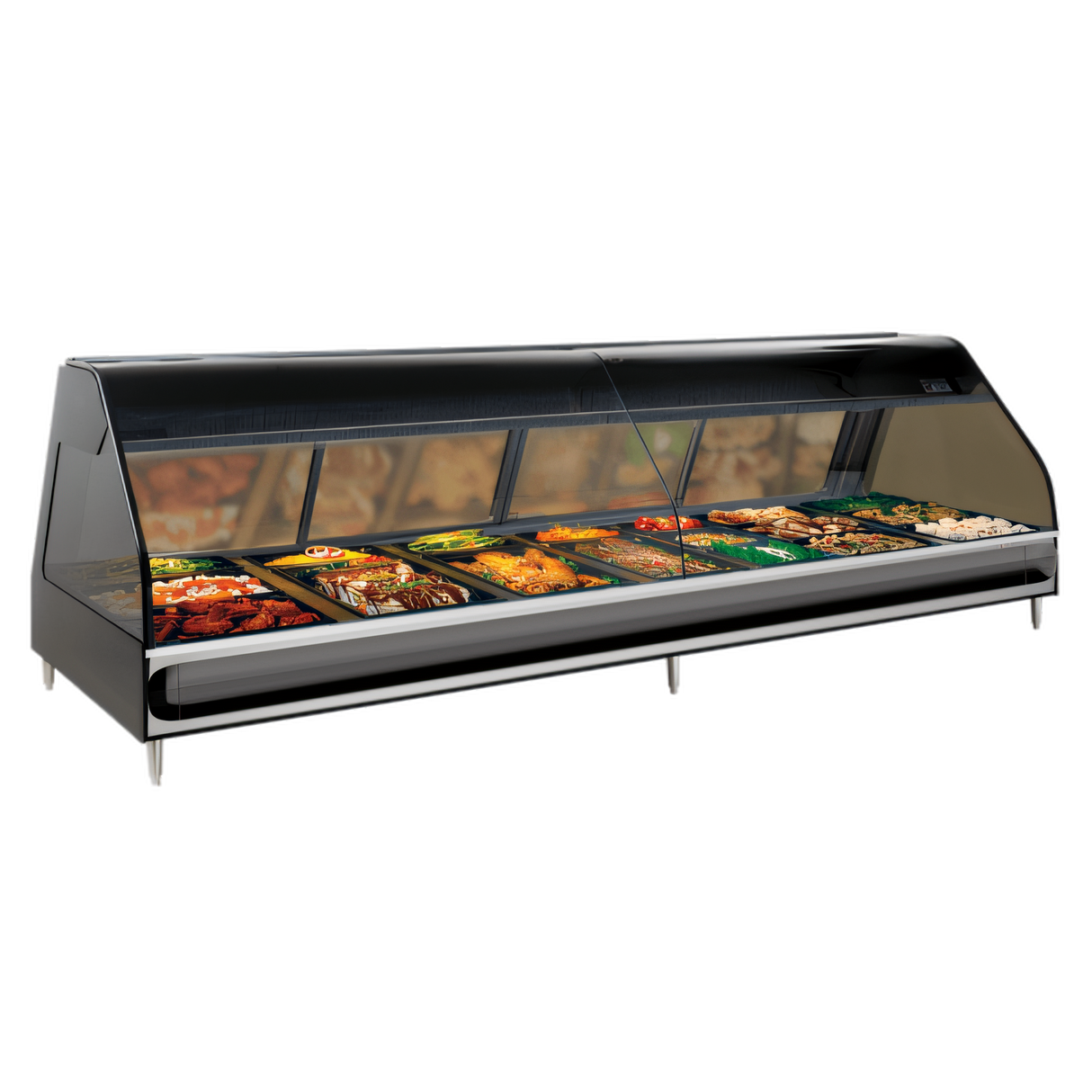

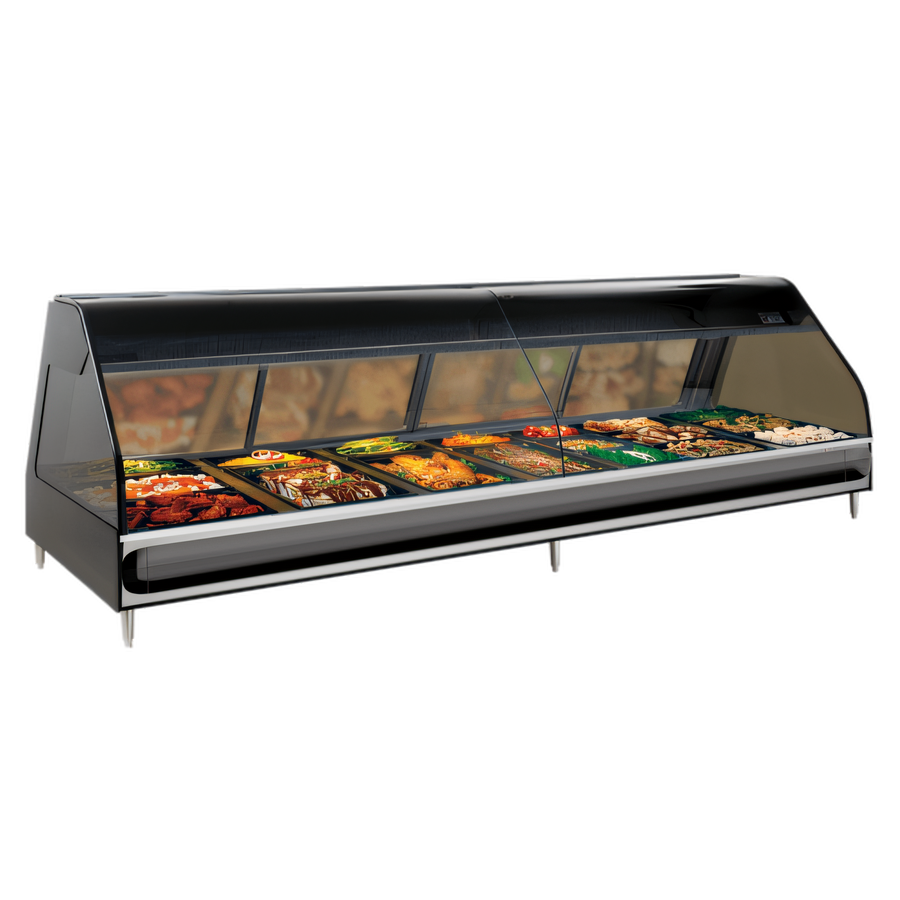

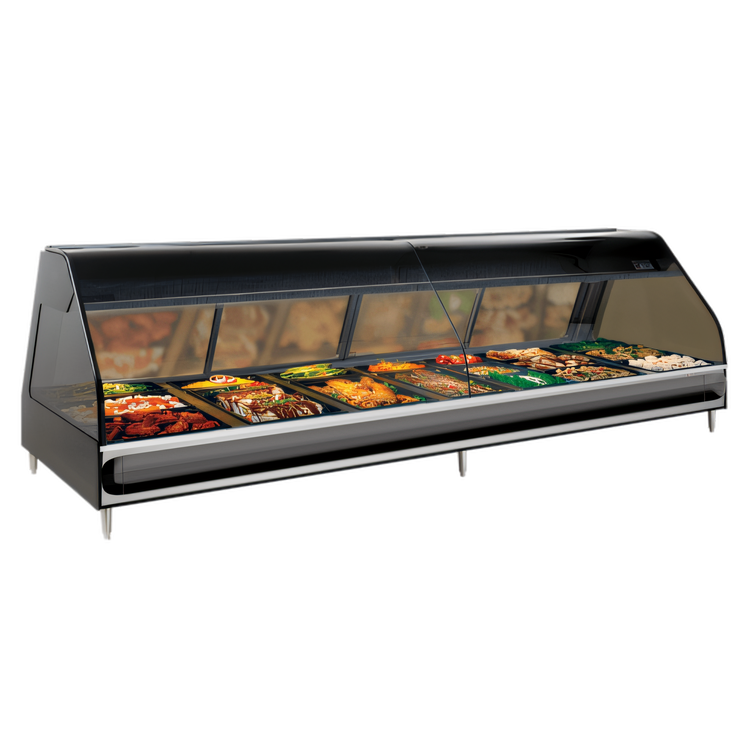

Alto-Shaam ED3-96 “Halo Heat” Countertop Heated Display Case – 96"
Full-service | 7-pan sections | 3 independent heat zonesShowcase, merchandise and hold a full buffet line of hot entrées in one sleek 96-inch footprint. Alto-Shaam’s fan-free Halo Heat® technology gently surrounds food with even radiant warmth, keeping menu items fresh and flavorful for hours while brilliant LED lighting and a mirrored back boost visual appeal and impulse sales.
Key features & benefits
- Fanless, waterless Halo Heat® eliminates drying fans and messy humidity pans.

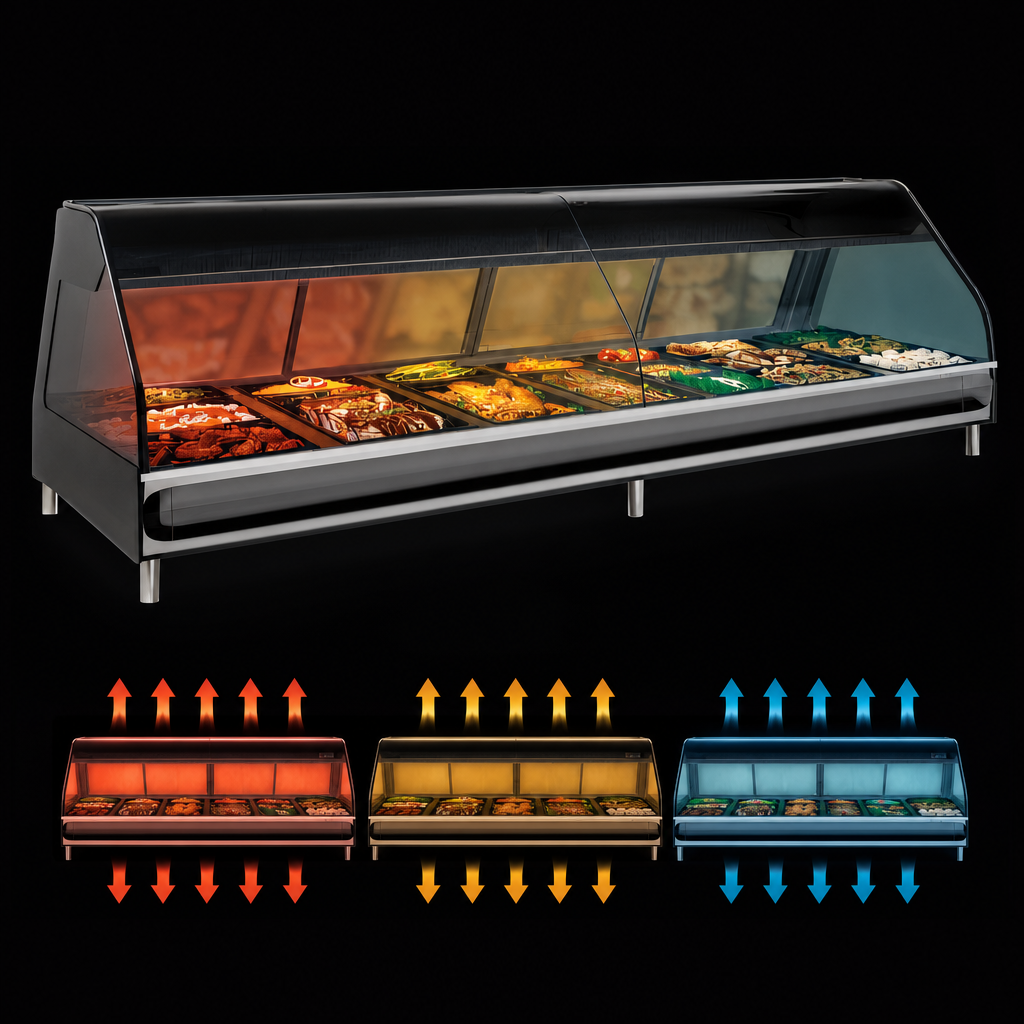

- Three independent heat zones with separate top & bottom thermostats (settings 1–10) let you hold different foods at ideal temps.
- Ceramic overhead heaters add focused top heat for crispy finish and vibrant presentation.
- Seven pan zones fit 7 full-size GN 1/1 pans (or mix & match with included divider bars).
- Energy-saving LED canopy lighting and mirrored sliding rear doors amplify product visibility.
- Self-supporting tempered glass front lifts for easy cleaning and mid-service replenishment.
- Removable mirrored rear doors, side glass panels and a hinged operator-side work shelf/cutting board speed up loading and daily cleanup.
- 4" (102 mm) legs with rubber feet provide stable, non-skid countertop placement.
- cULus & UL EPH Classified for electrical and sanitation safety.
Pan capacity
| Pan size | Pan dimensions | Quantity |
|---|---|---|
| Full-Size / GN 1/1 | 12" × 20" × 2-1/2" | 7 |
| Half-Size / GN 1/2 | 12" × 10" × 2-1/2" | 14 |
| One-Third / GN 1/3 | 12" × 6" × 2-1/2" | 7 |
| Full-Size sheet pan | 18" × 26" | 4 |
Food pans are not included with the case.
Technical specifications
| Model | ED3-96 (countertop with 4" legs) |
|---|---|
| Exterior (H × W × D) | 30-3/16" × 95-15/16" × 43-13/16" (767 × 2438 × 1113 mm) |
| Well (W × L × D) | 27-1/4" × 93-5/16" × 4-1/2" (692 × 2370 × 114 mm) |
| Heat zones | 3 (each with independent top & bottom heat) |
| Electrical |
208 V / 1 Ph / 50-60 Hz - 16.8 A - 3.49 kW – 6 ft cord, NEMA 6-30P plug 240 V / 1 Ph / 50-60 Hz - 19.3 A - 4.64 kW – 6 ft cord, NEMA 6-30P plug |
| Net weight | 526 lb (239 kg) |
| Certifications | cULus, UL EPH Classified, ANSI/NSF 4 |
What’s included
- 6 long & 7 short pan divider bars
- Operator-side hinged work shelf / cutting board
- 4" (102 mm) legs with rubber feet (factory installed)
- 1-year parts & labor warranty
Popular accessories (sold separately)
- Solar bronze end glass panels
- Right- or left-mounted scale platform
- Work shelf with gravy lane – set of two
- 4" deep pan inserts & 1/3-pan cover-up bar
- Sheet-pan divider bar package
- Extended 1-year warranty

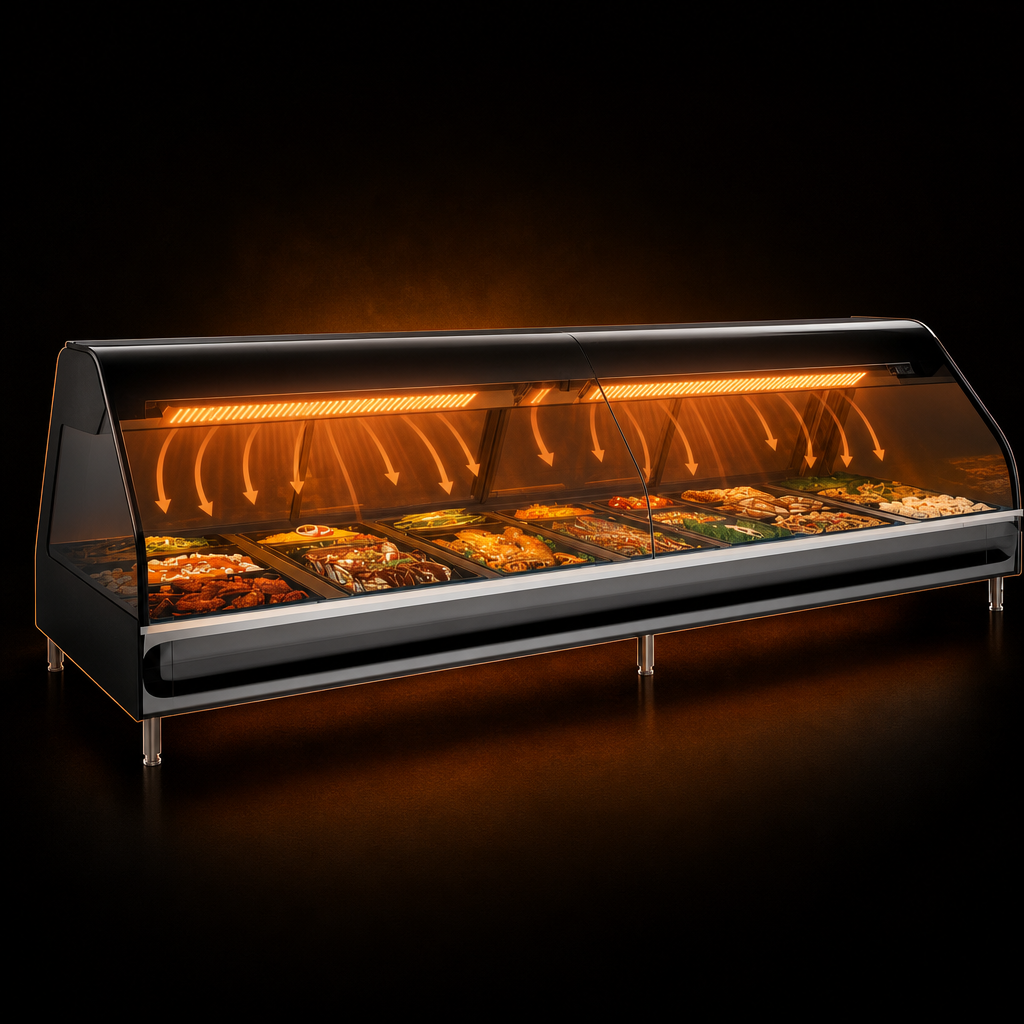

Halo Heat® surrounds food with gentle, radiant warmth—no fans, no water pans—keeping moisture, texture and flavor locked in for extended holding times.
