Alto-Shaam ED3-72 Halo Heat Hot Food Displays
Description

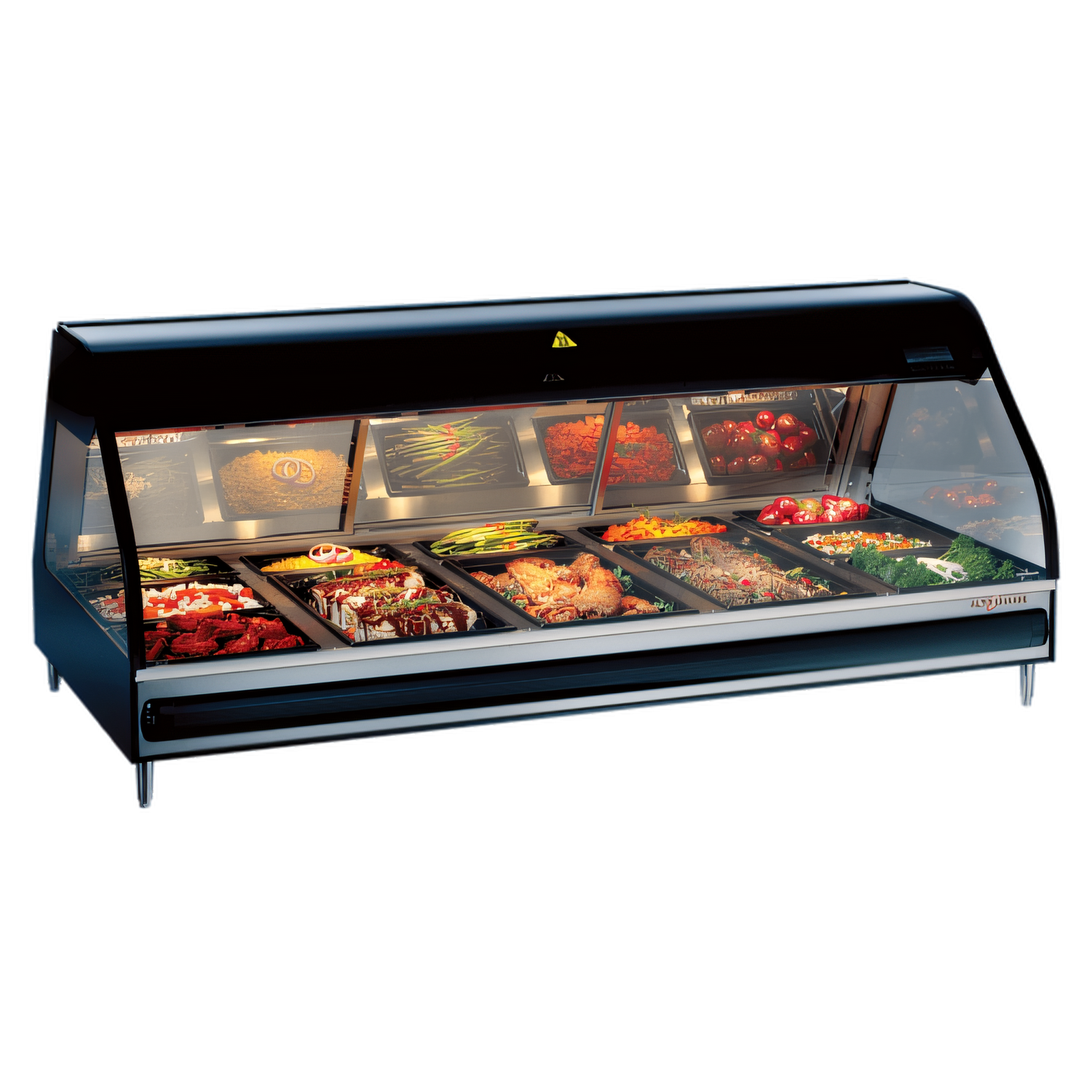

Alto-Shaam ED3-72 Halo Heat® Countertop Heated Display Case — 72 inch
Full-service merchandiser with 5 pan sections & dual heat zonesShowcase your hot menu items, boost impulse sales and keep food tasting freshly made. Powered by gentle, fan-free Halo Heat®, the Alto-Shaam ED3-72 delivers precise holding temperatures without added water or harsh airflow—so products stay moist, delicious and visually irresistible for hours.
Key Features & Benefits- Fanless, waterless Halo Heat® technology prevents product shrinkage and flavor loss.

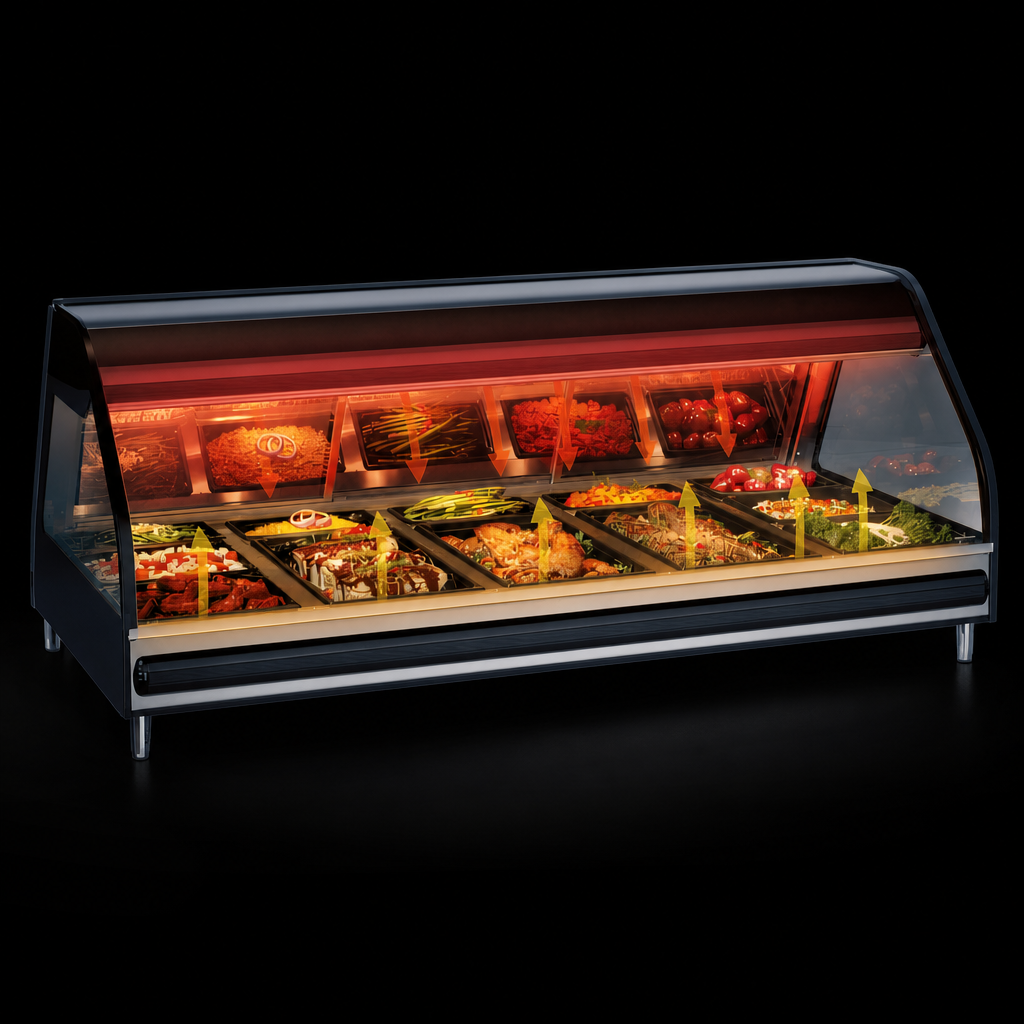

- Two independent heat zones (top ceramic heaters & bottom Halo Heat) with 1-10 thermostats for exact control.
- Five (5) pan sections accept full, half, third GN pans or three 18 × 26 in sheet pans.
- Bright, energy-saving LED lighting plus mirrored sliding rear doors maximize product visibility.
- Self-supporting tempered front glass lifts for rapid cleaning and easy service.
- Removable sliding back doors, side glass panels and a hinged operator-side work shelf streamline loading and sanitation.
- Includes divider bar package (4 long & 20 short total) for flexible pan layouts.
- Ships with 4 in (102 mm) legs and non-skid rubber feet for stable countertop installation.
- cULus listed and UL EPH Classified for safe, sanitary operation.
| Model | ED3-72, countertop (with legs) |
|---|---|
| Exterior dimensions | 30-3/16 in H × 72-5/16 in W × 43-13/16 in D (767 × 1836 × 1113 mm) |
| Well dimensions | 27-1/4 in W × 69-5/16 in L × 4-1/2 in D (692 × 1761 × 114 mm) |
| Pan capacity (2 ½ in / 65 mm deep) |
• 5 × GN 1/1 • 10 × GN 1/2 + 5 × GN 1/3 • 3 × 18 × 26 in sheet pans Max load: 80 lb (36 kg) / 50 qts (60 L) |
| Heat zones | 2 (independent top & bottom) |
| Electrical (with plug) |
208 V, 1 φ, 3.11 kW, 19 A — 6 ft cord, NEMA 6-30P 240 V, 1 φ, 4.14 kW, 22 A — 6 ft cord, NEMA 6-30P |
| Net weight | 419 lb (190 kg) |
| Certifications | cULus, UL EPH, ANSI/NSF 4 |
| Standard warranty | 1-year parts & labor |
- Supermarkets & delis
- Convenience stores
- College, corporate & hospital food courts
- Ghost kitchens & grab-and-go counters
- ED3-72 Halo Heat® heated display case with 4 in legs
- Pan divider bar kit (4 long, 5 short, 15 short)
- Hinged operator-side work shelf / cutting board
- Factory-installed 6 ft power cord & plug (208/240 V models)
Pans and optional accessories are sold separately.
Popular Options (sold separately)- Stainless-steel front panel
- Solar bronze end glass
- Left- or right-mounted scale platform
- Pan cover-up bars & sheet-pan divider packages
- Extended warranty (additional 1 year)

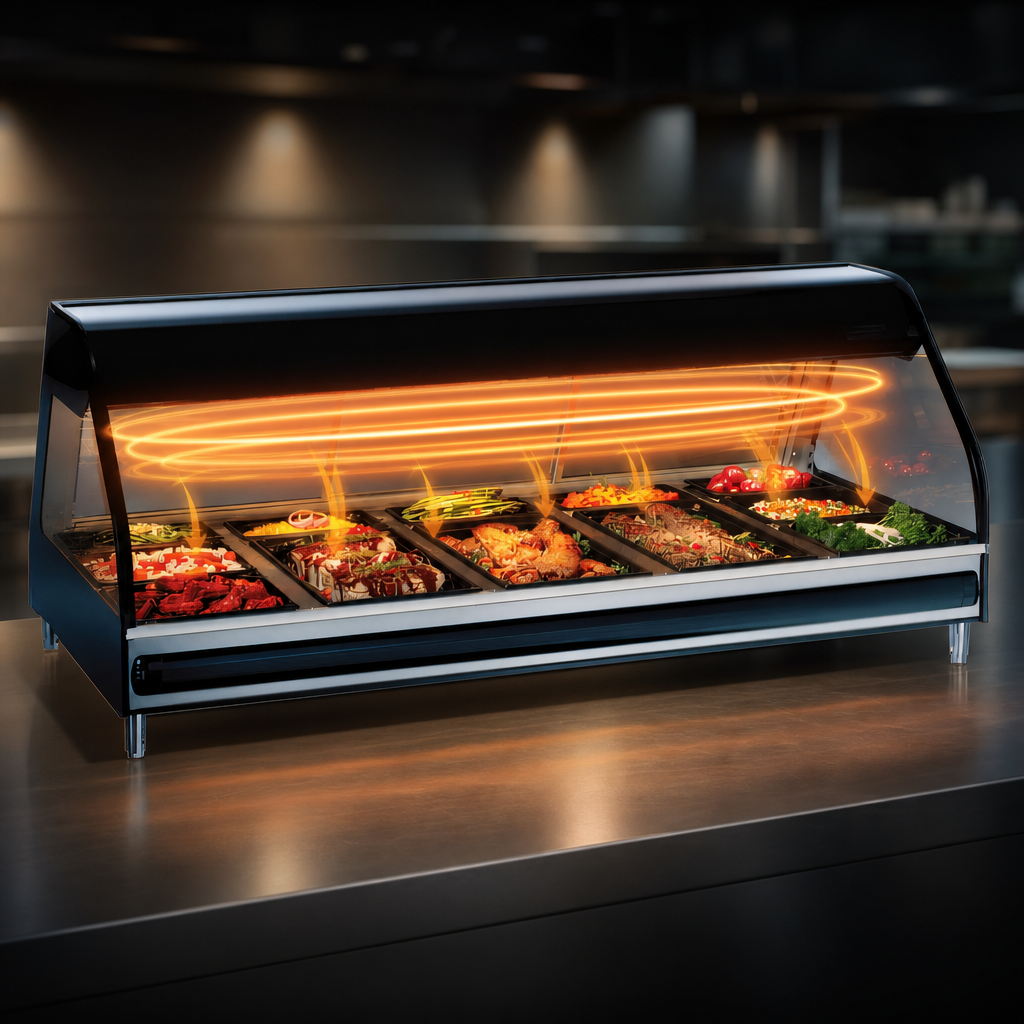

Halo Heat® surrounds food with gentle, consistent radiant heat—no fans, no humidity pans and no hot spots. The result is longer holding times, significantly less product waste and food that looks and tastes just-cooked even at the end of a busy service.
