Alto-Shaam  |  Halo Heat  |  SKU: ED3-48

Alto-Shaam ED3-48 Halo Heat Hot Food Displays

$9,545.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Sell sheet Terms & conditions Warranty sheet Warranty sheet
Related Searches
Countertop Food Displays Countertop Food Warming Food Displays & Merchandisers Hot Food Displays Hot Food Displays Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

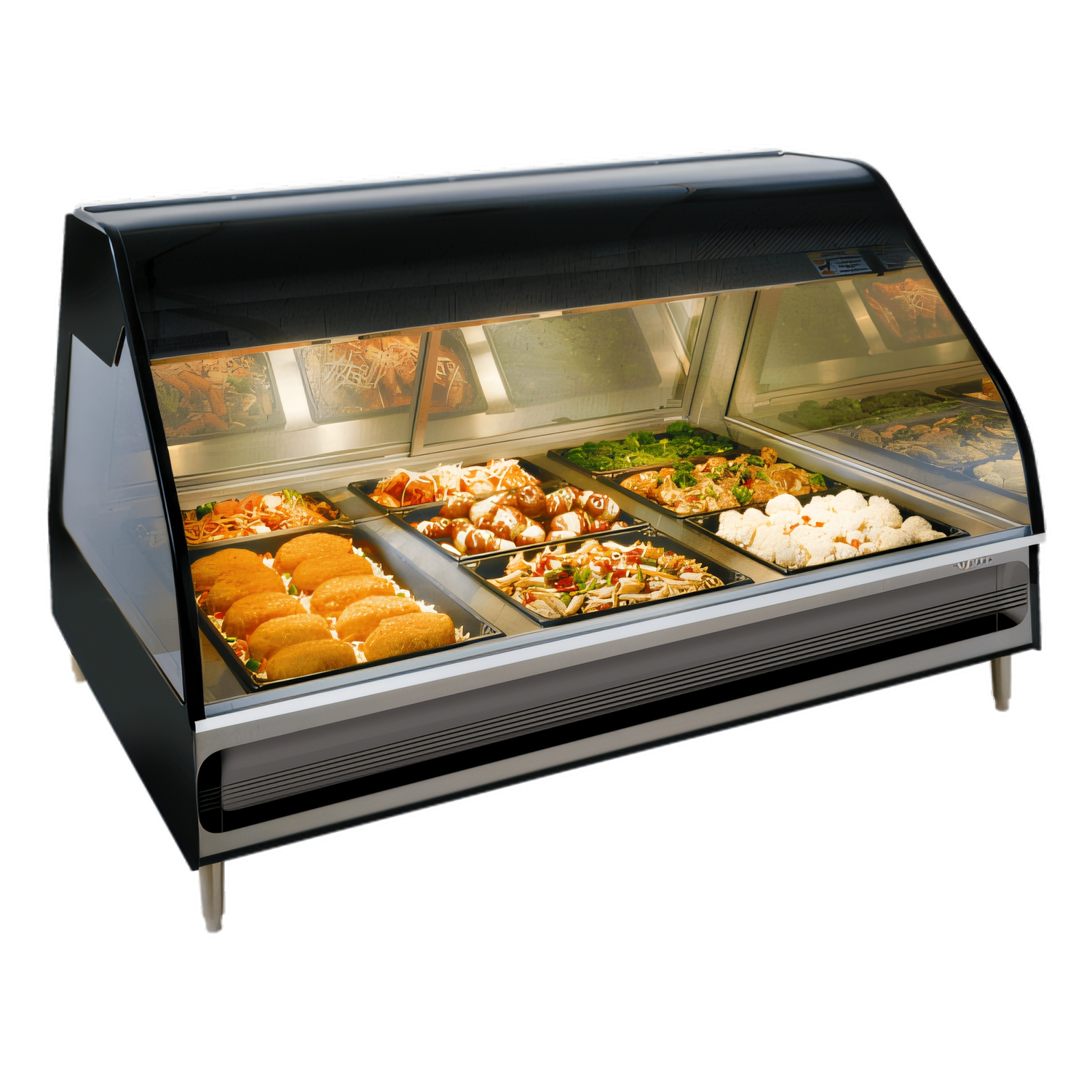

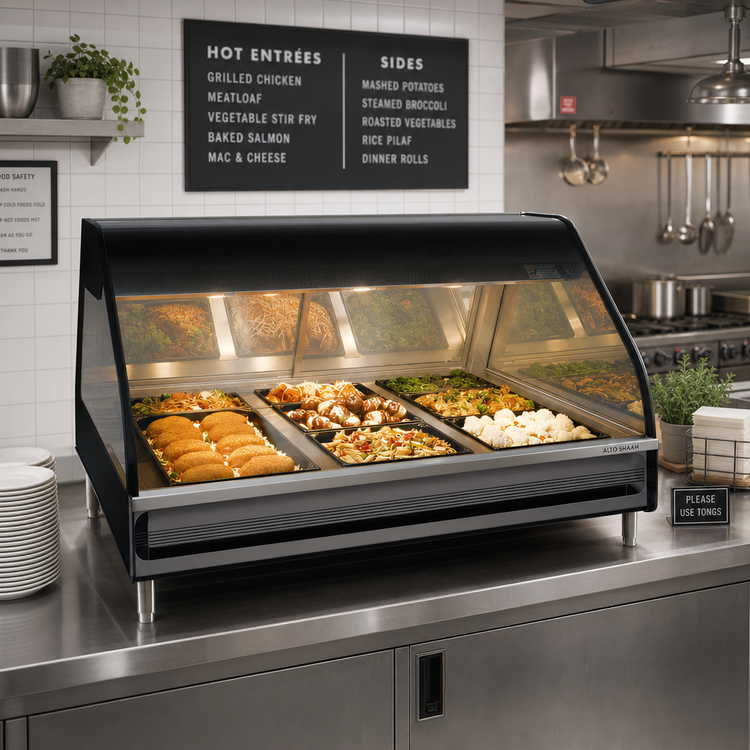

Alto-Shaam ED3-48 Halo Heat® Countertop Heated Display Case – 48"

Full-service merchandising power, gentle Halo Heat® holding

Showcase entrées, sides and grab-and-go favourites while keeping them at peak freshness. The fanless, waterless Halo Heat® system bathes food in even, radiant warmth, eliminating hot or cold spots and preventing product shrinkage. Paired with modern LED lighting and a mirrored back, the ED3-48 turns every dish into an impulse purchase catalyst.

Why you’ll love it

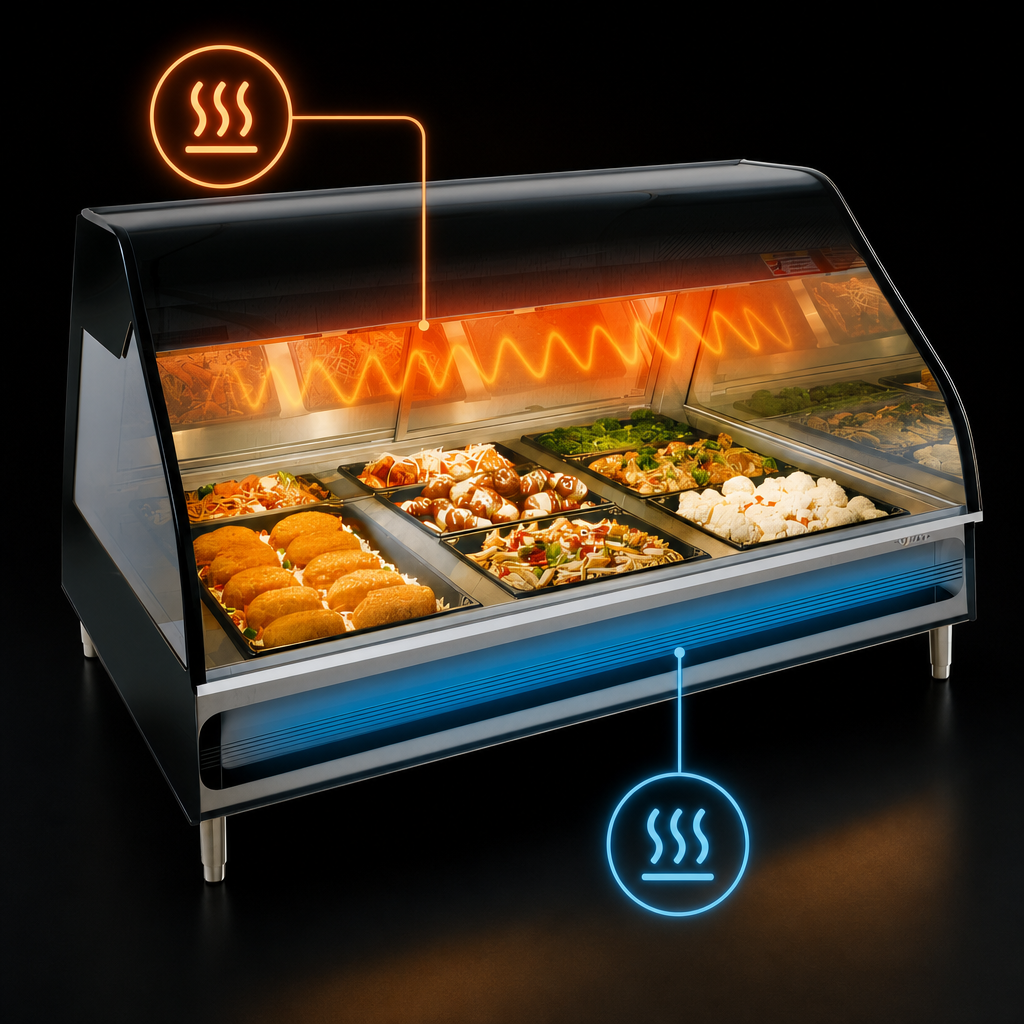

  • Two individually controlled top & bottom heat zones for precise holding.

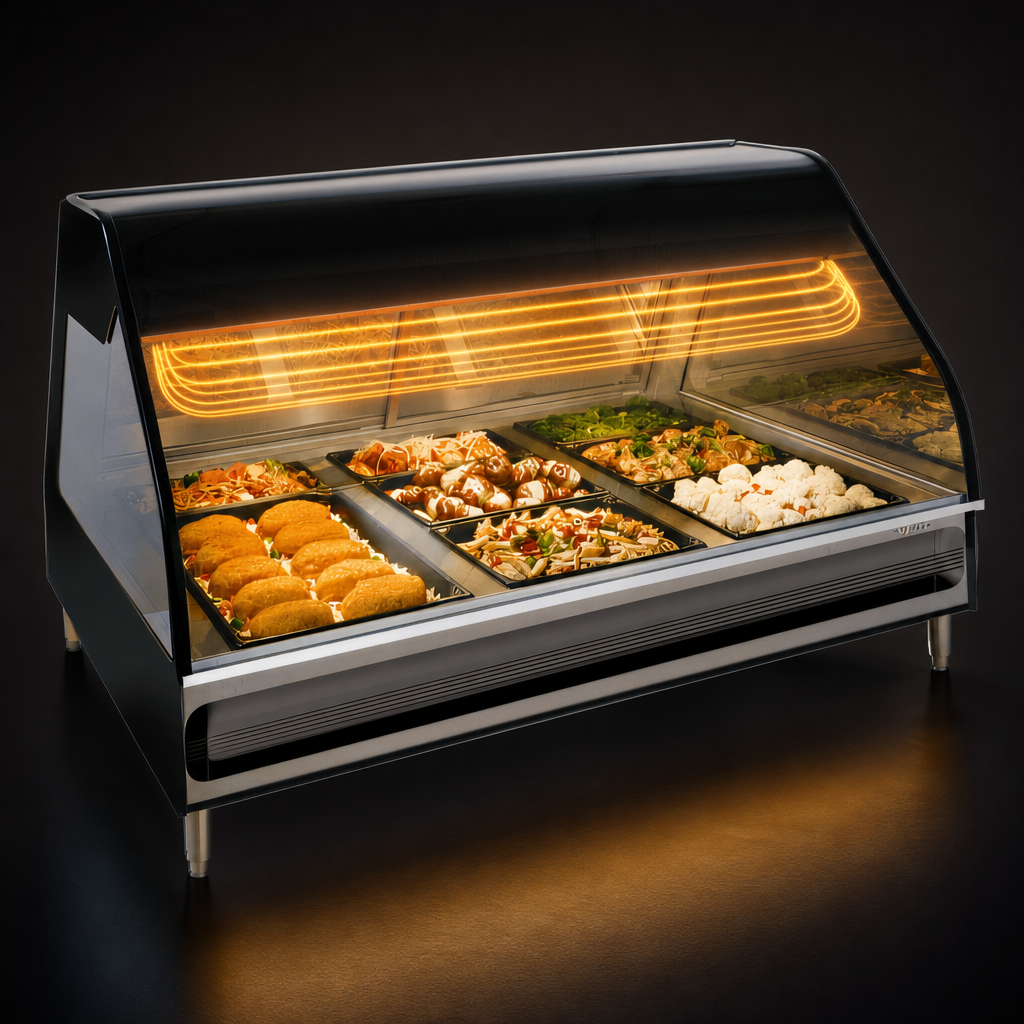

  • Fanless Halo Heat® technology—no humidity pans, no added water, no hot spots.
  • Three pan sections (GN) accept full-, half-, third- and sheet-pan formats with the included divider bar package.
  • Sleek tempered glass front lifts up on a self-supporting mechanism for quick cleaning and re-stocking.
  • Mirrored sliding rear doors and removable side panels reduce labour during change-outs.
  • Bright, energy-saving overhead LED lighting enhances colour and visibility.
  • Hinged rear work shelf & cutting board streamlines service and plating.
  • 4" (102 mm) legs with rubber feet keep the unit stable on any countertop.
  • cULus & UL EPH Classified for assured electrical and sanitation compliance.

Technical specs

Model ED3-48 (countertop with legs)
Exterior dimensions (H × W × D) 30-3/16" × 48-5/16" × 43-5/8"
(767 × 1227 × 1108 mm)
Net weight 297 lb (135 kg)
Pan capacity (max) • 3 × Full-size (12" × 20" × 2-1/2")
• 6 × Half-size (12" × 10" × 2-1/2")
• 2 × Full-size sheet (18" × 26" × 1")
• Up to 48 lb / 30 qt total product
Heat zones 2 (top & bottom), thermostats 1-10 each
Electrical 208 V or 240 V, 1 Φ, 50/60 Hz, 2.45-3.26 kW, 15-17 A, 6 ft cord w/ NEMA 6-20P
Certifications cULus, UL EPH Classified
Standard inclusions • 4" legs with rubber feet
• 4 long & 3 short pan dividers
• Operator-side work shelf & cutting board
Warranty 1-year parts & labour (extendable)

Popular add-ons

  • Right- or left-mounted scale platform
  • Work shelf with gravy lane
  • Temperature gauge kit
  • Solar bronze end glass
  • Sheet-pan divider bar package

Pans are sold separately • Specifications subject to change without notice.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

cULus, UL EPH Classified

Height

30.13in

Width

48.0in

Depth

44.31in

Shipping Weight

372.0lbs

Exterior Finish

painted exterior

Width (side - side)

43" - 48"

Intermediate Shelves

none

Service Type

full service

Front

curved glass

Specifications

Heated Display Case, 48" countertop model, full-service with 3 pan sections, 2 individually controlled top and bottom heat zones featuring Halo Heat® technology and top ceramic heaters, modern overhead LED lighting, self-supporting tempered glass front, removable mirrored sliding doors and glass sides, hinged rear work shelf, 4" legs, pan divider bar package, cULus, UL EPH Classified
