Alto-Shaam CTX4-10E CT Express CombiTherm Combi Ovens
Description

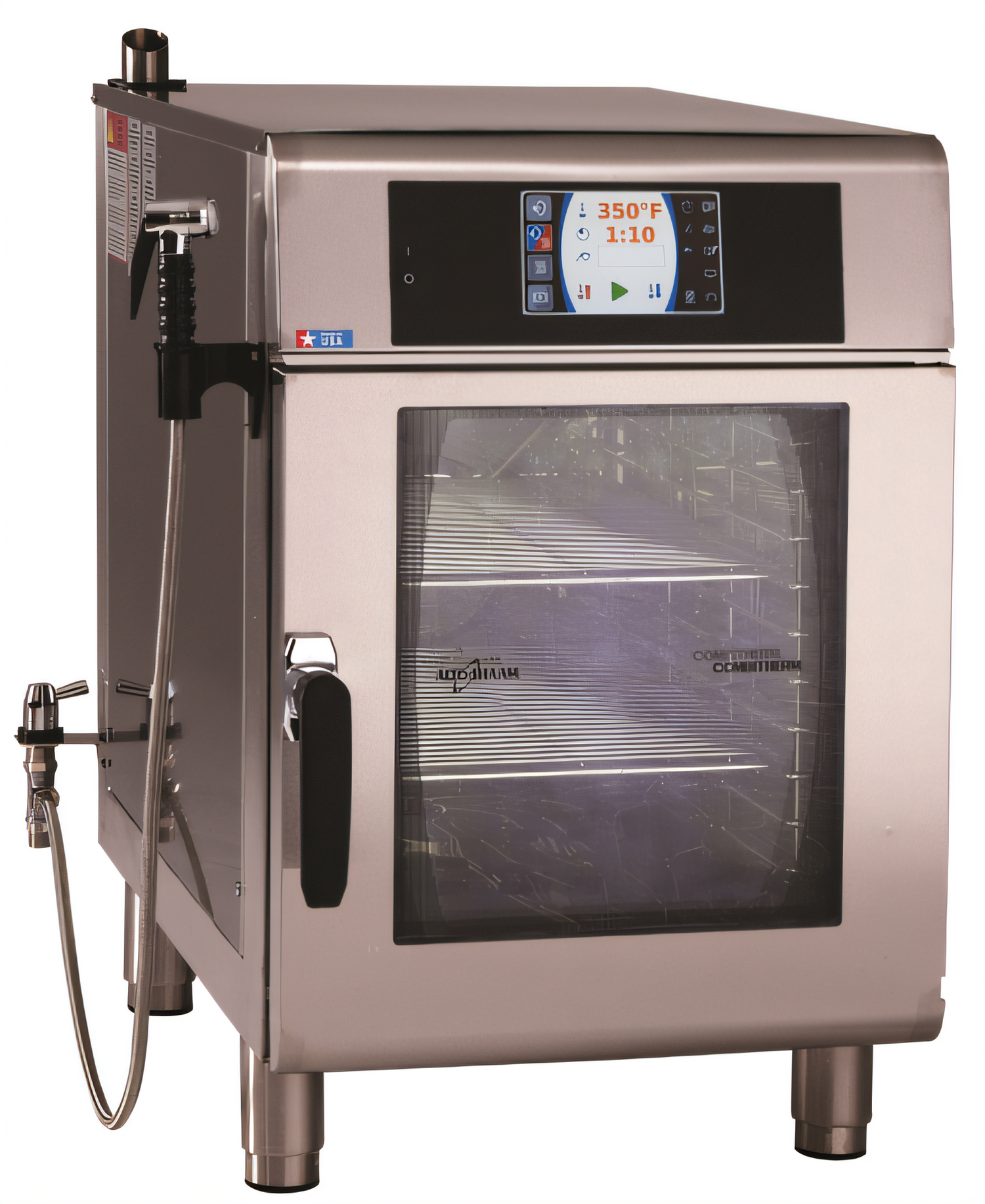

Alto-Shaam CT Express CombiTherm Countertop Combi Oven
Model CTX4-10E • 5 Full-Size / 10 Half-Size Pan CapacityReplace a convection oven, steamer and fryer in the space of a single footprint. The CT Express CombiTherm delivers flash-steam, convection or a precise combination of both, producing perfectly roasted, baked or steamed food with up to 30 % lower energy use thanks to Alto-Shaam’s EcoSmart® engineering.
Key Performance Benefits
- Three cooking modes – steam, convection or combi – for unmatched menu versatility.

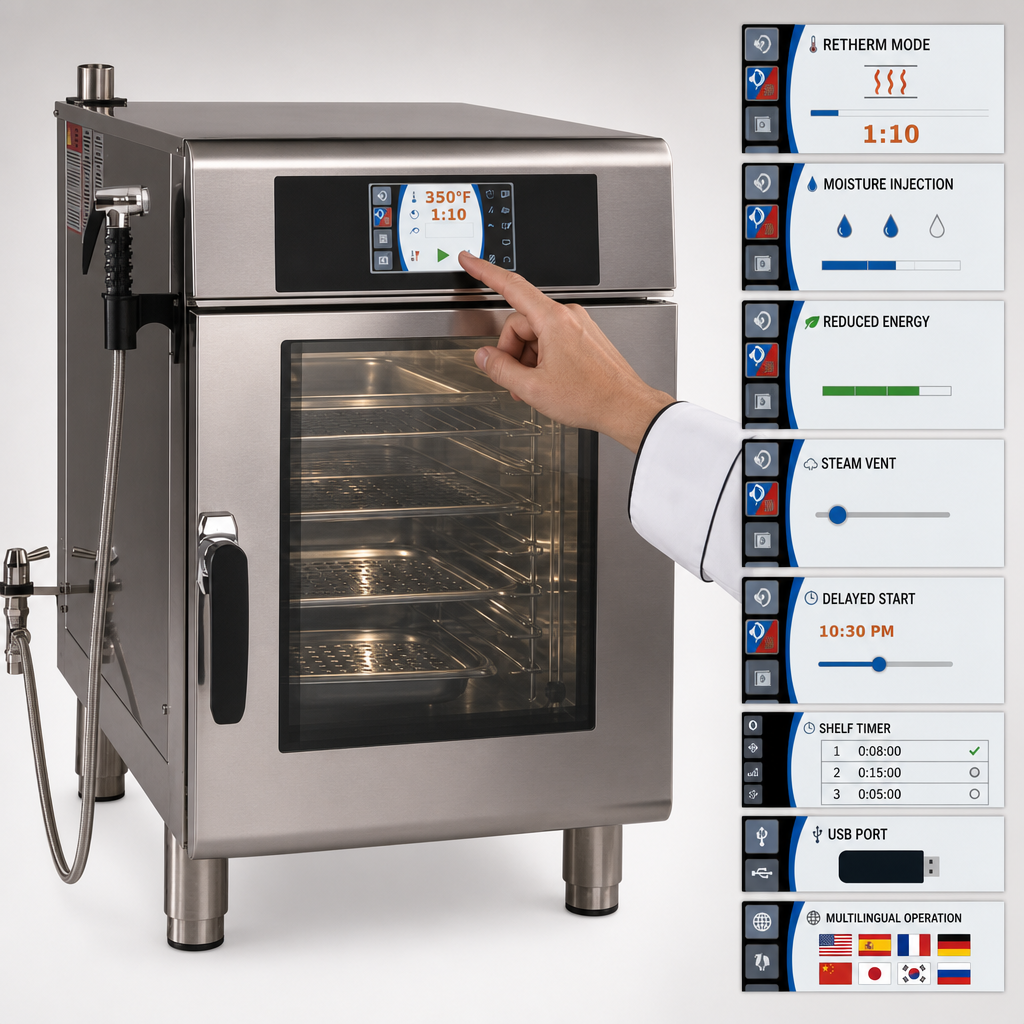

- ExpressTouch™ control: two-speed reversing fan, retherm mode, moisture injection, six browning levels, reduced-energy settings, steam venting, delayed start, shelf timer and USB recipe/data port.

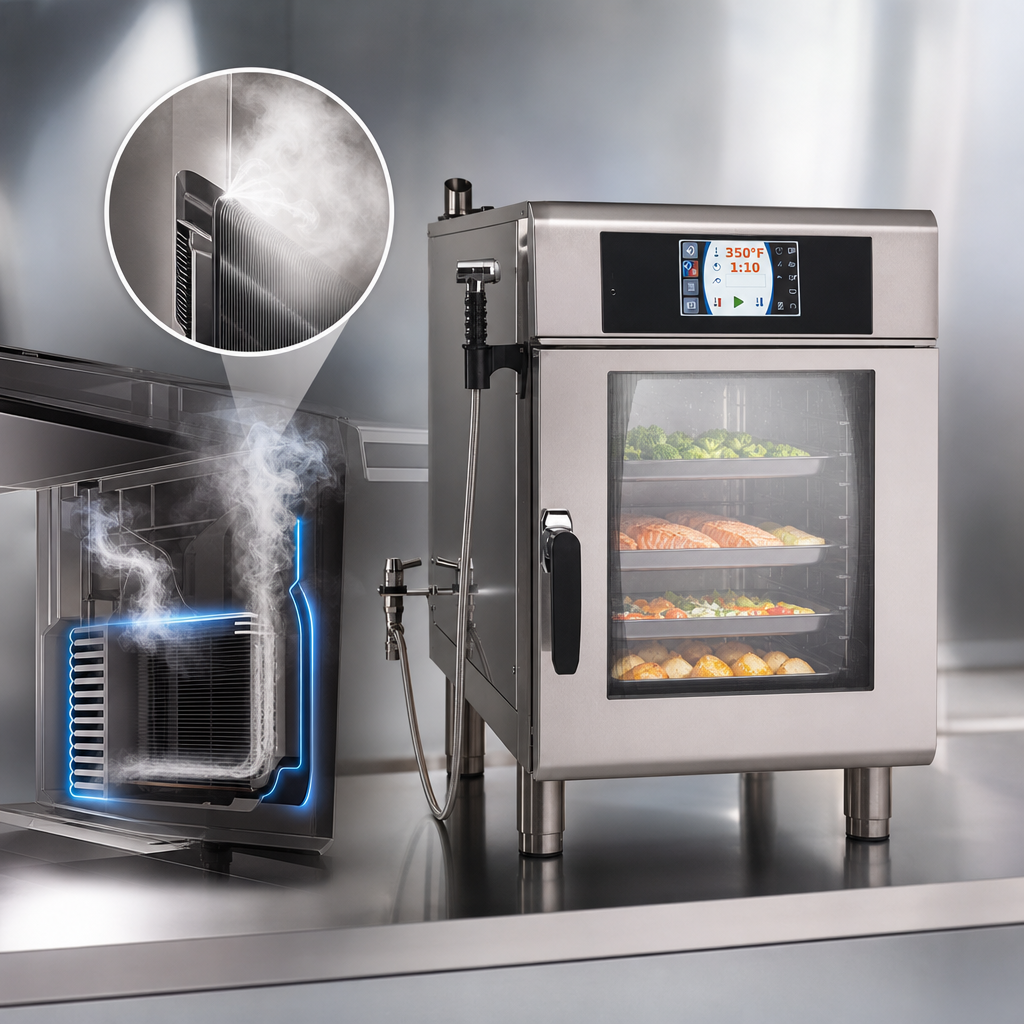

- Boiler-free flash-steam generation eliminates boiler maintenance and element burnout.
- CombiClean® automatic tablet cleaning system with integrated hand sprayer cuts labor and water use.
- Stainless-steel construction, positive-action door latch and built-in drip tray for long-term durability.
- Compact, 33 ½"-high countertop design with adjustable 4" bullet legs fits where full-size ovens can’t.
- EcoSmart® certified for lower utility costs and reduced environmental impact.
Pan & Product Capacity
- 5 × 12" × 20" × 2 ½" full-size hotel pans (GN 1/1 65 mm)
- 10 × 18" × 13" half-size sheet pans (20 mm)
- Maximum load: 48 lb (22 kg) / 30 qt (38 L)
Supplied with two stainless-steel wire shelves and side racks with ten non-tilt supports.
Technical Specifications
| Exterior dimensions (H × W × D) | 33 ½" × 24 ⅜" × 37 ¼" (851 × 619 × 946 mm) |
|---|---|
| Net weight | 180 lb (82 kg) |
| Construction | All stainless steel, 4" adjustable bullet legs |
| Electrical | 208–240 V, 1- or 3-phase, 50/60 Hz, 4.7–7.5 kW (NEMA L6-30P cordset supplied on 208 V 1-phase units) |
| Water connections | (1) treated & (1) untreated ¾" NPT, 30–145 psi, 0.26–2.64 gpm |
| Drain | 1 ½" (40 mm) outlet, materials rated to 200 °F (93 °C) |
| Certifications | cULus • UL EPH ANSI/NSF 4 • CE • EAC • IPX4 |
What’s in the Box
- CT Express CombiTherm oven with ExpressTouch control
- (2) wire shelves & full set of side racks
- CombiClean® system plus starter pack of cleaning tablets
- Hand sprayer kit
- USB port for HACCP data download and recipe uploads
Popular Options & Accessories
- CombiSmoker® hot & cold smoking kit
- Fry basket, grilling grate or poultry roasting rack
- Mobile or stationary oven stands (single or double shelf)
- Seismic leg kit or 6" leg set
- Reverse-Osmosis water treatment system
Peace-of-Mind Warranty
Covered by Alto-Shaam’s 1-year parts & labor warranty (15 months from ship date) and a 5-year compressor warranty where applicable.
