Alto-Shaam  |  Converge  |  SKU: CMC-H2H

Alto-Shaam CMC-H2H Converge Combi Ovens

$16,276.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cheflinc connectivity requirements Spec sheet - english ul Terms & conditions Sell sheet Water treatment sell sheet Accessories catalog Cleaner sell sheet Brochure Converge stands guide Owner's manual Spec sheet - french canadian Installation program Spec sheet - spanish Spec sheet - english ce Warranty sheet Warranty sheet
Related Searches
Combi Ovens Combi Ovens Commercial Ovens Ovens Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

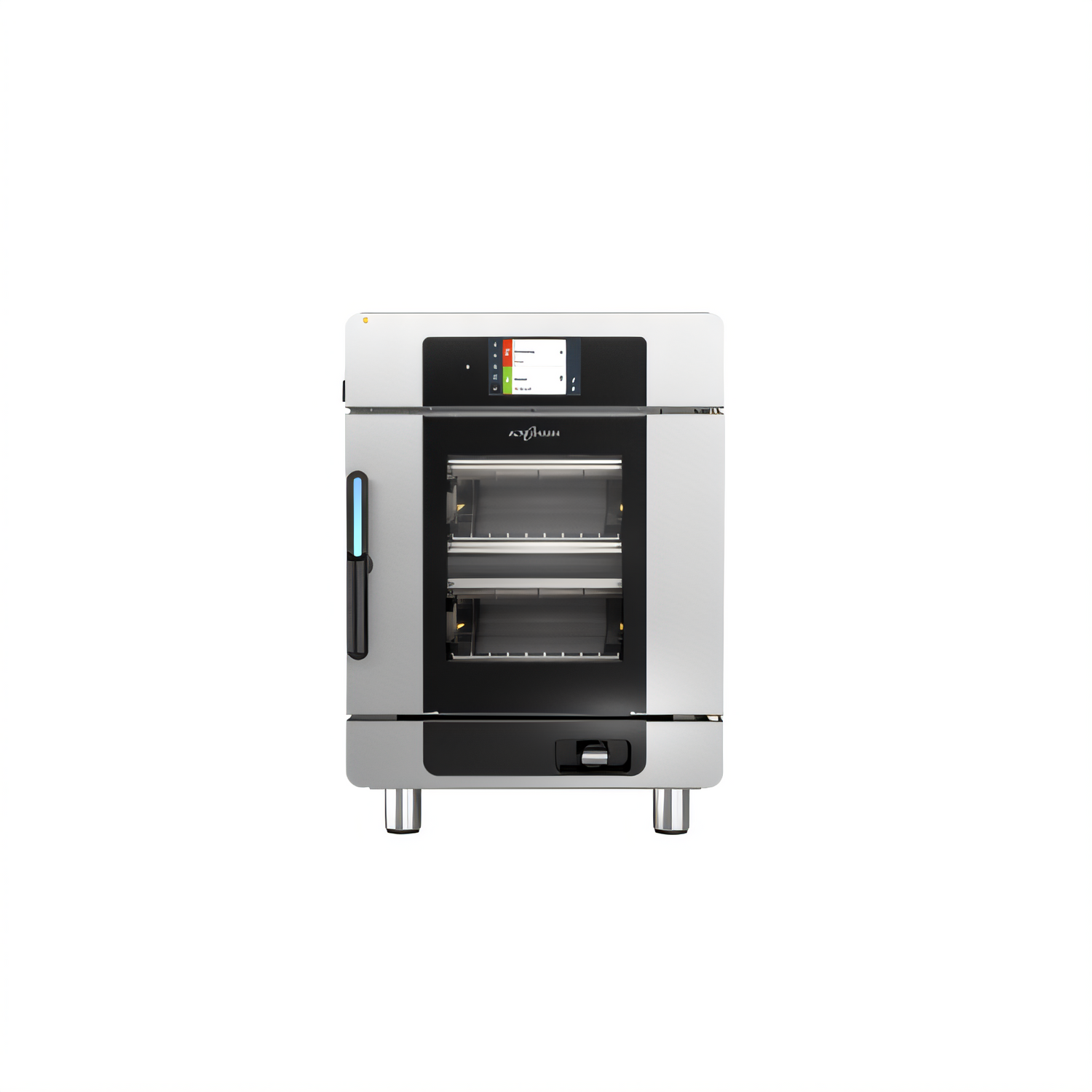

Converge® 2-Chamber Multi-Cook Combi Oven | Model CMC-H2H

Ventless • Structured Air Technology® • Made in USA

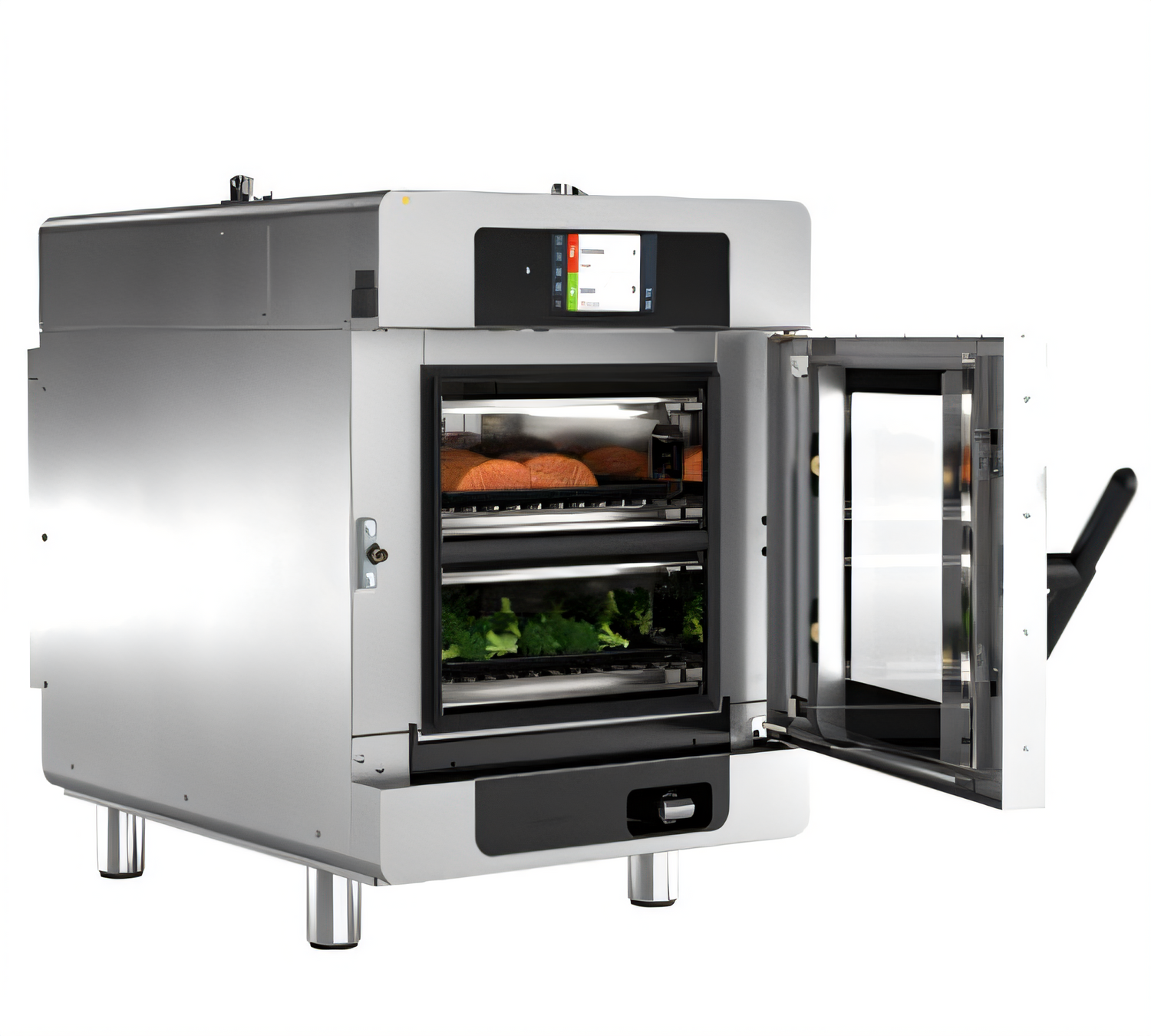

Deliver more menu variety from less space. The Converge CMC-H2H gives you two completely independent combi ovens in a single, 24 in-wide footprint—so you can steam salmon in the top chamber while air-frying wings below with zero flavor transfer. Pair that flexibility with Alto-Shaam’s exclusive Structured Air Technology® and an intuitive touchscreen, and you’ll serve better food faster, without adding labor or a hood.

Why You’ll Love It

  • Two self-contained combi chambers — set individual temperature, fan speed, humidity and time for each cavity.
  • Structured Air Technology® delivers focused, high-velocity heat for faster, more even cooking.
  • Absolute Humidity Control™ lets you dial in any humidity level from 0-100 % for perfect texture and yield.
  • Wide temperature ranges
    • Convection 85 °F – 525 °F (30 °C – 274 °C)
    • Steam 85 °F – 250 °F (30 °C – 120 °C)
    • Combination 213 °F – 525 °F (100 °C – 274 °C)
  • Ventless, EPA 202-compliant — built-in catalysts (one per chamber + exhaust) remove grease, allowing installation almost anywhere, even in NYC (COA #5879).
  • Deluxe 7 in touchscreen — store & run programmable recipes, access ChefLinc™ cloud management, USB upload/download and HACCP data.
  • Self-cleaning — four automated cycles, front retractable rinse hose and color-coded tablets cut labor.
  • Smart design details — LED-lit door handle shows oven status at a glance; double-pane glass and interior LEDs promote visibility and efficiency.
  • Stainless-steel construction, IPX5 water-jet protection and cULus/UL EPH sanitation listings ensure durability and code compliance.

Capacity at a Glance

Chambers 2 independently controlled combi ovens
Pan capacity (per oven) 1 × full-size steam pan (GN 1/1 100 mm)
or 1 × half-size sheet pan (18 in × 13 in)
Total capacity 2 full-size steam pans • OR 2 half-size sheet pans
Heat rejection 471 BTU/hr • 0.14 kW
Noise level ≤ 63.3 dBA at 3.3 ft (1 m) without hood

Utility Requirements

Electrical (select at install) • 208–240 V, 1 ph, 50 A, 6.7–8.9 kW, NEMA 6-50P
• 208–240 V, 3 ph, 30 A, 6.7–8.9 kW, NEMA 15-30P
Water Two cold water inlets (¾ in NPT male): treated & untreated
30–145 psi (200–1000 kPa) • 0.16–4 gpm (0.6–15 L/min)
Drain: 1½ in (40 mm) line rated to 200 °F (93 °C)
Exterior dimensions 38 ⅜ in H × 24 ⅜ in W × 40 ¼ in D (975 × 621 × 1023 mm)
Net weight 304 lb (138 kg)
Clearances Top 20 in • Back 7 ⅟₁₆ in • Sides 2 in • Front 20 in

Certifications & Compliance

  • cULus & UL EPH Classified
  • IPX5 water-jet protection
  • EPA 202 ventless approval • COA #5879 (NYC)
  • ISO 9001:2015-certified manufacturing facility
  • Made in the USA

What’s in the Box

  • 2 × wire racks (1 per chamber)
  • 4 × jet plates (2 per chamber)
  • 4 × 4 in (110 mm) adjustable stainless-steel legs
  • Starter cleaning kit: 4 bottles decarbonizer + degreaser, 30 non-caustic cleaner packets, 6 descale tablets
  • USB recipe/firmware drive & owner’s manual

Popular Accessories (sold separately)

  • Mobile base with 3 in locking casters
  • 14 in pizza screen (PN-47175)
  • Corrugated grill pan (PN-47173)
  • Egg pans – 6-count (PN-47177) or 9-count (PN-47178)
  • RO or filtration water treatment systems

Peace-of-Mind Warranty

One-year parts & labor warranty (15 months from ship date, whichever comes first). Extended coverage available through Alto-Shaam Authorized Service.

Ventless operation: Certified for all food types, including fatty raw proteins. Always confirm compliance with local HVAC and fire codes before installation.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Converge

Certifications

cULus, UL EPH Classified, IPX5, Made in USA

Height

39.0in

Width

24.44in

Depth

40.25in

Shipping Weight

350.0lbs

Type

floor model

Full Size Hotel Pan Capacity

(3 - 6) 12" x 20" pans

Control Type

programmable controls

Full Size Sheet Pan Capacity

(3 - 6) 18" x 26" pans

Specifications

Converge Multi-Cook Combi Oven, electric, (2) individually controlled combination cooking chambers, holds (2) half-size sheet pans or (2) full-size steam pans, programmable touch screen controls with Structured Air Technology, double pane glass door, interior LED chamber lighting, 1 catalyst per chamber and 1 in exhaust manifold, includes: (1) wire rack & (2) jet plates per combination cooking chamber, USB port, stainless steel construction, 4" adjustable legs, cULus, IPX 5, UL EPH Classified, city-wide COA for New York City, Made in USA
