Alto-Shaam  |  Halo Heat  |  SKU: AR-7H

Alto-Shaam AR-7H-DBLPANE Halo Heat Heated Cabinets & Holding Shelves

$7,955.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Spec sheet - ul & ce Owner's manual Spec sheet - spanish Spec sheet - french canadian Warranty sheet Warranty sheet
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

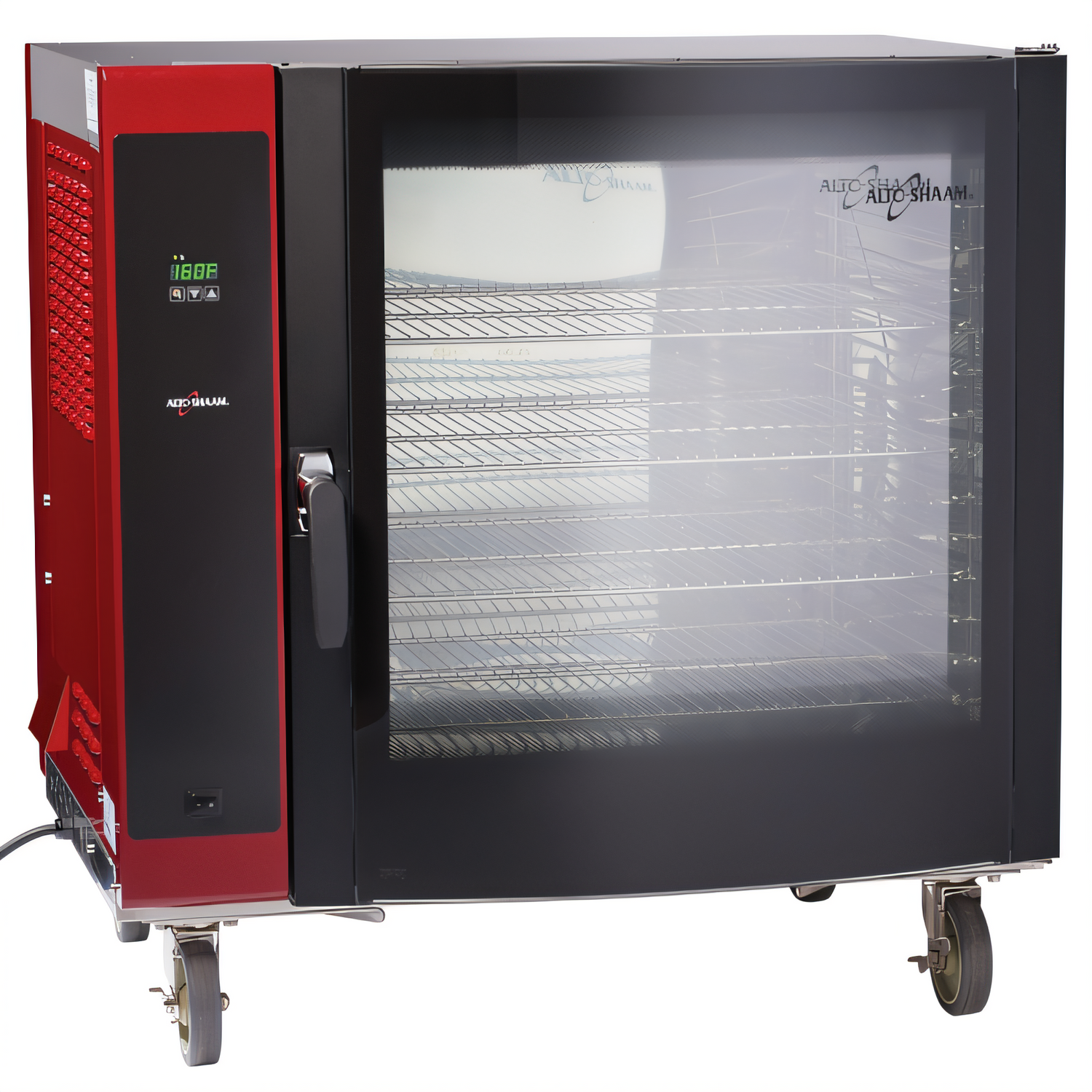

Alto-Shaam AR-7H Halo Heat® Hot Holding Cabinet

Single compartment • curved double-pane glass door • solid back

Hold rotisserie chickens, roasted meats, vegetables and more at peak quality—without over-cooking or drying out. The AR-7H pairs Alto-Shaam’s exclusive Halo Heat® technology with a space-saving, EcoSmart® design to keep food hot, fresh and ready for service.

Why you’ll love it

  • Gentle, uniform Halo Heat® surrounds food—no harsh elements, fans or added moisture required.
  • Manual ON/OFF thermostat (60 – 200 °F / 16 – 93 °C) plus easy-read air-temperature gauge.
  • Showcase product behind a low-e, double-pane curved glass door that minimizes heat loss.
  • Four 60 W interior bulbs keep displays bright and enticing.
  • Comes with four (4) stainless steel wire shelves and 16 non-tilt pan rails on 2-15/16" centers.
  • Handles up to 8 full-size or 16 half-size sheet pans—60 lb (27 kg) total load.
  • Durable, non-magnetic stainless steel exterior and solid back panel for easier sanitation.
  • 5" (127 mm) heavy-duty casters: 2 rigid + 2 swivel with brakes for safe mobility.
  • Stackable with another AR-7H or Alto-Shaam rotisserie oven to maximise floor space.

Pan & product capacity

  • Full-size sheet pans (18" × 26" × 1"): 8
  • Half-size sheet pans (18" × 13" × 1"): 16
  • Chicken boats: up to 24 (6 per shelf)

Specifications

Exterior dimensions (H × W × D) 40-1/2" × 38-1/8" × 32-1/16" (1028 × 968 × 814 mm)
Temperature range 60 – 200 °F (16 – 93 °C)
Controls Manual adjustable thermostat • power indicator light • analog air-temp gauge
Shelves supplied 4 stainless steel wire shelves (removable)
Door Right-hinged, double-pane curved Low-E glass with magnetic latch & easy-grip handle
Electrical options 120 V 1 ph 15 A 1.8 kW (NEMA 5-20P)
208 V 1 ph 8.5 A 1.8 kW (NEMA 6-15P)
240 V 1 ph 9.5 A 2.3 kW (NEMA 6-15P)
230 V 1 ph 9 A 2.1 kW (CEE 7/7)
Net / ship weight 269 lb (122 kg) / 319 lb (145 kg)
Certifications cULus • UL EPH • ANSI/NSF 4 • CE • TUV NORD

Included with purchase

  • 4 × stainless steel wire shelves
  • 2 × side rack assemblies with 16 pan rails
  • 5" caster kit (pre-installed)
  • Installation & operation manual

Warranty

Alto-Shaam backs the AR-7H with a 1-year parts & labor warranty. Full terms and conditions ship with the unit.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH

Height

40.5in

Width

38.13in

Depth

32.0in

Shipping Weight

319.0lbs

Door Type

clear

Half Size Sheet Pan Capacity

(16) 13" x 18" pans

Door Style

full door(s)

Section

1 section

Size

1 compartment

Full Size Sheet Pan Capacity

(8) 18" x 26" pans

Heater

side mounted

Exterior Finish

all stainless steel exterior

Height

37" - 42"

Insulation

insulated

Specifications

Halo Heat® Holding Cabinet, solid back, single compartment, (1) ON/OFF adjustable thermostat, individual light & temperature gauge, includes four (4) stainless steel wire shelves, pan capacity (8) 18" x 26" x 1", (16) 18" x 13" x 1", double pane curved glass door, 5" casters - 2 rigid; 2 swivel with brakes, stainless steel exterior, EcoSmart®, cULus UL EPH ANSI/NSF 4, CE, TUV NORD
