Description

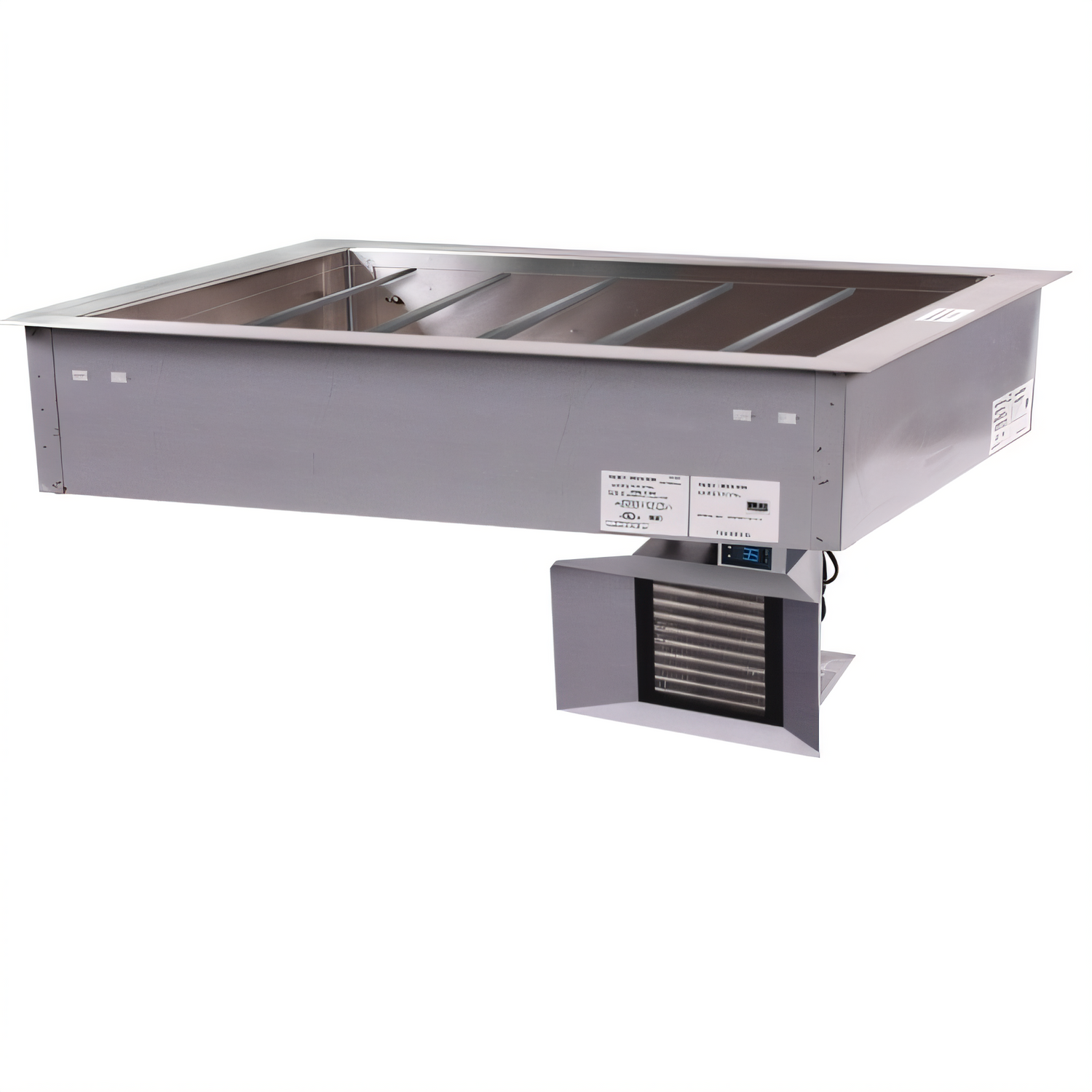

Alto-Shaam EcoSmart® 600-CW/R Remote Drop-In Refrigerated Cold Well

6-Pan, Cold-Wall Display Unit – 115 V / 600 W

Give salads, deli favorites, desserts and grab-n-go items the perfectly chilled presentation they deserve. Alto-Shaam’s EcoSmart® 600-CW/R is a cold-wall, drop-in well engineered for remote refrigeration. Conductive side-wall cooling eliminates harsh forced air, so food stays fresher, appetizing and moisture-rich throughout service.

Why You’ll Love It

  • Cold-wall technology maintains 41 °F (5 °C) or below without drying food out.
  • Digital thermostat offers precise temperature control at a glance.

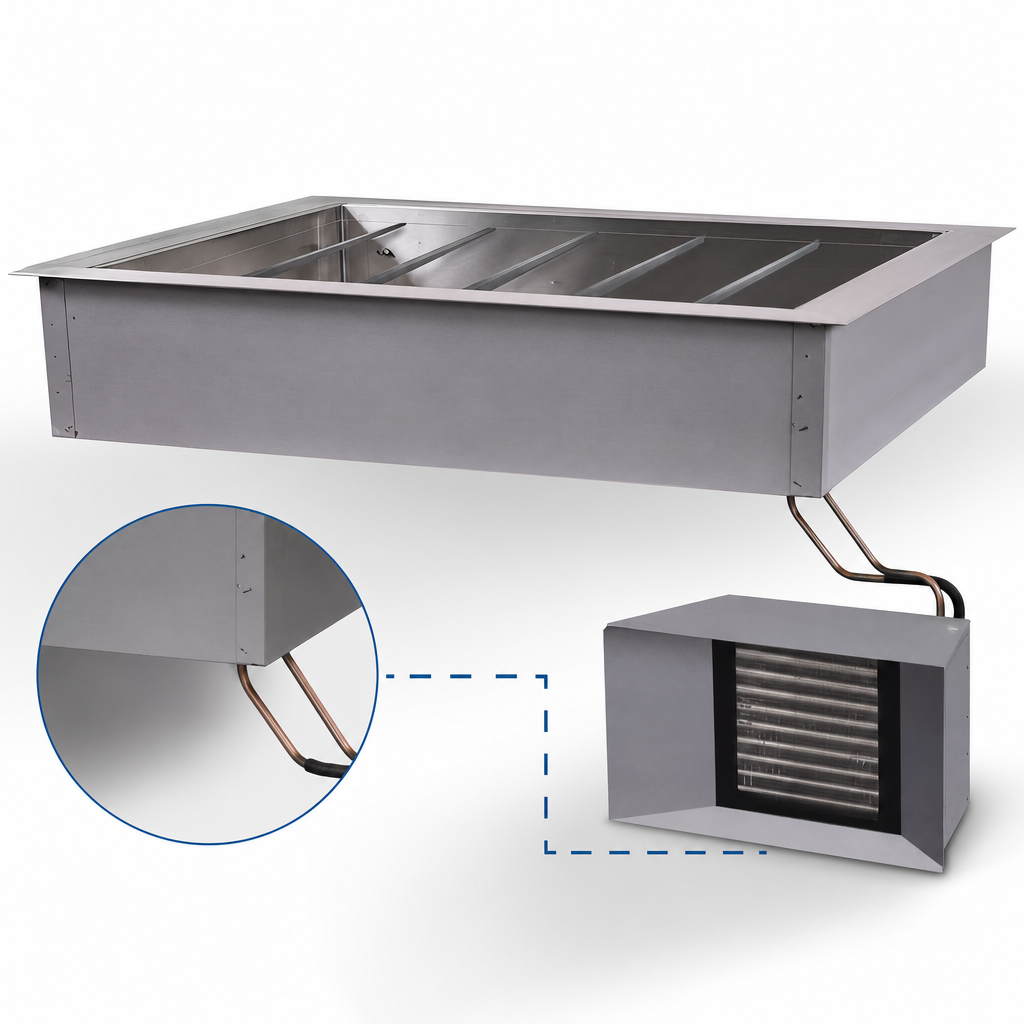

  • Remote ready – connect to your own R-290 condensing unit (BTU load 1,376*).
  • High-capacity well holds six 12" × 20" pans (6" deep) or equivalent GN pans.
    - (7) included divider bars keep pans perfectly aligned.
  • Built to last with corrosion-resistant steel exterior and foamed-in-place polyurethane insulation.
  • NSF 7 & cULus listed for safe, code-compliant cold holding.
  • EcoSmart® design draws only 600 watts, reducing energy costs.

Specifications

Pan Capacity 6 × full-size 12" × 20" × 6" (12 half, 18 third)
Usable Well Depth 6-1/4" (159 mm)
Interior (H × W × D) 8-3/4" × 78" × 21-7/8" (222 × 1,981 × 556 mm)
Counter Cut-Out (L × W) 81-1/2" × 25-1/2" (2,070 × 648 mm)
Electrical 115 V / 60 Hz / 1 ph, 600 W, 5.0 A, 9' cord, NEMA 5-15P
Refrigerant R-290 (remote compressor required)
BTU Load* 1,376 BTU/hr @ –10 °F suction
Certifications NSF 7, cULus, EcoSmart®
Warranty 1-year parts & labor; 5-year compressor

Perfect For

  • Supermarket service lines & grab-n-go islands
  • Hotel breakfast buffets
  • Campus dining & salad bars
  • C-stores and coffee shops
Important:
  • Remote condensing unit, refrigeration lines and 12" pan dividers are sold separately.
  • Pans shown are for illustration only and are not included.
  • Installation must be performed by a qualified refrigeration technician.

*BTU load does not include line losses between the well and the remote compressor.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

EcoSmart

Certifications

NSF, cULus

Height

27.5in

Width

83.0in

Depth

27.0in

Layout

straight

Finish

corrosion resistant steel exterior

Pan Qty

6-pan

Insulation

insulated

Style

remote refrigeration (no compressor)

Width (side - side)

79 - 84 inches

Pan Size

full-size (12" x 20")

Specifications

Coldwell Drop-in Refrigerated Cold Display Unit, designed for remote refrigeration, includes thermostatic control and (7) pan divider bars for side support, (6) 12" x 20" full-size pan capacity (pans NOT included), 6-1/4" deep well, holds 6" deep pans, EcoSmart®, 600 watts, 115v/60/1, 5.0 amps, 9' cord, NEMA 5-15P, cULus, NSF
