Alto-Shaam 600-CW EcoSmart Steam Tables & Food Wells
Description

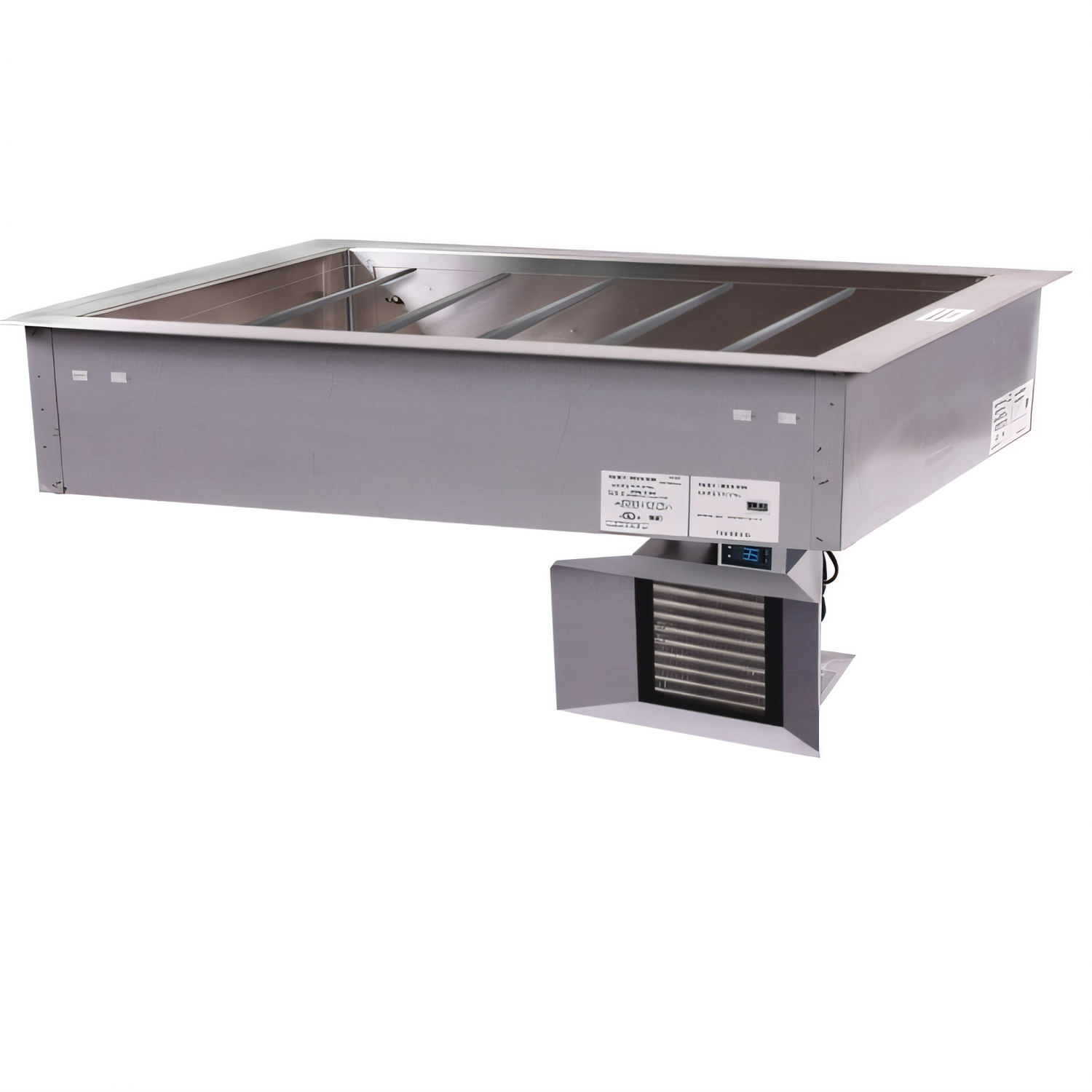

EcoSmart® 600-CW Drop-In Refrigerated Cold Well
Self-Contained • Six Full-Size Pan Capacity • R-290 RefrigerantKeep salads, desserts, condiments and grab-n-go items safely chilled and visually appealing with the Alto-Shaam EcoSmart® 600-CW cold wall well. Cold, conductive surfaces—not harsh forced air—gently surround your food pans, locking in freshness and extending hold times while meeting the strict NSF 7 41°F (5 °C) standard.
Highlights- Cold-wall, conductive cooling preserves product quality without drying or frosting food.

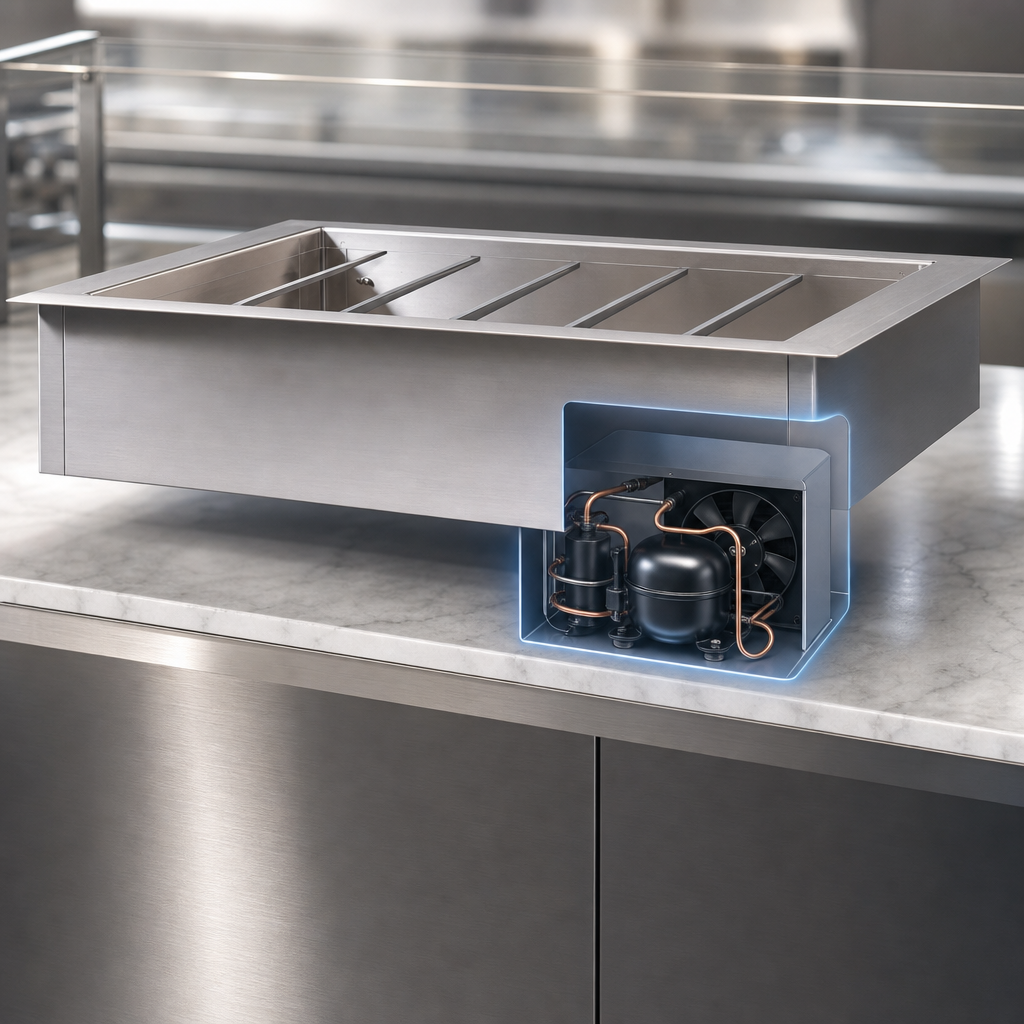

- Eco-friendly R-290 refrigerant and 600 W, 1/4 hp self-contained compressor reduce energy draw.
- Digital thermostat and factory-installed expansion valve maintain precise holding temperatures.
- 6-1/4" deep well holds up to six 12" × 20" × 6" pans (GN 1/1) — pans sold separately.
- Seven stainless steel divider bars included for side support and flexible pan layouts.
- Stainless steel top with coved-corner interior and corrosion-resistant steel body for easy cleaning.
- Dual air-movement louver on a 90° swivel platform lets you exhaust intake air from any side.
- Foamed-in-place, CFC-free polyurethane insulation maximizes cold retention.
- 9' factory cord with NEMA 5-15P plug; cULus & NSF listed.
| Model | EcoSmart® 600-CW (self-contained) |
|---|---|
| Pan Capacity | 6 × Full-size | 12 × Half-size | 18 × Third-size (6" deep) |
| Well Depth | 6-1/4" (accepts 2-1/2", 4", or 6" pans) |
| Exterior (H × W × D) | 25-5/16" × 83" × 27" (643 × 2108 × 686 mm) |
| Interior (H × W × D) | 8-3/4" × 78" × 21-7/8" (222 × 1981 × 556 mm) |
| Countertop Cut-out | 81-1/2" × 25-1/2" (2070 × 648 mm) |
| Product/Volume Max. | 216 lb (97.8 kg) | 132 qt (126 L) |
| Refrigerant | R-290 (natural hydrocarbon) |
| Compressor | 1/4 hp, 1376 BTU load |
| Electrical | 115 V / 60 Hz / 1-ph | 5.0 A | 600 W |
| Cord & Plug | 9' (2.74 m) | NEMA 5-15P |
| Certifications | cULus, NSF 7, EcoSmart® |
- Natural hydrocarbon refrigerant lowers GWP and energy use for a greener kitchen.
- Cold-wall design eliminates fans and filters, cutting maintenance and noise.
- Seamlessly pairs with Alto-Shaam hot and round wells for a cohesive serving line.
• Countertop must be water-resistant and level.
• Allow 3/4" (19 mm) between adjacent wells and 4" (102 mm) in front of the louver for airflow.
• Do not install under ventilation hoods, 4-way diffusers, or outdoors.
• A floor drain or catch basin is required; overhead LED lighting is recommended.
Alto-Shaam backs the EcoSmart® cold well with 1 year parts & labor coverage and a 5 year compressor warranty. Full terms available upon request.
