Alto-Shaam  |  Halo Heat  |  SKU: 500-S

Alto-Shaam 500-S Halo Heat Heated Cabinets & Holding Shelves

$3,097.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Spec sheet - ul & ce User's guide Spec sheet - spanish Spec sheet - french canadian Warranty sheet Warranty sheet
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

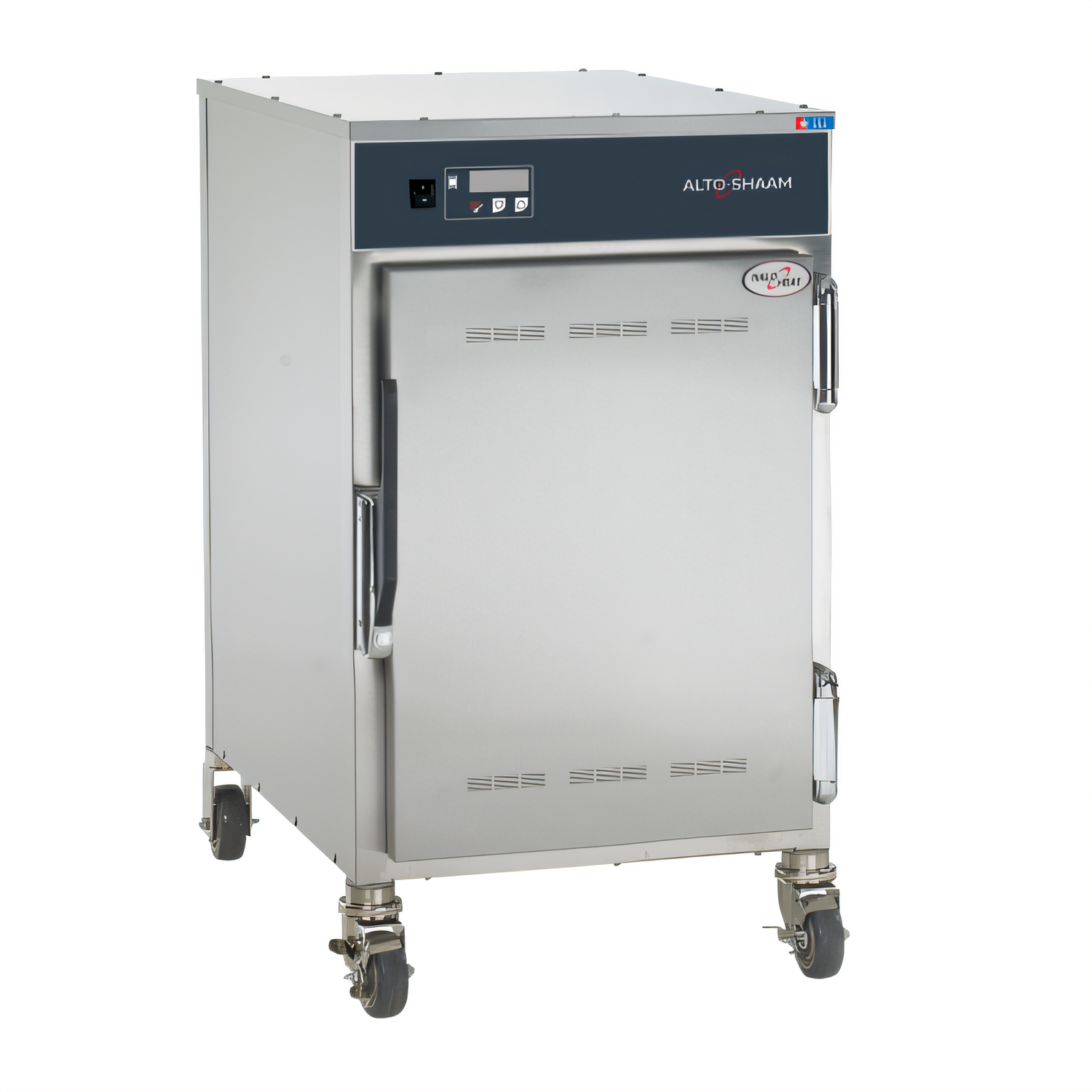

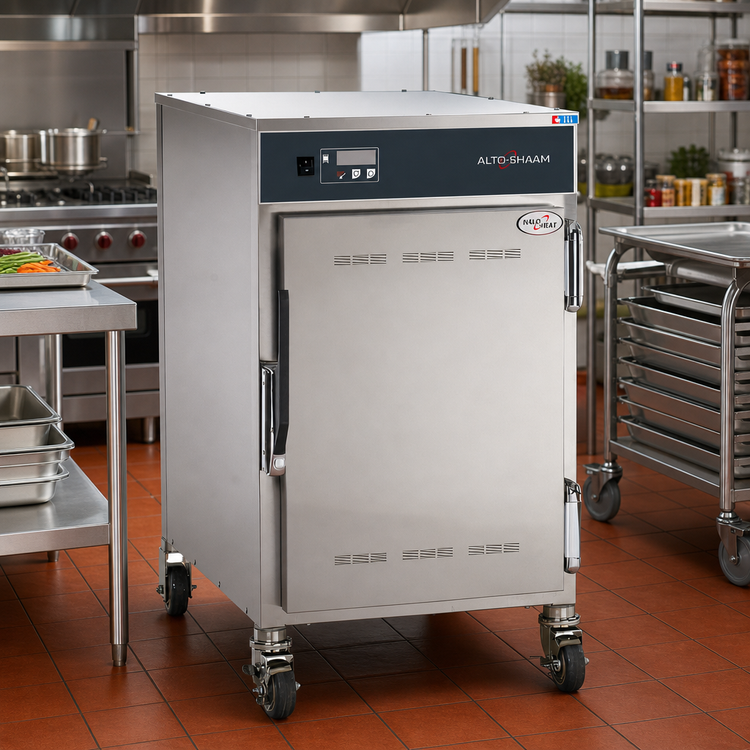

Alto-Shaam 500-S Halo Heat® Low-Temperature Holding Cabinet

Model 500-S | Simple on/off controller

Preserve just-cooked flavor, texture and moisture for hours without overcooking or drying out. The 500-S employs Alto-Shaam’s exclusive Halo Heat® technology—gentle, uniform radiant heat that surrounds food rather than blasting it with forced air or added humidity. Perfect for kitchens, banquets, QSRs and grab-and-go programs that demand high quality and consistent holding.

Why you’ll love it

  • Halo Heat® system maintains ideal serving temperature with no fans, harsh elements or water pans.

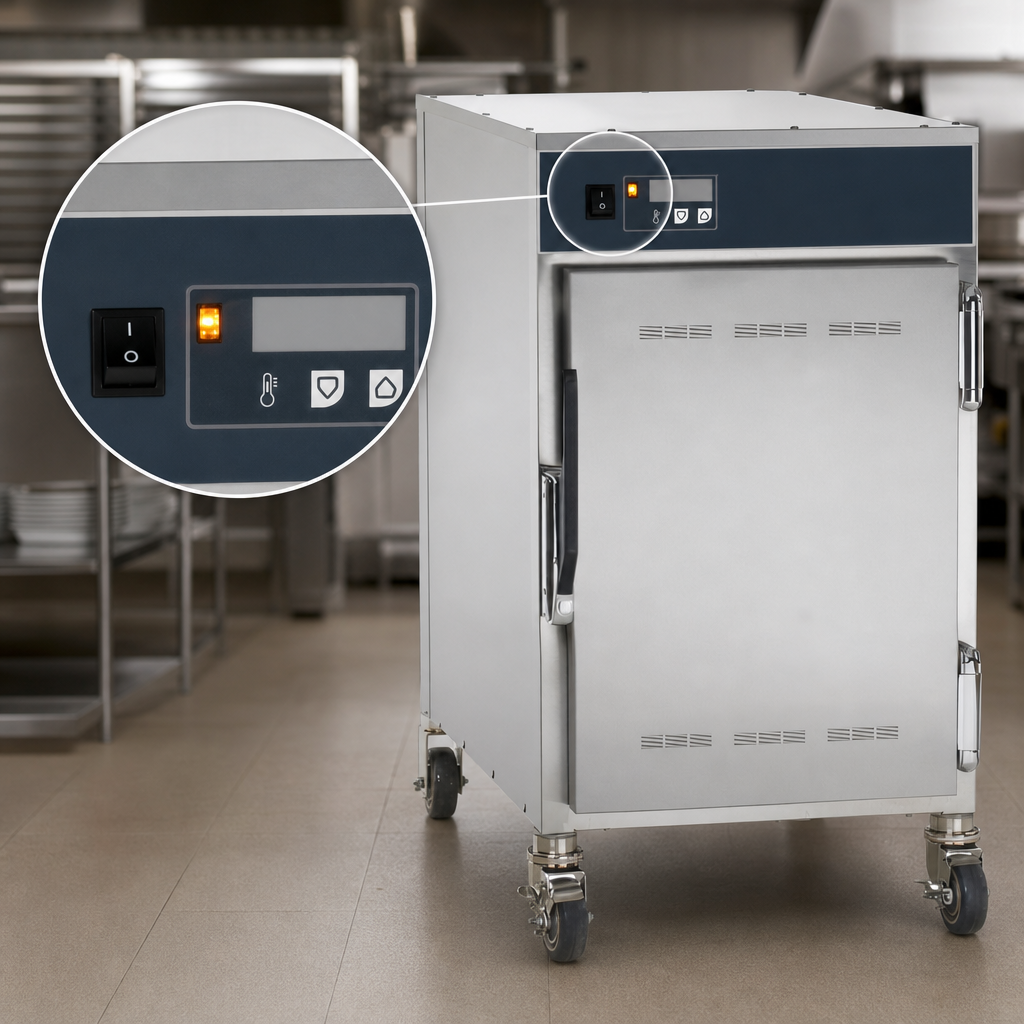

  • Simple on/off controller with adjustable thermostat (60 – 200 °F / 16 – 93 °C) and power indicator light.

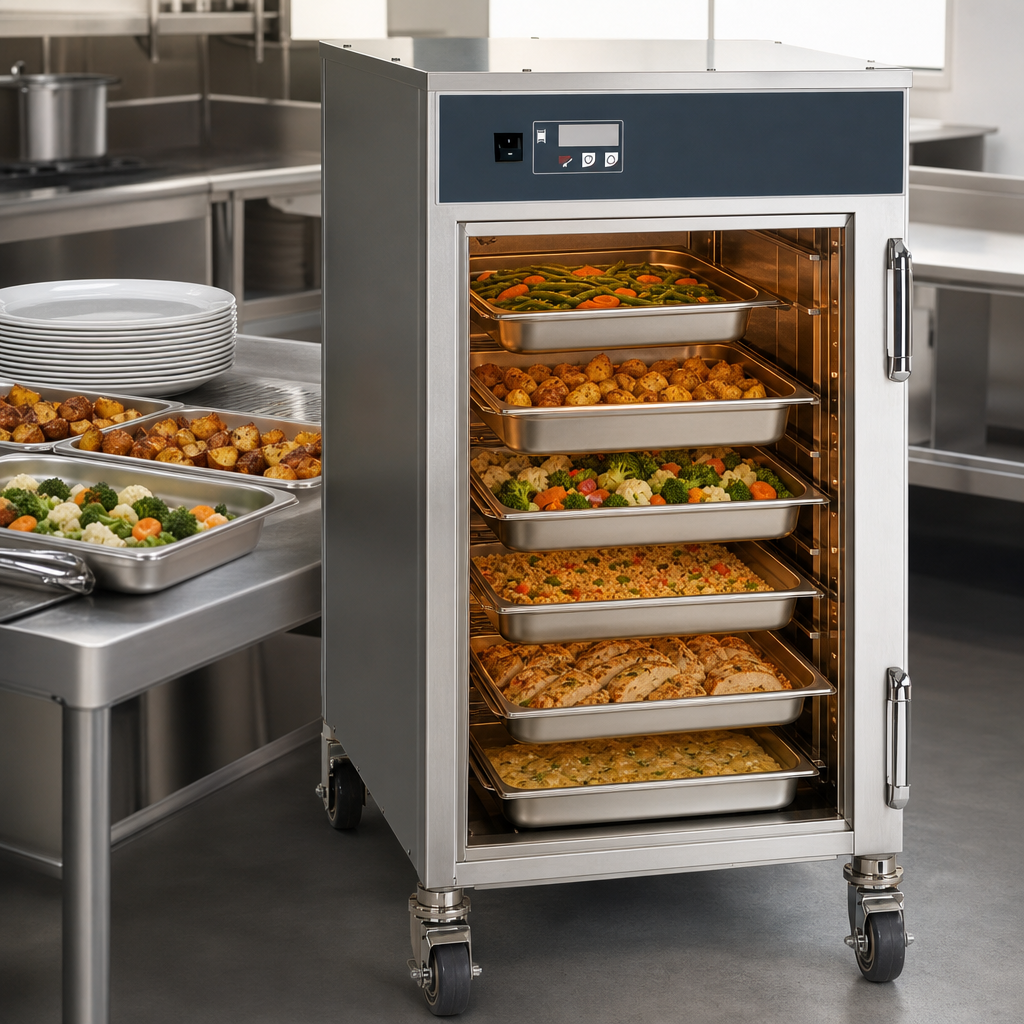

  • Holds up to six full-size (12" × 20") hotel pans 2-½" deep—plenty of capacity in a compact footprint.
  • Heavy-duty stainless steel interior & exterior resist corrosion and clean up fast.
  • (2) chrome-plated side racks with 11 pan positions and (2) wire shelves included.
  • EcoSmart® design draws just 1 kW (120 V), keeping energy costs low.
  • 2-½" casters—2 rigid, 2 swivel with brakes—for easy mobility and secure parking.
  • Certified cULus, UL EPH ANSI/NSF 4, CE, IPX3, TUV NORD, EAC, N11942 for worldwide compliance.

Specifications

Pan capacity (6) 12" × 20" × 2-½" • (3) 12" × 20" × 4" • (11) ½-size sheet pans
Temperature range 60 °F – 200 °F (16 °C – 93 °C)
Controller On/off switch, adjustable thermostat dial, indicator light
Exterior dimensions 31-7/8" H × 19" W × 26-3/8" D (810 × 483 × 670 mm) w/ standard 2-½" casters
Interior dimensions 20" H × 14-3/8" W × 21-1/2" D (507 × 362 × 546 mm)
Net weight 110 lb (50 kg)
Electrical 120 V, 1 ph, 50/60 Hz, 8.4 A, 1.0 kW, 5' cord with NEMA 5-15P plug
Construction Stainless steel cabinet, chrome side racks, wire shelves
Mobility (4) 2-½" casters – 2 rigid, 2 swivel w/ brakes (standard)
Certifications EcoSmart®, cULus, UL EPH ANSI/NSF 4, CE, IPX3, TUV NORD, EAC, N11942
Warranty 1-year parts & labor (see full Alto-Shaam warranty for details)

Popular accessories

  • Full-perimeter bumper
  • Additional wire or stainless steel shelves
  • Door lock kit & security panel
  • 6" flanged legs or larger casters
  • External drip tray

Clearance required: 2" top, 1" sides, 3" rear. Images may show optional accessories.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH, IPX3

Height

31.88in

Width

19.0in

Depth

26.56in

Shipping Weight

150.0lbs

Size

1 compartment

Height

31" - 36"

Full Size Hotel Pan Capacity

(6) 12" x 20" pans

Section

1 section

Door Style

full door(s)

Door Type

solid

Exterior Finish

all stainless steel exterior

Heater

top mounted

Insulation

insulated

Specifications

Halo Heat® Low Temp Holding Cabinet, on/off simple controller with adjustable thermostat, indicator light, capacity (6) 12" x 20" pans, (2) chrome plated side racks & wire shelves, heavy-duty stainless steel exterior, 2-1/2" casters; 2 rigid, 2 swivel with brakes, EcoSmart®, cULus, UL EPH ANSI/NSF 4, CE, IPX3, TUV NORD, EAC, N11942
