Alto-Shaam  |  Halo Heat  |  SKU: 500-HWLF/D6

Alto-Shaam 500-HWLF/D6 Halo Heat Steam Tables & Food Wells

$3,460.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - ul Spec sheet - french canadian Spec sheet - spanish Terms & conditions Spec sheet - ce Owner's manual Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

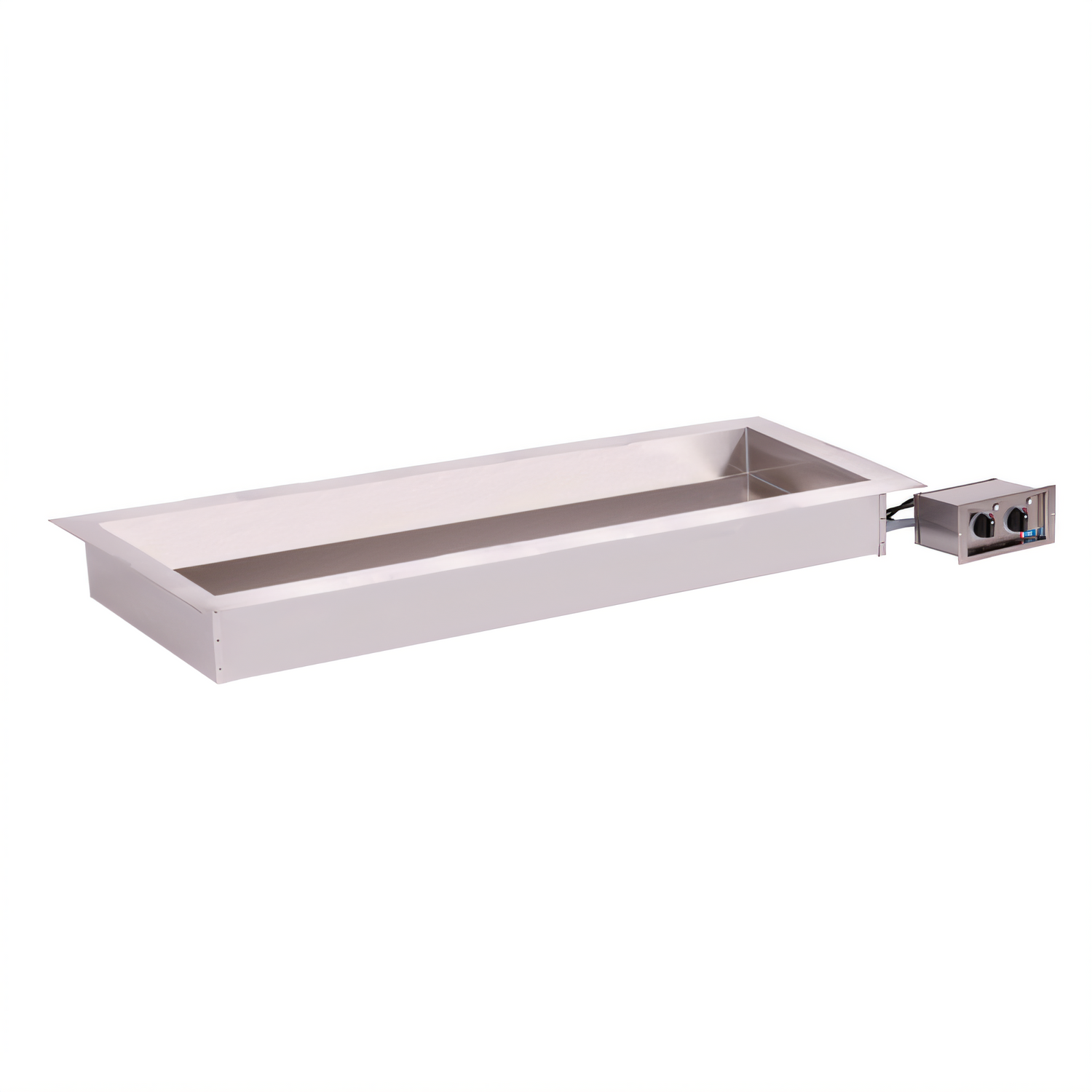

Alto-Shaam Halo Heat® Drop-In Hot Food Well – 5 Pan, Large Flange (500-HWLF/D6)

Waterless radiant holding for superior food quality & lower operating costs

Replace troublesome steam tables with the next generation of hot holding. Powered by exclusive Halo Heat® technology, this EcoSmart® drop-in well gently surrounds food with uniform radiant heat, preserving texture, flavor and appearance while slashing energy, water and maintenance costs.

Why you’ll love it

  • True waterless design – no plumbing, drains or lime-scale issues.
  • Five 12" × 20" full-size pan capacity (6" deep); flexible layouts with included divider bars.

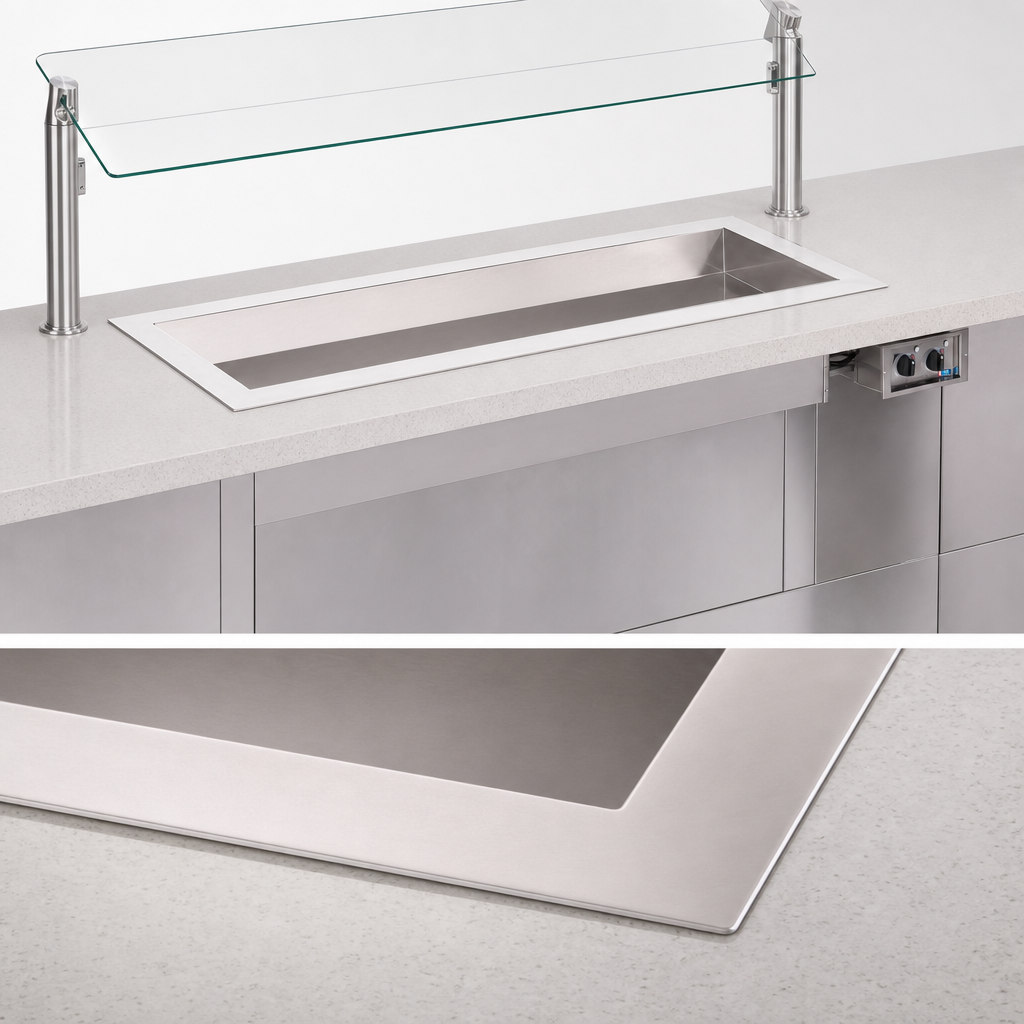

  • Large perimeter flange for quick, sanitary installation on combustible or non-combustible counters.
  • Individual thermostatic controllers deliver precise holding temperatures for every menu item.
  • Gentle, even heat prevents hot spots, fan noise and food drying.
  • All-stainless construction built for years of heavy-duty service.
  • EcoSmart® engineering lowers utility consumption and total cost of ownership.
  • Certified cULus, UL EPH Classified, CE, IPX3 & TÜV NORD.

Pan capacity

  • 5 × Full-size / GN 1/1 pans
  • 10 × Half-size / GN 1/2 pans
  • 15 × Third-size / GN 1/3 pans

Specifications

Model 500-HWLF/D6 (Large Flange)
Exterior (H × W × D) 9-1/4" × 70-7/16" × 27-1/16" (234 × 1787 × 686 mm)
Well depth 6-3/8" (162 mm) – fits 6" deep pans
Interior well (H × W × D) 6-3/8" × 64" × 20-3/16" (162 × 1625 × 512 mm)
Electrical 1 Ph, 50/60 Hz – 3 kW @ 120 V 25 A / 240 V 12.5 A | 2.3 kW @ 208 V 10.8 A | 3 kW @ 230 V 12 A
Cord & Plug NEMA L5-30P (120 V) • NEMA 6-15P (208–240 V) • CEE 7/7 or BS 1363 (230 V)
Net weight 100 lb (45 kg)
Certifications cULus | UL EPH | CE | IPX3 | TÜV NORD | EcoSmart®

In the box

  • (10) Half-/Third-size pan divider bars
  • (4) Full-size pan divider bars
  • Remote-mounted thermostatic control box
  • Factory-installed power cord & appropriate plug (per voltage selected)

Perfect for

  • Supermarket hot bars & delis
  • Buffet and cafeteria serving lines
  • Casual dining pass-through stations
  • Grab-and-go kiosks
  • Catering & banquet production kitchens
Heads-up: Food pans are shown for illustration only and are not included with the unit. Confirm counter cut-out dimensions before installation.

Covered by Alto-Shaam’s one-year parts & labor warranty (15 months from ship date).

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

9.31in

Width

70.44in

Depth

27.06in

Shipping Weight

175.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Drain

without drain

Controls

thermostatic controls

Pan Capacity

(5) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit with large flange, Drop-In, Electric, (5) 12" x 20" full-size pan capacity (pans NOT included), 6-3/8" deep well, holds 6" deep pans, includes (10) half/third-size & (4) large pan divider bars, adjustable thermostatic controllers, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
