Alto-Shaam  |  Halo Heat  |  SKU: 500-HWLF/D4

Alto-Shaam 500-HWLF/D4 Halo Heat Steam Tables & Food Wells

$3,161.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Terms & conditions Spec sheet - ce Spec sheet - ul Spec sheet - spanish Spec sheet - french canadian Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

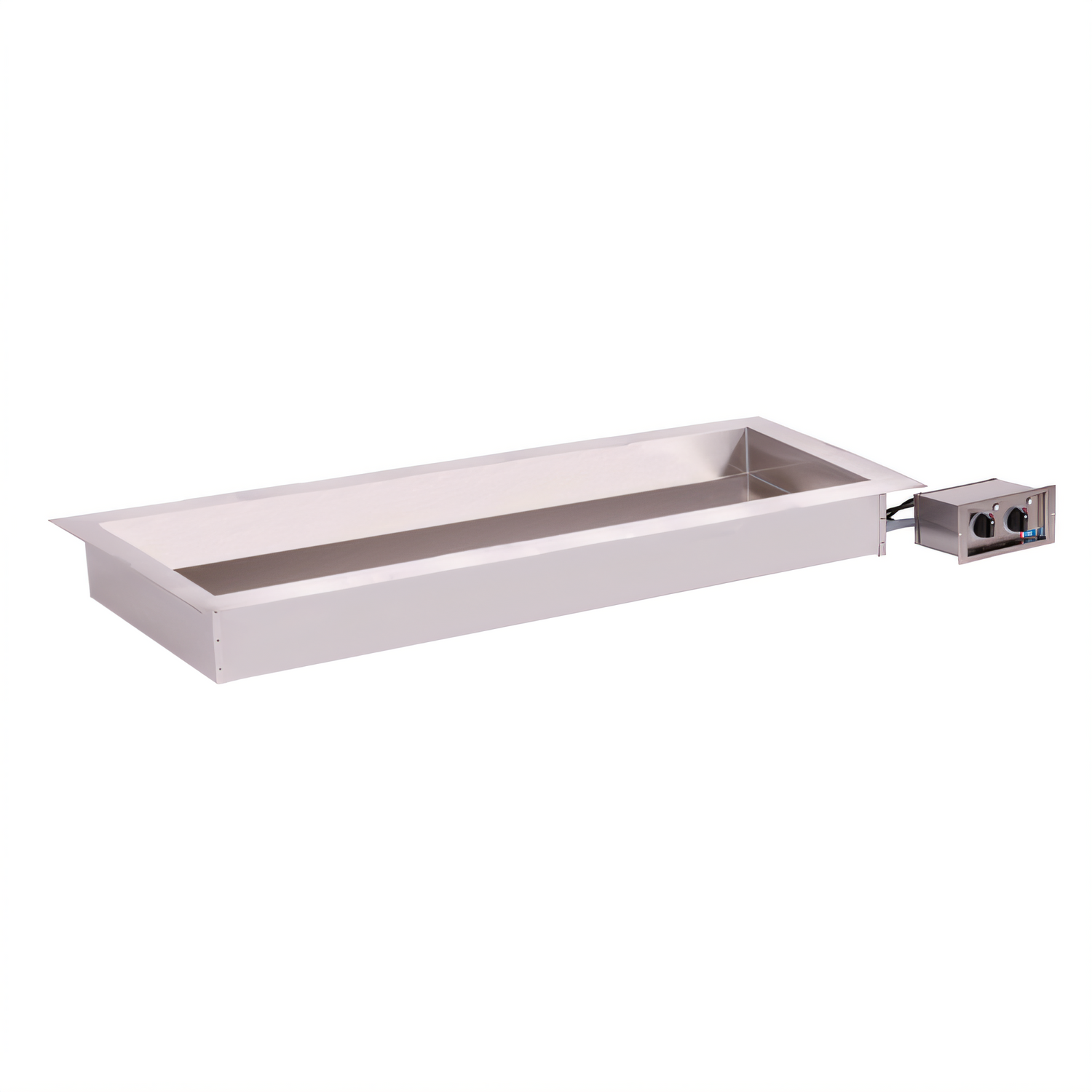

Alto-Shaam 500-HWLF/D4 Halo Heat® Waterless Drop-In Hot Food Well – 5 Wells

Large flange | Electric | Holds (5) 12″ × 20″ full-size pans

Upgrade your serving line with the same gentle, radiant Halo Heat® technology that made Alto-Shaam famous. This EcoSmart® drop-in well eliminates water, steam and plumbing while keeping entrées at perfect serving temperature and quality for hours.

Key Benefits
  • Waterless Halo Heat® envelopes food with even, radiant heat—no cal-rod elements, fans or hot spots.
  • Lower operating costs by eliminating water refills, drain lines, scale build-up and steam.
  • Five individually controlled wells let you dial in the ideal temperature for every menu item.

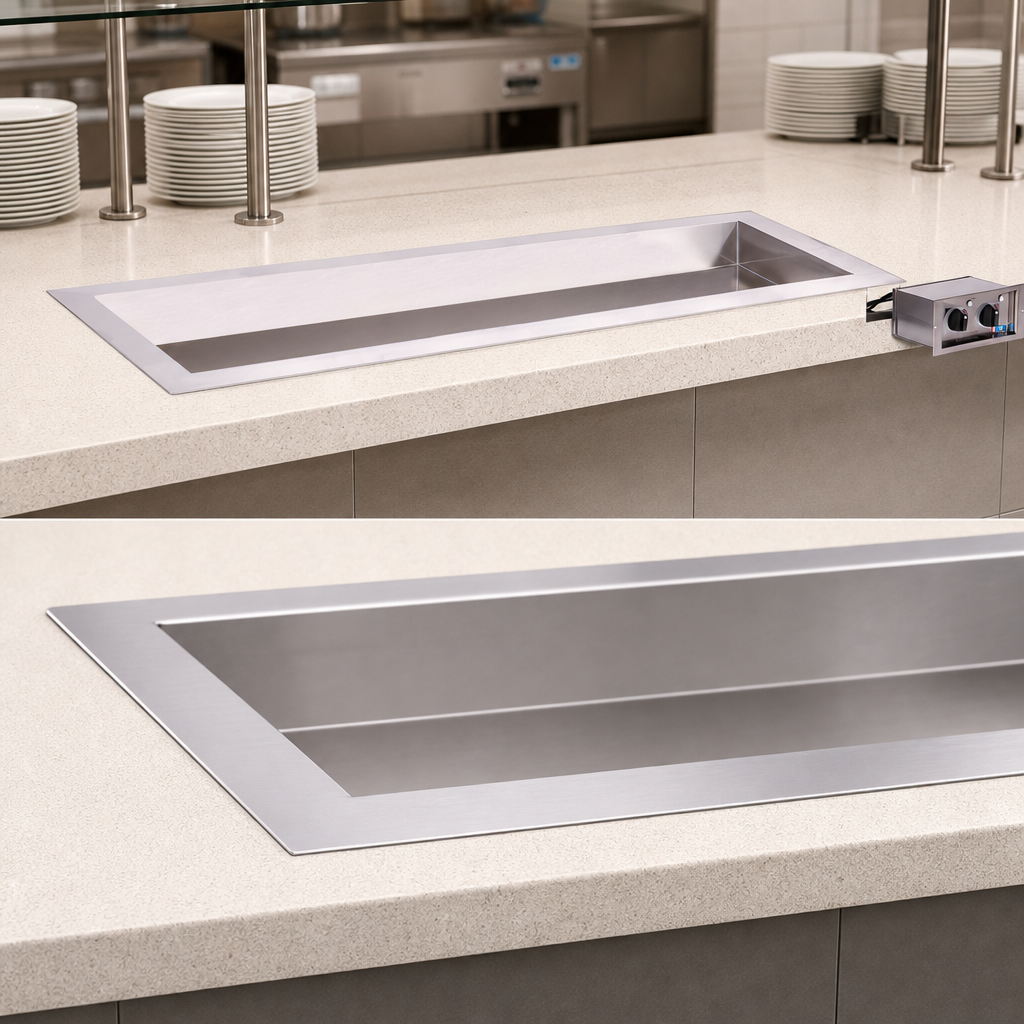

  • Large flange design covers cut edges for a clean, finished install in combustible or non-combustible counters.
  • Stainless-steel construction stands up to busy commercial kitchens and makes cleaning fast.
  • EcoSmart® efficiency delivers only 304 BTU/hr of heat rejection, keeping the kitchen cooler.
What’s Included
  • (10) half/third-size pan divider bars
  • (4) large pan divider bars
  • Remote control box with (5) adjustable thermostatic controllers
  • 6 ft (1.8 m) power cord and NEMA L5-30P plug on 120 V models
    9 ft (2.7 m) cord and NEMA 6-15P on 208–240 V models
    9 ft (2.7 m) or 8 ft (2.5 m) cord with CEE 7/7, CH2-16P or BS 1363 plug on 230 V models
Certifications
  • cULus Listed
  • UL EPH Classified (NSF/ANSI 4)
  • CE Marked
  • IPX3 drip-proof protection
  • TÜV NORD
Specifications
Model 500-HWLF/D4 (Large Flange)
Capacity (5) full-size 12″ × 20″ pans • (10) half-size • (15) third-size
Supports 4″ (100 mm) or 2½″ (65 mm) deep pans
Well Depth 4-3/8″ (111 mm)
Exterior Dimensions (H × W × D) 7-5/16″ × 70-7/16″ × 27-1/16″
(185 mm × 1787 mm × 686 mm)
Cut-out (non-combustible) 66″ × 22-1/8″ (1676 mm × 562 mm)
Cut-out (combustible) 68″ × 24-1/8″ (1727 mm × 613 mm)
Net Weight 89.5 lb (41 kg)
Voltage Options 120 V / 208 V / 240 V / 230 V, 1-phase, 50/60 Hz
Amps / kW (per well set) 25 A / 3.0 kW @ 120 V
10.8 A / 2.3 kW @ 208 V
12.5 A / 3.0 kW @ 240 V
12.0 A / 3.0 kW @ 230 V
Heat Rejection 304 BTU/hr (0.09 kW)
Construction All stainless steel; uninsulated, waterless design

Backed by Alto-Shaam’s limited 1-year parts & labor warranty.
Heating elements on Halo Heat® cook-and-hold ovens are covered for the life of the original owner.

Important: Food pans are not included. Unit must be installed level in a counter surface rated to at least 200 °F (93 °C) and clear of steam, grease or dripping water.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

7.31in

Width

70.44in

Depth

27.06in

Shipping Weight

220.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Drain

without drain

Controls

thermostatic controls

Pan Capacity

(5) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit with large flange, Drop-In, Electric, (5) 12" x 20" full-size pan capacity (pans NOT included), 4-3/8" deep well, holds 4" deep pans, includes (10) half/third-size & (4) large pan divider bars, adjustable thermostatic controllers, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
