Alto-Shaam 500-HWILF/D6 Halo Heat Steam Tables & Food Wells
Description

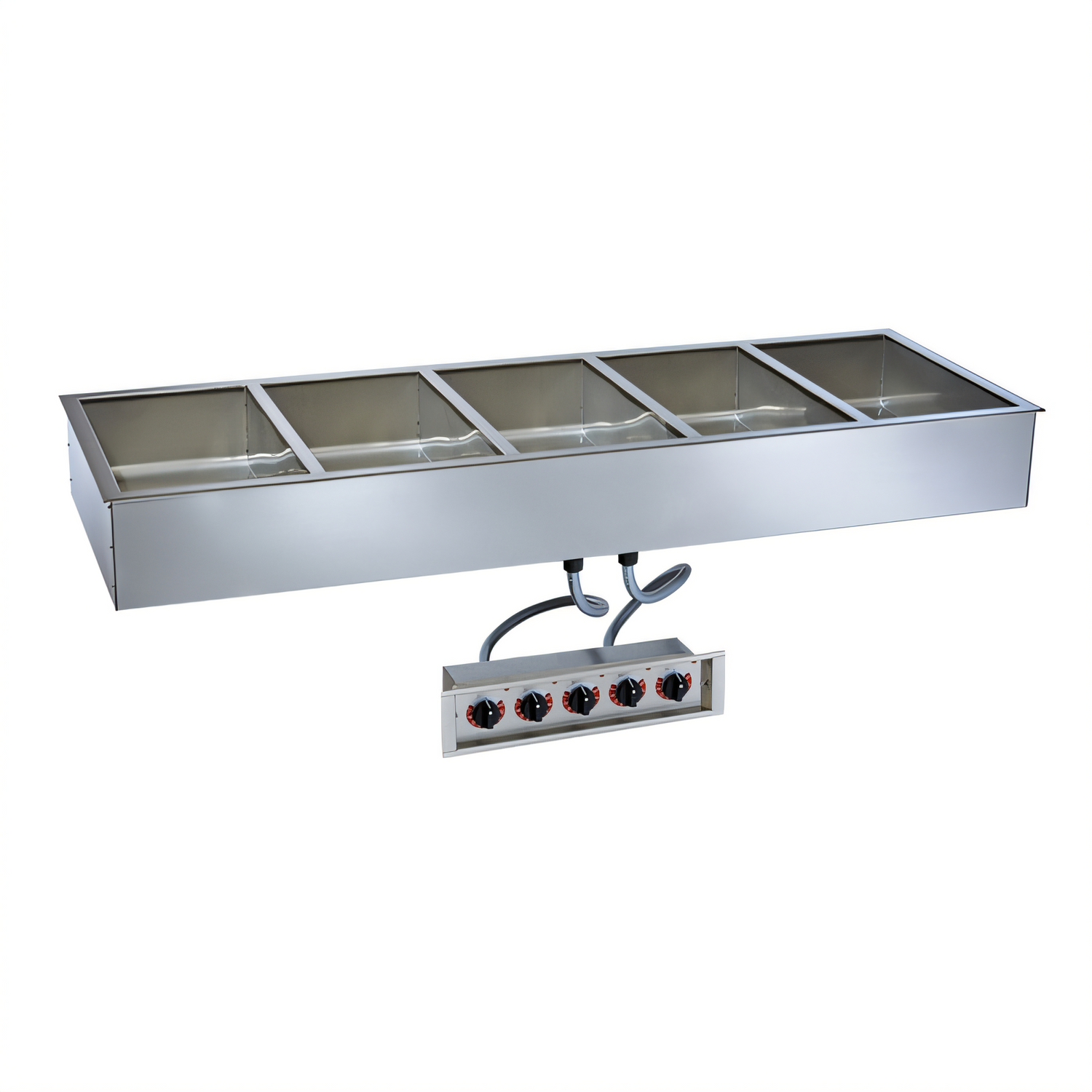

Halo Heat® Waterless Hot Food Well – 5 Pan, Large-Flange Drop-In (Model 500-HWLF/D6)
The energy-smart way to keep menu items hot, fresh and ready for serviceGive your serving line a competitive edge with Alto-Shaam’s patented Halo Heat® technology. This 5-well, waterless system surrounds food in gentle, even radiant heat—no steam, no fans, no plumbing—extending hold times while slashing utility and maintenance costs.
Why You’ll Love It
- Five full-size wells accept 12" × 20" pans up to 6" (150 mm) deep for maximum menu versatility.
- Independent precision – each well has its own adjustable thermostat for true zone control.
- Waterless design eliminates lime/scale build-up, drain lines and hood plumbing.

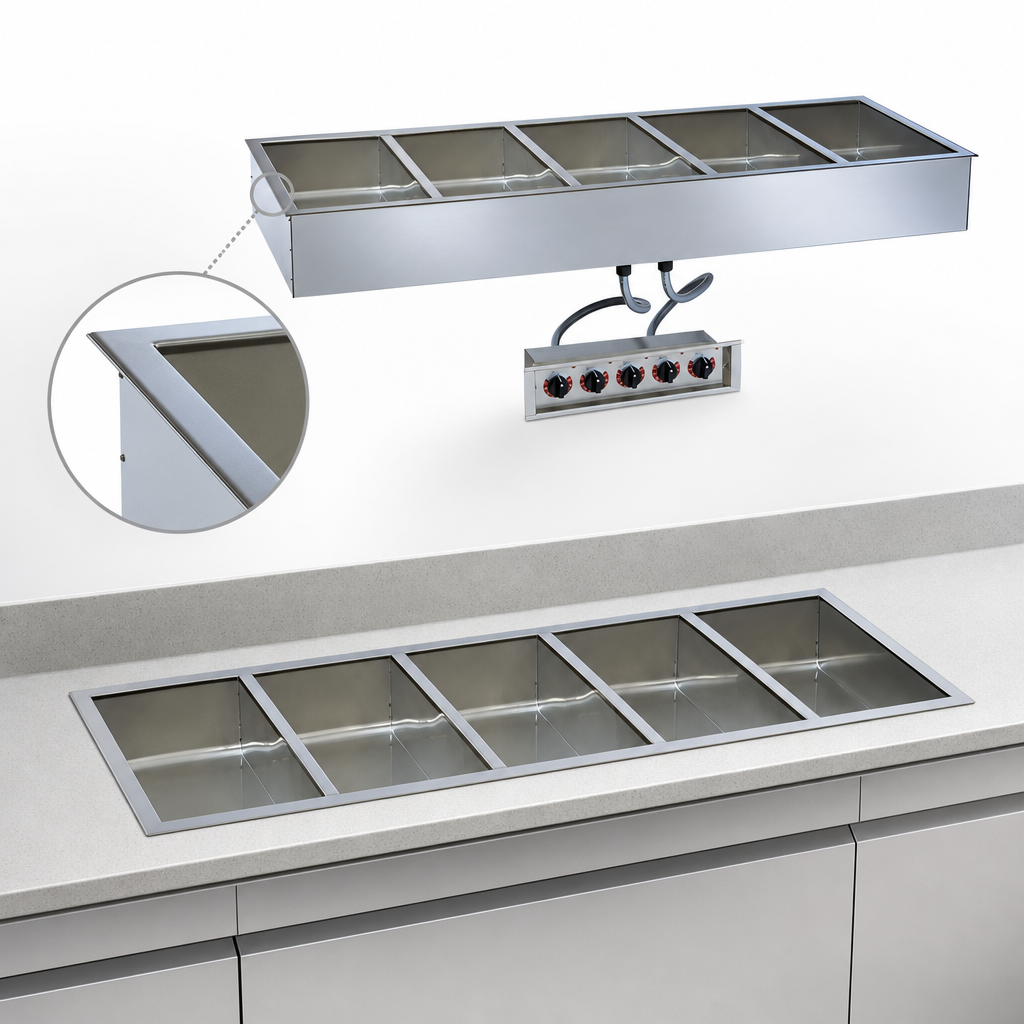

- Large 2-1/2" flange allows installation in combustible countertops and delivers a finished, flush look.
- Included divider bars: ten half/third-size bars let you mix pan sizes without extra cost.
- Heavy-gauge stainless steel construction built for demanding commercial kitchens.
- EcoSmart® efficiency—up to 30 % lower energy use vs. traditional steam tables.
- Third-party certified: cULus, UL EPH Classified, CE, IPX3 & TÜV NORD.
Specifications
| Model | 500-HWLF/D6 (large flange, 6 in deep) |
|---|---|
| Pan Capacity | 5 × full-size 12" × 20" (GN 1/1) – or 10 × half-size / 15 × third-size (pans not included) |
| Interior Dimensions (H × W × D) | 6-3/8" × 64" × 20-3/16" (162 × 1625 × 512 mm) |
| Exterior Dimensions (H × W × D) | 9-1/4" × 70-7/16" × 27-1/16" (234 × 1787 × 686 mm) |
| Cut-out – Combustible Surface | 68" × 24-1/8" (1727 × 613 mm) |
| Net / Ship Weight | 100 lb / 175 lb (45 kg / 79 kg) |
| Electrical |
120 V 1φ 50/60 Hz 25 A | 208 V 1φ 10.8 A | 240 V 1φ 12.5 A 3.0 kW max, factory-installed cord & plug (see below) |
| Standard Plug | NEMA L5-30P (120 V) / NEMA 6-15P (208-240 V) — 6–9 ft cord |
| Certifications | cULus, UL EPH, CE, IPX3, EcoSmart®, TÜV NORD |
What’s in the Box
- (1) Halo Heat® drop-in well with control box
- (10) Half/third-size divider bars
- (5) Individual thermostatic controllers (flush-mount or remote)
- Factory-installed power cord & plug
- Installation & operation manual
Need full-size divider bars or a stainless heat shield? Ask us about factory-approved accessories.
Warranty
Alto-Shaam backs this unit with a 1-year parts & labor warranty (15 months from ship date). Register your unit after installation to ensure fast, worry-free service.
