Alto-Shaam 500-HWILF/D4 Halo Heat Steam Tables & Food Wells
Description

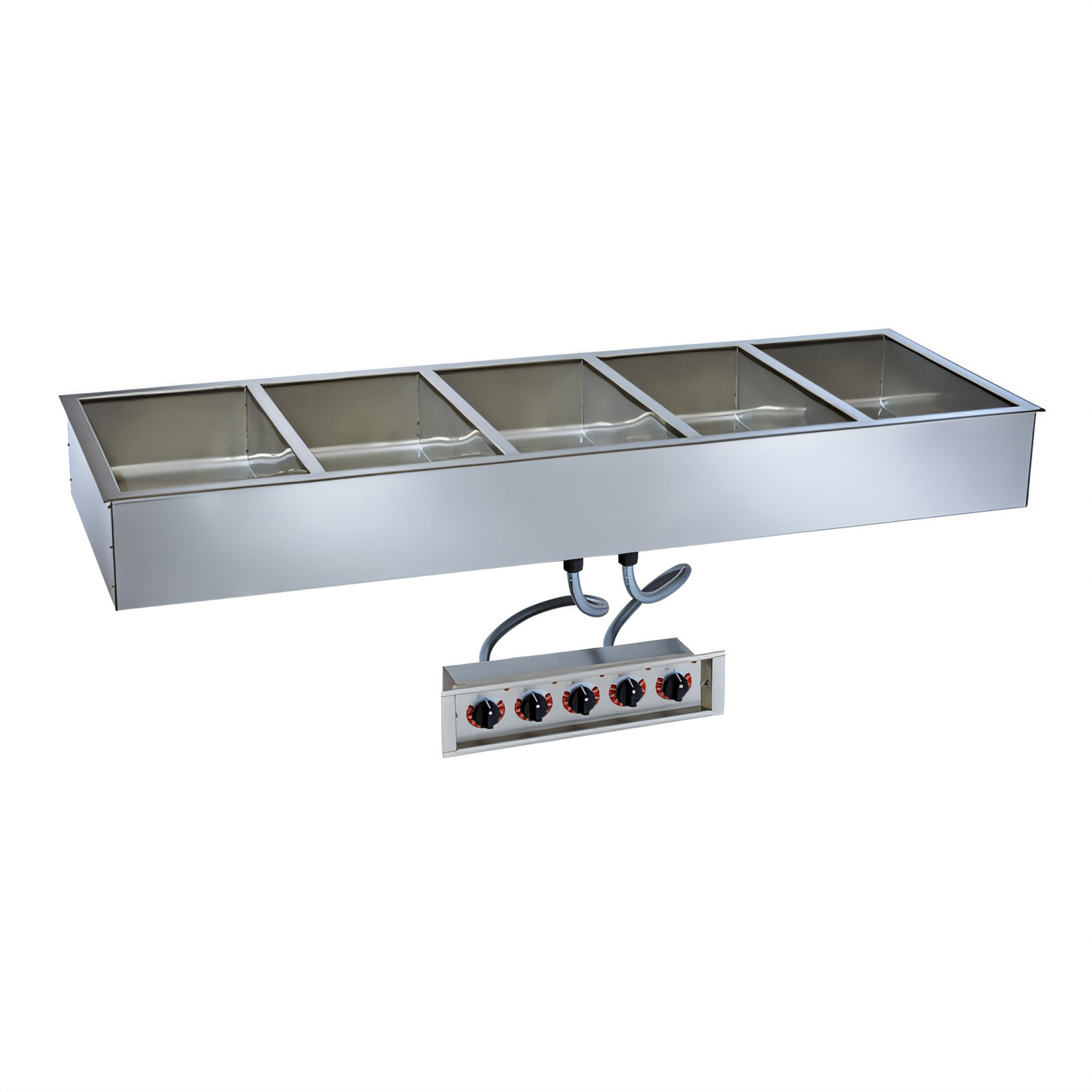

Alto-Shaam Halo Heat® Waterless Hot Food Well – 5-Pan Drop-In, Large Flange
Model 500-HWLF/D4 • EcoSmart® electric drop-in wellElevate buffet lines, cafeterias and grab-and-go counters with the unmatched holding performance of Alto-Shaam’s patented Halo Heat®. This waterless well gently surrounds food with radiant heat, locking in moisture and flavor while slashing energy and maintenance costs.
Key benefits
- Waterless Halo Heat® system—no steam, plumbing, lime scale or drain lines to worry about.
- Large flange drops directly into countertops for a clean, finished appearance.
- (5) individually controlled wells let you dial in the perfect temperature for each menu item.
- 4-3/8 in deep wells fit standard 4" deep 12 × 20 full-size pans and equivalents.
- Includes ten divider bars to configure half- or third-size pans for merchandising flexibility.
- All-stainless construction stands up to daily commercial use and cleans up quickly.
- EcoSmart® technology delivers up to 28 % energy savings versus traditional steam wells.
- Cooler kitchen, safer staff—eliminates hot water and open steam.
- Globally certified: cULus, UL EPH Classified, CE, TUV NORD | IPX3 splash protection.
At-a-glance specifications
| Pan capacity | 5 full-size (12 × 20 in) pans 10 half-size or 15 third-size pans |
|---|---|
| Well depth | 4-3/8 in (111 mm) – designed for 4" pans |
| Exterior (H × W × D) | 7-5/16 × 70-7/16 × 27-1/16 in (185 × 1787 × 686 mm) |
| Counter cut-out (combustible surface) |
68 × 24-1/8 in (1727 × 613 mm) |
| Controls | (5) adjustable thermostats | 60 °F–200 °F (16 °C–93 °C) |
| Electrical | 120 V / 208-240 V / 230 V, 1-phase, up to 3.0 kW Factory 6-9 ft cord & plug (see spec sheet) |
| Net weight | 89.5 lb (41 kg) |
| Construction | Seam-welded stainless steel wells & exterior; optional heat shield available |
| Certifications | EcoSmart®, cULus, UL EPH, CE, IPX3, TUV NORD |
Why go waterless?
- Zero water or chemicals eliminates lime scale build-up and costly deliming service.
- No drain lines means flexible installation almost anywhere you serve food.
- Lower utility bills—no constant reheating of water and reduced hood demand.
- Consistent, gentle heat preserves texture and appearance for longer holding times.
Peace-of-mind warranty
Alto-Shaam backs every Halo Heat® hot well with a one-year parts & labor warranty (15 months from ship date). See the full warranty statement in the spec & warranty documents.
