Alto-Shaam  |  Halo Heat  |  SKU: 500-HWI/D6

Alto-Shaam 500-HWI/D6 Halo Heat Steam Tables & Food Wells

$5,785.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - spanish Spec sheet - ul Spec sheet - ce Owner's manual Spec sheet - french canadian Terms & conditions Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

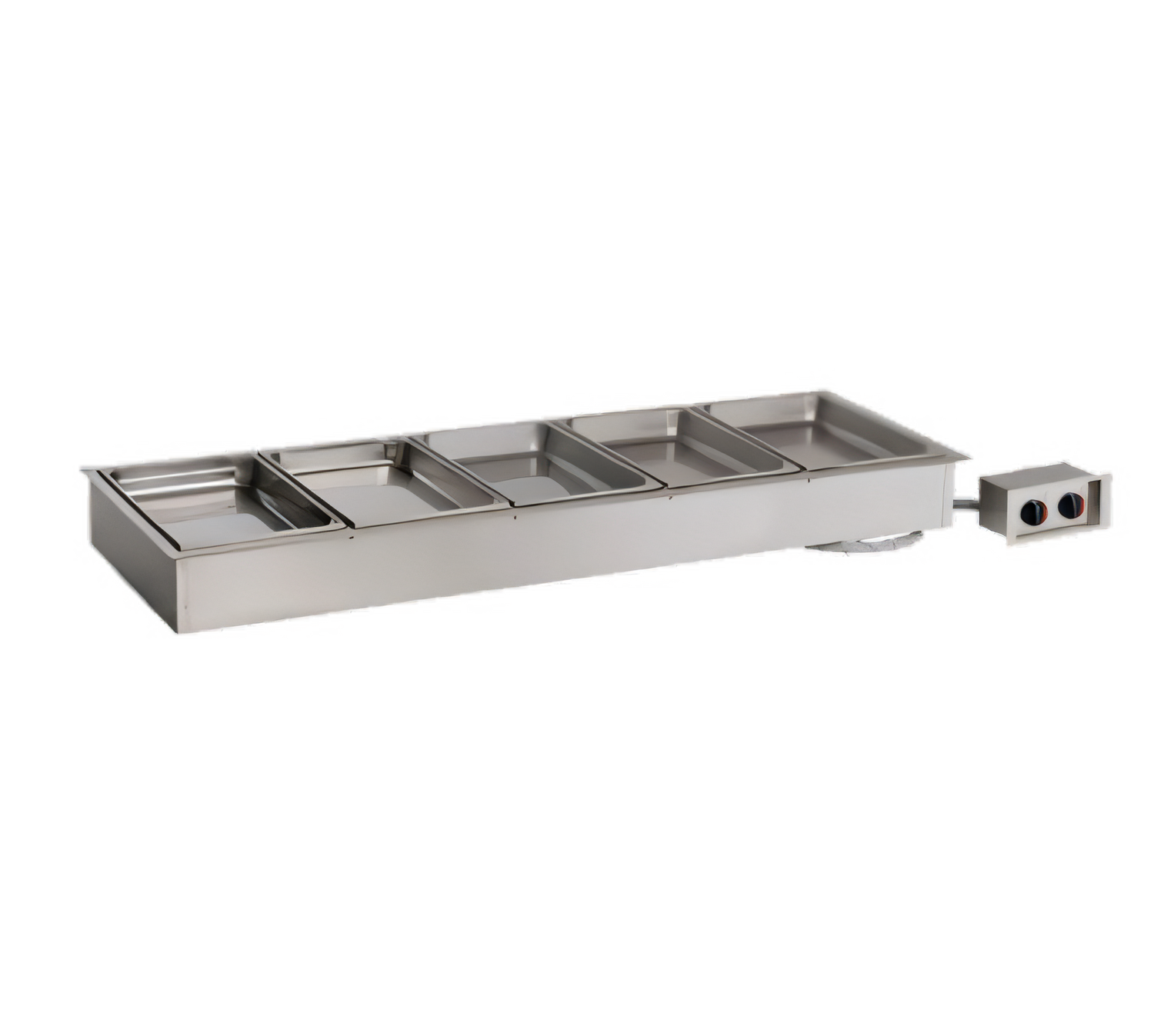

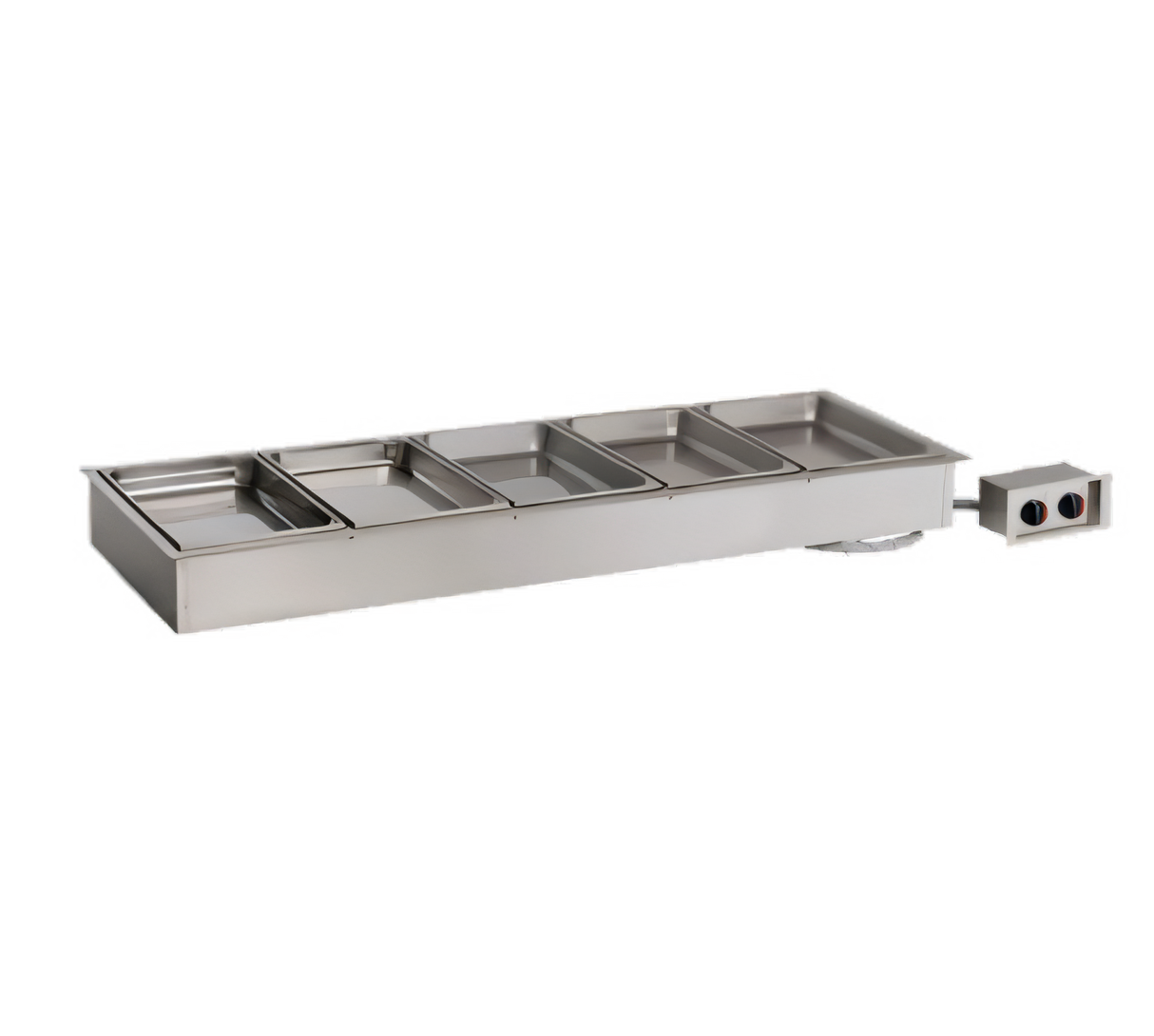

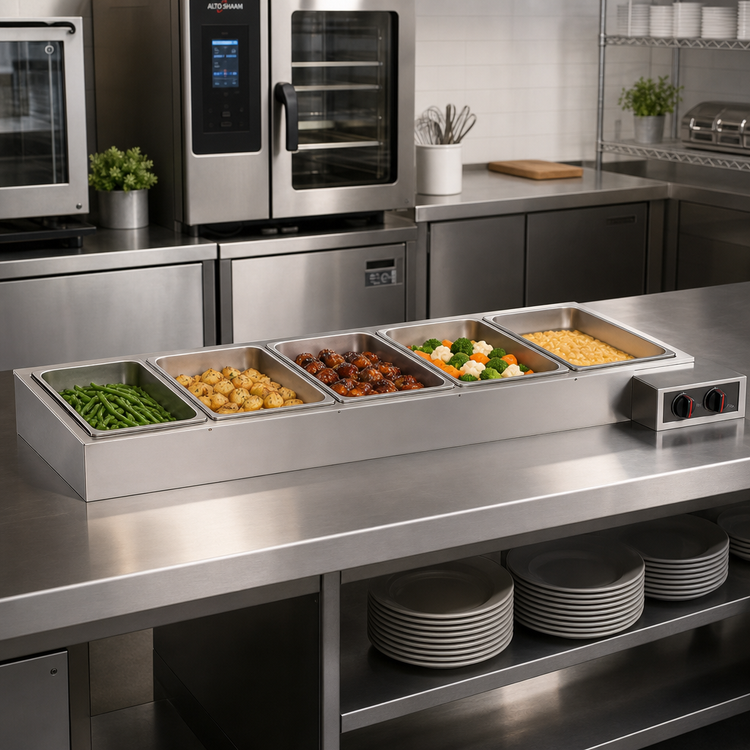

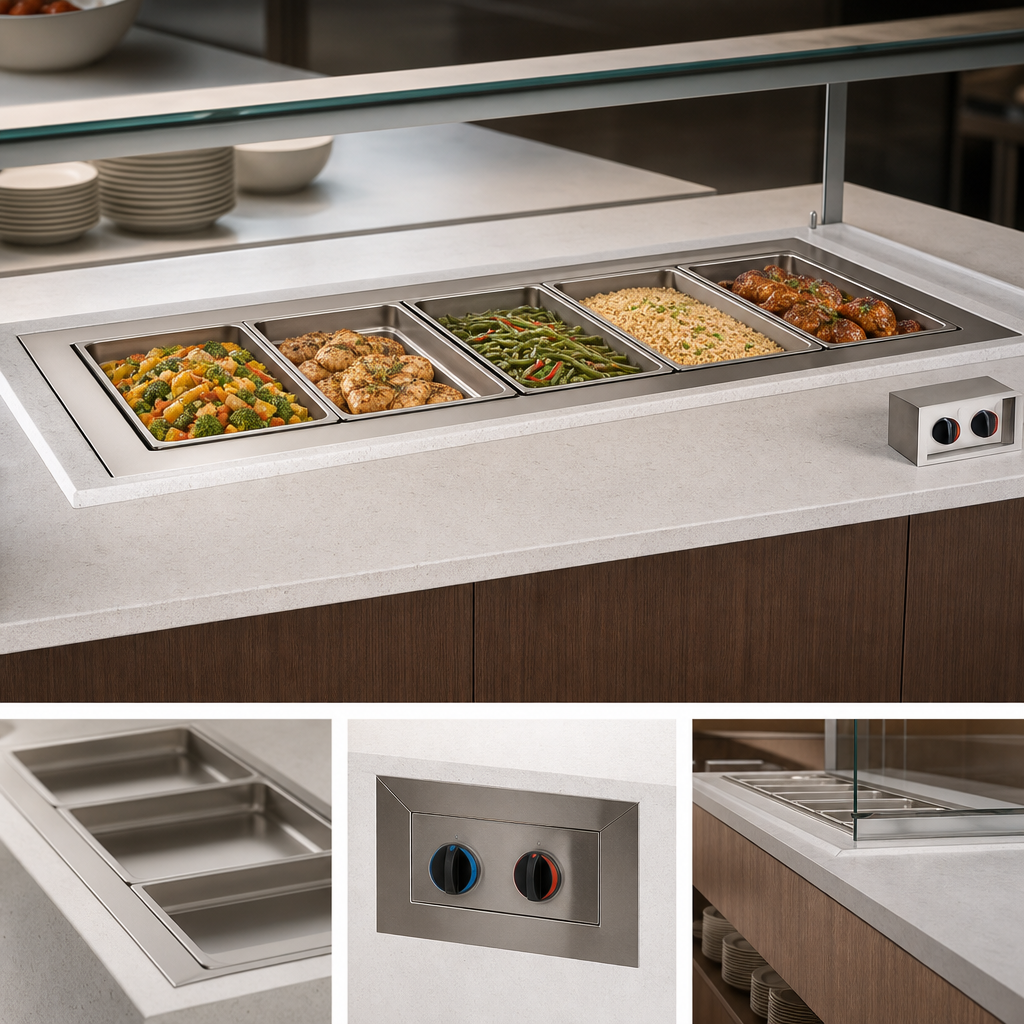

Alto-Shaam Halo Heat® 5-Well Drop-In Hot Food Well – 6″ Deep (500-HW/D6)

Waterless, EcoSmart® holding for five 12″ × 20″ steam-table pans

Replace traditional steam tables with a safer, more profitable solution. Alto-Shaam’s patented Halo Heat® technology radiates gentle, even heat around each pan—no water, plumbing or fans required—so food stays hot, fresh and appetizing for hours while you save on energy, labor and maintenance.

Why You’ll Love It

  • Waterless design eliminates lime/scale build-up, plumbing runs and daily refills.
  • (5) individual adjustable thermostatic controls let you fine-tune holding temps for each dish.
  • 6-3/8″ deep wells accept 6″ pans for maximum capacity and versatility.
  • Includes ten half/third-size divider bars to mix pan sizes without extra accessories.
  • Stainless steel well and flange stand up to heavy commercial use and make cleanup fast.
  • EcoSmart® engineering reduces energy usage and heat radiating into the kitchen.
  • Certified cULus, UL EPH Classified, CE, IPX3 & TÜV NORD for global peace of mind.

Ideal For

  • Full-service & quick-service restaurants
  • Supermarket hot bars & delis
  • C-stores & cafés
  • Catering lines & banquet operations

Key Specifications

Pan Capacity (5) full-size 12″ × 20″ pans
(10) ½-size or (15) ⅓-size pans using included dividers
Well Depth 6-3/8″ (162 mm) – fits 6″ deep pans
Exterior (H × W × D) 9-5/16″ × 67-1/16″ × 23-1/8″ (235 × 1702 × 586 mm)
Cut-Out (non-combustible) 66″ × 22-1/8″ (1676 × 562 mm)
Net / Ship Weight 94.5 lb (43 kg) / 170 lb (77 kg)
Voltage Options 120 V, 208 V, 240 V or 230 V single-phase
Power (max) 3.0 kW | 25 A @ 120 V • 12.5 A @ 240 V
Controls (5) adjustable thermostats, flush-mount or remote control box
Construction Stainless steel well, flange and housing
Certifications cULus, UL EPH, CE, IPX3, TÜV NORD, EcoSmart®
Warranty 1-year parts & labor (see Alto-Shaam warranty statement)

Included With Your Unit

  • (10) half/third-size divider bars
  • Factory-mounted 6 ft–9 ft power cord with appropriate plug (per voltage)
  • Installation & operation manual

Note: Steam-table pans are shown for reference and are not included.

Need a different flange size, locking kit or additional divider bars? Contact us and we’ll configure the perfect Alto-Shaam hot well for your line.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

9.31in

Width

66.81in

Depth

23.19in

Shipping Weight

150.0lbs

Drain

without drain

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(5) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit, Drop-In, Electric, (5) 12" x 20" full-size pan capacity (pans NOT included), 6-3/8" deep well, holds 6" deep pans, includes (10) half/third-size divider bars, (5) individual adjustable thermostatic controllers, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
