Alto-Shaam  |  Halo Heat  |  SKU: 500-HWI/D4

Alto-Shaam 500-HWI/D4 Halo Heat Steam Tables & Food Wells

$5,488.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Spec sheet - french canadian Terms & conditions Spec sheet - ce Spec sheet - spanish Spec sheet - ul Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

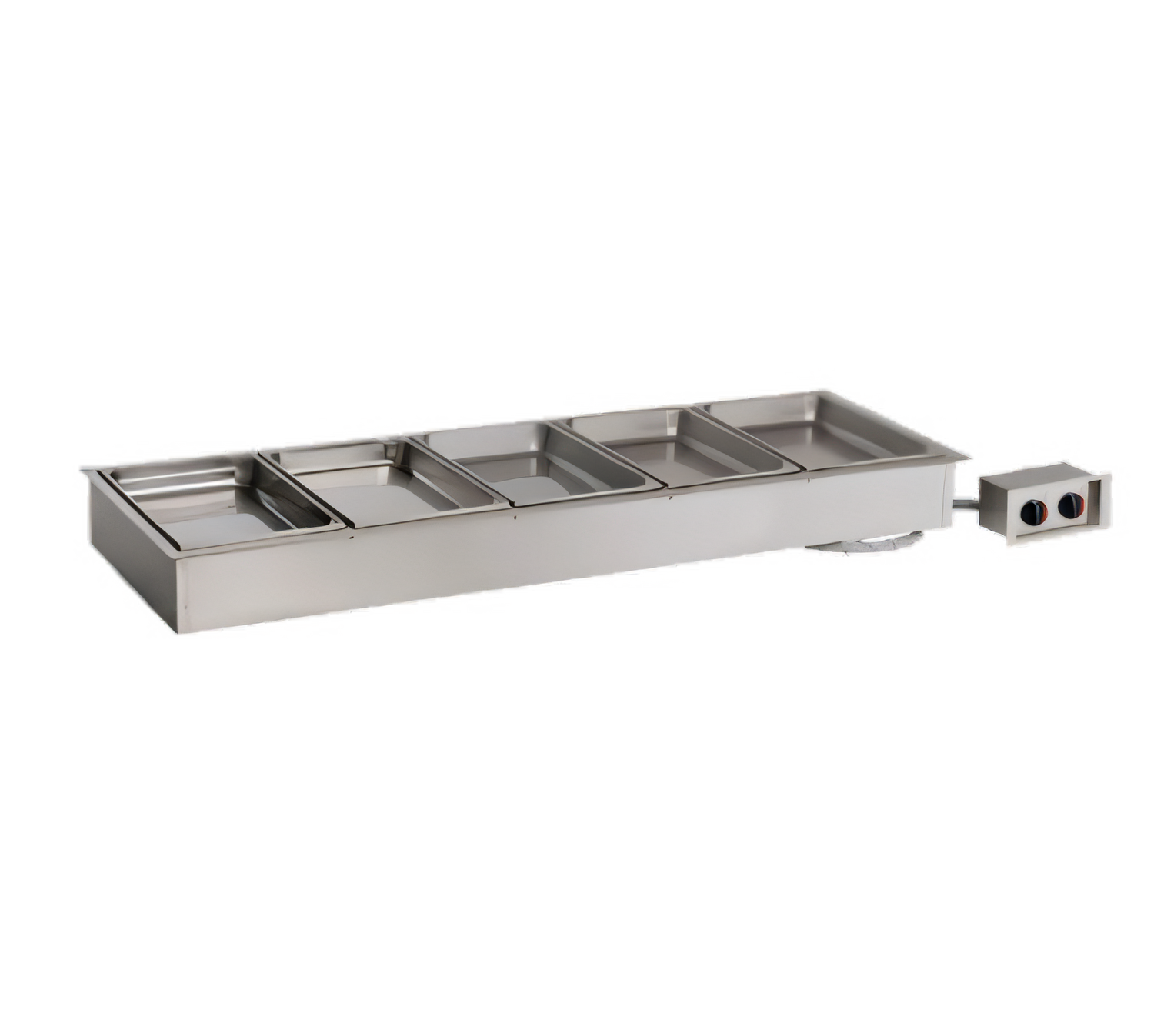

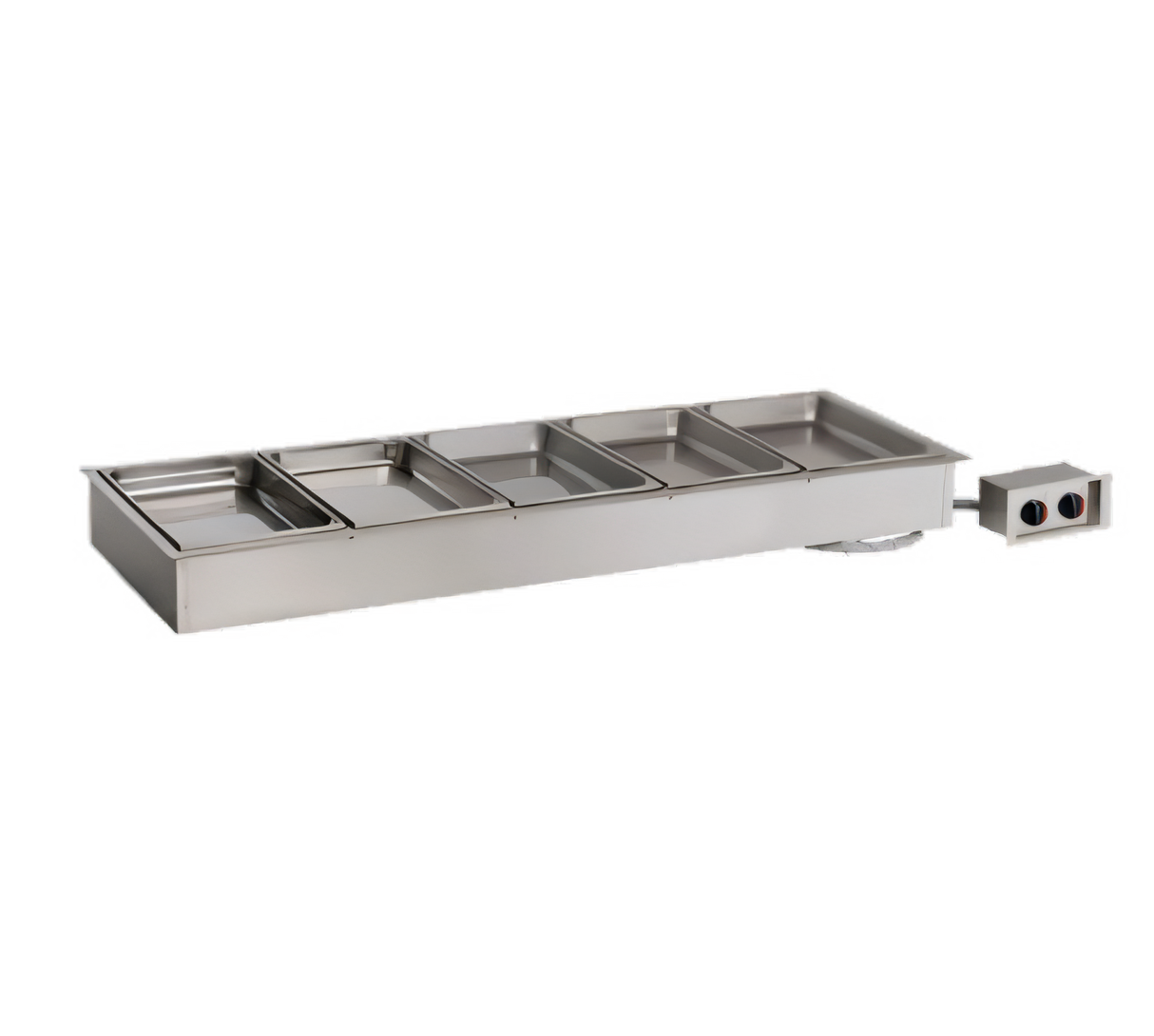

Halo Heat® Drop-In Hot Food Well – 5 Wells (Model 500-HW/D4)

Waterless • EcoSmart® • Independent Controls

Give every dish the just-made taste it deserves without the headaches of water or steam. Alto-Shaam’s 5-well 500-HW/D4 uses gentle, radiant Halo Heat® technology to hold food at safe serving temperatures for hours, preserve moisture and appearance, and cut operating costs — all in one easy-to-install, stainless-steel unit.

Why You’ll Love It

  • True waterless design — no plumbing, drains or costly steam table maintenance.
  • Patented Halo Heat® system surrounds pans with even, gentle heat for longer hold times and better product quality.
  • Five independent, flush-mount thermostatic controls let you tailor each 12" x 20" well to the exact product you’re serving.
  • Includes ten half/third-size divider bars for flexible pan layouts (pans sold separately).
  • EcoSmart® efficiency lowers energy use and reduces heat gain to the kitchen (only 304 BTU/hr).
  • Cool-to-touch exterior plus elimination of hot water and steam enhance employee safety.
  • Certified cULus, UL EPH Classified, CE, IPX3 & TUV NORD for worry-free code compliance worldwide.

Pan Capacity

  • 5 × full-size (12" × 20") pans – up to 4" deep
  • 10 × half-size (12" × 10") pans
  • 15 × third-size (12" × 6.7") pans
  • Maximum product weight: 120 lb / 54 kg  •  Volume: 72.5 qt / 70 L

Specifications

Model 500-HW/D4 (5 wells)
Well depth 4-3/8" / 111 mm (accepts 4" pans)
Exterior (H × W × D) 7-5/16" × 67-1/16" × 23-1/8"
185 × 1702 × 586 mm
Cut-out (non-combustible) 66" × 22-1/8" (1676 × 562 mm)
Net weight 85 lb / 39 kg
Heat of rejection 304 BTU/hr (0.09 kW)
Volts / Phase Amps kW Cord & Plug
120 V / 1ɸ 25.0 A 3.0 NEMA L5-30P, 6 ft cord
208 V / 1ɸ 10.8 A 2.3 NEMA 6-15P, 9 ft cord
240 V / 1ɸ 12.5 A 3.0 NEMA 6-15P, 9 ft cord
230 V / 1ɸ 12.0 A 3.0 CEE 7/7 (EU) or CH2-16P / BS 1363, 8–9 ft cord

What’s in the Box

  • Alto-Shaam 500-HW/D4 drop-in hot food well
  • (10) half/third-size divider bars
  • Pre-wired control box with five independent thermostats
  • Factory-installed power cord & plug (per voltage ordered)
  • Installation & operation manual

Certifications & Approvals

  • cULus Listed
  • UL EPH Classified (ANSI/NSF 4)
  • CE & UKCA marked
  • IPX3 splash protection
  • TUV NORD
  • EcoSmart® energy efficient design

Warranty

1-year parts & labor warranty from date of installation (or 15 months from ship date, whichever occurs first).
See full Alto-Shaam warranty for details.

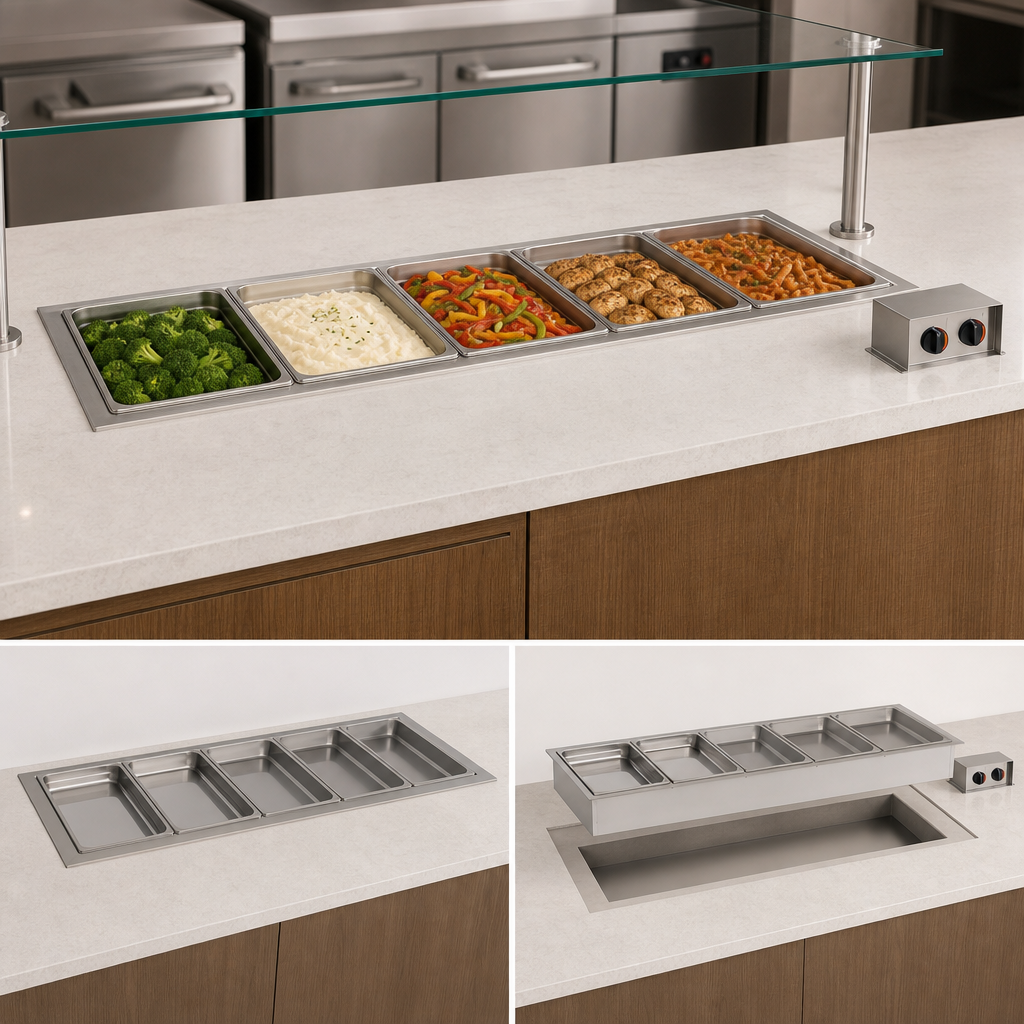

Installation Reminder: Unit must be installed level in a counter capable of withstanding 200 °F (93 °C). Stainless-steel heat shield recommended if cabinet below is used for storage.

Pans shown in photos are for illustration only and are not included.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

7.31in

Width

66.81in

Depth

23.19in

Shipping Weight

180.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Drain

without drain

Controls

thermostatic controls

Pan Capacity

(5) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit, Drop-In, Electric, (5) 12" x 20" full-size pan capacity (pans NOT included), 4-3/8" deep well, holds 4" deep pans, includes (10) half/third-size divider bars, (5) individual adjustable thermostatic controllers, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
