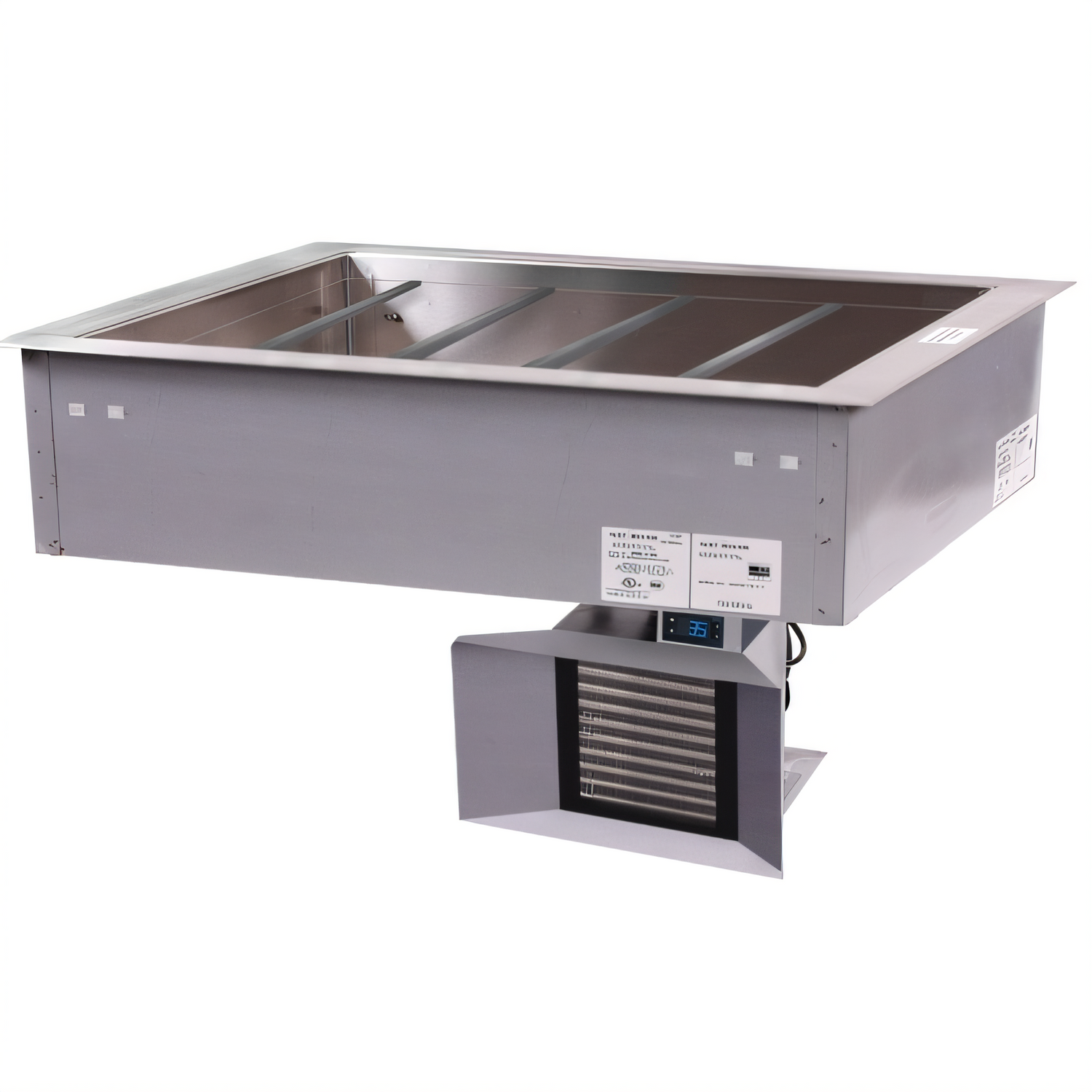

EcoSmart® Remote Drop-In Refrigerated Cold Well – 5 × Full-Size Pans
Alto-Shaam model 500-CW/R | Cold wall conductive coolingKeep salads, desserts and grab-n-go favorites safely chilled without the food-drying airflow of traditional forced-air wells. Alto-Shaam’s EcoSmart® cold wall technology delivers even, energy-efficient refrigeration across the entire pan surface, helping you present fresher product, reduce waste and lower operating costs.
Why you’ll love it
- Remote refrigeration design removes heat & noise from the serving line.
- Cold wall conductive cooling meets NSF 7 for 41 °F (5 °C) or below.
- Digital thermostat gives precise, adjustable temperature control.
- Includes (6) 20" (508 mm) pan divider bars for flexible pan layouts.
- Holds five 12" × 20" full-size pans up to 6" (152 mm) deep (pans not included).
- Coved-corner stainless interior and foamed-in-place insulation simplify clean-up and boost efficiency.
- EcoSmart® design draws only 600 W – ideal for energy-conscious operators.
- cULus & NSF listed; ships with 9' (2.7 m) cord and NEMA 5-15P plug for thermostat/control power.
Food pan capacity
- 5 × Full-size / GN 1/1 pans
- 10 × Half-size / GN 1/2 pans
- 15 × Third-size / GN 1/3 pans
- 180 lb (81.5 kg) max product load • 110 qt (105 L) volume
Technical specifications
| Model | 500-CW/R (remote compressor required, 1,151 BTU @ -10 °F suction) |
|---|---|
| Well depth | 6-1/4" (159 mm) – fits up to 6" deep pans |
| Exterior dimensions (H × W × D) | 25-5/16" × 70-1/8" × 27" (643 × 1,781 × 686 mm) |
| Counter cut-out (L × W) | 68-1/2" × 25-1/2" (1,741 × 648 mm) |
| Interior dimensions (H × W × D) | 8-3/4" × 65-1/16" × 21-7/8" (222 × 1,653 × 556 mm) |
| Refrigeration | Cold-wall, remote R290 system (compressor not included) |
| Electrical | 115 V / 60 Hz / 1 ph • 5.0 A • 600 W |
| Cord & plug | 9' (2.7 m) cord with NEMA 5-15P |
| Controls | Digital thermostat with LED readout |
| Construction | Stainless steel top & coved interior • corrosion-resistant steel exterior • CFC-free polyurethane insulation |
| Certifications | cULus • NSF 7 • ecoSmart® |
| Warranty | 1-year parts & labor • 5-year compressor (see warranty terms) |
Installation requirements
- Use a water-resistant countertop material.
- A water drain or catch basin is required.
- Provide 3/4" (19 mm) clearance between adjacent wells for cleaning.
- Unit must be level and not installed under a hood or 4-way ceiling diffuser.
- Outdoor use is not recommended.
Important: This unit ships without a compressor.
A remote low-temperature system capable of 1,151 BTU /hr at -10 °F (-23 °C) suction is required for operation.
Due to continuous product improvement, specifications are subject to change without notice.
$7,304.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Alto-Shaam EcoSmart Coldwell drop-in refrigerated display: remote refrigeration, thermostatic control, holds five 12x20 pans (not included), NSF-listed.
Manufacturer
Alto-Shaam
Brand name
EcoSmart
Certifications
NSF, cULus
Height
27.5in
Width
70.13in
Depth
27.0in
Layout
straight
Pan Size
full-size (12" x 20")
Pan Qty
5-pan
Style
remote refrigeration (no compressor)
Finish
corrosion resistant steel exterior
Insulation
insulated
Width (side - side)
67 - 72 inches
Specifications
Coldwell Drop-in Refrigerated Cold Display Unit, designed for remote refrigeration, includes thermostatic control and (6) pan divider bars for side support, (5) 12" x 20" full-size pan capacity (pans NOT included), 6-1/4" deep well, holds 6" deep pans, EcoSmart®, 600 watts, 115v/60/1, 5.0 amps, 9' cord, NEMA 5-15P, cULus, NSF
