Alto-Shaam EcoSmart 5-Pan Drop-In Self-Contained Refrigerated Cold Well
Full-Size 12 x 20 Pan Capacity, 115V, R-290
Keep chilled foods presentation-ready with a self-contained cold well that uses cold-wall conductive cooling and digital temperature control.
- Drop-in refrigerated cold well designed for food bars, buffets, and serving lines.
- Self-contained 1/4 hp refrigeration system simplifies installation.
- Holds 5 full-size 12 x 20 pans; pans are sold separately.
- Cold-wall cooling helps maintain food quality without forced air.
- Corrosion-resistant exterior, insulated body, and stainless steel interior support durability and easy cleaning.
- 115V, 1-phase operation with a 9' cord and NEMA 5-15P plug.
Overall Dimensions:

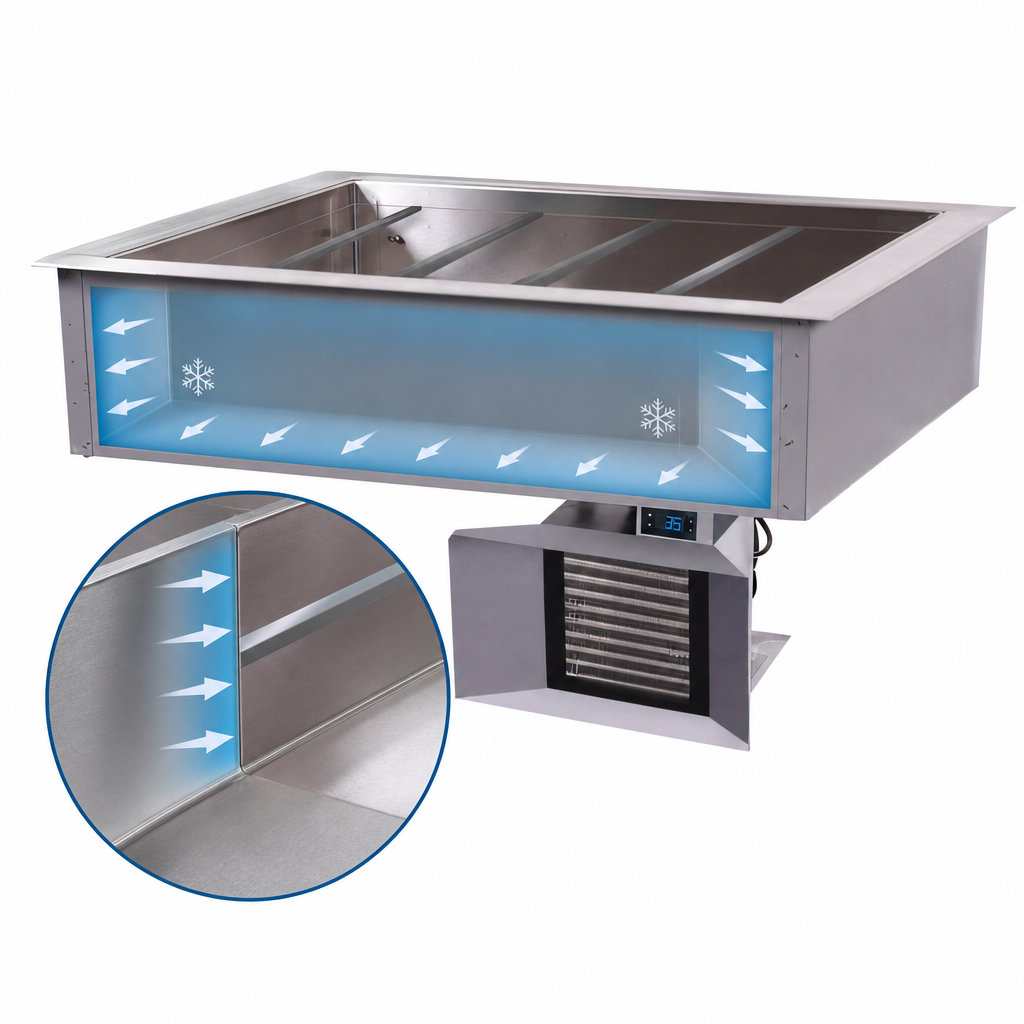

70.13"W x 27.0"D x 27.5"HCold-Wall Cooling
Conductive cooling helps keep food cold without forced air that can dry out product.
Self-Contained Compressor
Built-in 1/4 hp refrigeration system supports a compact drop-in installation.
Digital Thermostat
Provides flexible temperature control for cold holding.
Five-Pan Capacity
Holds five full-size or GN 1/1 pans; pans are not included.
Deep Well Pan Compatibility
The 6-1/4-inch deep well accepts 6-inch deep pans and also works with 2-1/2-inch and 4-inch pans.
Durable Insulated Construction
Corrosion-resistant steel exterior, foamed-in-place polyurethane insulation, and a stainless steel top with coved corner interior support durability and sanitation.
Flexible Louver Placement
The condensing unit is mounted on a swivel platform that allows 90 degrees of rotation so the intake/exhaust louver can be positioned on any side.
Included Pan Support Accessories
Includes six 20-inch pan divider bars, with a recessed stainless steel ledge and adaptor bars for pan support.
Installation Notes
Requires a water-resistant countertop and a water drain or catch basin; install level, allow 4 inches of clearance in front of the louver, and do not install under a hood.
Certifications & Compliance
Warranty & Protection
1-year parts and labor; 5-year refrigeration compressor warranty.
