Alto-Shaam  |  Quick Ship  |  SKU: 500-3DN-QS

Alto-Shaam 500-3DN-QS Quick Ship Drawer Warmers

$3,276.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - french canadian Terms & conditions Owner's manual Spec sheet - ul & ce Spec sheet - spanish Warranty sheet Warranty sheet
Related Searches
Countertop Food Warming Drawer Warmers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

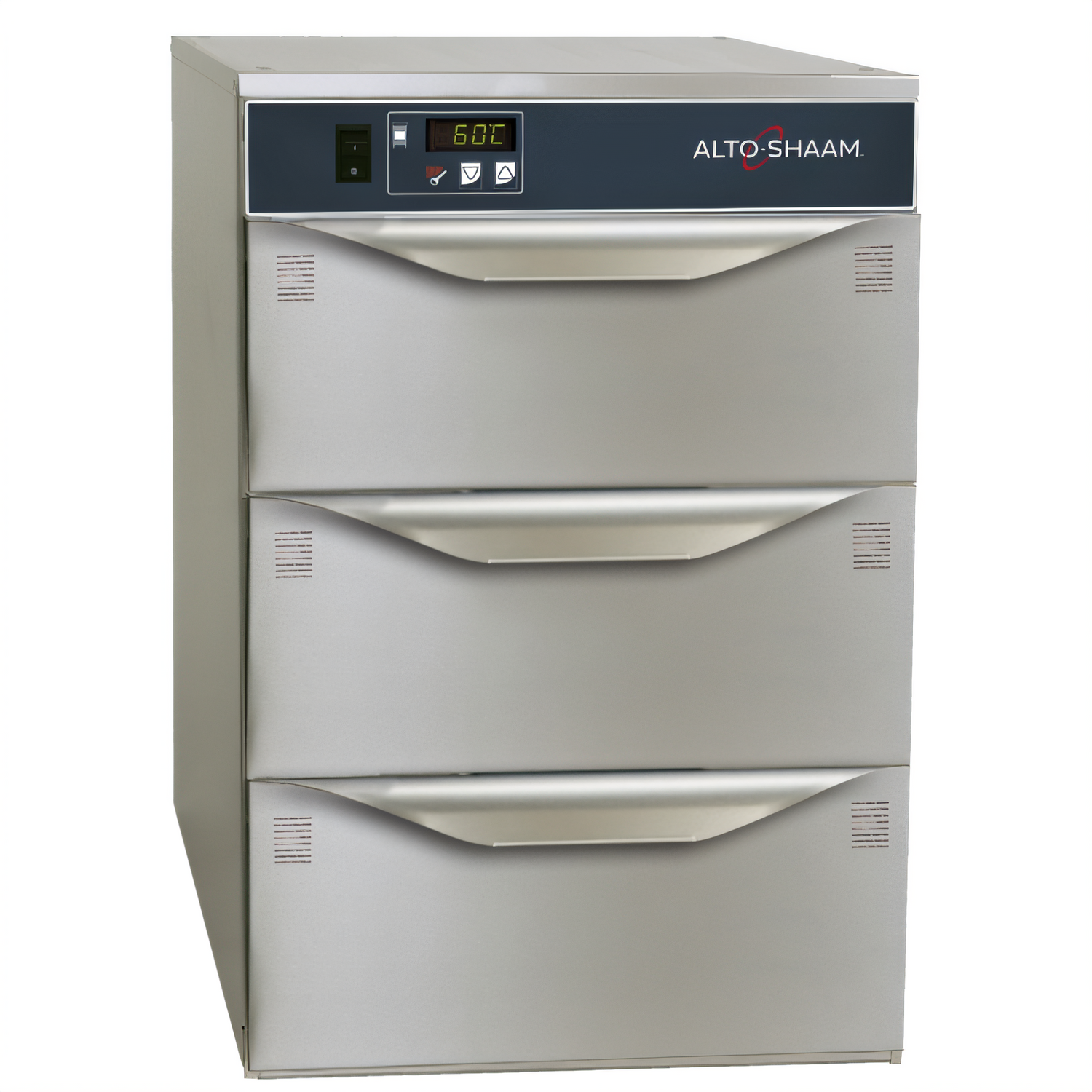

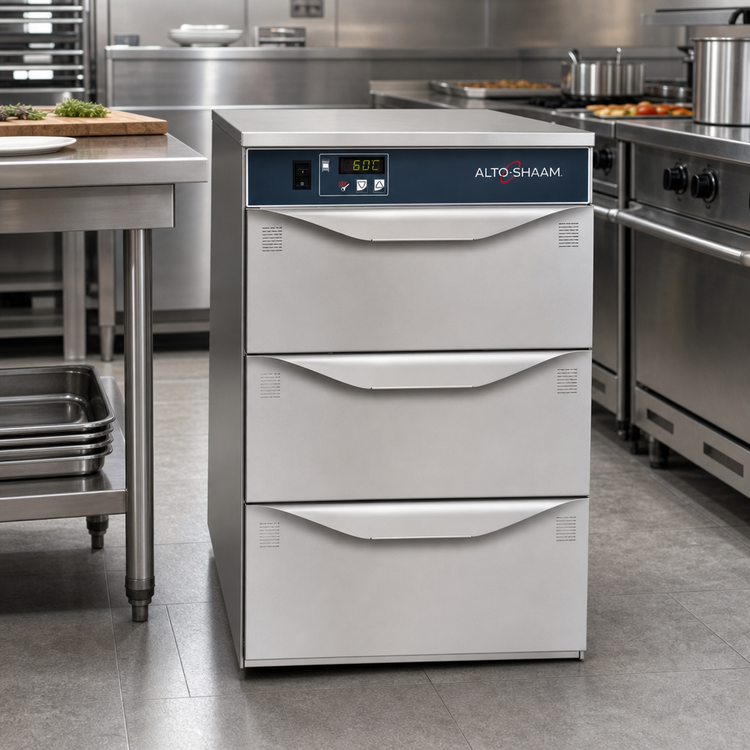

Alto-Shaam 500-3DN “Quick Ship” Halo Heat® Narrow Three-Drawer Warming Drawer

SKU 202888 | EcoSmart® | Digital Controls

Keep menu items hot, fresh and ready to serve with the Alto-Shaam 500-3DN three-drawer warming drawer. Halo Heat® gentle radiant technology maintains precise, even temperatures without added water, protecting food quality while lowering energy costs. The narrow 16-11/16" footprint fits crowded prep lines, and the free-standing “Quick Ship” design arrives ready to plug in and perform.

Key advantages

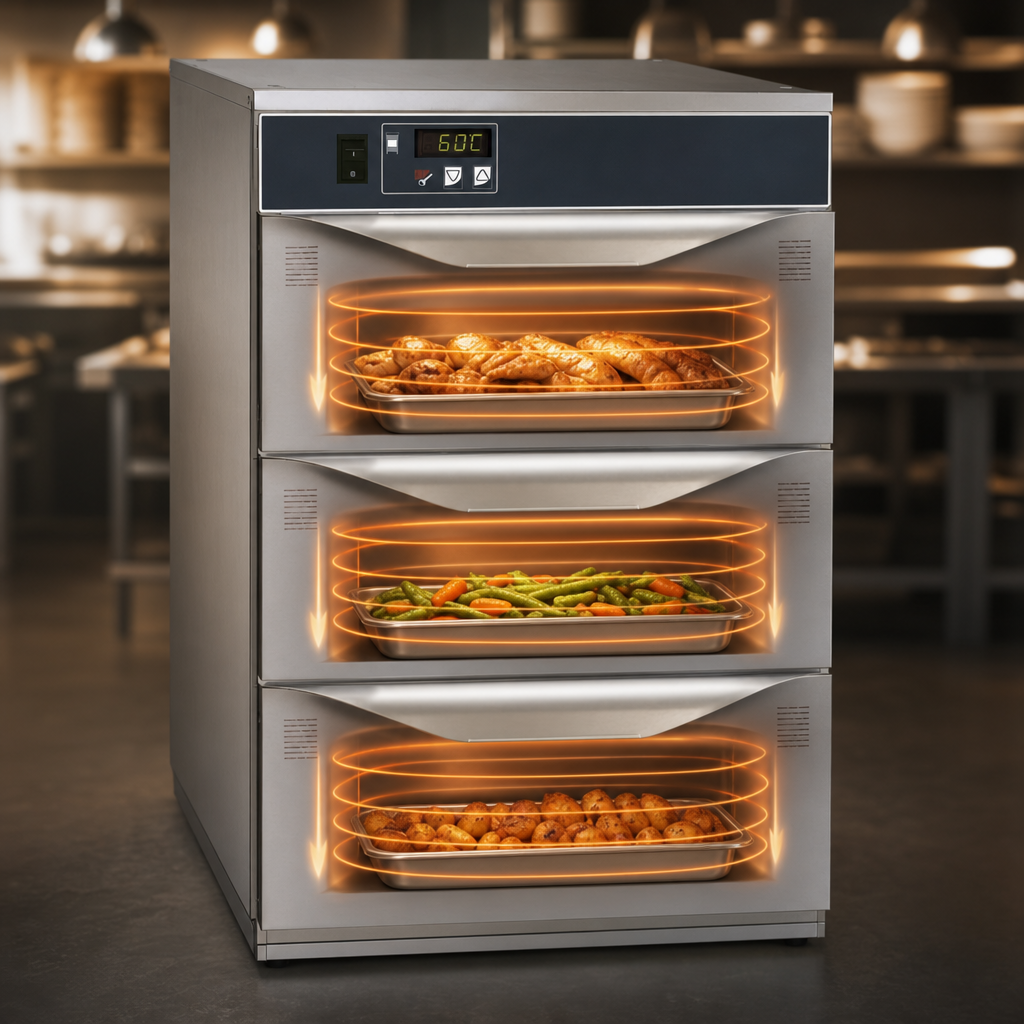

  • Halo Heat® surrounds food with uniform warmth—no water pans, steam or hot spots.
  • Independent digital control on every drawer (60 – 200 °F / 16 – 93 °C) for maximum versatility.
  • Each drawer holds one full-size 12" × 20" × 6" pan (included) or up to 50 rolls / 34 baked potatoes.
  • Non-magnetic stainless steel exterior and removable drawer rails simplify cleanup.
  • Energy-saving EcoSmart® design uses just 0.64 kW while maintaining food-safe temperatures.
  • Stackable or built-in capable with optional trim, leg and caster kits.
  • Global compliance: cULus, UL EPH, ANSI/NSF 4, CE, EAC.

Capacity guide (per drawer)

  • 41 lb (19 kg) of product
  • Up to 50 dinner rolls
  • Up to 34 baked potatoes

Technical specifications

Model / SKU 500-3DN | 202888
Configuration Three drawers, independently controlled
Temperature Range 60 °F – 200 °F (16 °C – 93 °C)
Included Pan 1 × 12" × 20" × 6" GN 1/1 stainless steel per drawer
Exterior Dimensions 26-1/8" H × 16-11/16" W × 31-3/16" D (664 × 423 × 792 mm)
Electrical 120 V, 1 ph, 50/60 Hz, 5.3 A, 0.64 kW, NEMA 5-15P
208–240 V, 1 ph, 50/60 Hz, 2.7 A, 0.64 kW, NEMA 6-15P
230 V, 1 ph, 50/60 Hz, 2.6 A, 0.59 kW, CEE 7/7 / CH2-16P / BS 1363 / AS/NZS 3112
Cord Length 120 V: 5' (1.52 m)  |  Other voltages: 8' (2.44 m)
Net / Ship Weight 130 lb (59 kg) / 145 lb (66 kg)
Ventilation Clearance Back 3" (76 mm) • Top 2" (51 mm) • Sides 1" (25 mm)
Certifications cULus, UL EPH, ANSI/NSF 4, CE, EAC
Warranty 1-year parts & labor (USA/Canada). See Alto-Shaam warranty for details.

Perfect for

  • Fast-casual and QSR kitchens
  • Catering & banquet staging
  • Convenience store hot cases
  • Hotel breakfast and room-service lines

Optional trim kits, caster or leg stands, and vented drawer fronts are available. Contact us for accessory pricing and lead times.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Quick Ship

Certifications

CE, cULus, UL EPH

Height

26.13in

Width

16.69in

Depth

31.19in

Shipping Weight

145.0lbs

Drawers

3 drawers

Controls

thermostatic controls

Style

narrow drawer

Specifications

(Quick Ship – 202888) Halo Heat® Narrow Warming Drawer, free standing, three drawer, digital controller, (1) 12" x 20" pan, (50) rolls or (34) baked potatoes capacity per drawer, adjustable thermostat, stainless steel exterior, EcoSmart®, cULus, UL EPH ANSI/NSF 4, CE, EAC
