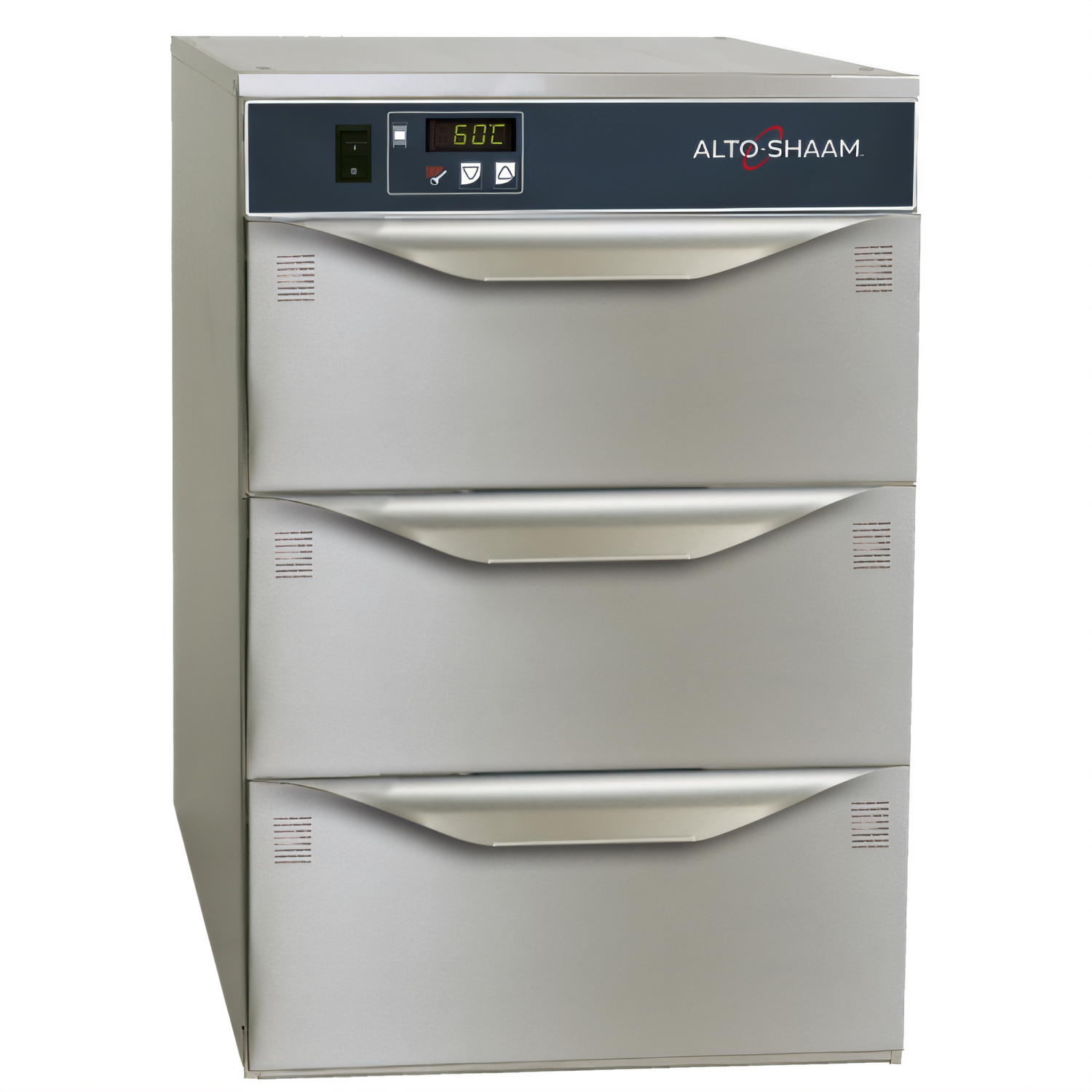

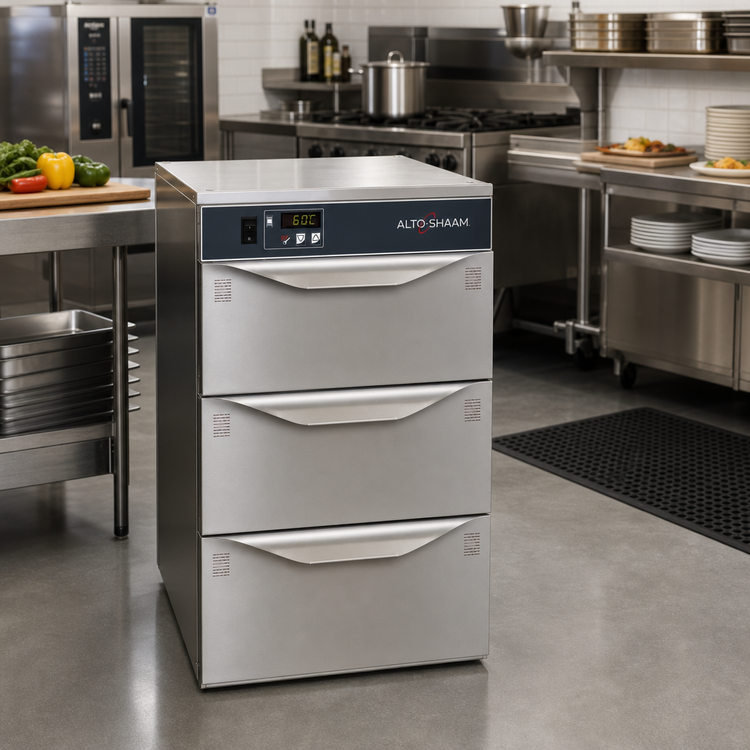

Alto-Shaam 500-3DN Halo Heat® Narrow Three-Drawer Warming Drawer

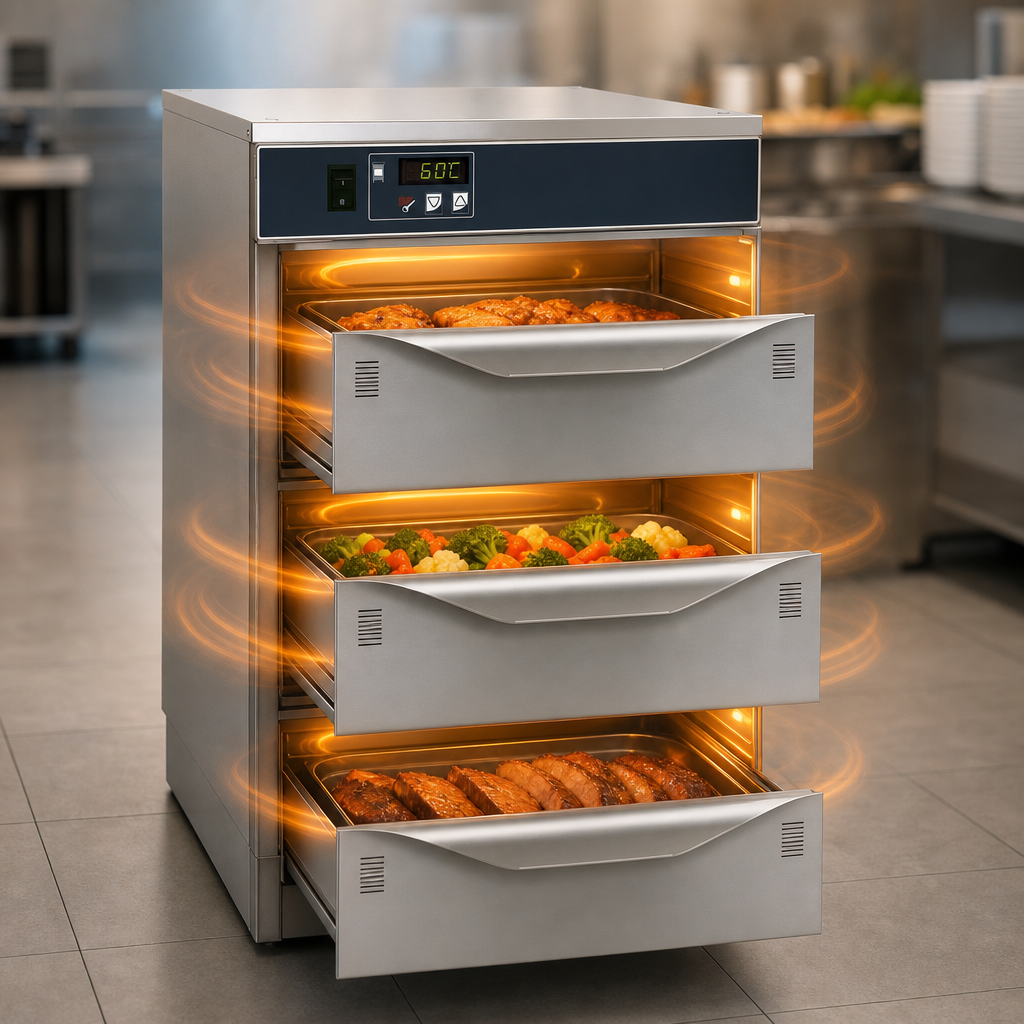

Freestanding | EcoSmart® | Digital Precision HoldingKeep high–volume menu items hot, fresh and ready to serve without sacrificing quality. The Alto-Shaam 500-3DN uses exclusive Halo Heat® technology to surround food with gentle, even heat—no water or harsh heating elements—so moisture, flavor and appearance are preserved for hours. Perfect for rolls, baked potatoes, proteins, sides and more.
Why You’ll Love It
- Halo Heat® technology maintains natural product moisture—no water pan required.

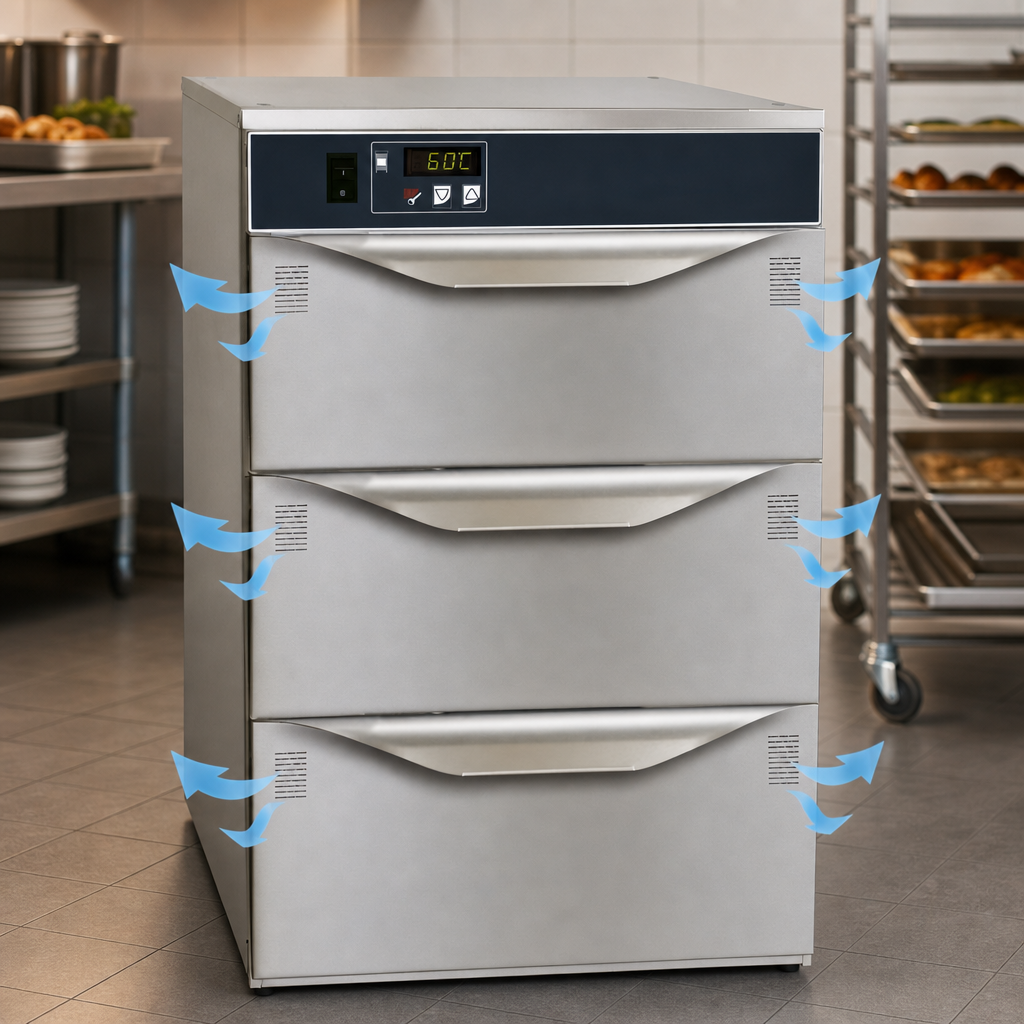

- Three independent drawers, each holding one full-size 12" × 20" × 6" pan or up to 50 dinner rolls / 34 baked potatoes / 41 lb (19 kg).
- Digital controller with 60 °F–200 °F (16 °C–93 °C) set-point delivers rapid heat recovery.
- Narrow 16-11/16" footprint saves valuable line or countertop space.
- Non-magnetic stainless-steel exterior and removable drawer rail supports for easy cleaning.
- Stackable or built-in installation options; trim kits, caster & leg stands available.
- Energy-efficient EcoSmart® design; cULus, UL EPH ANSI/NSF 4, CE & EAC certified.
Specifications
| Model | 500-3DN (Narrow, 3 drawers) |
|---|---|
| Capacity (each drawer) |
1 × 12" × 20" × 6" pan 50 rolls / 34 baked potatoes / 41 lb (19 kg) |
| Temperature Range | 60 °F – 200 °F (16 °C – 93 °C) |
| Exterior Dimensions | 26-1/8" H × 16-11/16" W × 31-3/16" D (664 mm × 423 mm × 792 mm) |
| Construction | Stainless steel cabinet; removable stainless drawer rails |
| Electrical Options* |
120 V 1 Ø 50/60 Hz • 0.64 kW • 5.3 A • NEMA 5-15P 208-240 V 1 Ø 50/60 Hz • 0.64 kW • 2.7 A • NEMA 6-15P 230 V 1 Ø 50/60 Hz • 0.59 kW • 2.6 A • CEE 7/7, CH2-16P, BS 1363, AS/NZS 3112 |
| Cord Length | 120 V: 5' (1524 mm) | 208-240/230 V: 8' (2438 mm) |
| Net / Ship Weight | 130 lb (59 kg) / 145 lb (66 kg) |
| Certifications | cULus, UL EPH, ANSI/NSF 4, CE, EAC |
| Standard Warranty | 1-year parts & labor (see Alto-Shaam full warranty for details) |
Popular Accessories
- Built-In Trim Kit – part #5015154
- Caster Stand Assembly – 3" (#5010921) or 5" (#55534) casters
- Leg Stand Assembly – #55535
- Perforated Pan Grid, 12" × 20" – #16642
*Verify electrical requirements and plug type before ordering. Installation must allow minimum clearance of 3" (back), 2" (top) and 1" (sides) for proper ventilation.
Unless backordered, most items will be shipped within 10–14 business days, depending on availability. Extended lead times may apply for custom, specialty, or manufacturer-direct items.
Orders are processed quickly to ensure timely fulfillment. Because of this, all cancellation or modification requests must be submitted within 24 hours of placing your order.
After 24 hours, we cannot guarantee that any changes or cancellations can be made.
Once an item has shipped, it can no longer be canceled or modified and will instead be subject to our Return Policy, which includes:
- Return requests must be submitted within 30 days of delivery
- Items must be unused and in original packaging
- 35% restocking fee and return freight/crating fees apply
- Consumable products are not returnable
By using USA Restaurant Suppliers’ website, services, or partners, you agree to the following:
- Binding Arbitration: Any dispute or claim related to USA Restaurant Suppliers, its partners, or service providers will be resolved exclusively through binding arbitration, not in court. The Federal Arbitration Act and applicable federal arbitration law apply.
- Third-Party Products & Services: USA Restaurant Suppliers is not liable for any product or service sold by third-party sellers or partners using the USA platform.
- Filing a Dispute: If you wish to initiate a dispute, please contact us, and a representative will guide you through the arbitration process.
Certifications & Compliance
Tested by Underwriters Laboratories and meets applicable product safety standards.
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
