Alto-Shaam 500-3D Halo Heat Drawer Warmers
Description

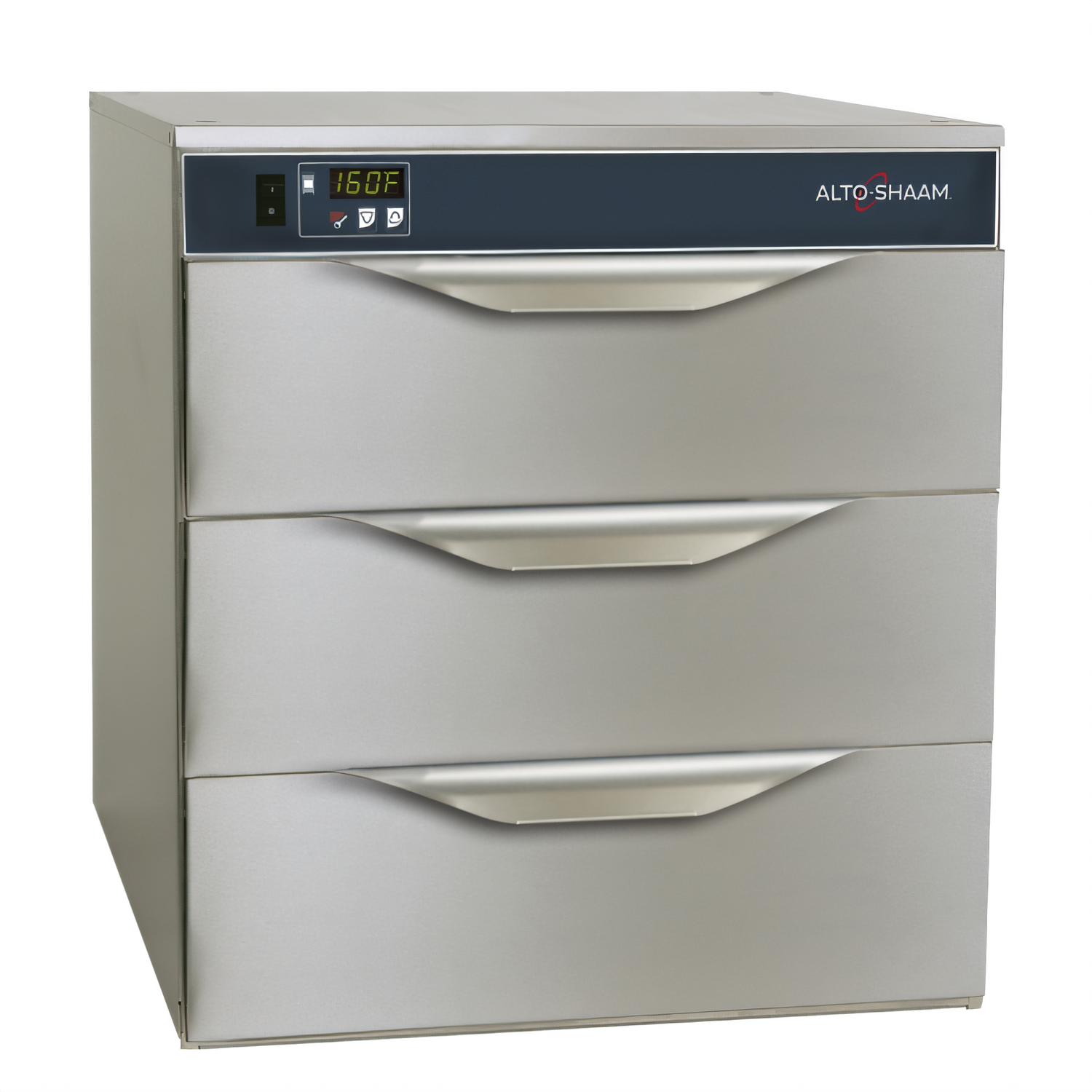

Alto-Shaam Halo Heat® 500-3D Three-Drawer Warming Drawer
Freestanding | Digital Control | EcoSmart® EfficiencyHold more, waste less. Alto-Shaam’s 500-3D Halo Heat® warming drawer delivers gentle, radiant heat that preserves food quality for hours—without the need for added water or harsh humidity. With three independent drawers, each equipped with its own digital thermostat, the 500-3D is the perfect back-of-house solution for bakeries, banqueting, QSRs and any high-volume kitchen that demands consistent, ready-to-serve results.
Why you’ll love it

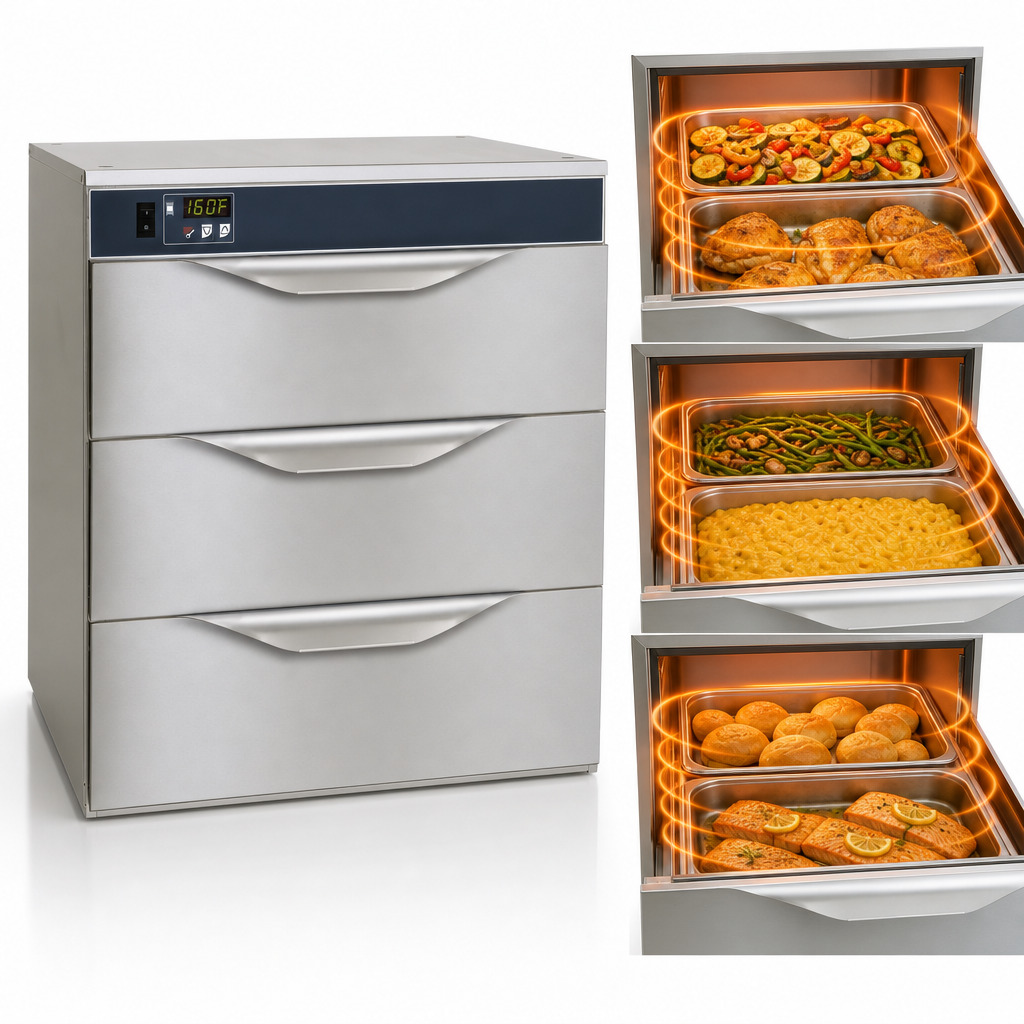

- Halo Heat technology surrounds food with uniform warmth, preventing over-drying and flavour loss.

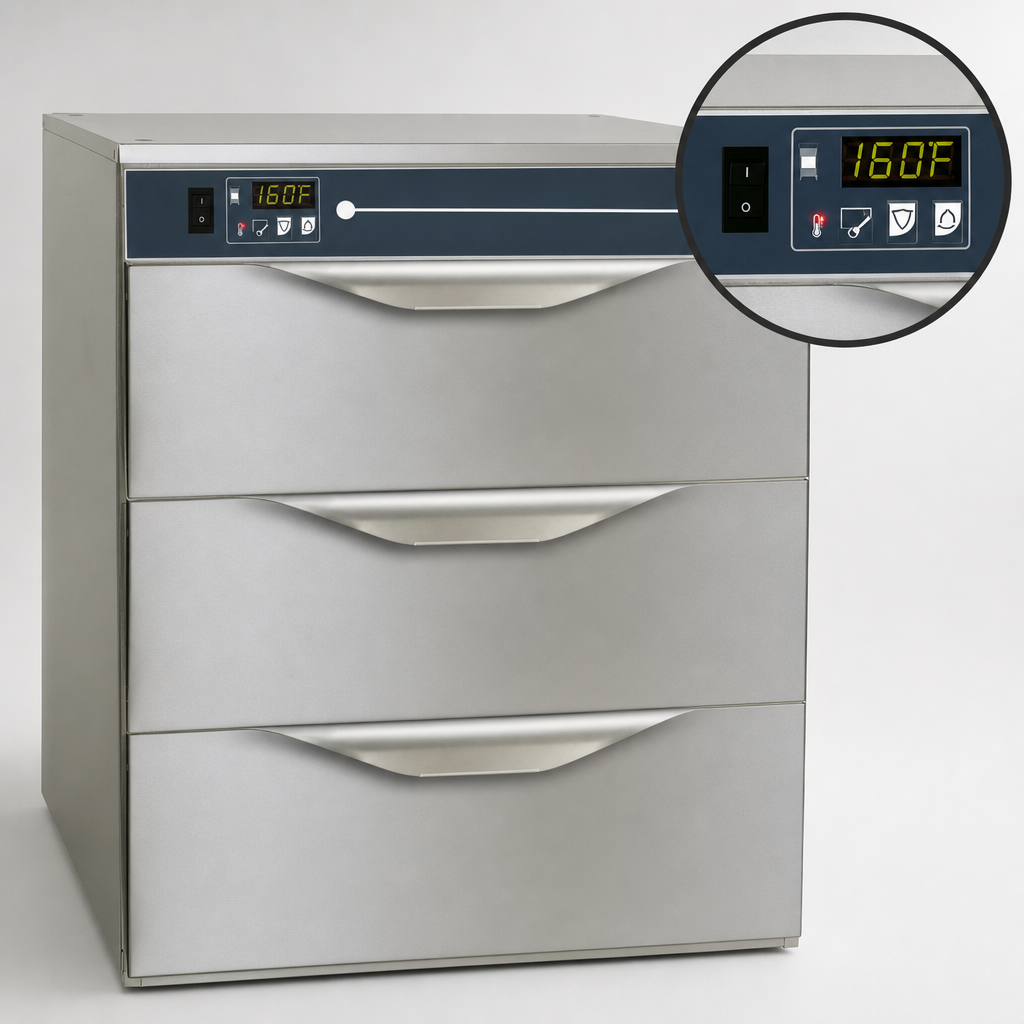

- Digital controller (60 °F – 200 °F / 16 °C – 93 °C) senses temperature drops instantly for rapid heat recovery.
- Extra-deep drawers each include a full-size 12 ″ × 20 ″ × 6 ″ pan and accept an optional 15 ″ × 20 ″ oversize pan.
- High volume capacity—up to 50 rolls or 34 baked potatoes per drawer.
- Freestanding stainless-steel cabinet is stackable and field-movable with optional caster or leg stands.
- EcoSmart® design draws only 0.64 kW, helping cut energy costs while maintaining safe holding temperatures.
- cULus, UL EPH ANSI/NSF 4, CE & EAC certified for worldwide peace of mind.
At-a-glance specs
| Model | 500-3D (three-drawer, freestanding) |
|---|---|
| Exterior dimensions (H × W × D) | 26-1/8 ″ × 24-5/8 ″ × 25-7/8 ″ (664 × 624 × 657 mm) |
| Temperature range | 60 °F – 200 °F (16 °C – 93 °C) |
| Capacity — each drawer | 1 × GN 1/1 pan (12 ″ × 20 ″ × 6 ″) – or – optional 15 ″ × 20 ″ × 5 ″ pan 50 dinner rolls | 34 baked potatoes |
| Construction | Non-magnetic stainless-steel exterior; removable stainless drawer rails |
| Net / Ship weight | 150 lb / 165 lb (68 kg / 75 kg) |
| Electrical options |
120 V 1 ph 50/60 Hz | 5.3 A | 0.64 kW | NEMA 5-15P 208-240 V 1 ph 50/60 Hz | 2.7 A | 0.64 kW | NEMA 6-15P 230 V 1 ph 50/60 Hz | 2.6 A | 0.59 kW | CEE 7/7, BS 1363 or AS/NZS 3112 |
| Clearances (built-in) | Back 3 ″ | Top 2 ″ | Sides 1 ″ (minimum for ventilation) |
| Certifications | EcoSmart®, cULus, UL EPH ANSI/NSF 4, CE, EAC |
Optional accessories
- Oversize 15 ″ × 20 ″ × 5 ″ pan (PN-2123)
- Perforated pan grids – 15 ″ × 20 ″ (1231) | 12 ″ × 20 ″ (16642)
- Built-in trim kit (500-3D: 5015153)
- Caster stand assembly – 5 ″ (PN 15379) or 3 ″ (PN 5010920) casters
- 6 ″ leg stand assembly (PN 15380)
