Alto-Shaam  |  Halo Heat  |  SKU: 500-2DN

Alto-Shaam 500-2DN Halo Heat Drawer Warmers

$2,688.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - spanish Spec sheet - french canadian Owner's manual Terms & conditions Spec sheet - ul & ce Warranty sheet Warranty sheet
Related Searches
Countertop Food Warming Drawer Warmers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

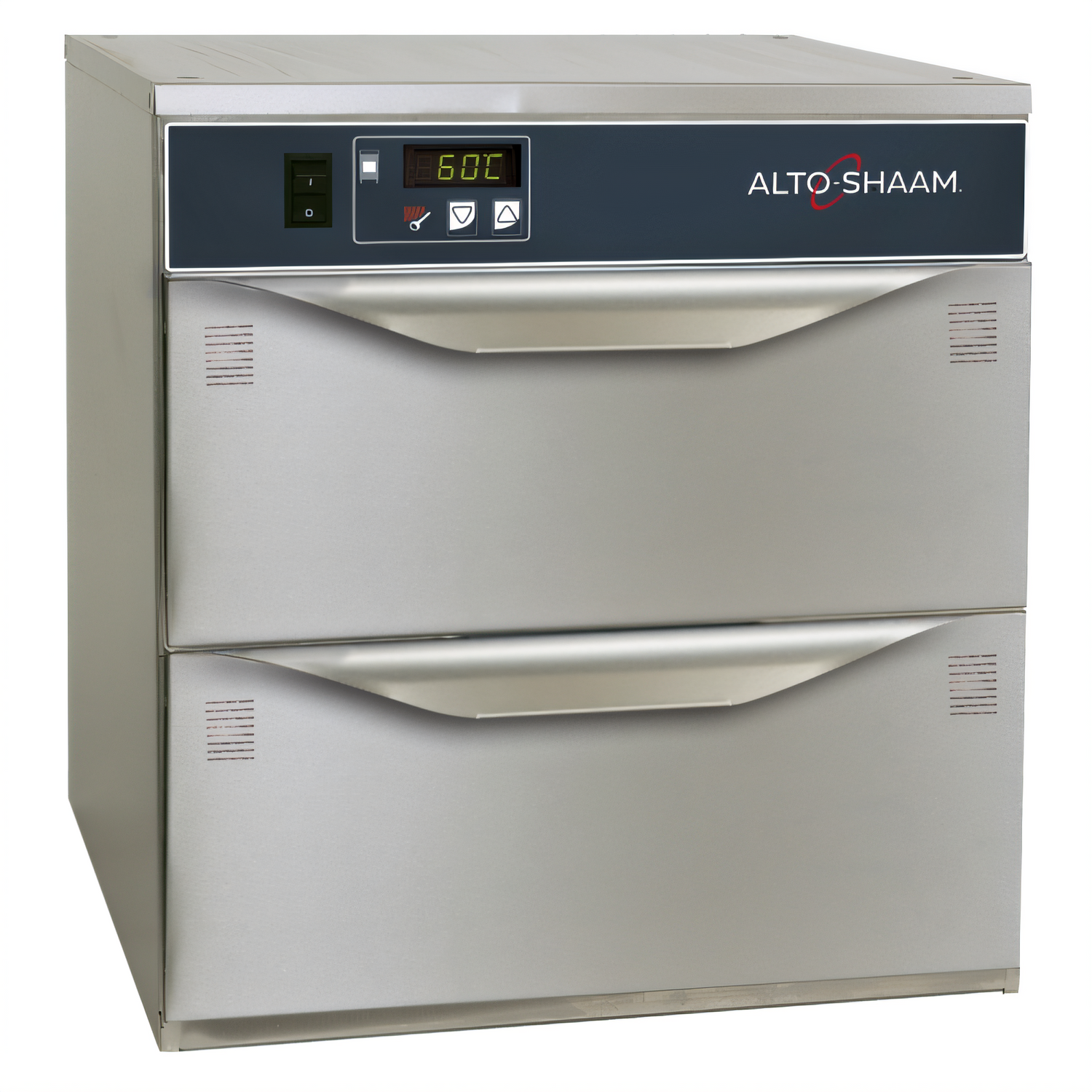

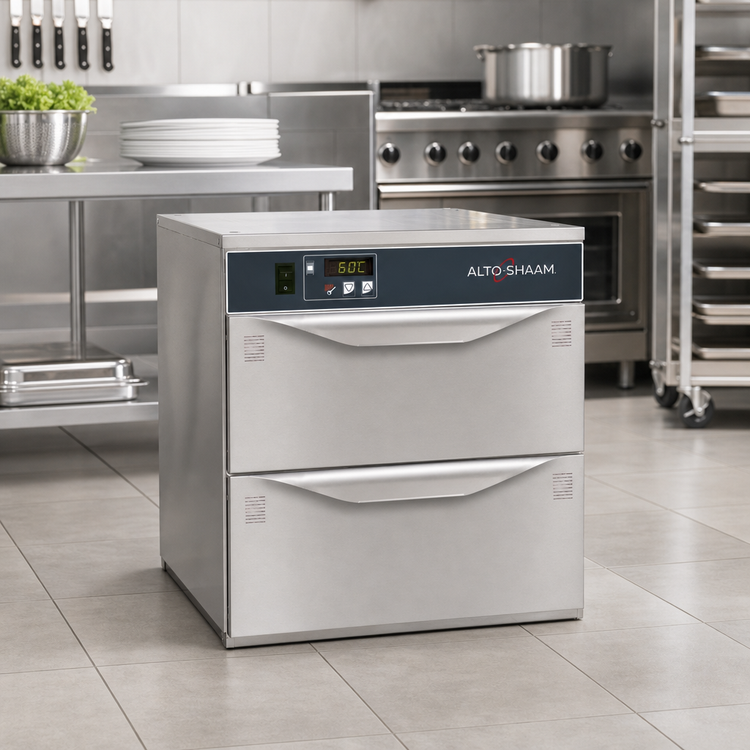

Alto-Shaam 500-2DN Halo Heat® Narrow Two-Drawer Warming Drawer

EcoSmart® free-standing warmer for high-volume, moisture-rich holding

Keep entrées, sides and baked goods at perfect serving temperature without sacrificing quality or yield. The Alto-Shaam 500-2DN uses gentle Halo Heat® technology to surround food with uniform, radiant warmth—no added water, no harsh elements, just consistently delicious results from the first plate to the last.

Why You’ll Love It

  • Two independent drawers, each holding one full-size 12 × 20 × 6" pan or up to 50 dinner rolls / 34 baked potatoes.

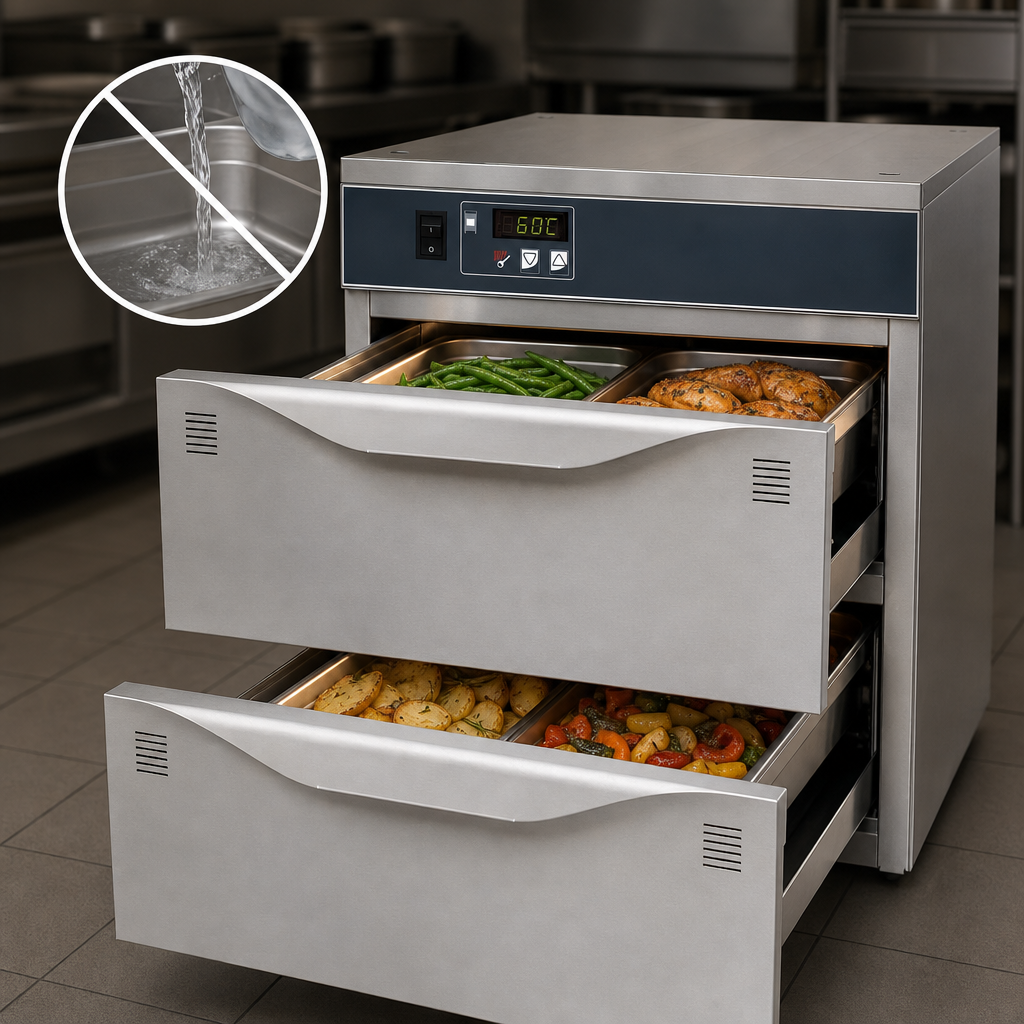

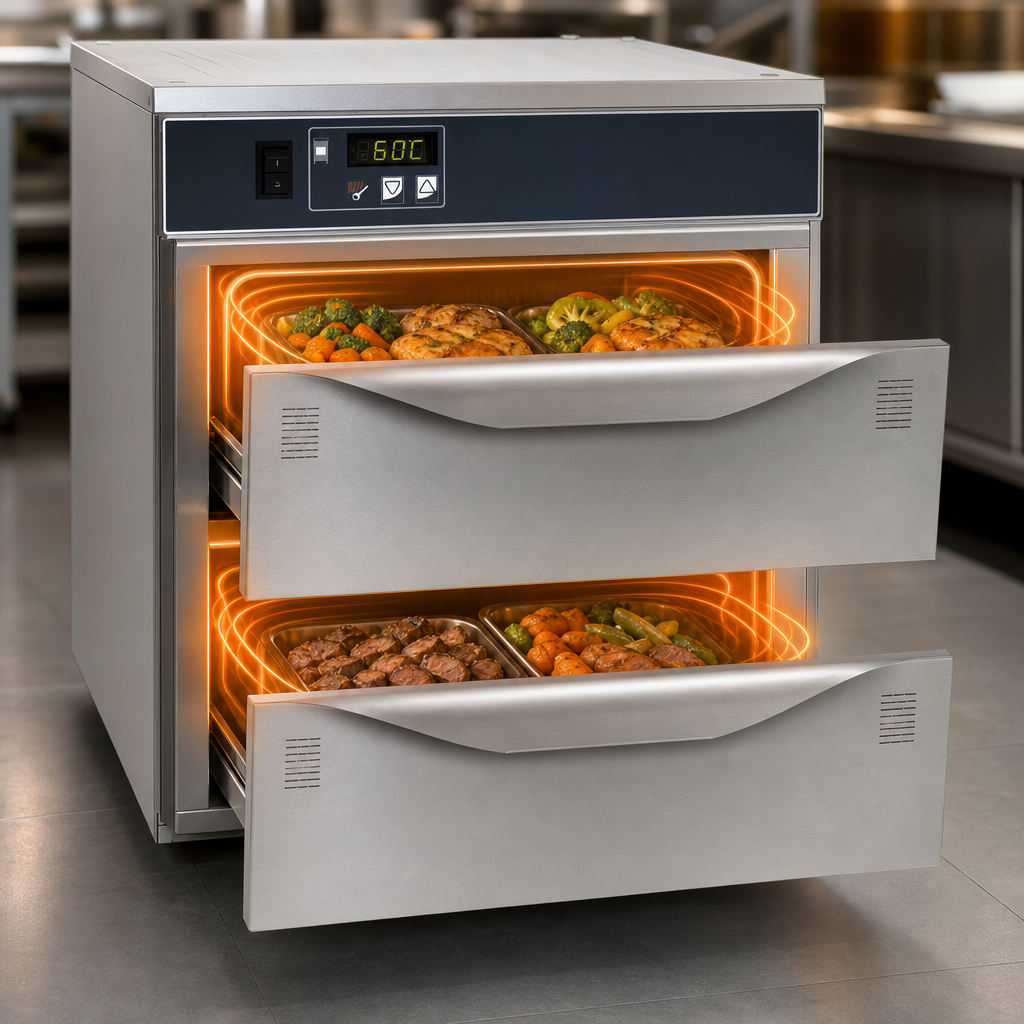

  • Halo Heat® radiants maintain natural moisture for longer hold times and better taste.
  • Digital controller monitors 60–200 °F (16–93 °C) and senses temperature drops for rapid heat recovery.
  • Energy-efficient EcoSmart® design draws only 0.64 kW—lower operating costs without compromising performance.
  • Durable, non-magnetic stainless steel exterior with removable drawer rails for fast cleanup.
  • Stackable footprint and optional trim kit make built-in or countertop installations effortless.
  • cULus, UL EPH, ANSI/NSF 4, CE & EAC certified for worldwide kitchen compliance.

At-a-Glance Specs

Model 500-2DN (narrow, two-drawer, free-standing)
Heat system Halo Heat® gentle radiant technology
Temperature range 60 °F – 200 °F  (16 °C – 93 °C)
Controls Digital panel with up/down arrows, temp display & heat indicator
Capacity (per drawer) 41 lb (19 kg) • 50 rolls • 34 baked potatoes
Pan size (per drawer) 1 × 12" × 20" × 6" / GN 1/1
Exterior dimensions 18-15/16" H × 16-11/16" W × 31-3/16" D (481 × 423 × 792 mm)
Electrical 120 V / 1 ph / 50-60 Hz • 5.3 A
208-240 V / 1 ph / 50-60 Hz • 2.7 A
230 V / 1 ph / 50-60 Hz • 2.6 A
0.64 kW • NEMA 5-15P or 6-15P/CEE 7/7 plug depending on voltage
Net weight 100 lb (45 kg)
Clearances (ventilation) 3" rear • 2" top • 1" sides
Certifications cULus • UL EPH • ANSI/NSF 4 • CE • EAC
Warranty 1-year parts & labor (see warranty statement)

Options & Accessories

  • Built-in trim kit for seamless cabinetry integration
  • Caster stand assemblies – 3" or 5" swivel casters
  • 6" leg stand assembly for stationary floor mounting
  • Perforated pan grid (12" × 20")
  • Optional vented drawers (order code 5014561)
Important: Install unit level and away from steam, grease or dripping water. Provide specified clearances and on-site venting for built-in applications to ensure proper airflow and performance.

Need a single- or triple-drawer configuration? Explore models 500-1DN and 500-3DN.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH

Height

18.94in

Width

16.69in

Depth

31.19in

Shipping Weight

112.0lbs

Controls

thermostatic controls

Style

narrow drawer

Drawers

2 drawers

Specifications

Halo Heat® Narrow Warming Drawer, free standing, two drawer, digital controller, (1) 12" x 20" pan, (50) rolls or (34) baked potatoes capacity per drawer, adjustable thermostat, stainless steel exterior, EcoSmart®, cULus, UL EPH ANSI/NSF 4, CE, EAC
