Alto-Shaam 500-1DN-QS Quick Ship Drawer Warmers
Description

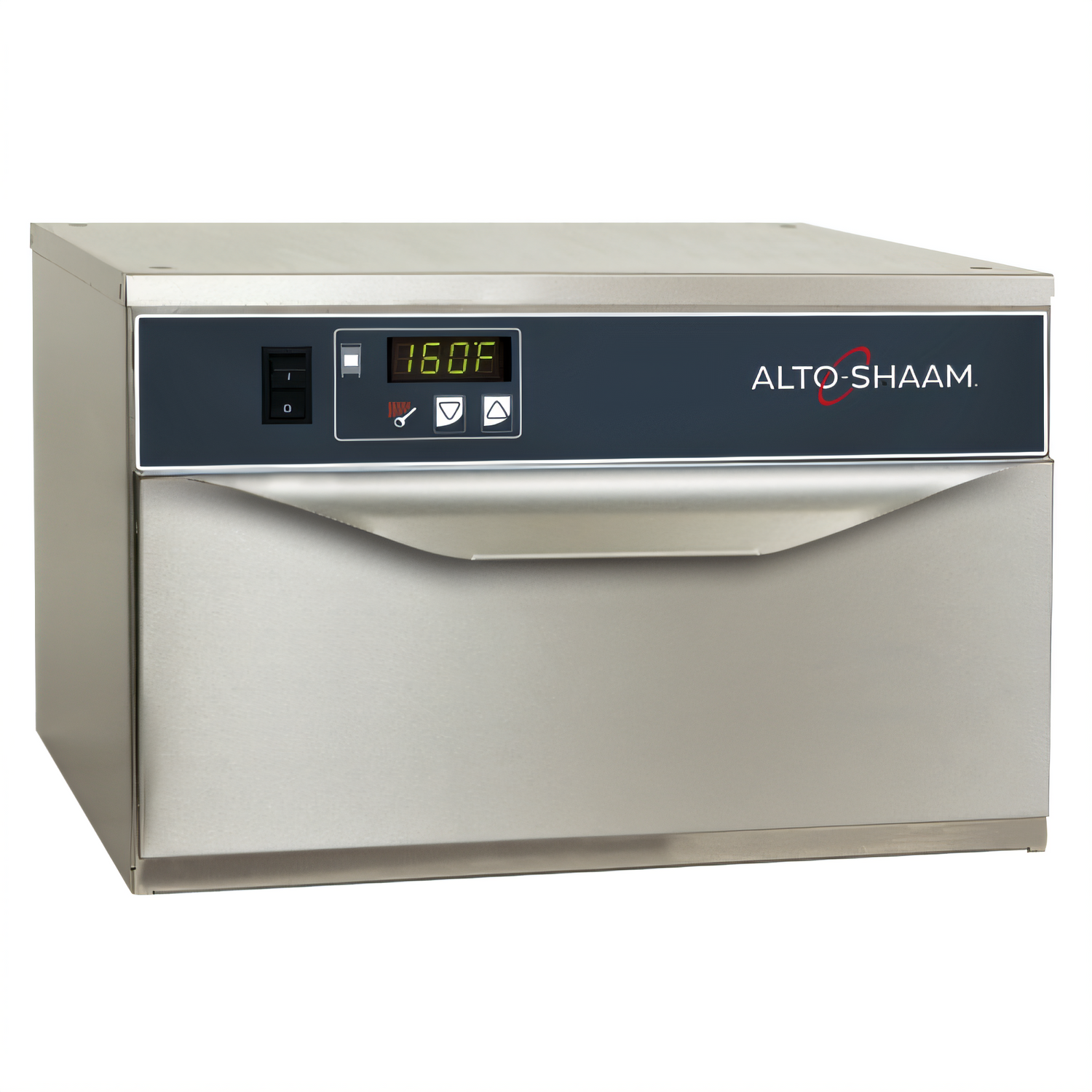

Alto-Shaam 500-1DN “Quick Ship” Halo Heat® Narrow Warming Drawer

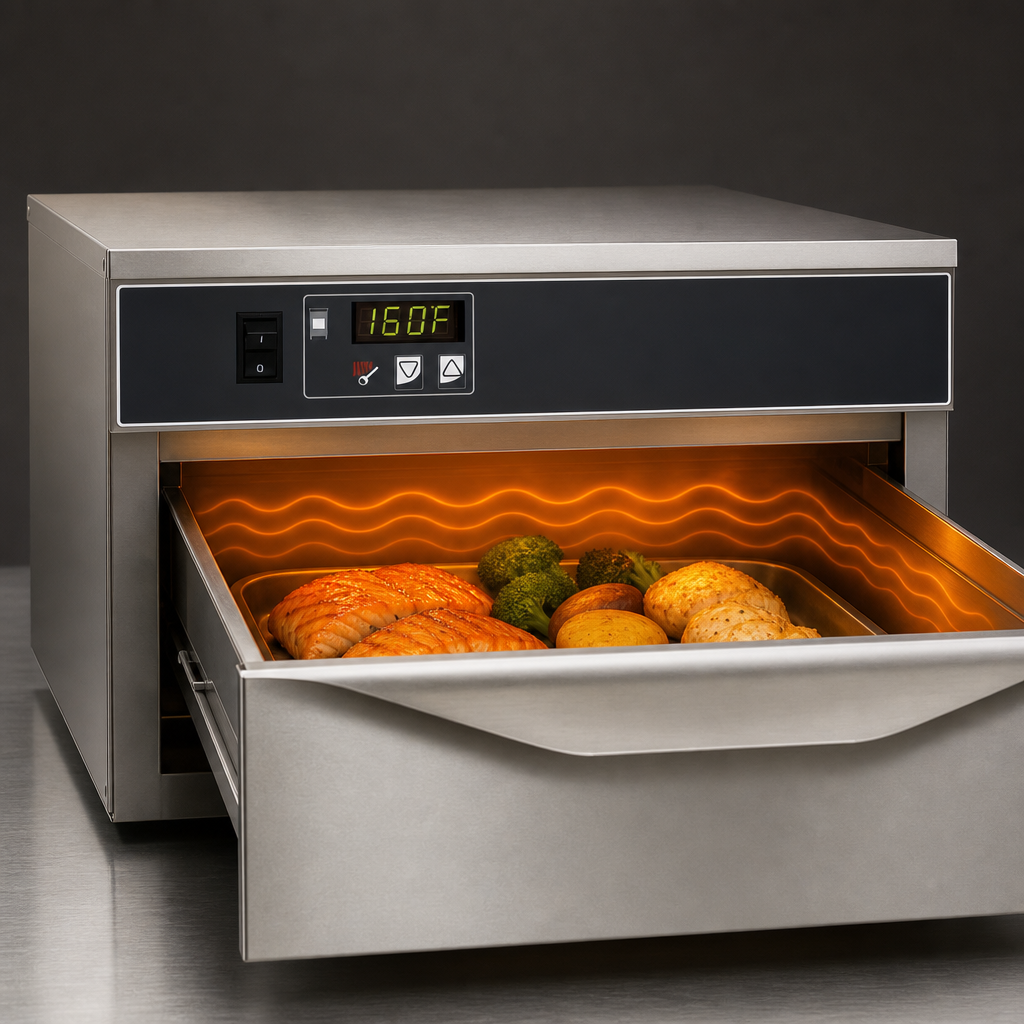

1-Drawer, Free-Standing • Model 202790Keep menu items hot, fresh and ready to serve without the hassle of water pans or steam. The EcoSmart® 500-1DN leverages Alto-Shaam’s exclusive Halo Heat® technology to gently surround food with uniform radiant heat—extending holding life and protecting product quality in the busiest kitchens.
Key benefits

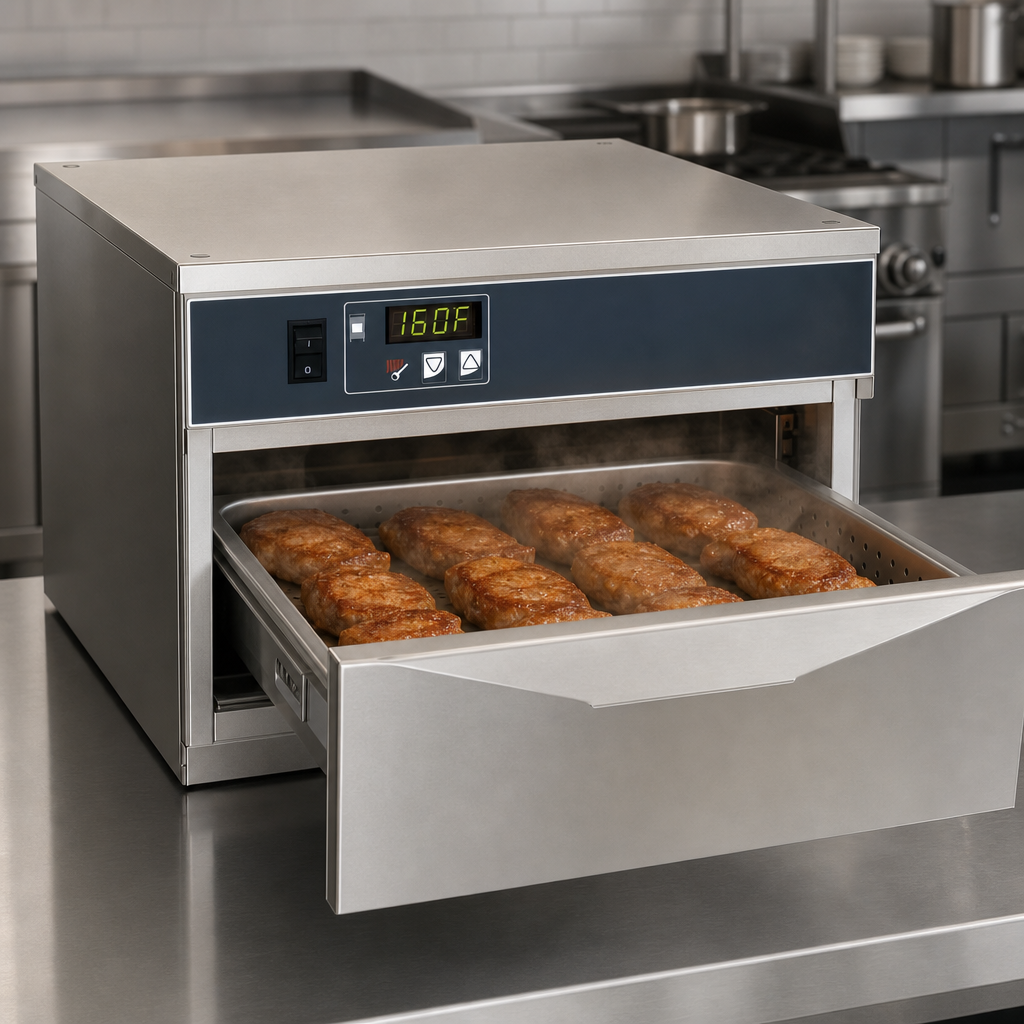

- Halo Heat® radiance preserves moisture and appearance—no water or plumbing required.
- Digital control senses temperature changes instantly for rapid heat recovery.
- Wide holding range: 60 °F – 200 °F (16 °C – 93 °C) adjustable in 1-degree increments.
- Full-size 12" × 20" × 6" pan included (41 lb / 19 kg max) – holds up to 50 dinner rolls or 34 baked potatoes.
- Stainless-steel exterior and removable drawer rails for simple wipe-down cleaning.
- Stackable or field-installed into counters with optional trim kit for space-saving layouts.
- EcoSmart® design draws only 0.64 kW, reducing energy costs compared with traditional warmers.
- cULus, UL EPH, ANSI/NSF 4, CE & EAC listed for global compliance.
At-a-glance specs
| Capacity | (1) 12" × 20" × 6" pan | 50 rolls | 34 baked potatoes (41 lb / 19 kg) |
|---|---|
| Exterior dimensions (H × W × D) | 11-5/8" × 16-11/16" × 31-3/16" (296 × 423 × 792 mm) |
| Temperature range | 60 °F – 200 °F (16 °C – 93 °C) |
| Construction | Non-magnetic stainless steel; removable drawer rail supports |
| Controls | On/Off switch, ▲/▼ set buttons, heat indicator light, temp display button, LED readout |
| Net weight | 67 lb (30 kg) |
Electrical information
| Voltage (single phase) | 120 V (standard quick-ship) • 208-240 V • 230 V |
|---|---|
| Current draw | 5.3 A @ 120 V | 2.7 A @ 208-240 V | 2.6 A @ 230 V |
| Power consumption | 0.64 kW (all voltages) |
| Plug type | NEMA 5-15P (120 V) | NEMA 6-15P (208-240 V) | CEE 7/7, CH2-16P, BS 1363, AS/NZS 3112 (230 V) |
| Cord length | 5' (120 V) | 8' (208-240 V & 230 V) |
Popular accessories (sold separately)
- Built-in trim kit (model 5015148)
- Leg stand assembly – 6" (152 mm) legs (55535)
- Caster stand assemblies – 3" (5010921) or 5" (55534) swivel casters
- Perforated pan grid 12" × 20" (16642)
Warranty: 1-year parts & labor (15 months from ship date). See full Alto-Shaam warranty for details.
