Alto-Shaam 500-1DN Halo Heat Drawer Warmers
Description

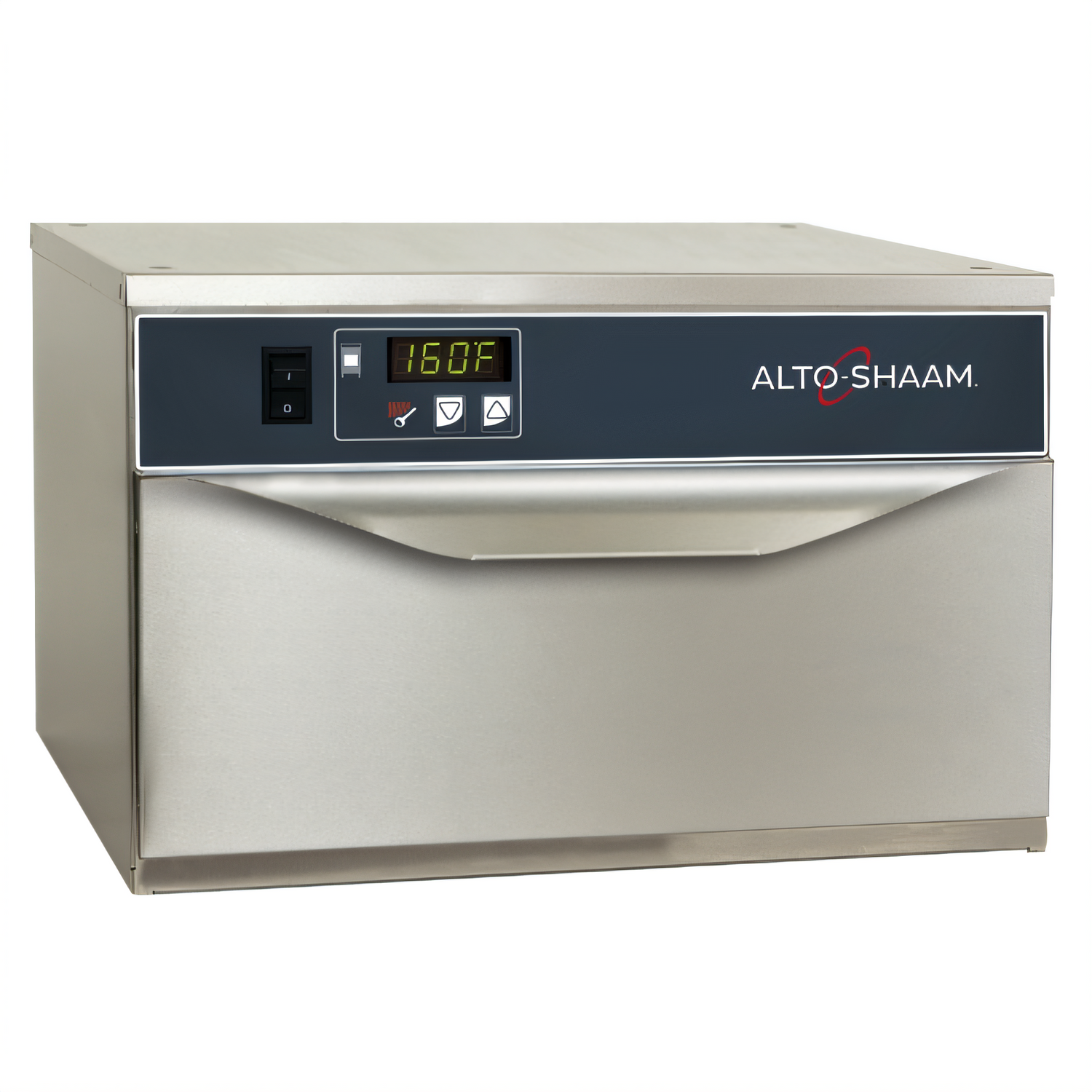

Alto-Shaam 500-1DN Halo Heat® Narrow Warming Drawer
Free-standing • 1 drawer • Digital control • EcoSmart®Deliver hot, ready-to-serve food with unbeatable moisture retention in a compact 16-11/16"-wide footprint. The 500-1DN employs Alto-Shaam’s exclusive Halo Heat® technology—a gentle, uniform heat source that preserves appearance, taste and texture without the need for water or harsh heating elements.
Why You’ll Love It

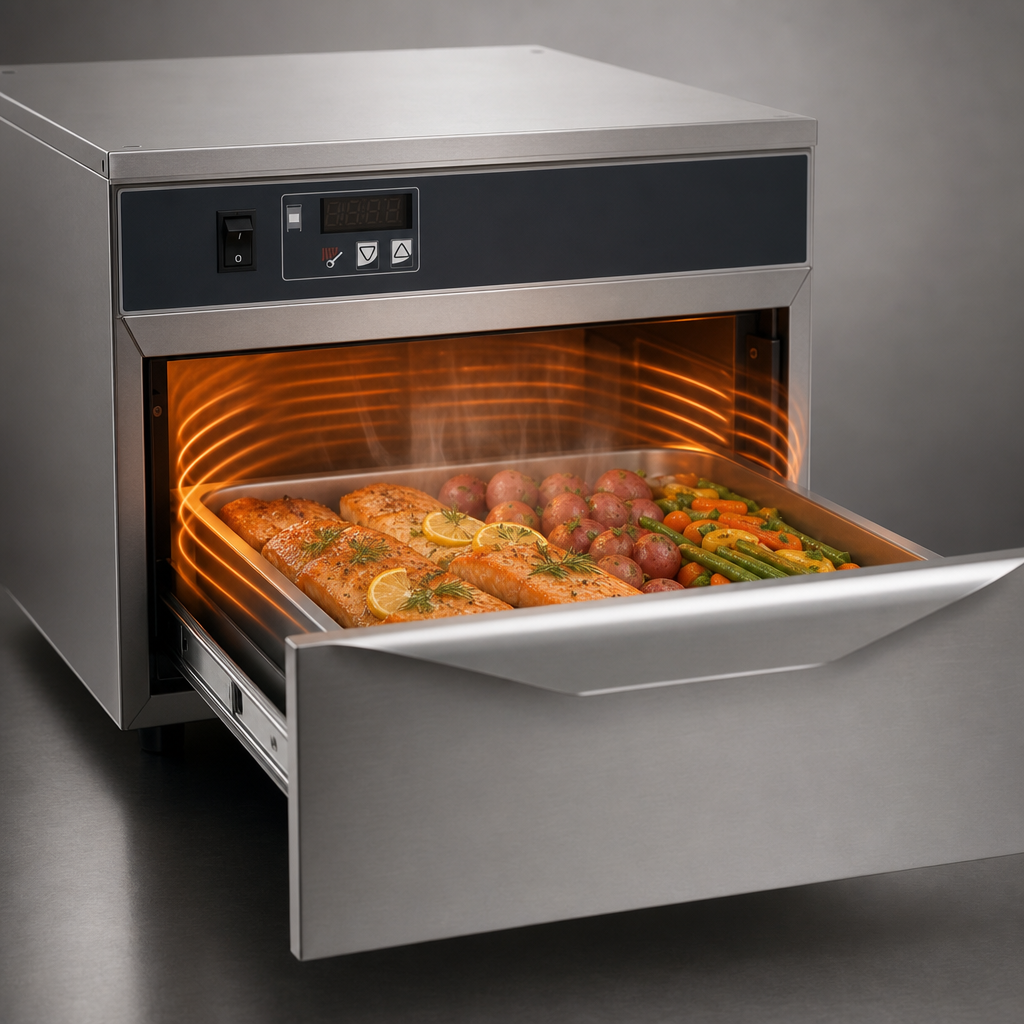

- Halo Heat® surrounds food with gentle radiant heat—no fans, no water pans, no hot spots.
- Digital controller reacts instantly to temperature changes for rapid heat recovery.
- Adjustable thermostat from 60 °F – 200 °F (16 °C – 93 °C) covers proofing, holding and finishing applications.
- Includes one full-size 12" × 20" × 6" stainless steel pan (GN 1/1).
- Stores up to 50 dinner rolls / 34 baked potatoes / 41 lb (19 kg) per drawer.
- Non-magnetic stainless steel exterior and removable drawer rails for easy wipe-down cleaning.
- Stackable or built-in design with optional trim kits, stands and casters.
- Energy-efficient EcoSmart® construction—less than 0.65 kW per hour.
- Certified cULus, UL EPH ANSI/NSF 4, CE & EAC for worldwide compliance.
At-a-Glance Specs
| Model | 500-1DN (narrow, single drawer) |
|---|---|
| Heat technology | Halo Heat® gentle radiant heat |
| Temperature range | 60 °F – 200 °F (16 °C – 93 °C) |
| Capacity | (1) 12" × 20" × 6" pan • up to 50 rolls or 34 baked potatoes (41 lb / 19 kg) |
| Exterior dimensions (H × W × D) | 11-5/8" × 16-11/16" × 31-3/16" (296 × 423 × 792 mm) |
| Electrical options |
120 V 1 ph 50/60 Hz 5.3 A 0.64 kW • NEMA 5-15P 208–240 V 1 ph 50/60 Hz 2.7 A 0.64 kW • NEMA 6-15P 230 V 1 ph 50/60 Hz 2.6 A 0.59 kW • CEE 7/7, CH2-16P, BS 1363, AS/NZS 3112 |
| Net / ship weight | 67 lb / 75 lb (30 kg / 34 kg) |
| Construction | Stainless steel cabinet & drawer; removable stainless drawer rails |
| Certifications | cULus • UL EPH ANSI/NSF 4 • CE • EAC |
| Warranty | 1-year parts & labor (see Alto-Shaam warranty for details) |
Recommended Accessories
- Built-in trim kit (PN 5015148).
- Caster stand assemblies: 3" (PN 5010921) or 5" (PN 55534) casters.
- 6" leg stand assembly (PN 55535).
- Perforated pan grid, 12" × 20" (PN 16642).
Installation Notes
Need multi-drawer capacity? Stack up to three 500-1DN units with no extra hardware required.
