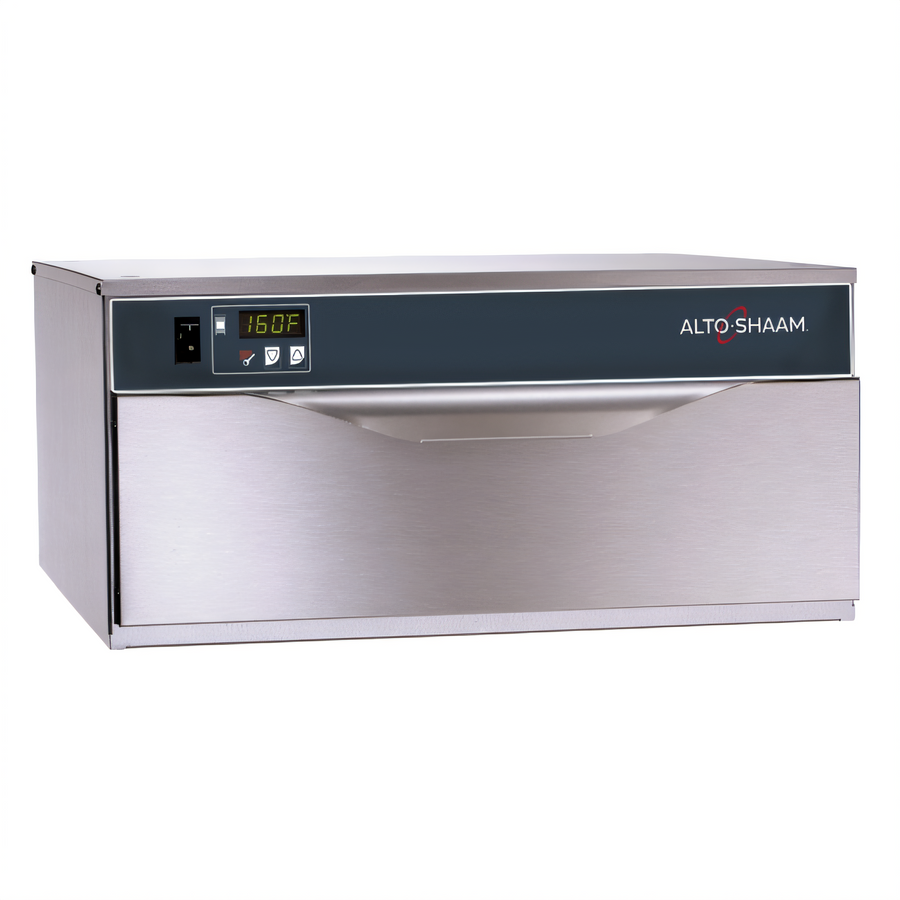

Alto-Shaam Halo Heat® Single Drawer Warmer – Model 500-1D
Free-standing, EcoSmart® one-drawer holding solution
Keep breads, proteins and sides hot, fresh and ready to serve without overcooking or drying out. The Alto-Shaam 500-1D employs gentle Halo Heat® technology—an even, radiant heat source that surrounds food for superior moisture retention and longer holding life, all while using no added water.
Why You’ll Love It
- Digital control with ↕ arrows and LED read-out maintains 60 – 200 °F (16 – 93 °C).
- Includes (1) full-size GN 1/1 pan 12" × 20" × 6" (305 × 508 × 152 mm).
- Optional oversize pan (15" × 20") fits without tools for menu flexibility.
- Holds up to 50 dinner rolls or 34 baked potatoes—36 lb (16 kg) per drawer.
- Uniform Halo Heat eliminates hot spots; food stays appetizing for hours.
- Energy-efficient EcoSmart® design draws only 0.64 kW.
- Non-magnetic stainless steel exterior with removable drawer rails for easy cleaning.
- Stackable or mountable on optional leg or caster stands—no extra hardware needed.
- cULus, UL EPH, ANSI/NSF 4, CE & EAC listed for worldwide compliance.
Specifications
| Model | 500-1D (one drawer, free-standing) |
|---|---|
| Exterior Dimensions (H × W × D) | 11-5/8" × 24-5/8" × 25-7/8" (296 × 624 × 657 mm) |
| Temperature Range | 60 °F – 200 °F (16 °C – 93 °C) |
| Capacity | (1) GN 1/1 pan (included) 36 lb / 16 kg max ≈ 50 rolls | 34 baked potatoes |
| Electrical | 120 V, 1 Ph, 50/60 Hz, 5.3 A, 0.64 kW NEMA 5-15P (15 A, 125 V) 208-240 V & 230 V configurations available |
| Net Weight | 80 lb (36 kg) |
| Construction | Stainless steel cabinet & drawer; removable stainless drawer supports |
| Certifications | cULus, UL EPH, ANSI/NSF 4, CE, EAC |
| Warranty | 1-year parts & labor (US/CA) – see full Alto-Shaam warranty for details |
Popular Accessories (Sold Separately)
- Oversize pan 15" × 20" × 5" – PN 2123
- Perforated pan grids – 12" × 20" (PN 16642) or 15" × 20" (PN 1231)
- 3" caster stand assembly – PN 5010920
- 5" caster stand assembly – PN 15379
- 6" leg stand assembly – PN 15380
- Built-in trim kit – PN 5015147
