Alto-Shaam  |  Halo Heat  |  SKU: 500-1D

Alto-Shaam 500-1D Halo Heat Drawer Warmers

$1,750.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Owner's manual Spec sheet - ul & ce Spec sheet - french canadian Spec sheet - spanish Warranty sheet Warranty sheet
Related Searches
Countertop Food Warming Drawer Warmers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

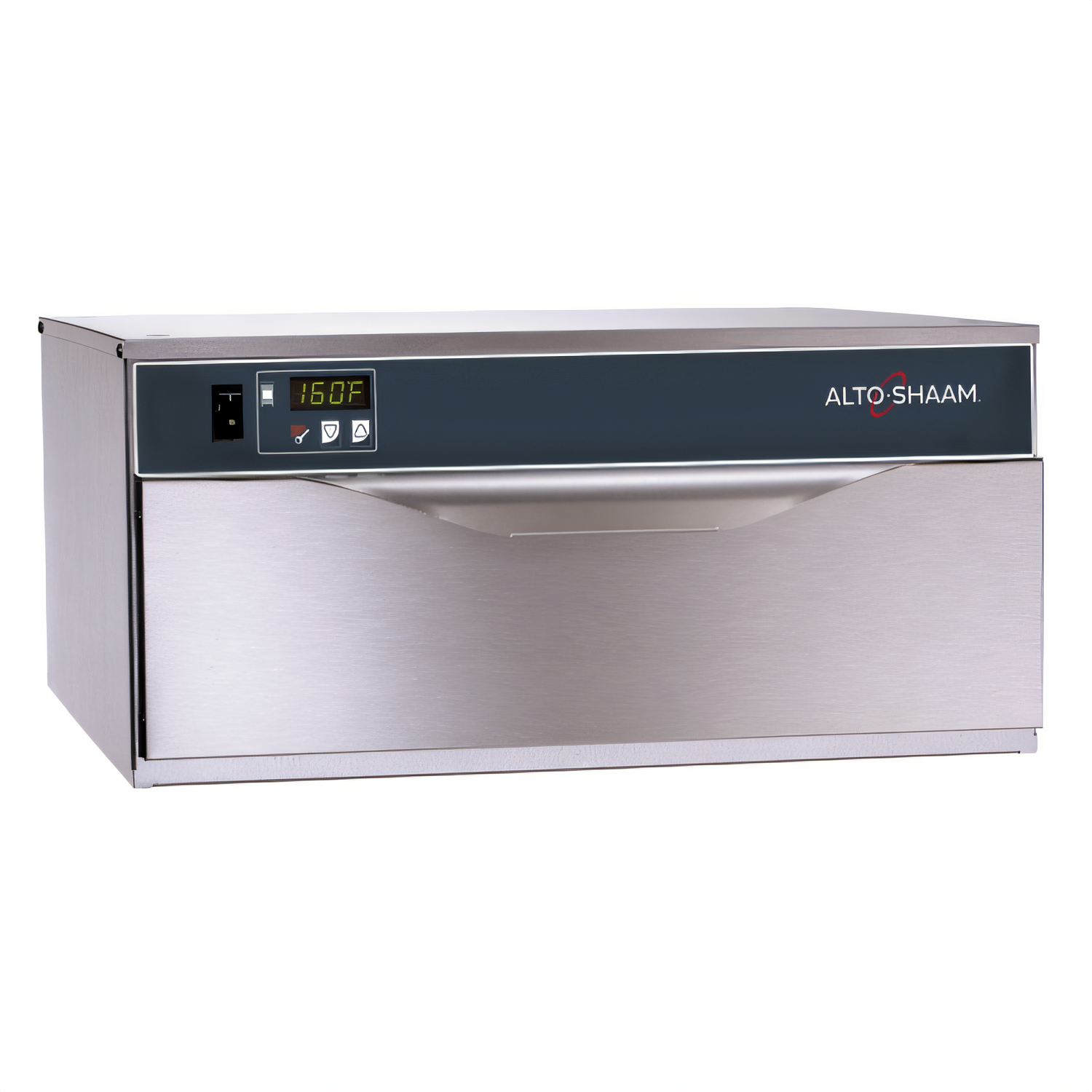

Alto-Shaam Halo Heat® Single Drawer Warmer – Model 500-1D

Free-standing, EcoSmart® one-drawer holding solution

Keep breads, proteins and sides hot, fresh and ready to serve without overcooking or drying out. The Alto-Shaam 500-1D employs gentle Halo Heat® technology—an even, radiant heat source that surrounds food for superior moisture retention and longer holding life, all while using no added water.

Why You’ll Love It

  • Digital control with ↕ arrows and LED read-out maintains 60 – 200 °F (16 – 93 °C).
  • Includes (1) full-size GN 1/1 pan 12" × 20" × 6" (305 × 508 × 152 mm).
  • Optional oversize pan (15" × 20") fits without tools for menu flexibility.
  • Holds up to 50 dinner rolls or 34 baked potatoes—36 lb (16 kg) per drawer.
  • Uniform Halo Heat eliminates hot spots; food stays appetizing for hours.
  • Energy-efficient EcoSmart® design draws only 0.64 kW.
  • Non-magnetic stainless steel exterior with removable drawer rails for easy cleaning.
  • Stackable or mountable on optional leg or caster stands—no extra hardware needed.
  • cULus, UL EPH, ANSI/NSF 4, CE & EAC listed for worldwide compliance.

Specifications

Model 500-1D (one drawer, free-standing)
Exterior Dimensions (H × W × D) 11-5/8" × 24-5/8" × 25-7/8"
(296 × 624 × 657 mm)
Temperature Range 60 °F – 200 °F (16 °C – 93 °C)
Capacity (1) GN 1/1 pan (included)
36 lb / 16 kg max
≈ 50 rolls | 34 baked potatoes
Electrical 120 V, 1 Ph, 50/60 Hz, 5.3 A, 0.64 kW
NEMA 5-15P (15 A, 125 V)
208-240 V & 230 V configurations available
Net Weight 80 lb (36 kg)
Construction Stainless steel cabinet & drawer; removable stainless drawer supports
Certifications cULus, UL EPH, ANSI/NSF 4, CE, EAC
Warranty 1-year parts & labor (US/CA) – see full Alto-Shaam warranty for details

Popular Accessories (Sold Separately)

  • Oversize pan 15" × 20" × 5" – PN 2123
  • Perforated pan grids – 12" × 20" (PN 16642) or 15" × 20" (PN 1231)
  • 3" caster stand assembly – PN 5010920
  • 5" caster stand assembly – PN 15379
  • 6" leg stand assembly – PN 15380
  • Built-in trim kit – PN 5015147
Minimum clearances for ventilation when free-standing: 3" (76 mm) rear, 1" (25 mm) each side, 2" (51 mm) top.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH

Height

11.63in

Width

24.63in

Depth

25.88in

Shipping Weight

90.0lbs

Controls

thermostatic controls

Drawers

1 drawer

Style

standard drawer

Specifications

Halo Heat® Warming Drawer, free standing, one drawer, digital controller, (1) 12" x 20" pan, (50) rolls or (34) baked potatoes capacity, drawer can adapt to hold optional oversize pan, adjustable thermostat, stainless steel exterior, EcoSmart®, cULus, UL EPH ANSI/NSF 4, CE, EAC
