Alto-Shaam  |  Halo Heat  |  SKU: 400-HWLF/D6

Alto-Shaam 400-HWLF/D6 Halo Heat Steam Tables & Food Wells

$3,306.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - spanish Terms & conditions Owner's manual Spec sheet - ce Spec sheet - ul Spec sheet - french canadian Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

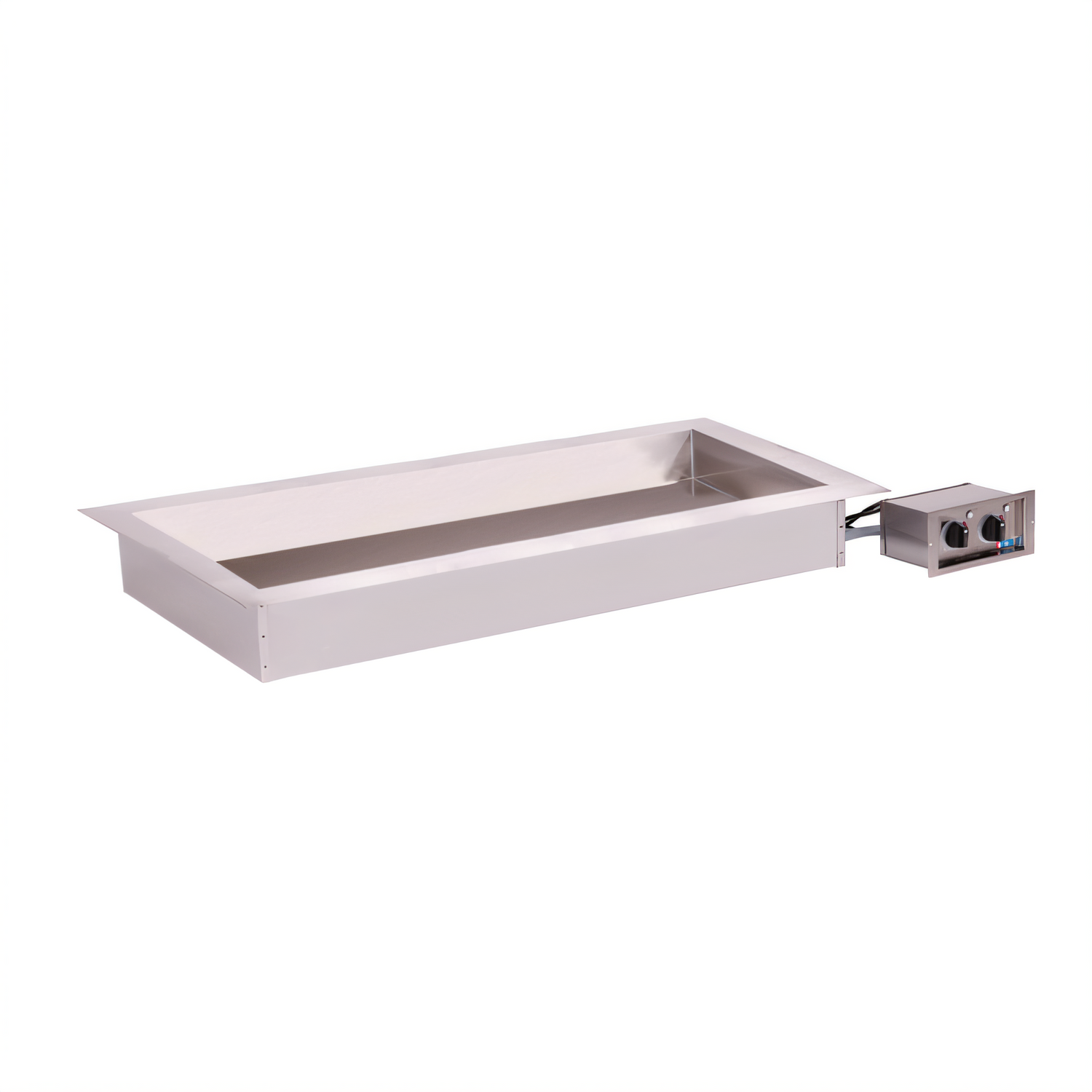

Alto-Shaam 400-HWILF/D6 Halo Heat® Waterless Hot Food Well – 4 Wells, Large Flange

6-3/8" deep drop-in wells | independent thermostats | EcoSmart® electric holding

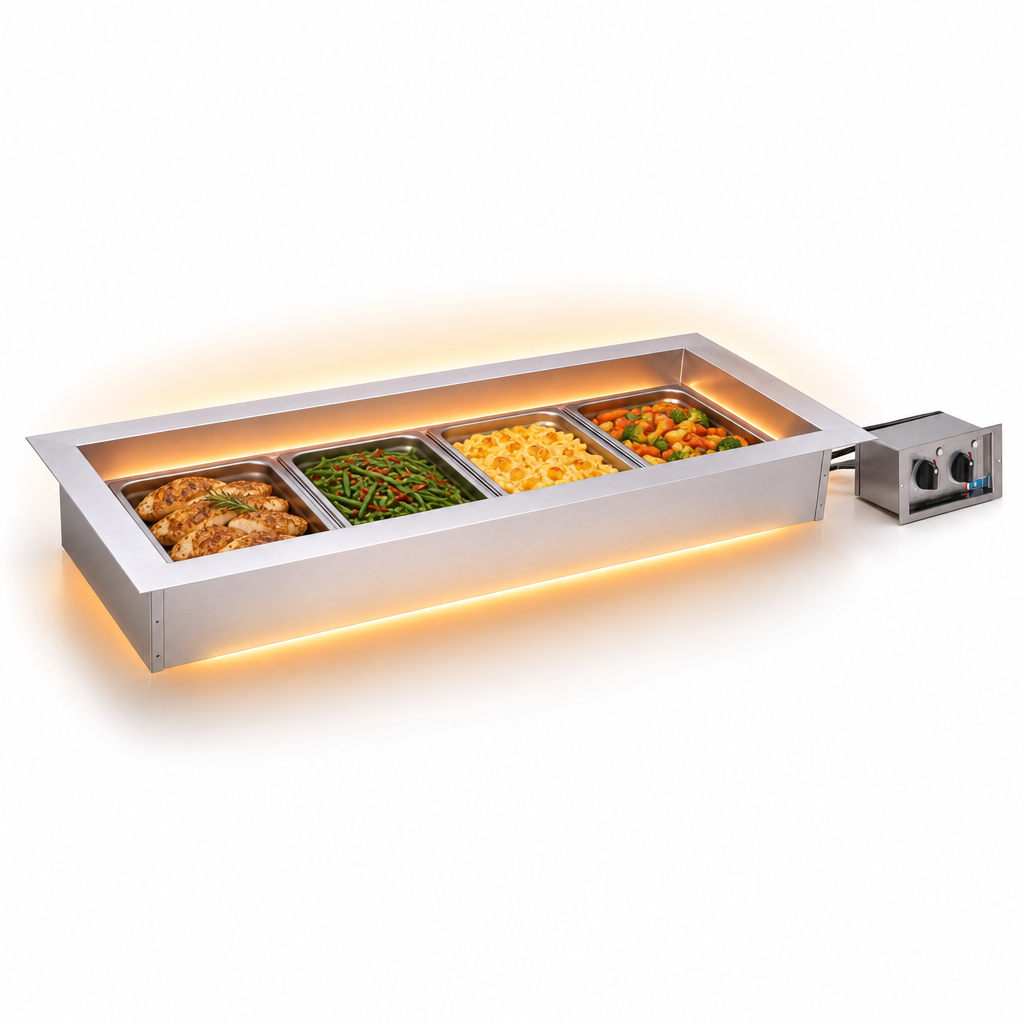

Keep buffet and service lines fresh, appetizing and safe without the hassle of steam tables. The Alto-Shaam 400-HWILF/D6 uses patented Halo Heat® technology to surround each pan with gentle, even heat—extending hold times and eliminating the water, plumbing and lime-scale headaches of conventional wells.

Why Operators Love Halo Heat®

  • Waterless operation – no drains, plumbing or costly water treatment required.
  • Radiant Halo Heat® gently blankets food, protecting texture, color and moisture.
  • EcoSmart® design reduces energy use and heat-of-rejection for a cooler workspace.
  • Independent thermostats (2) let you group foods by temperature for maximum versatility.

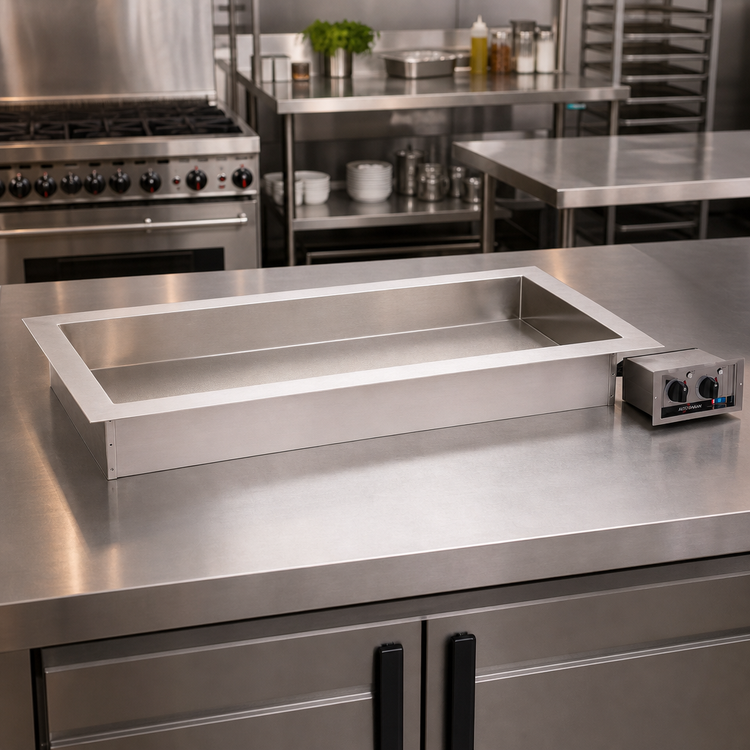

  • Large flange simplifies drop-in installation and gives a clean, finished counter look.
  • Stainless steel interior & exterior stand up to daily commercial abuse and wipe clean fast.

Flexible Pan Configurations

  • 4 × full-size 12" × 20" pans (pans not included)
  • 8 × half-size 12" × 10" pans
  • 12 × third-size 12" × 63⁄4" pans
  • Includes eight (8) half/third-size divider bars for easy re-configuration

At-a-Glance Specifications

Model 400-HWILF/D6 (large-flange, independent control, 6-3/8" deep)
Well Depth 6-3/8" (162 mm) – accommodates standard 6" deep pans
Controls (2) flush-mount, adjustable thermostatic dials (one pair of wells per control)
Temperature Range Precisely adjustable holding temperatures up to 200 °F (93 °C)
Exterior Dimensions 9-5/16" H × 57-5/16" W × 27-1/16" D (225 mm × 1455 mm × 686 mm)
Counter Cut-Out (non-combustible) 52-15/16" L × 22-1/8" W (1345 mm × 562 mm)
Construction All-stainless, drop-in body with large decorative flange
Electrical 120 V / 1 ph / 2.4 kW / 20 A – NEMA L5-30P
208 V / 1 ph / 1.8 kW / 8.7 A – NEMA 6-15P
240 V / 1 ph / 2.4 kW / 10 A – NEMA 6-15P
230 V / 1 ph / 2.4 kW / 10.4 A – CEE 7/7 (EU), CH2-16P (CH), BS 1363 (UK)
Ingress Rating IPX3 – protected against water spray
Net / Ship Weight 108 lb (49 kg) / 150 lb (68 kg)

Need adapter plates or full-size divider bars? Find accessories in the “Recommended Add-Ons” section below.

Installation note: Unit must be installed level, with 1" (25 mm) clearance from combustible surfaces. Counter material must withstand 200 °F (93 °C). Allow 6" (152 mm) clearance from the control box to the conduit bend.

Certifications & Warranty

  • cULus & UL EPH Classified for electrical safety and sanitation
  • CE, UKCA, EAC, TUV NORD approved for global compliance
  • EcoSmart® verified for energy-efficient operation
  • IPX3 splash-proof rating – ideal for busy service counters
  • 1-year parts & labor (15-month parts from ship date) factory warranty

Perfect For

  • Supermarket deli & grab-and-go stations
  • Hotel breakfast or banquet buffets
  • College, corporate & healthcare cafeterias
  • Catering drop-offs and concession stands

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

9.31in

Width

57.31in

Depth

27.06in

Shipping Weight

110.0lbs

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Drain

without drain

Pan Capacity

(4) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit with large flange, Drop-In, Electric, (4) 12" x 20" full-size pan capacity (pans NOT included), 6-3/8" deep well, holds 6" deep pans, (2) adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
