Alto-Shaam 400-HWLF/D4 Halo Heat Steam Tables & Food Wells
Description
Alto-Shaam 400-HWILF/D4 Halo Heat® Waterless Hot Food Well
Large-Flange • 4 × Full-Size Drop-In Wells • Individual Thermostatic ControlServe every dish at its best with Alto-Shaam’s signature Halo Heat®. The 400-HWILF/D4 delivers gentle, even radiant heat to four 12 × 20 in wells—no water, plumbing or fans required. Built for front-of-house presentation and back-of-house efficiency, this EcoSmart® hot food well lowers utility, maintenance and labor costs while extending product hold times and quality.
Key Features & Benefits

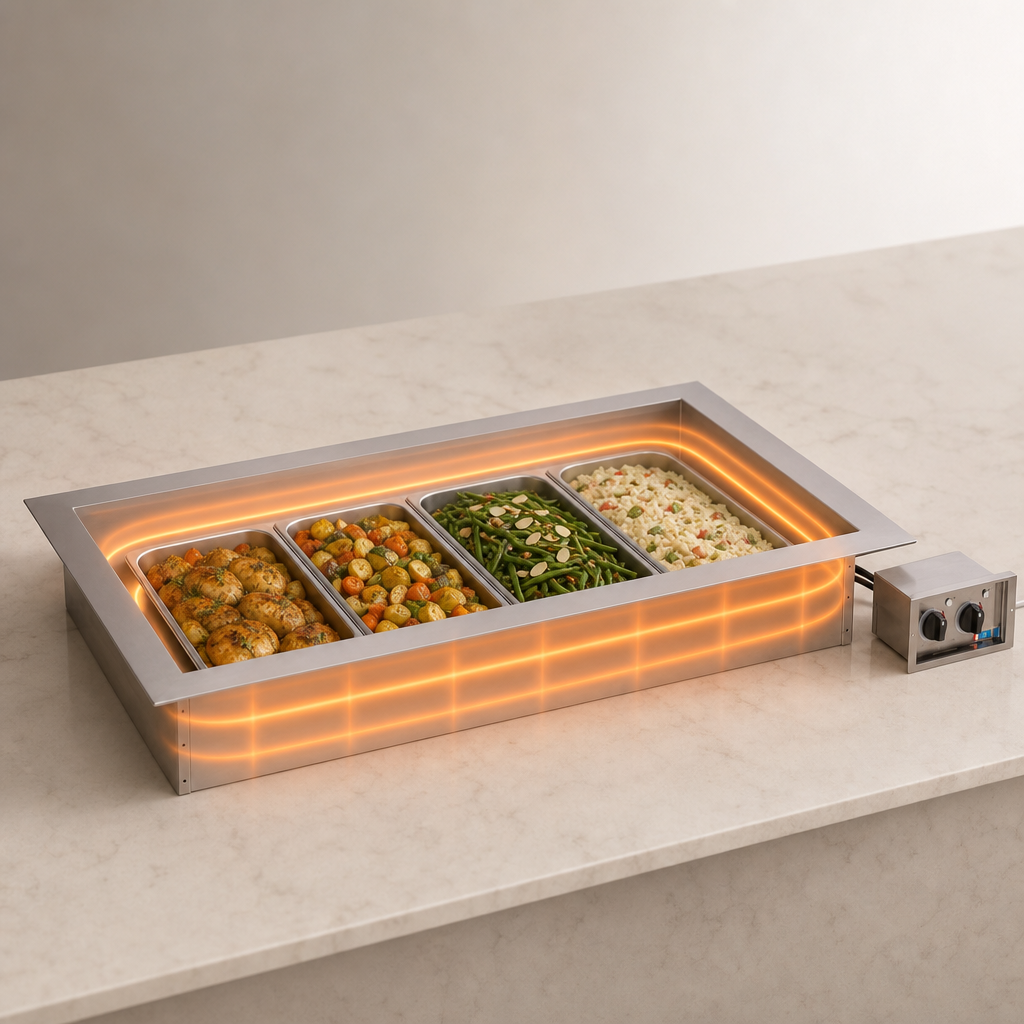

- Waterless Halo Heat® technology surrounds food with gentle, even warmth—no hot spots, steam, or lime scale build-up.
- Four individual wells accept full-size, half-size or third-size pans up to 4 in (102 mm) deep.
- Large stainless-steel flange covers the countertop cut-out for a clean, flush look.
- Two independent adjustable thermostatic controllers (two wells per control) let you hold multiple menu items at their ideal temperatures.
- Energy-efficient design reduces kW draw and heat loss for lower operating costs (only 0.07 kW heat gain to ambient).
- Completely water-free system eliminates plumbing, steam and slip hazards, improving safety and sanitation.
- Food-safe holding without fans keeps delicate items from drying out and preserves product appearance for increased sales.
Specifications
| Capacity | (4) full-size 12 × 20 in pans (8) half-size or (12) third-size pans with included divider bars 96 lb (44 kg) product max • 58 qt (55 L) |
|---|---|
| Well Depth | 4-3/8 in (111 mm) — fits 4 in pans |
| Exterior (H × W × D) | 7-5/16 × 57-5/16 × 27-1/16 in (185 × 1455 × 686 mm) |
| Cut-out – Non-combustible | 52-15/16 × 22-1/8 in (1345 × 562 mm) |
| Cut-out – Combustible | 54-7/8 × 24-1/8 in (1394 × 613 mm) |
| Control Box Cut-out | 4-1/4 × 15-3/4 × 11-3/8 in (108 × 400 × 288 mm) |
| Net / Ship Weight | 96.5 lb (44 kg) / 166 lb (75 kg) |
| Electrical (single phase) |
120 V | 20.0 A | 2.4 kW | NEMA L5-30P 208 V | 8.7 A | 1.8 kW | NEMA 6-15P 240 V | 10.0 A | 2.4 kW | NEMA 6-15P 230 V | 10.4 A | 2.4 kW | CEE 7/7, CH2-16P or BS 1363 |
| Ingress & Ambient | IPX3 splash-proof • Countertop must withstand 200 °F (93 °C) |
| Certifications | cULus • UL EPH Classified • CE • TUV NORD • UKCA • EcoSmart® |
Included & Optional Accessories
- 8 half/third-size pan divider bars (included)
- Full-size pan divider bars (optional)
- Locking kit for control box (optional)
- Stainless-steel heat shield for under-counter storage (recommended)
Peace-of-Mind Warranty
Alto-Shaam backs your investment with a 1-year parts & labor warranty (15 months from shipment) on the entire unit. Halo Heat® elements are covered for as long as the original owner retains the equipment.
